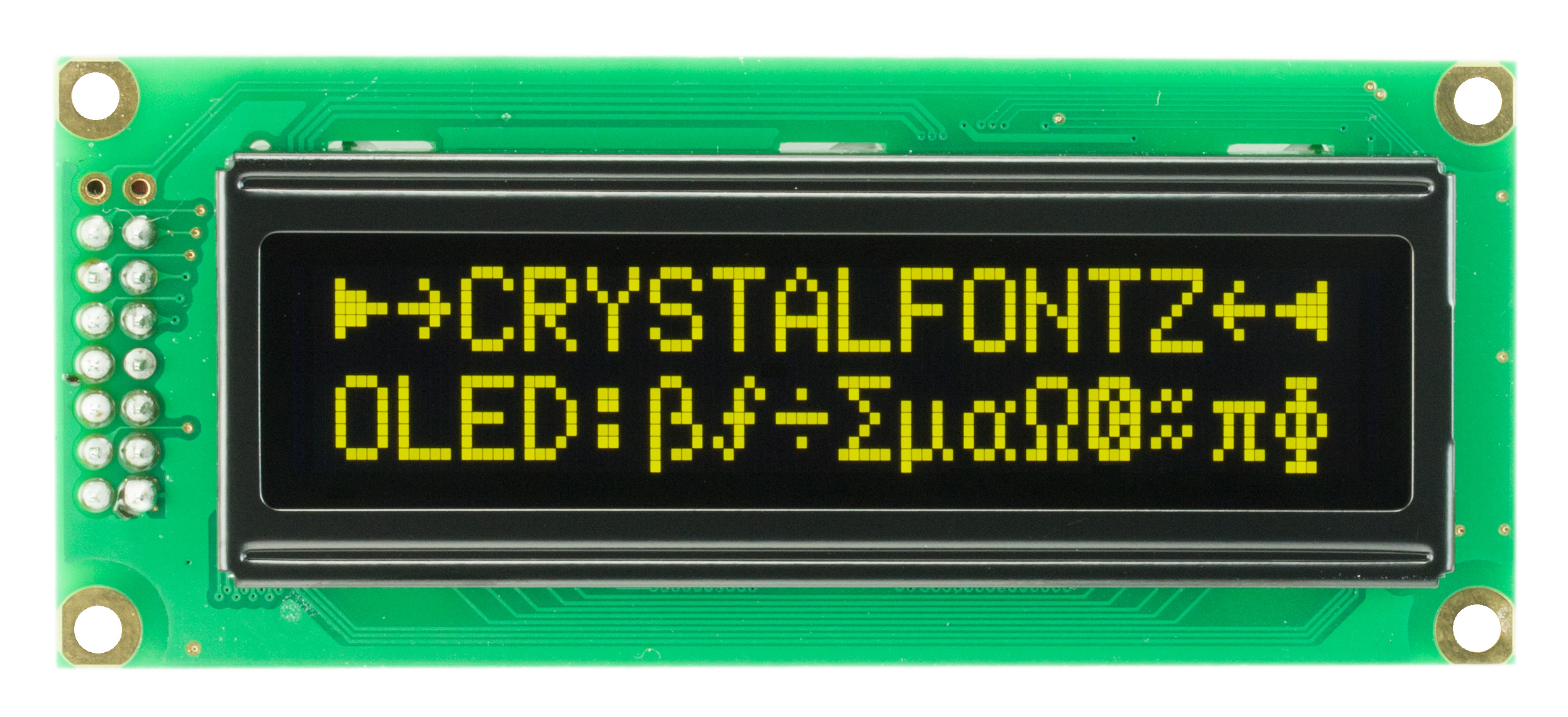

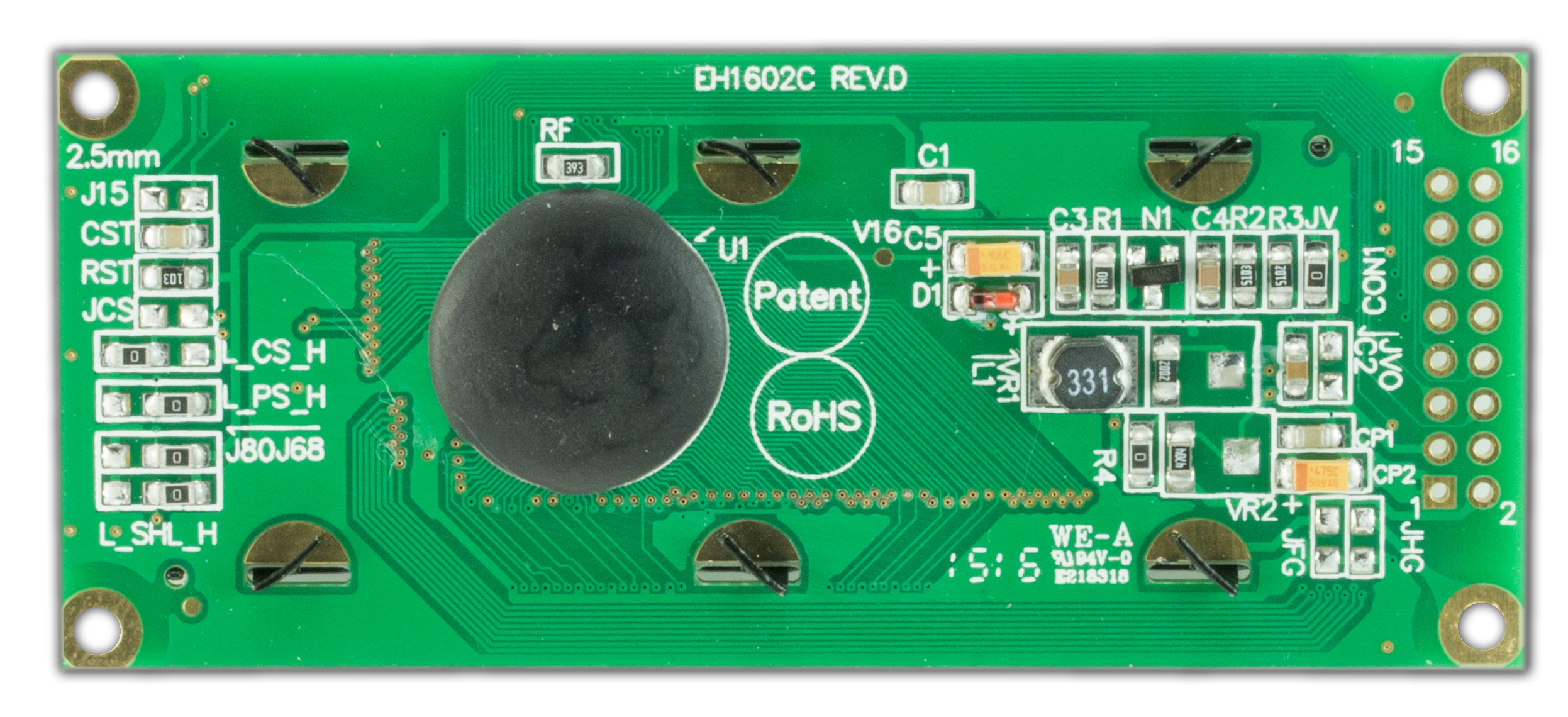

16x2 Yellow Character OLED ModulePart Number: CFAL1602C-Y4-Bit/8-Bit Parallel Host InterfaceThe OLED technology of the yellow-on-black CFAL1602C-Y provides a striking, high contrast visual appearance that stays consistent from  -40°C to 80°C (-40°F to 176°F). Since OLEDs are emissive, there is no backlight, resulting in a thinner package that is ideal when you need a reliable 16x2 character display and space is at a premium. The modern look of the CFAL1602C-Y OLED display provides a very wide 160° viewing angle, keeping the same crisp view from nearly any direction.
This 16x2 character OLED is compatible with our 8x2 pin dual row header. With no backlight and no contrast controls, designing in the CFAL1602C-Y reduces the number of control lines needed.
The command set of the on-board  WS0010 controller is similar to the industry standard Hitachi HD44780 and compatibles, reducing your adoption time of the CFAL1602C-Y into your project.  With four built in font tables, multi-language support is a breeze.
Looking to change the look of your existing product that uses our STN LCD CFAH1602C? The CFAL1602C-Y has the same physical footprint.
Extra wide range operating temperature:  -40°C to 80°C (-40°F to 176°F).
High contrast OLED Character Display.
True black background with yellow characters.
Parallel sample code, datasheet, and RoHS/REACH Certificate of Compliance are under the Datasheets & Files tab.
Sleek, modern visual appearance.
Thin package, no backlight.
No visual change over entire operating temperature range.
Very wide 160° viewing angle.
Four built in font tables:English / Japanese
English / Western European I
English / Western European II
English / Cyrillic

Easy connectivity with standard 0.100" / 2.54mm connector.
Product VariationsColorsYellow on Black
No BacklightGreen on Black
No BacklightWhite on Black
No BacklightBlue on Black
No Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 2

    Module Overall        width
        height
        depth

        millimeters
        85
        36
        8.9

        inches
        3.35
        1.42
        0.35

        Diagonal Dimension
            2.29"

    Viewing Area        Width
        Height

        millimeters
        66
        16

        inches
        2.60
        0.63

    Active Area        Width
        Height

        millimeters
        56.95
        11.85

        inches
        2.24
        0.47

    Character Size        Width
        Height

        millimeters
        2.95
        5.55

        inches
        0.116
        0.219

    Character Pitch        Width
        Height

        millimeters
        3.6
        6.3

        inches
        0.142
        0.248

    Dot Size        Width
        Height

        millimeters
        0.55
        0.65

        inches
        0.022
        0.026

    Dot Pitch        Width
        Height

        millimeters
        0.6
        0.7

        inches
        0.024
        0.028

        Weight
            24g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
Polarizer
            Emissive
View Angle
            >160°

        Foreground Color
            Yellow
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.8V
Supply Voltage for Logic Maximum
            5.3V

        Supply Voltage for Logic Typical
            5V

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

    Storage Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Winstar Display WS0010

Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAL1602C Series Datasheet

 download Files and Downloads
folder_zip Software Source - ATMega2561 8, 4-bit, and SPI sample code
folder_zip Hardware Design - 3D Model
folder_zip CAD Export - CFAL1602C Series 2D CAD
picture_as_pdf 1 to 1 Template
link Arduino Demo Code Download on Github
link Arduino Demo Code Respository on Github

Other components worth considering

						8x2 Pin Dual Row Header
Add header pins (5pk)? $0.28 ea.

Colors	Yellow on Black No Backlight Green on Black No Backlight White on Black No Backlight Blue on Black No Backlight

Module Overall	width	height	depth
millimeters	85	36	8.9
inches	3.35	1.42	0.35

Viewing Area	Width	Height
millimeters	66	16
inches	2.60	0.63

Active Area	Width	Height
millimeters	56.95	11.85
inches	2.24	0.47

Character Size	Width	Height
millimeters	2.95	5.55
inches	0.116	0.219

Character Pitch	Width	Height
millimeters	3.6	6.3
inches	0.142	0.248

Dot Size	Width	Height
millimeters	0.55	0.65
inches	0.022	0.026

Dot Pitch	Width	Height
millimeters	0.6	0.7
inches	0.024	0.028

Operating Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Storage Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #11116: Bezel Change

Products Affected:	CFAL0802A-Y, CFAL1602C-B, CFAL1602C-W, CFAL1602C-Y, CFAL1602C-YT, CFAL1602C-PW, CFAL1602C-PY, CFAL1602C-PYT
Date Issued:	February 21, 2022
Summary:	Bezel Change
Description:	The bezel around these OLED displays is being modified to remove the small gap adjacent to the PCB.
Reason:	This gap is used in the manufacturing of STN LCDs that share the same bezel and is not necessary for OLED displays.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #11101: Reset Pin Change

Products Affected:	CFAL2004A-Y, CFAL2002A-Y, CFAL1602L0-Y, CFAL1202A-Y, CFAL5016A-Y, CFAL0802A-Y, CFAL1602C-B, CFAL1602C-W, CFAL1602C-Y
Date Issued:	August 17, 2021
Summary:	Reset Pin Change
Description:	RST and CST, the components in the RC filter for the reset pin, are being modified. RST will be 33kOhms and CST will be 1uF.
Reason:	Some reset circuits have shown not to be strong enough to drive the reset pin within the specified timing. If the reset circuit is not strong enough, the controller will not properly reset which causes abnormal behavior.

Part Change Notice #11077: Small Layout Change

Products Affected:	CFAL2004A-Y, CFAL2002A-Y, CFAL1602L0-Y, CFAL1202A-Y, CFAL5016A-Y, CFAL0802A-Y, CFAL1602C-W, CFAL1602C-Y, CFAL1602C-YT, CFAL1602C-PW, CFAL1602C-PY, CFAL5016A-PY
Date Issued:	February 10, 2021
Summary:	Small Layout Change
Description:	Changing manufacturing locations of the wafers used in the controller chip. The layout has to be slightly modified to accommodate the practices at the new facility. The functionality will remain the same.
Reason:	Changing manufacturing locations due to the wafer process no longer being supported by the original facility.

Product Update #10683: (New Product) CFAL1602C-Y

New Product:	CFAL1602C-Y
Date Issued:	November 5, 2015
Summary:	(New Product) CFAL1602C-Y
Description:	OLED Modules: 16x2 OLED Character Display, Yellow
