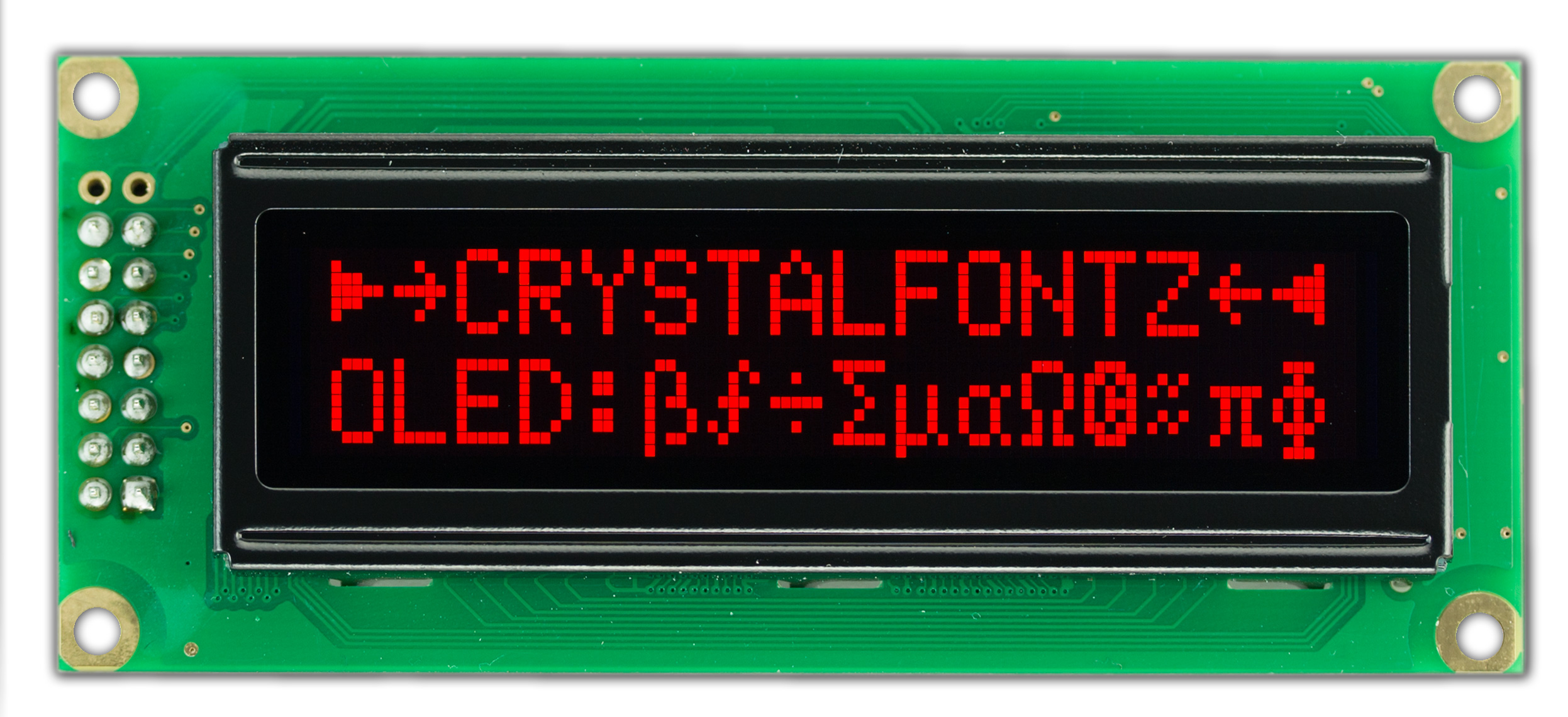

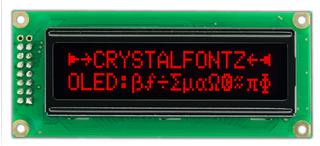

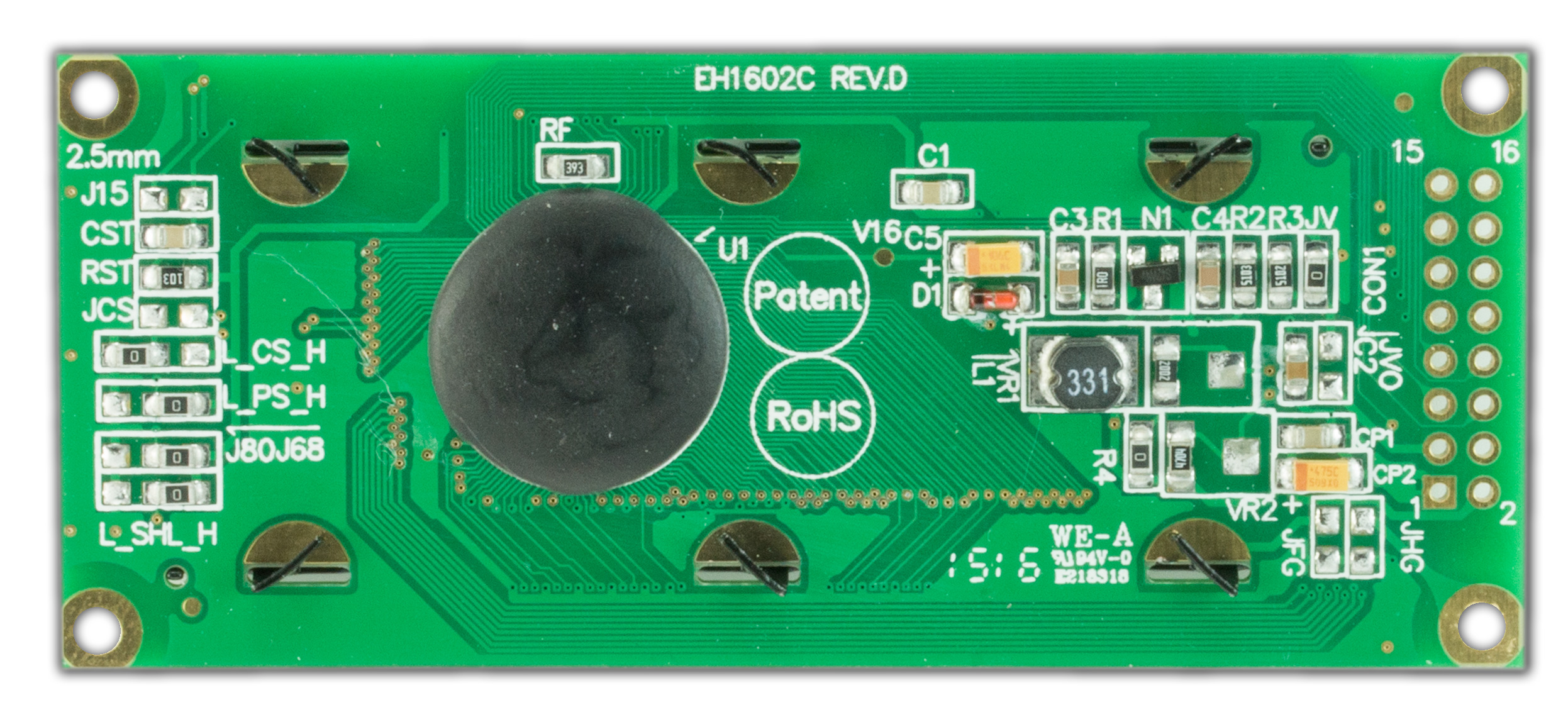

16x2 Red Character OLED

Part Number: CFAL1602C-R

4-Bit/8-Bit Parallel

The OLED technology of the red-on-black CFAL1602C-R provides a striking, high contrast visual appearance that stays consistent from -40°C to 80°C (-40°F to 176°F). Since OLEDs are emissive, there is no backlight, resulting in a thinner package that is ideal when you need a reliable 16x2 character display and space is at a premium. The modern look of the CFAL1602C-R OLED display provides a very wide 160° viewing angle, keeping the same crisp view from nearly any direction.

We offer these 16x2 character OLEDs ready to use with a standard 0.100" (2.54mm) connector. With no backlight and no contrast controls, designing in the CFAL1602C-R reduces the number of control lines needed.

The command set of the on-board WS0010 controller is similar to the industry standard Hitachi HD44780 and compatibles, reducing your adoption time of the CFAL1602C-R into your project. With four built in font tables, multi-language support is a breeze.

Looking to change the look of your existing product that uses our STN LCD CFAH1602C? The CFAL1602C-R has the same physical footprint.

• High contrast OLED Character Display.
• Four built in font tables:
  • English / Japanese
  • English / Western European I
  • English / Western European II
  • English / Cyrillic
• True black background with red characters.
• Sleek, modern visual appearance.
• Thin package, no backlight.
• Extra wide range operating temperature: -40°C to 80°C (-40°F to 176°F).
• No visual change over entire operating temperature range.
• Very wide 160° viewing angle.
• Easy connectivity with standard 0.100" / 2.54mm connector.
• Parallel sample code, datasheet, and RoHS/REACH Certificate of Compliance are under the Datasheets & Files tab.

• square_foot Physical Characteristics

  Physical Characteristics

  Characters x Lines

  16 x 2

  Module Overall	width	height	depth
  millimeters	85	36	8.9
  inches	3.35	1.42	0.35

  Diagonal Dimension

  2.29"

  Viewing Area	Width	Height
  millimeters	66	16
  inches	2.60	0.63

  Active Area	Width	Height
  millimeters	56.95	11.85
  inches	2.24	0.47

  Character Size	Width	Height
  millimeters	2.95	5.55
  inches	0.116	0.219

  Character Pitch	Width	Height
  millimeters	3.6	6.3
  inches	0.142	0.248

  Dot Size	Width	Height
  millimeters	0.55	0.65
  inches	0.022	0.026

  Dot Pitch	Width	Height
  millimeters	0.6	0.7
  inches	0.024	0.028

  Weight

  24g

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type	OLED
  Polarizer	Emissive
  View Angle	>160°

  Foreground Color	Red
  Background Color	Black

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	4.8V
  Supply Voltage for Logic Maximum	5.3V

  Supply Voltage for Logic Typical

  5V

• nature Environmental

  Environmental

  Operating Temperatures	min	max
  Celsius	-40°	80°
  Fahrenheit	-40°	176°

  Storage Temperatures	min	max
  Celsius	-40°	80°
  Fahrenheit	-40°	176°

  Humidity	min	max
  Non-condensing	0%	90%

• cable Electronics

  Electronics

  Controller Documents	Winstar Display WS0010
  Interface	4-bit Parallel, 8-bit Parallel

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAL1602C Series Datasheet




• download Files and Downloads
  folder_zip Software Source - ATMega2561 8, 4-bit, and SPI sample code


  folder_zip Hardware Design - 3D Model


  folder_zip CAD Export - CFAL1602C Series 2D CAD


  picture_as_pdf 1 to 1 Template
