[EOL] Yellow 128x64 Parallel Graphic OLED from Crystalfontz

Product

Home » Products

                This product has reached end of life, we don't offer a direct replacement. However we have many other 128x64 OLEDs available.

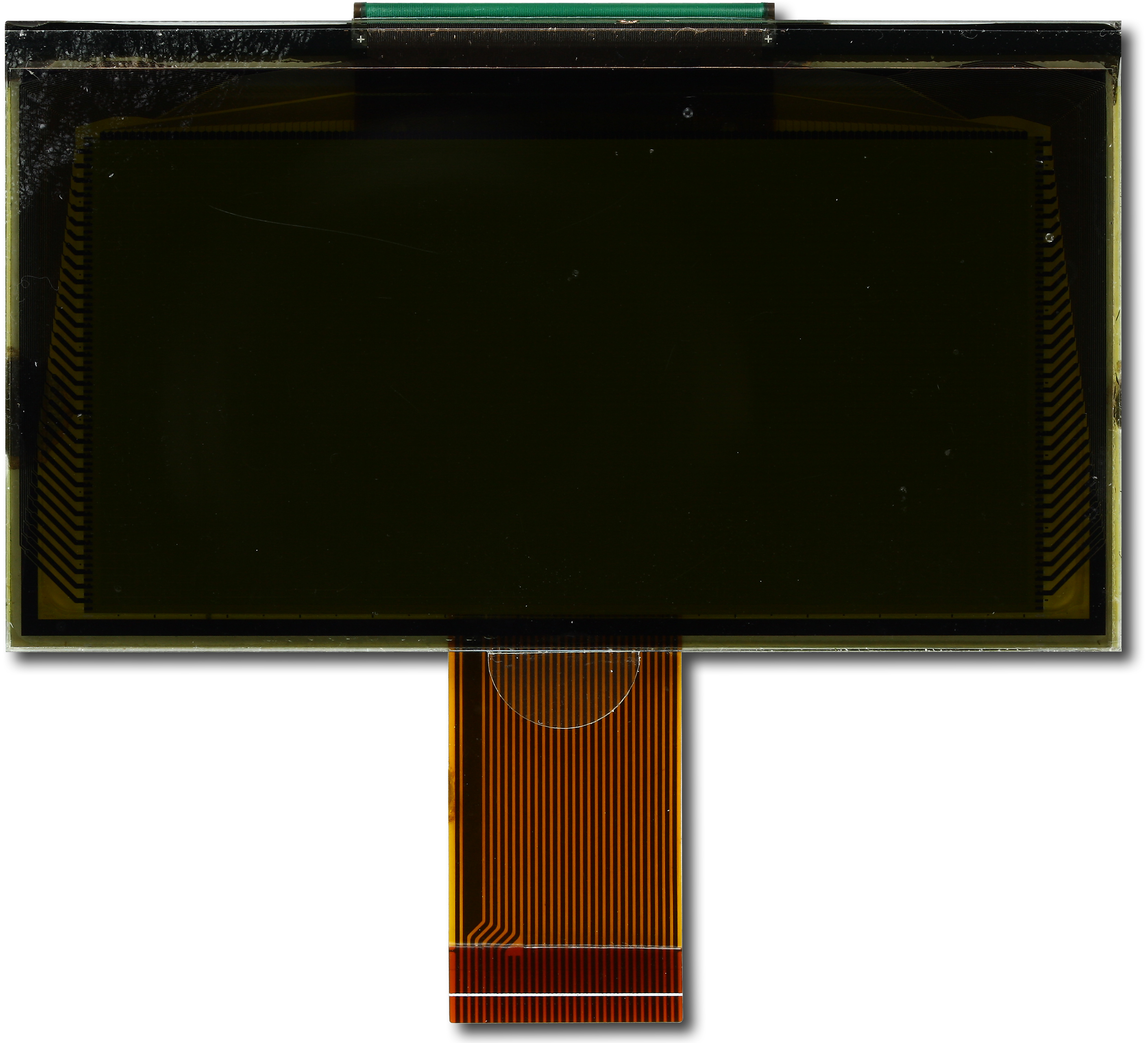

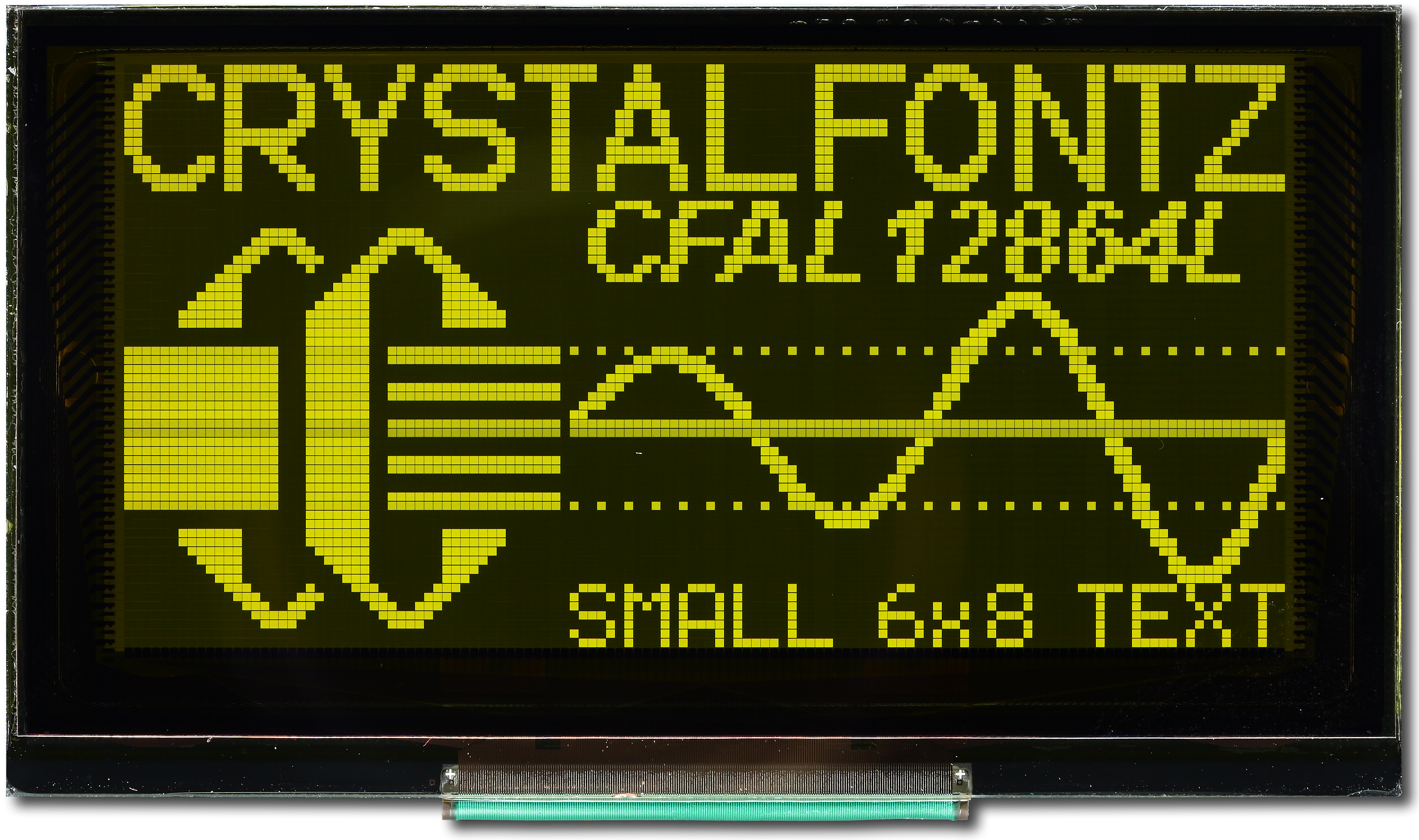

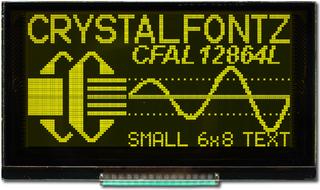

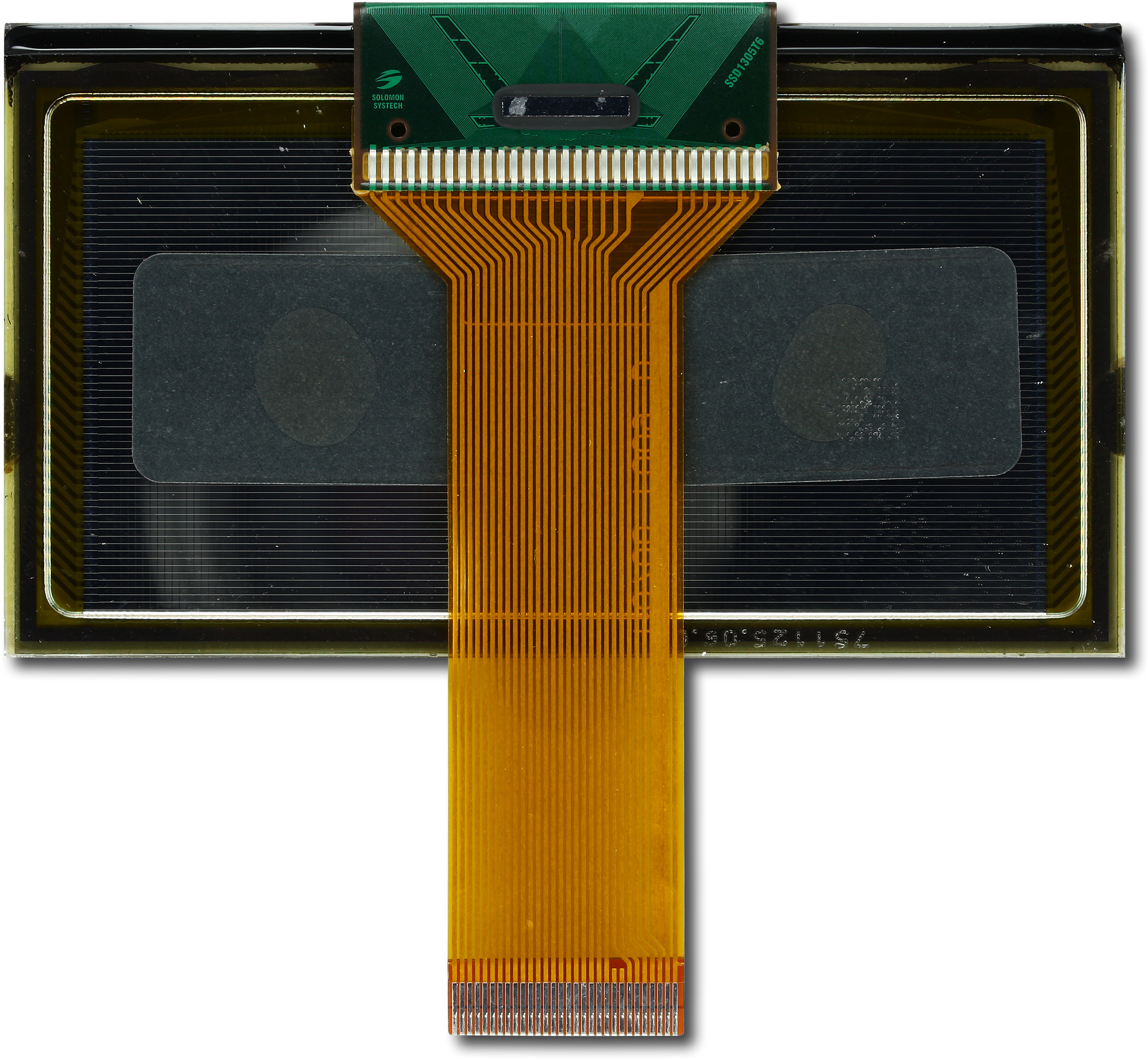

[EOL] Yellow 128x64 Parallel Graphic OLEDPart Number: CFAL12864L-Y-B6128 x 64 Graphic OLED module yellow OLED. The FFC (Flat Flex Cable) mates with standard ZIF connectors such as 609-1244-1-ND, 609-1882-1-ND, or OR723CT-ND available from Digi-Key.
	128x64 graphic OLED display module
	Single 3v supply and logic levels (modules with PCB only)
	Extremely wide viewing angles
	Very high contrast ratio
	Built-in Solomon SSD1305 or compatible controller
	8-bit parallel interface or SPI Interface
	RoHS Compliant

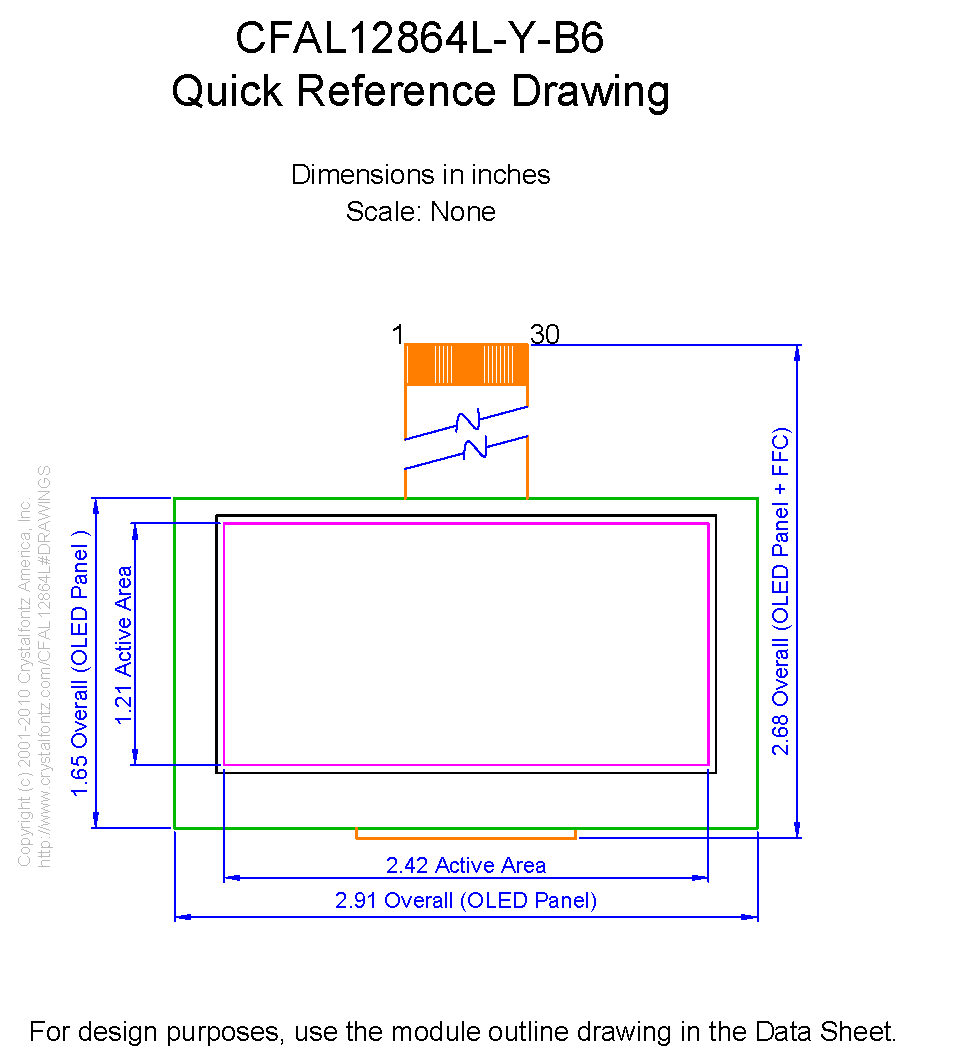

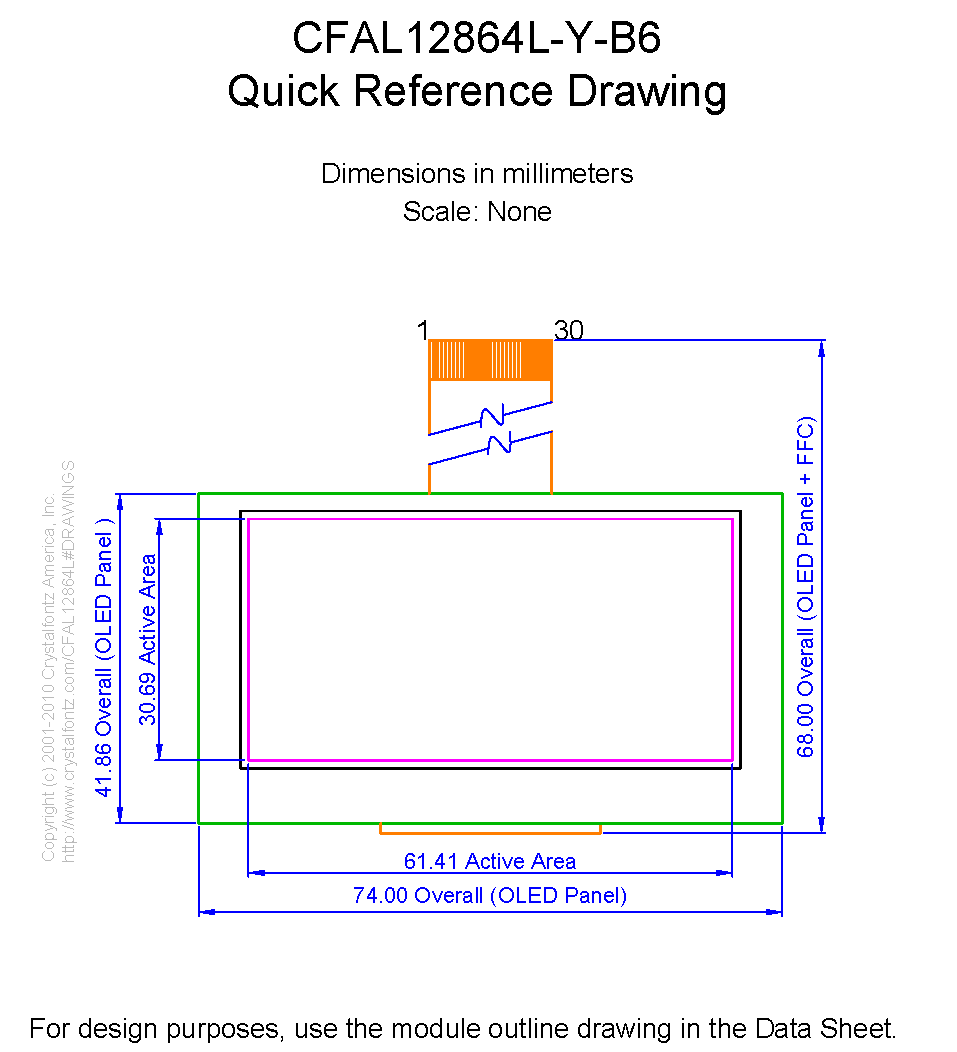

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        73
        68
        2.5

        inches
        2.87
        2.68
        0.10

*width / height does not include Foldable Tab

    PCB Outline        width
        height
        depth

        millimeters
        73
        68
        3

        inches
        2.87
        2.68
        0.12

    Viewing Area        Width
        Height

        millimeters
        63.41
        32.69

        inches
        2.50
        1.29

    Active Area        Width
        Height

        millimeters
        61.41
        30.69

        inches
        2.42
        1.21

    Dot Size        Width
        Height

        millimeters
        0.45
        0.45

        inches
        0.018
        0.018

    Dot Pitch        Width
        Height

        millimeters
        0.48
        0.48

        inches
        0.019
        0.019

        Weight
            14g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
Polarizer
            Emissive

        Backlight Type
            None
Mode
            Positive
Foreground Color
            Yellow
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.5mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Solomon Systech SSD1305
SSD1305 132 x 64 Dot Matrix

OLED/PLED Segment/Common Driver with Controller
Interface
            8-bit Parallel, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAL12864LYB6 Data Sheet v1.2.pdf
(Datasheet V 1.2, Hardware A)
Previous Versions of Datasheetspicture_as_pdfCFAL12864LYB6 Data Sheet v1.1.pdf
(Datasheet V 1.1, Hardware A)
picture_as_pdfCFAL12864LYB6 v1.0.pdf
(Datasheet V 1.0, Hardware A)
picture_as_pdfCFAL12864LYB6.pdf

 download Files and Downloads
folder_zip Software Source - ATmega2561 Demonstration Code
folder_zip CAD Export - CFAL12864L-Y-B6 2D CAD
picture_as_pdf 1 to 1 Template - CFAL12864L-Y-B6 1 TO 1

Module Overall	width	height	depth
millimeters	73	68	2.5
inches	2.87	2.68	0.10
*width / height does not include Foldable Tab

PCB Outline	width	height	depth
millimeters	73	68	3
inches	2.87	2.68	0.12

Viewing Area	Width	Height
millimeters	63.41	32.69
inches	2.50	1.29

Active Area	Width	Height
millimeters	61.41	30.69
inches	2.42	1.21

Dot Size	Width	Height
millimeters	0.45	0.45
inches	0.018	0.018

Dot Pitch	Width	Height
millimeters	0.48	0.48
inches	0.019	0.019

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10277: Datasheet clarification

Products Affected:	CFAL12864L-Y-B6, CFAL12864L-Y-B6TS
Date Issued:	March 10, 2010
Summary:	Datasheet clarification
Description:	Modified Module Outline Drawing(Pg.7) to clarify pin order. Pin order has not changed.
Reason:	Drawing wasn't as clear as preferred.
