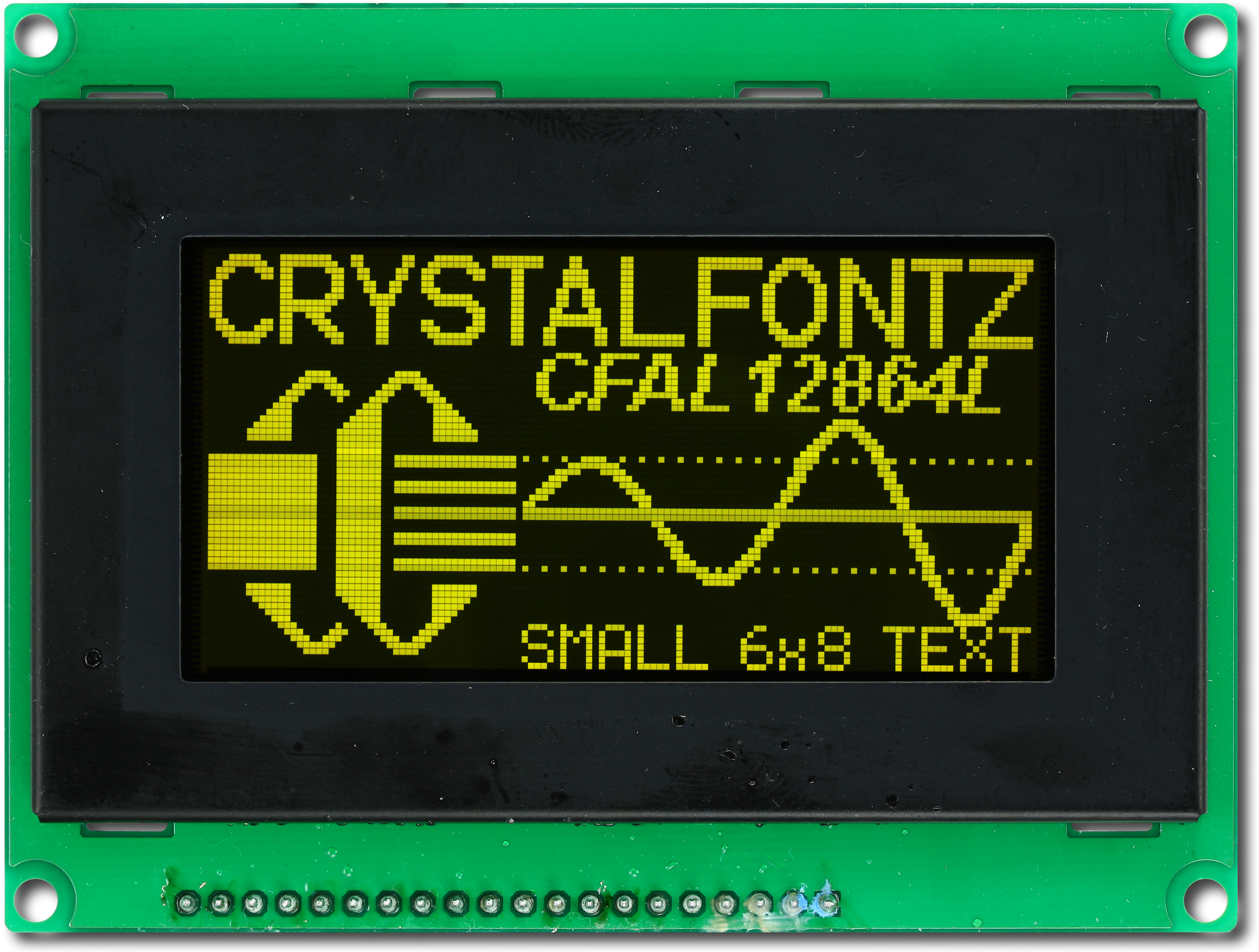

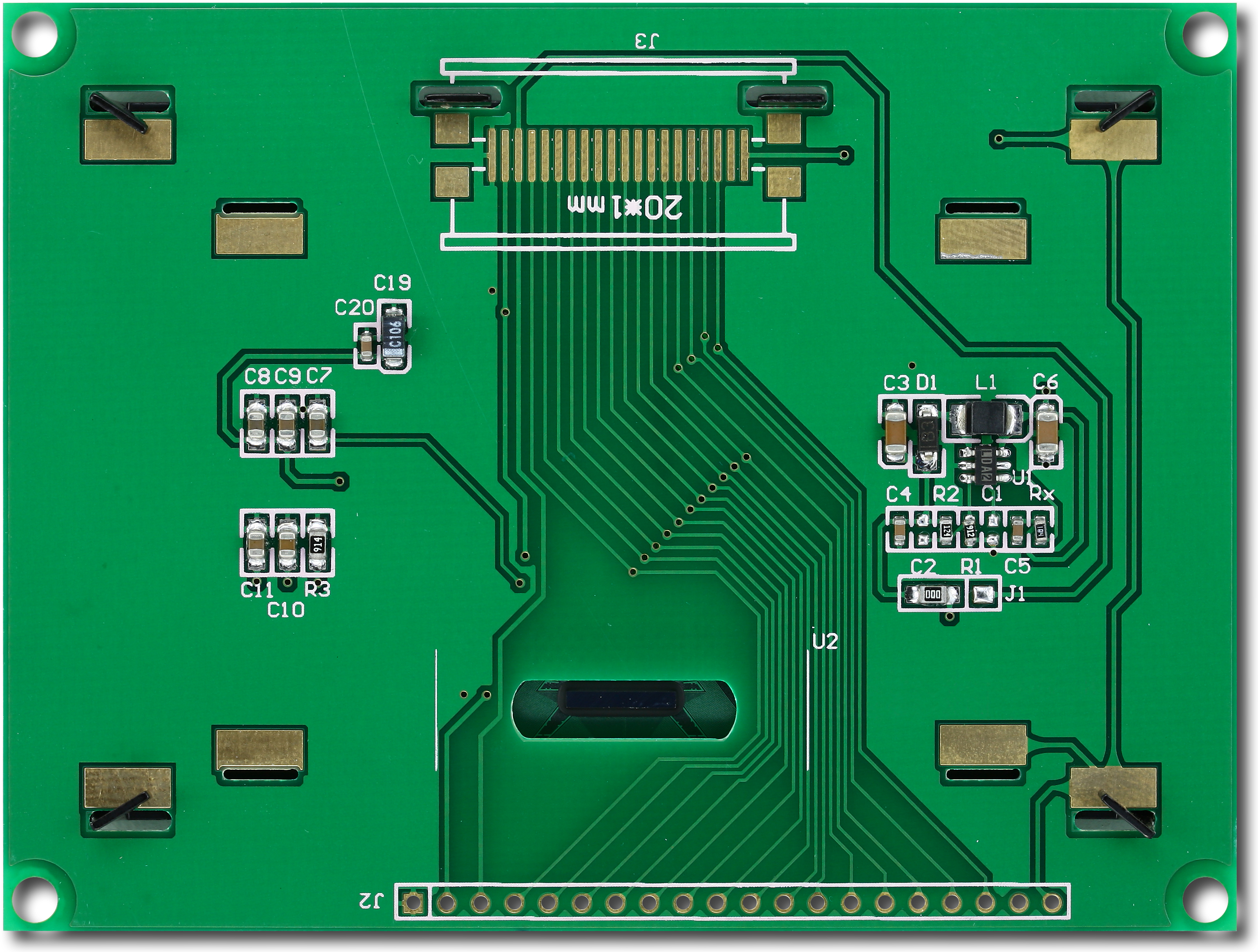

Yellow 128x64 Parallel Graphic OLED [EOL]Part Number: CFAL12864L-Y-B4128 x 64 Graphic OLED module, Yellow OLED
	128x64 graphic OLED display module
	Single 3v supply and logic levels (modules with PCB only)
	Extremely wide viewing angles
	Very high contrast ratio
	Built-in Solomon SSD1305 or compatible controller
	8-bit parallel interface or SPI Interface
	RoHS Compliant

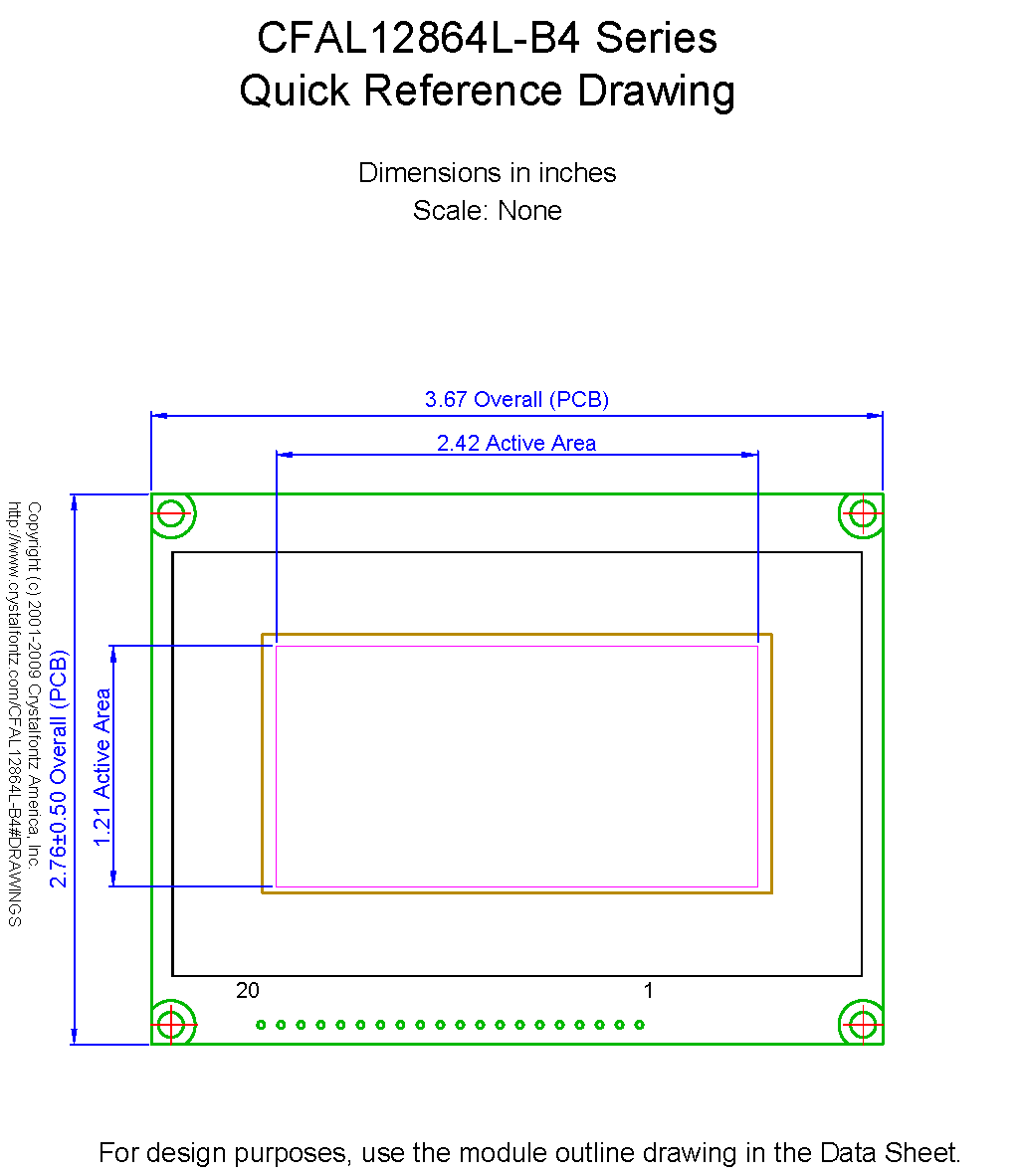

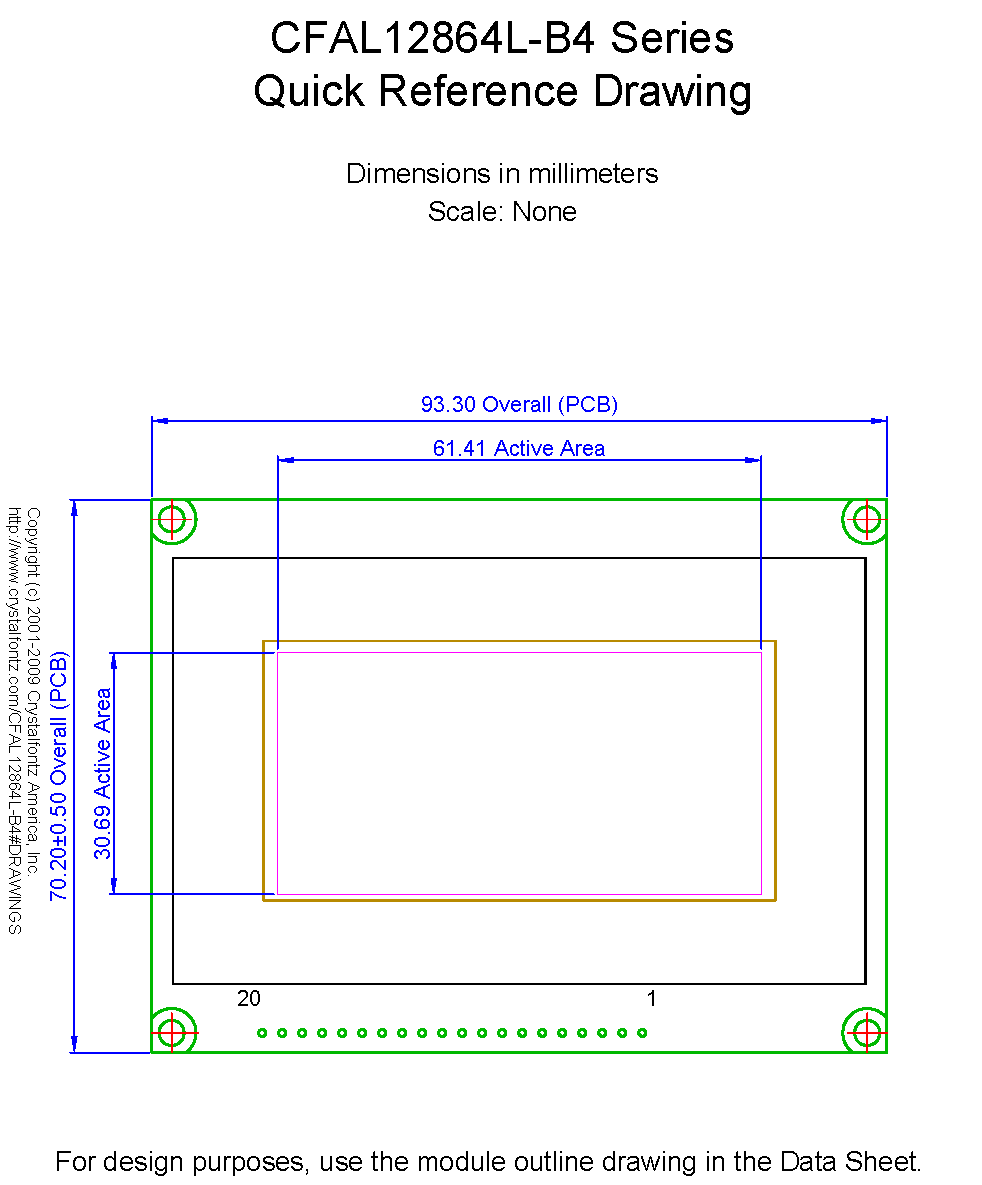

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64


    Module Overall        width
        height
        depth


        millimeters
        93
        70
        9


        inches
        3.66
        2.76
        0.35



    PCB Outline        width
        height
        depth


        millimeters
        93
        70
        9


        inches
        3.66
        2.76
        0.35



    Viewing Area        Width
        Height


        millimeters
        65
        33


        inches
        2.56
        1.30



    Active Area        Width
        Height


        millimeters
        61.4
        30.7


        inches
        2.42
        1.21



    Dot Size        Width
        Height


        millimeters
        0.45
        0.45


        inches
        0.018
        0.018



    Dot Pitch        Width
        Height


        millimeters
        0.48
        0.48


        inches
        0.019
        0.019



        Weight
            51g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
Polarizer
            Emissive


        Backlight Type
            None
Mode
            Positive
Foreground Color
            Yellow
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.10mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Solomon Systech SSD1305
SSD1305 132 x 64 Dot Matrix

OLED/PLED Segment/Common Driver with Controller
Interface
            8-bit Parallel, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAL12864LYB4 Data Sheet v2.1.pdf
(Datasheet V 2.1, Hardware 1.1)
Previous Versions of Datasheetspicture_as_pdfCFAL12864LYB4 v2.0.pdf
(Datasheet V 2.0, Hardware 1.1)
picture_as_pdfCFAL12864LYB4 v1.0.pdf
(Datasheet V 1.0, Hardware A)
picture_as_pdfCFAL12864LYB4.pdf
(Hardware A)
 download Files and Downloads
folder_zip Software Source - ATmega2561 Demonstration Code
folder_zip CAD Export - CFAL12864L-B4 2D CAD
picture_as_pdf 1 to 1 Template - CFAL12864L- -B4 1 TO 1.pdf
















Module Overall	width	height	depth
millimeters	93	70	9
inches	3.66	2.76	0.35

PCB Outline	width	height	depth
millimeters	93	70	9
inches	3.66	2.76	0.35

Viewing Area	Width	Height
millimeters	65	33
inches	2.56	1.30

Active Area	Width	Height
millimeters	61.4	30.7
inches	2.42	1.21

Dot Size	Width	Height
millimeters	0.45	0.45
inches	0.018	0.018

Dot Pitch	Width	Height
millimeters	0.48	0.48
inches	0.019	0.019

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10344: This part will soon be End of Life and no longer available. There is no cross reference or substitute part.

Products Affected:	CFAL12822A-Y-B, CFAL12864L-Y-B2, CFAL12864L-G-B2, CFAL12864L-Y-B4, CFAL12864L-G-B4, CFAL12822A-Y-B1, CFAL12864S-Y-B1, CFAL160128B-F-B2, CFAL12832C-B-B1
Date Issued:	April 21, 2011
Summary:	This part will soon be End of Life and no longer available. There is no cross reference or substitute part.

Part Change Notice #10022: Datasheet update

Products Affected:	CFAL12864L-Y-B4, CFAL12864L-G-B4
Date Issued:	October 30, 2009
Summary:	Datasheet update
Last revision:	1.0
Description:	* In Absolute Maximum Ratings, o Changed “Operating Temperature” from minimum “-40°C” to “-20°C” and maximum “+80°C” to “+70°C”. o Changed “Storage Temperature” from minimum “-50°C” to “-30°C” and maximum “+85°C” to “+80°C”. * In DC Characteristics, o Changed “Input High Voltage” minimum from “+2.4v” to “+2.64v”. o Changed “Total Power” maximum from “500 mW” to “1,000 mW”. * CFAL12864L-G-B4 Optical Characteristics, changed “Brightness” from typical “80 cd/m2” to “Luminous Intensity” of “30 cd/m2. * CFAL12864L-Y-B4 Optical Characteristics, changed “Brightness” from typical “80 cd/m2” to “40 cd/m2”.

Yellow 128x64 Parallel Graphic OLED [EOL]

Part Number: CFAL12864L-Y-B4

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10344: This part will soon be End of Life and no longer available. There is no cross reference or substitute part.

Part Change Notice #10022: Datasheet update

LCD Software

User Forum

Tech Support

Backlight Type	None
Mode	Positive
Foreground Color	Yellow
Background Color	Dark

Controller Documents	Solomon Systech SSD1305 SSD1305 132 x 64 Dot Matrix OLED/PLED Segment/Common Driver with Controller
Interface	8-bit Parallel, SPI
