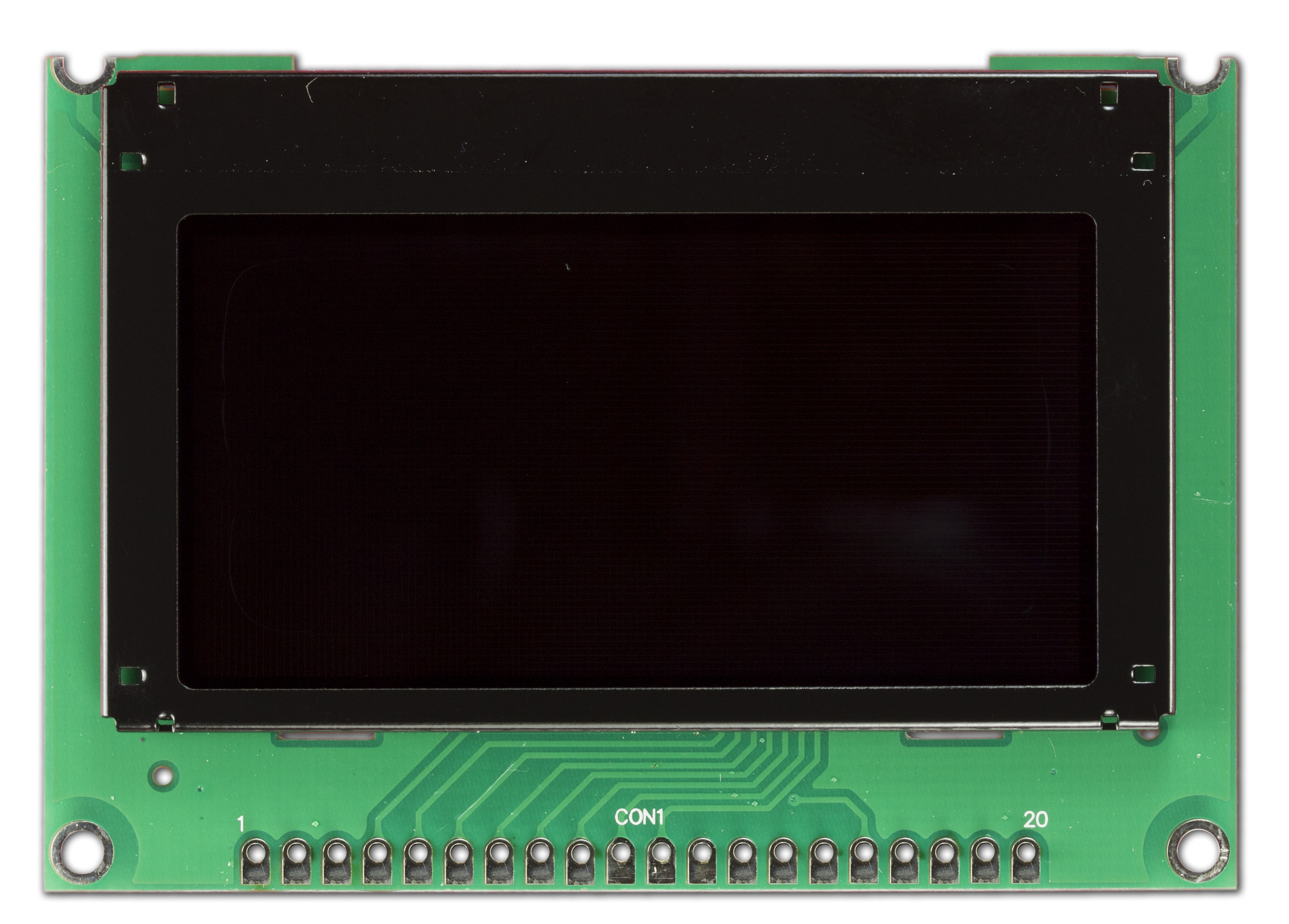

            128x64 2.4 inch Yellow Monochrome OLED
            Part Number: CFAL12864J-Y

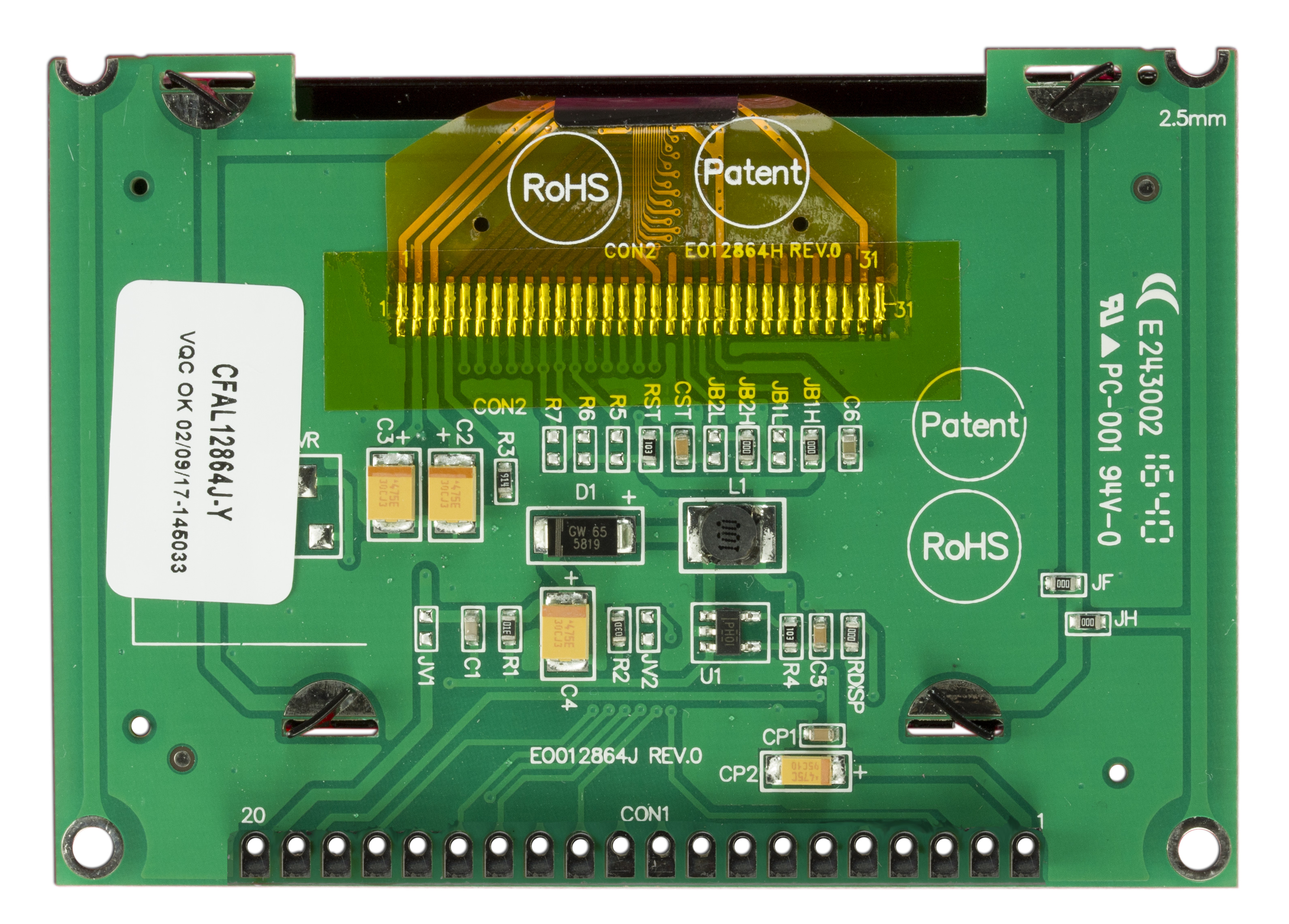

                        This small, bright, yellow monochrome 2.42-inch 128x64 Graphic OLED display module is a 20-pin, chip-on-board, graphic display module with 50,000 hour lifetime! Small OLED displays provide a high contrast and super wide viewing angles.

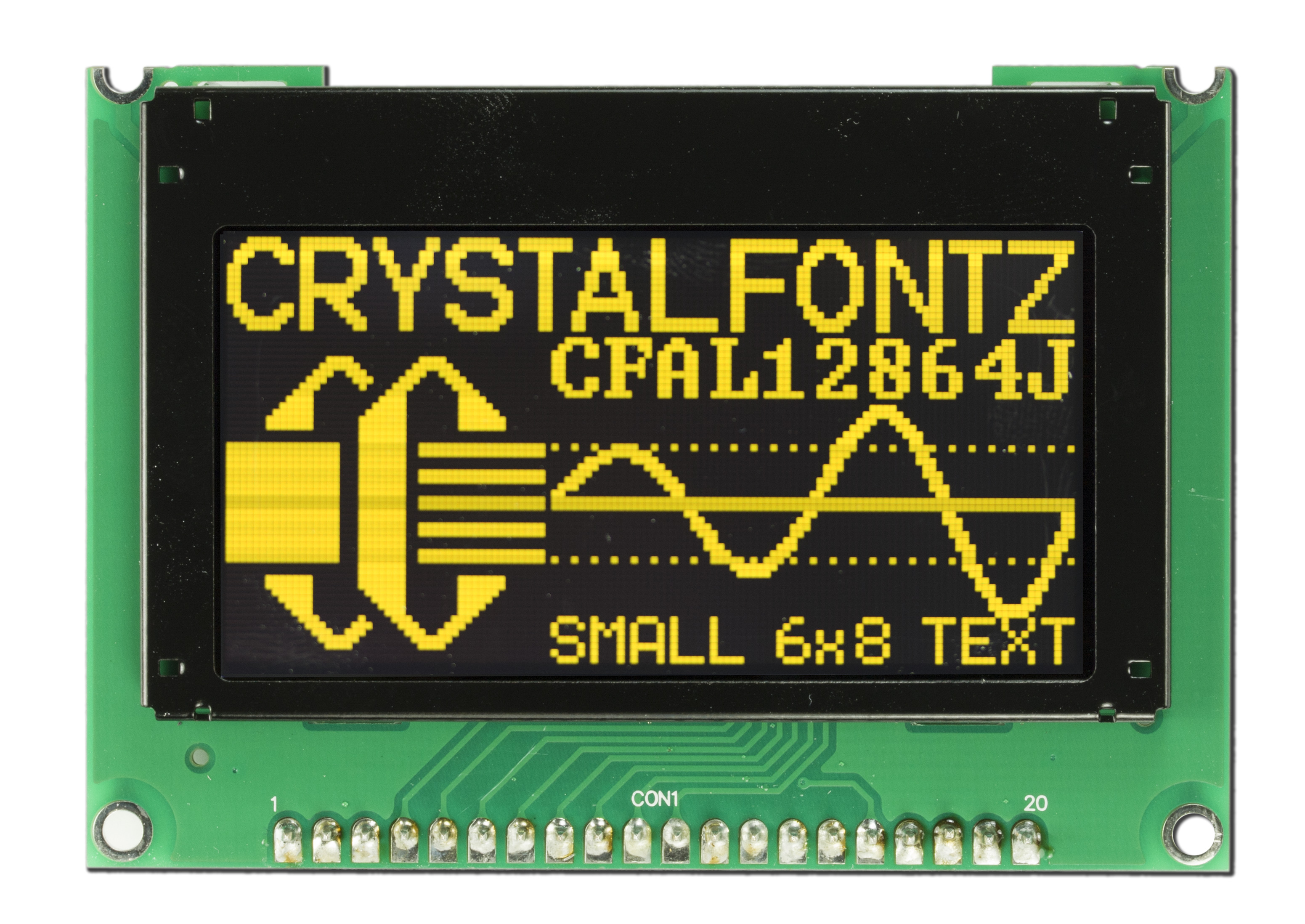

128x64 brilliant yellow pixels!
Built-in Solomon Systech SSD1309ZC Controller
Interfaces: 8-bit Parallel
Only 3.3v to power!
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

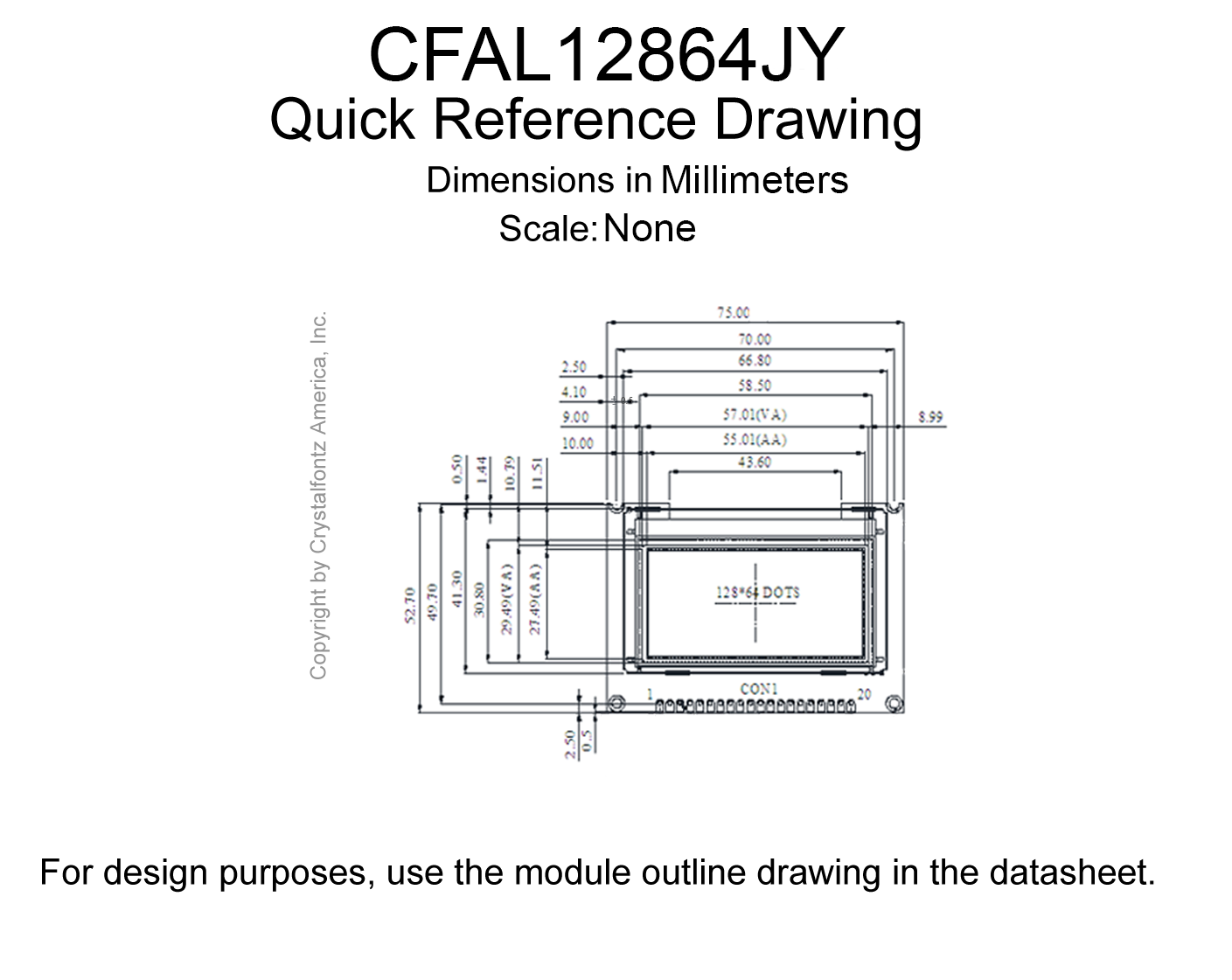

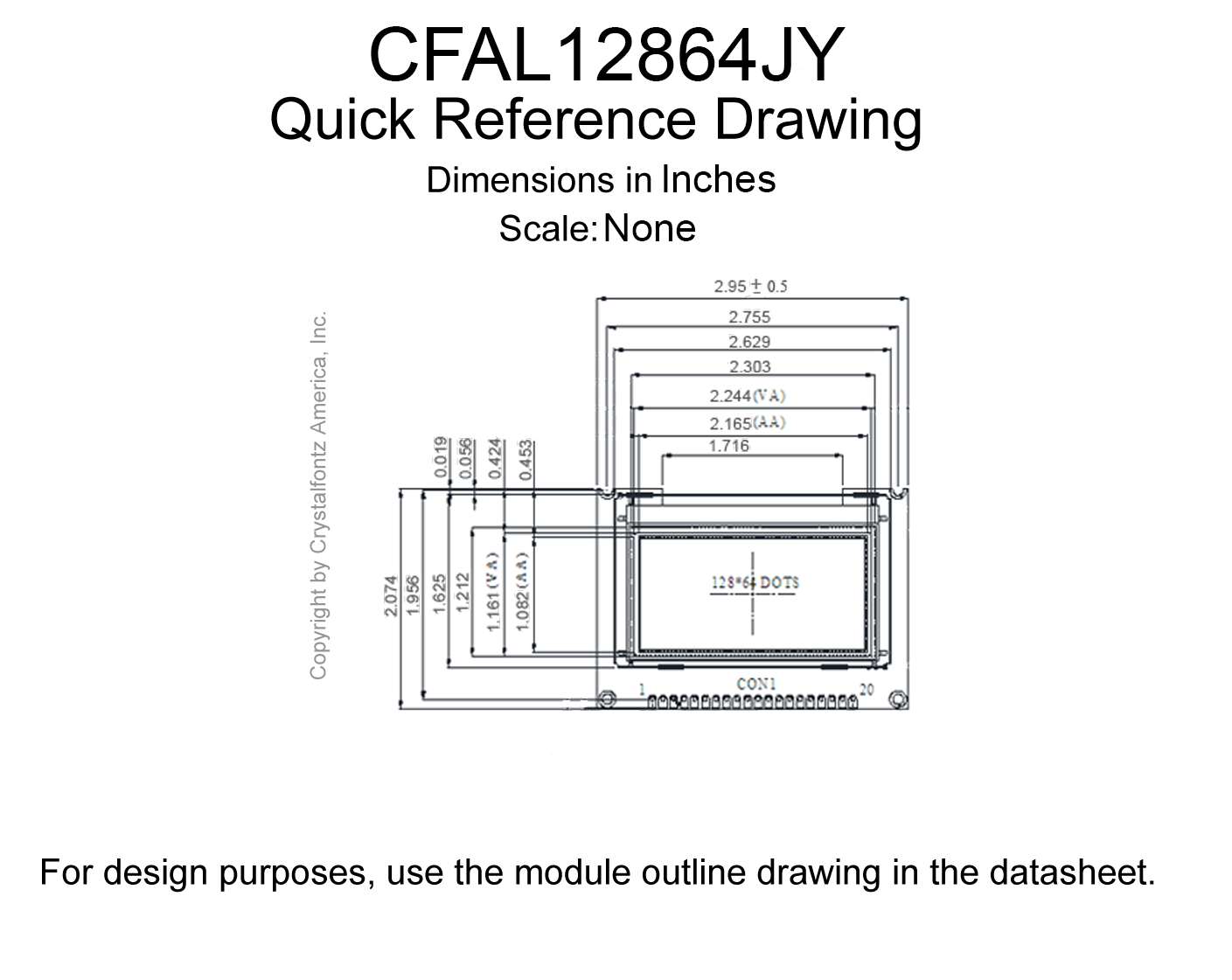

    Module Overall        width
        height
        depth

        millimeters
        75
        52.7
        8.5

        inches
        2.95
        2.08
        0.34

        Diagonal Dimension
            2.42"

    Viewing Area        Width
        Height

        millimeters
        57.01
        29.49

        inches
        2.24
        1.16

    Active Area        Width
        Height

        millimeters
        55.01
        27.49

        inches
        2.17
        1.08

    Dot Size        Width
        Height

        millimeters
        0.4
        0.4

        inches
        0.016
        0.016

    Dot Pitch        Width
        Height

        millimeters
        0.43
        0.43

        inches
        0.017
        0.017

        Weight
            25g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
Polarizer
            Emissive
View Angle
            160°

        Mode
            Passive
Foreground Color
            Yellow
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.8V

        Supply Voltage for Logic Typical
            3.3V

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

    Storage Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

 cable Electronics
Electronics

        Controller Documents
            Solomon Systech SSD1309
SSD1309 128 x 64 Dot Matrix

OLED/PLED Segment/Common Driver with Controller
Interface
            8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAL12864J-Y Datasheet

download Files and Downloads
folder_zip Software Source - 3.3v Seeeduino.
 Arduino Demo Code
picture_as_pdf 1 to 1 Template
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH

Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:

Price:

            Quantity
            Unit Price

            1
            $33.67

            10
            $31.05

            20 *
            $29.99

            50 *
            $28.95

            100 *
            $27.31

            200 *
            $27.11

            300 *
            $25.73

            500 *
            $25.53

            1000 *
            $23.89

11 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.

Module Overall	width	height	depth
millimeters	75	52.7	8.5
inches	2.95	2.08	0.34

Viewing Area	Width	Height
millimeters	57.01	29.49
inches	2.24	1.16

Active Area	Width	Height
millimeters	55.01	27.49
inches	2.17	1.08

Dot Size	Width	Height
millimeters	0.4	0.4
inches	0.016	0.016

Dot Pitch	Width	Height
millimeters	0.43	0.43
inches	0.017	0.017

Operating Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Storage Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Quantity	Unit Price
1	$33.67
10	$31.05
20 *	$29.99
50 *	$28.95
100 *	$27.31
200 *	$27.11
300 *	$25.73
500 *	$25.53
1000 *	$23.89

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10846: (New Product) CFAL12864JY

New Product:	CFAL12864J-Y
Date Issued:	April 4, 2017
Summary:	(New Product) CFAL12864JY
Description:	OLED Modules: This small, bright, yellow monochrome 2.42 inch 128x64 Graphic OLED display module is a 20-pin, chip-on-board, graphic display module with 50,000 hour lifetime! Small OLED displays provide a high contrast and super wide viewing angles. 128x64 brilliant yellow pixels! Built-in Solomon Systech SSD1309ZC Controller Interfaces: 8-bit Parallel Only 3.3v to power!
