                This product has reached end of life. Please take a look at the similar active 128x32 OLED Displays.
[EOL] Small 128x32  Parallel Graphic OLEDPart Number: CFAL12832C-W-B1128 x 32 Graphic OLED module, White OLED

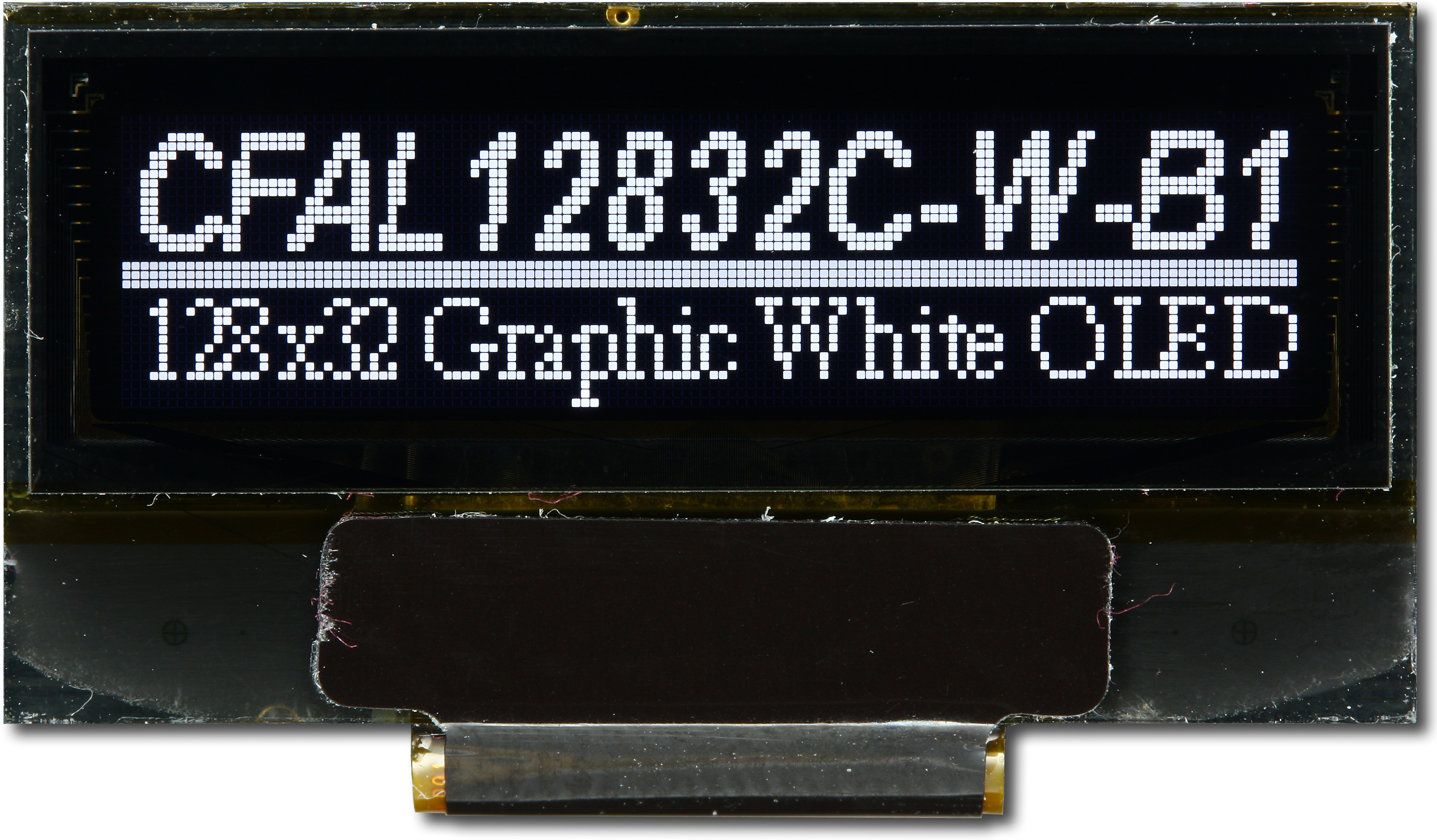

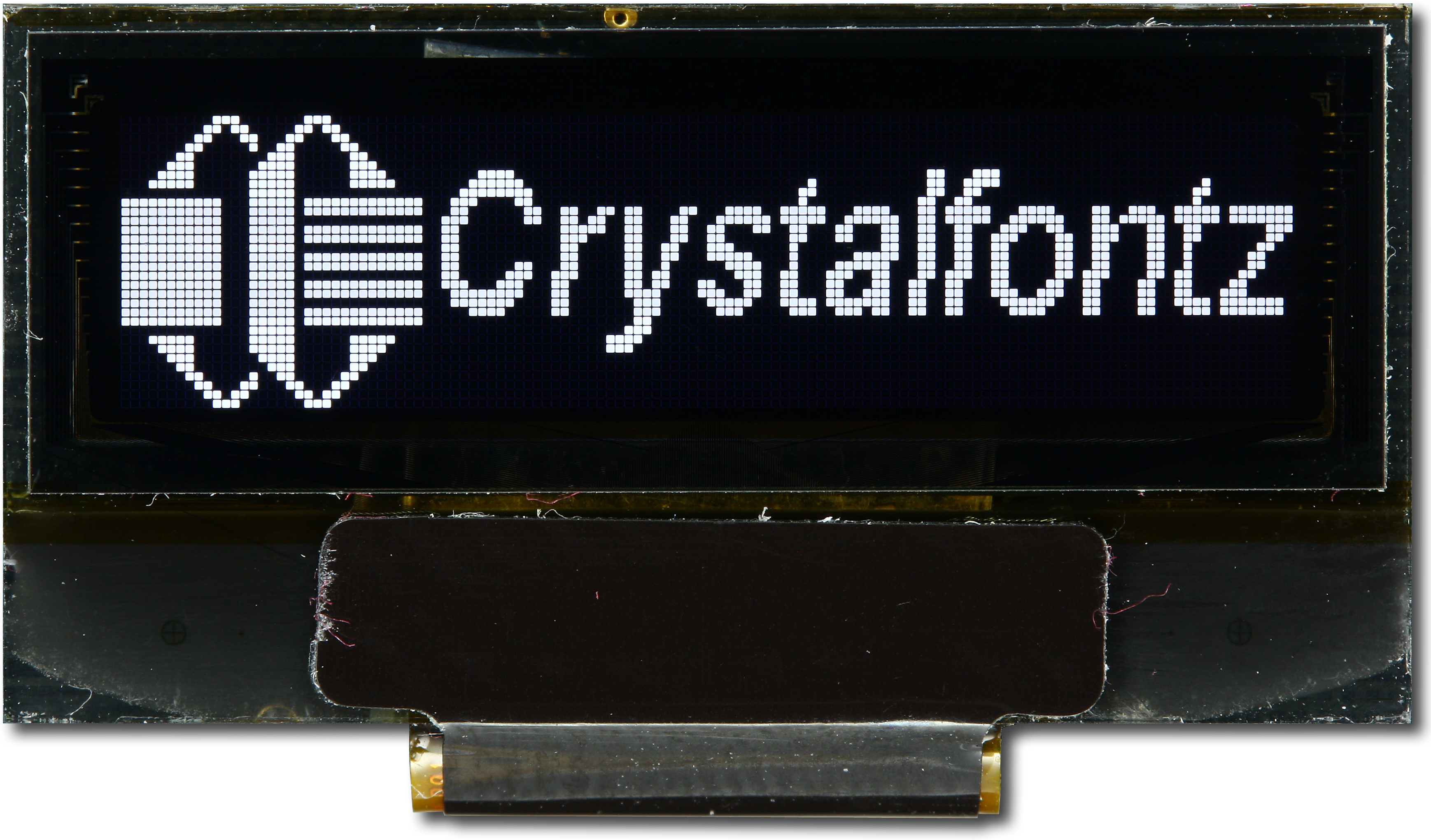

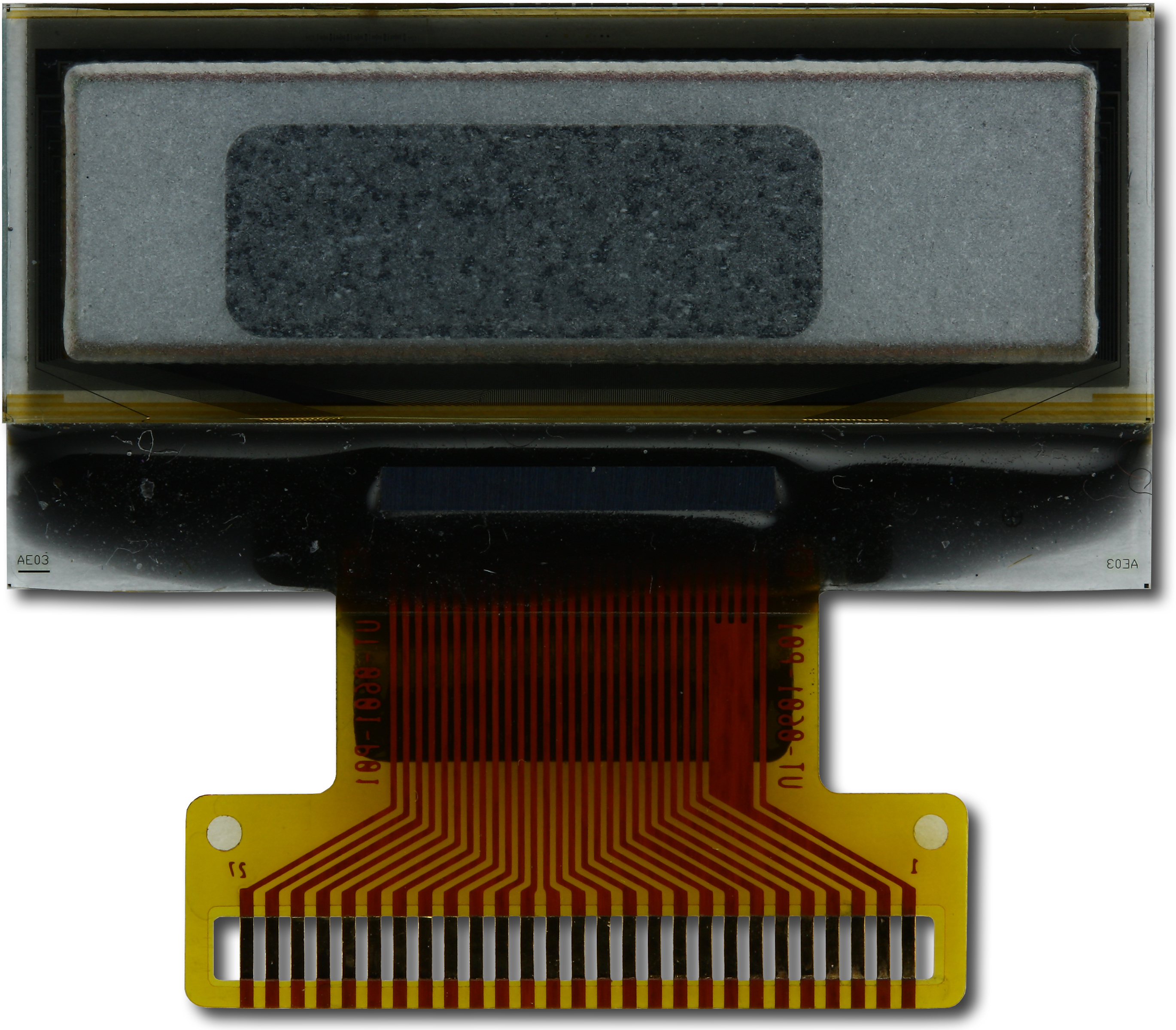

	128x32 graphic OLED display module

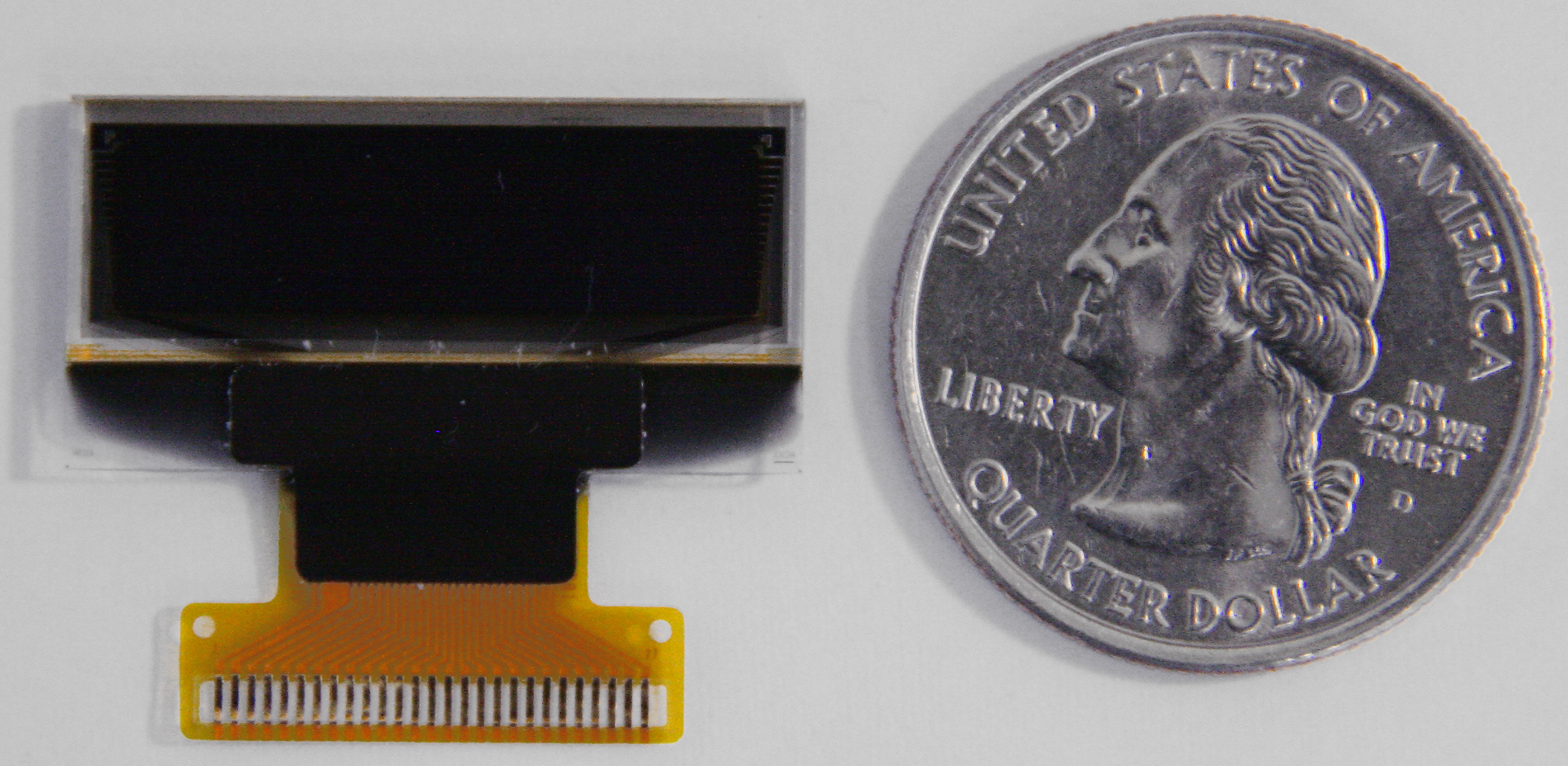

	Very small form factor
	Extremely wide viewing angles
	Very high contrast ratio
	Built-in Sino Wealth SH1101A or compatible controller
	8-bit parallel interface or SPI Interface
	RoHS Compliant

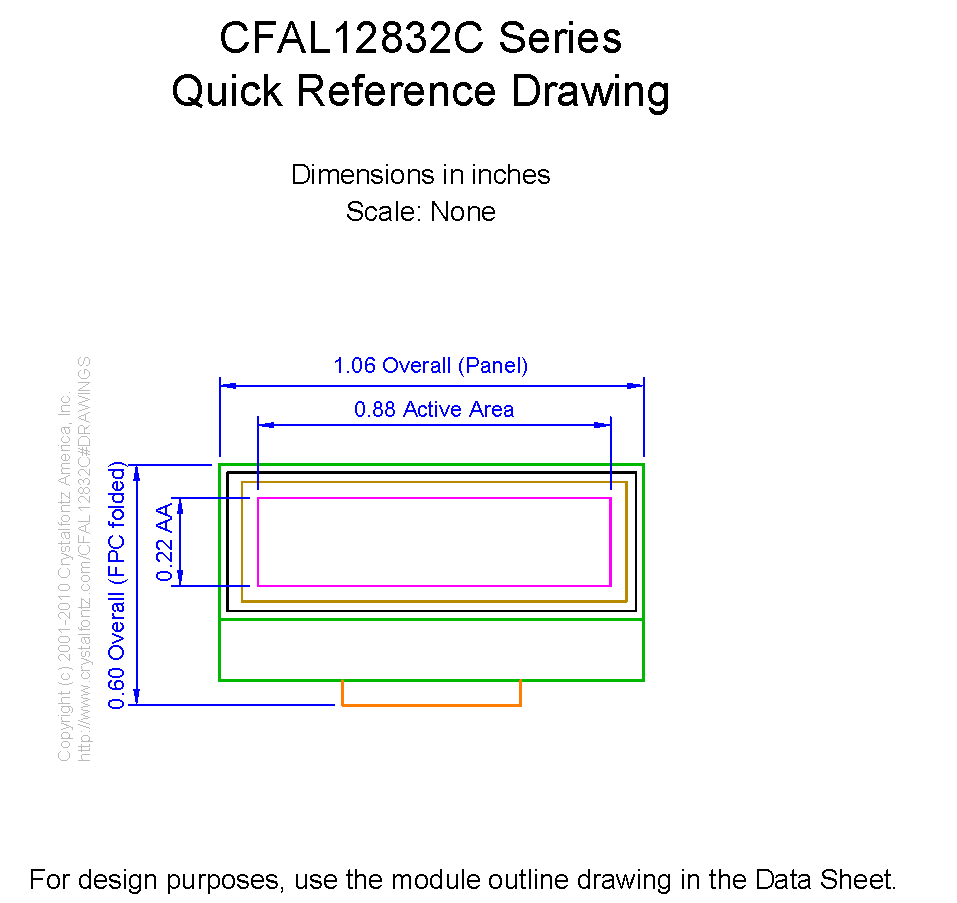

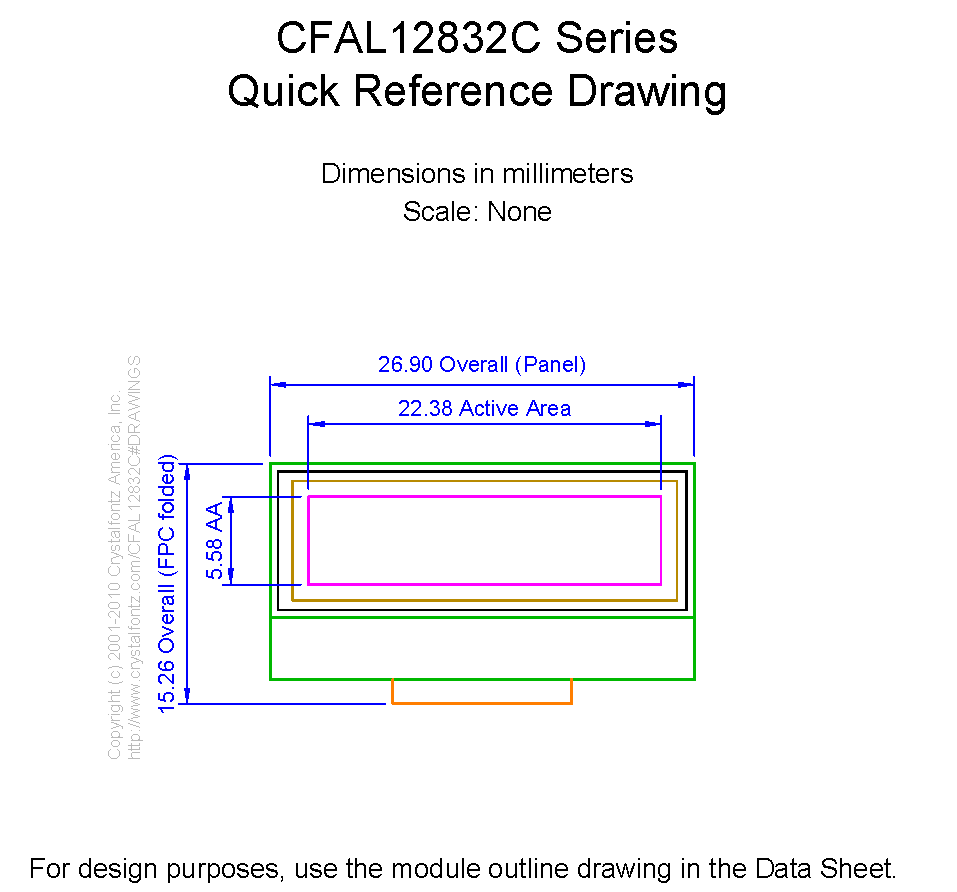

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 32

    Module Overall        width
        height
        depth

        millimeters
        26.9
        15.26
        2.25

        inches
        1.06
        0.60
        0.09

*width / height does not include Foldable Tab

        Diagonal Dimension
            0.91"

    Viewing Area        Width
        Height

        millimeters
        24.38
        7.58

        inches
        0.96
        0.30

    Active Area        Width
        Height

        millimeters
        22.38
        5.58

        inches
        0.88
        0.22

    Dot Size        Width
        Height

        millimeters
        0.16
        0.16

        inches
        0.006
        0.006

    Dot Pitch        Width
        Height

        millimeters
        0.18
        0.18

        inches
        0.007
        0.007

        Weight
            1.17g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
Polarizer
            Emissive

        Backlight Type
            None
Mode
            Positive
Foreground Color
            White
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            7.5V
Supply Voltage for Logic Maximum
            8.5V
Supply Voltage for Logic Typical
            8V

        Supply Current Maximum
            37mWmA
Supply Current Typical
            31mWmA

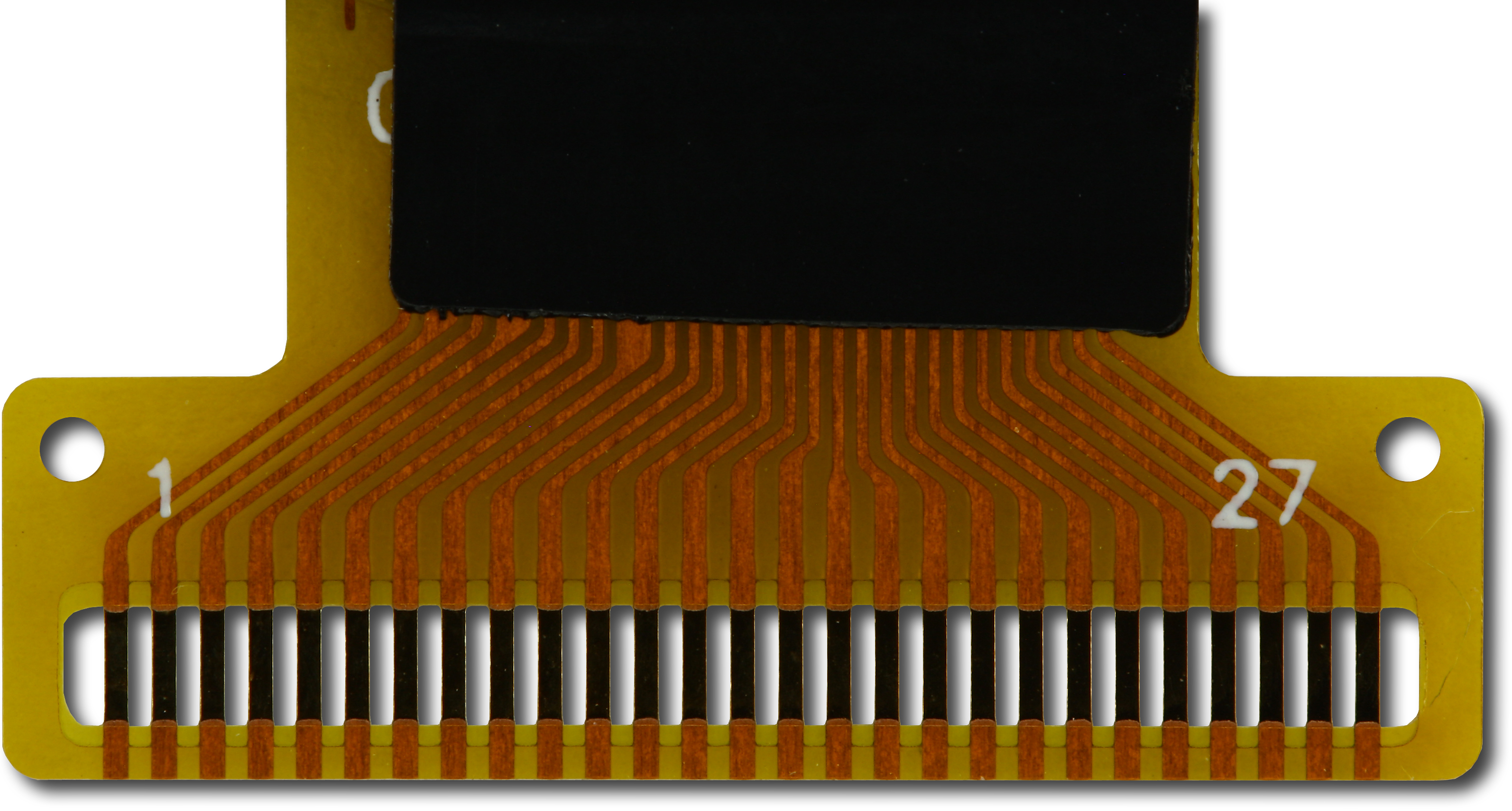

Module Connector Pitch
            0.6mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sino Wealth SH1101A
SH1101A

132 X 64 Dot Matrix OLED/PLED

Segment/Common Driver with Controller
Interface
            8-bit Parallel, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAL12832CWB1 Data Sheet v2.1.pdf
(Datasheet V 2.1, Hardware A)
picture_as_pdfCFAL12832CWB1 v2.0.pdf
(Datasheet V 2.0, Hardware A)
picture_as_pdfCFAL12832C-W-B1 v1.0.pdf
(Datasheet V 1.0, Hardware A)
 download Files and Downloads
folder_zip Software Source - ATmega2561 Demonstration Code
folder_zip CAD Export - CFAL12832C 2D CAD
picture_as_pdf 1 to 1 Template
