128x32 SPI Graphic OLED from Crystalfontz

Product

Home » Products

                This product has reached end of life

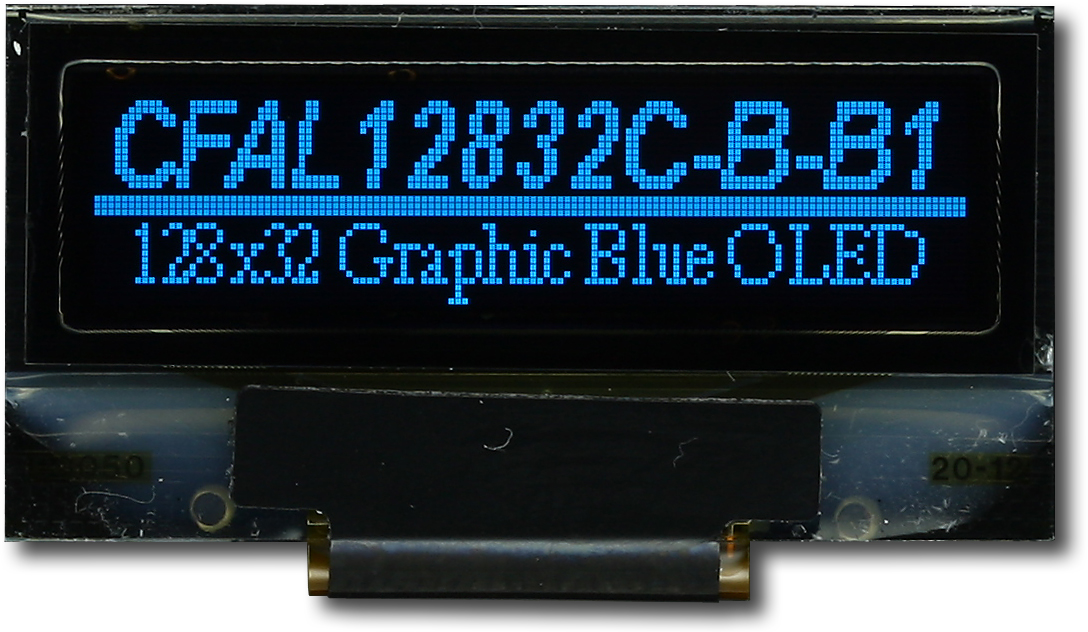

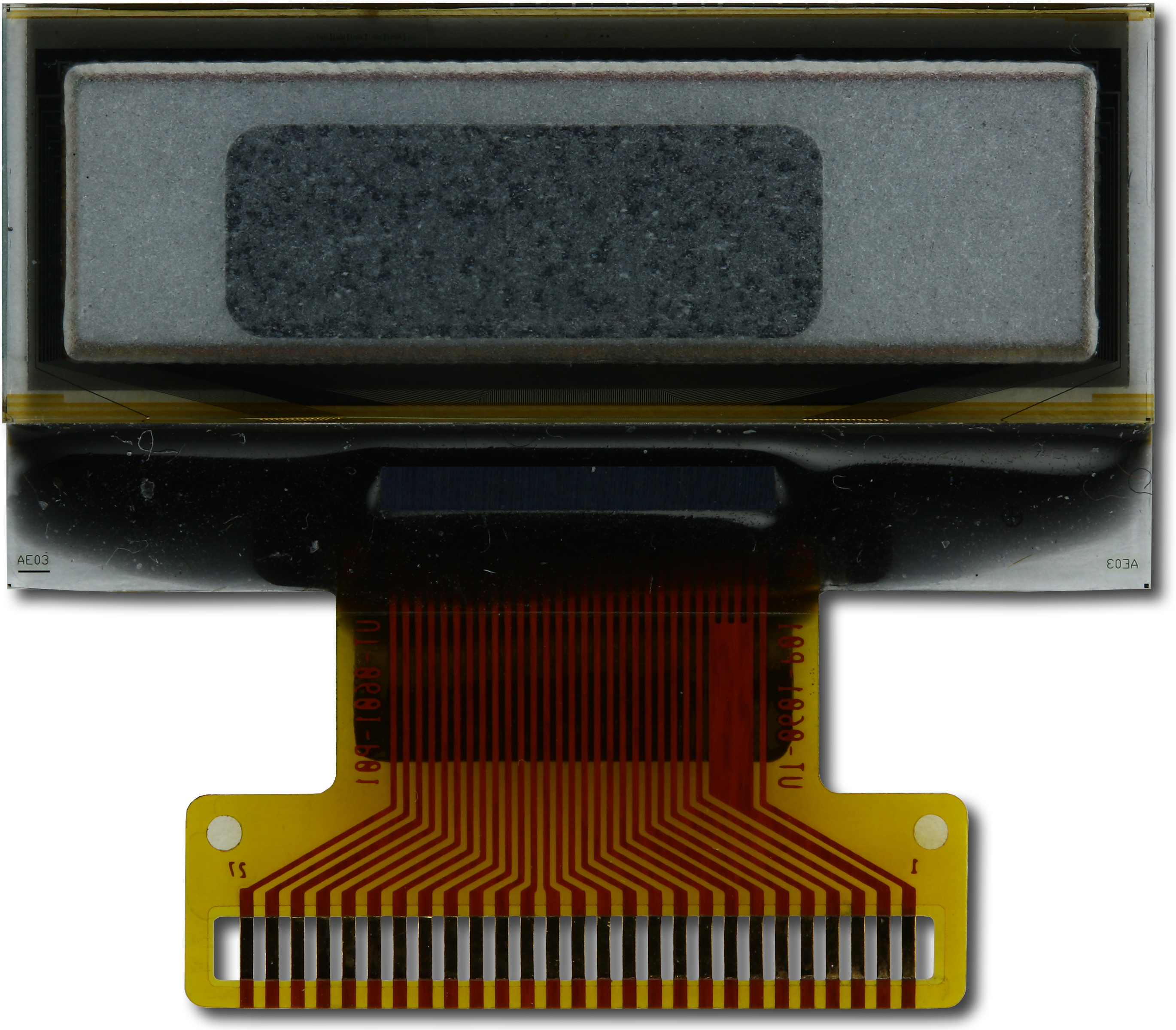

128x32 SPI Graphic OLEDPart Number: CFAL12832C-B-B1128 x 32 blue graphic OLED module.
	128x32 graphic OLED display module

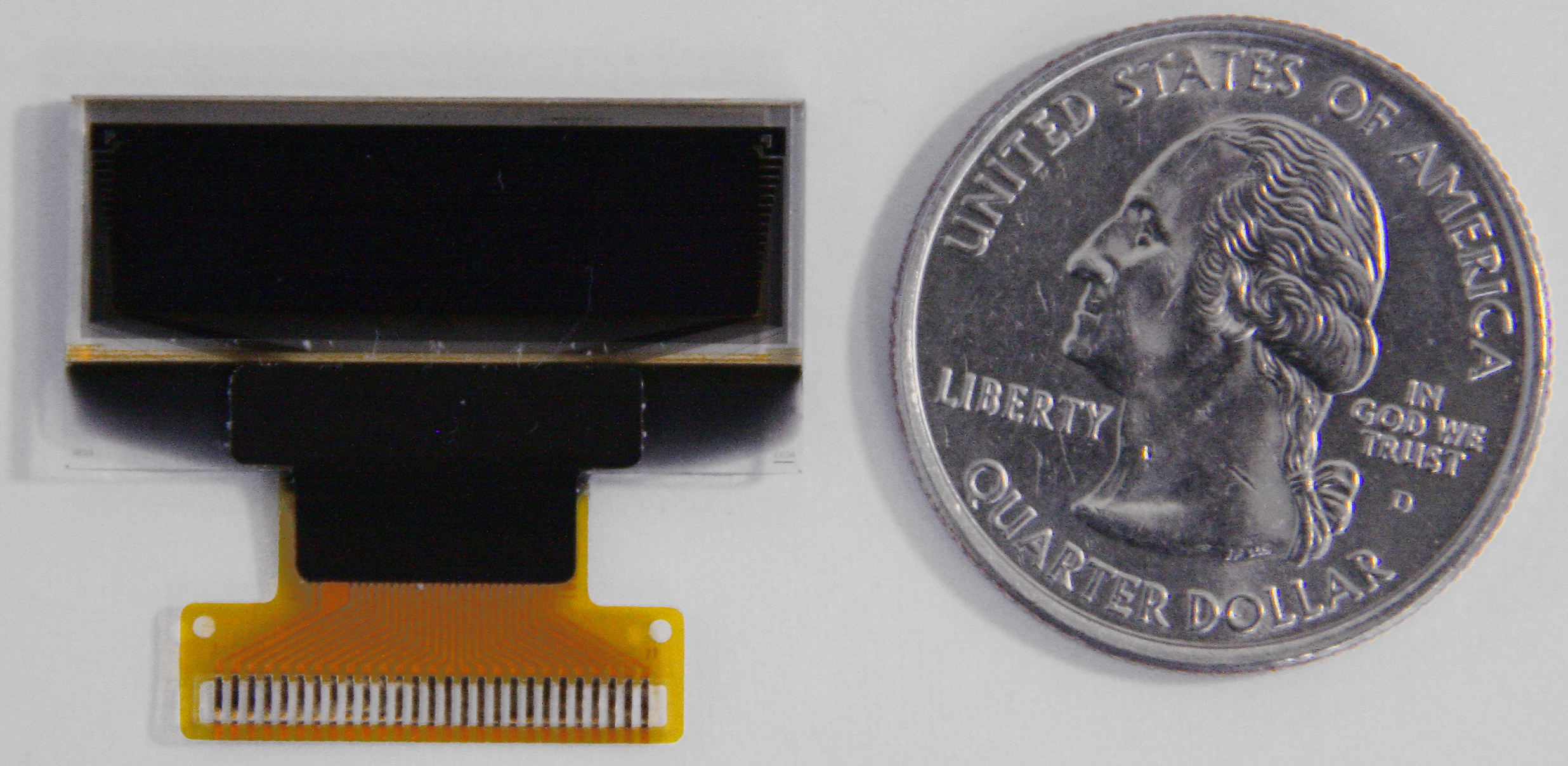

	Very small form factor
	Extremely wide viewing angles
	Very high contrast ratio
	Built-in Sino Wealth SH1101A or compatible controller
	8-bit parallel interface or SPI Interface
	RoHS Compliant

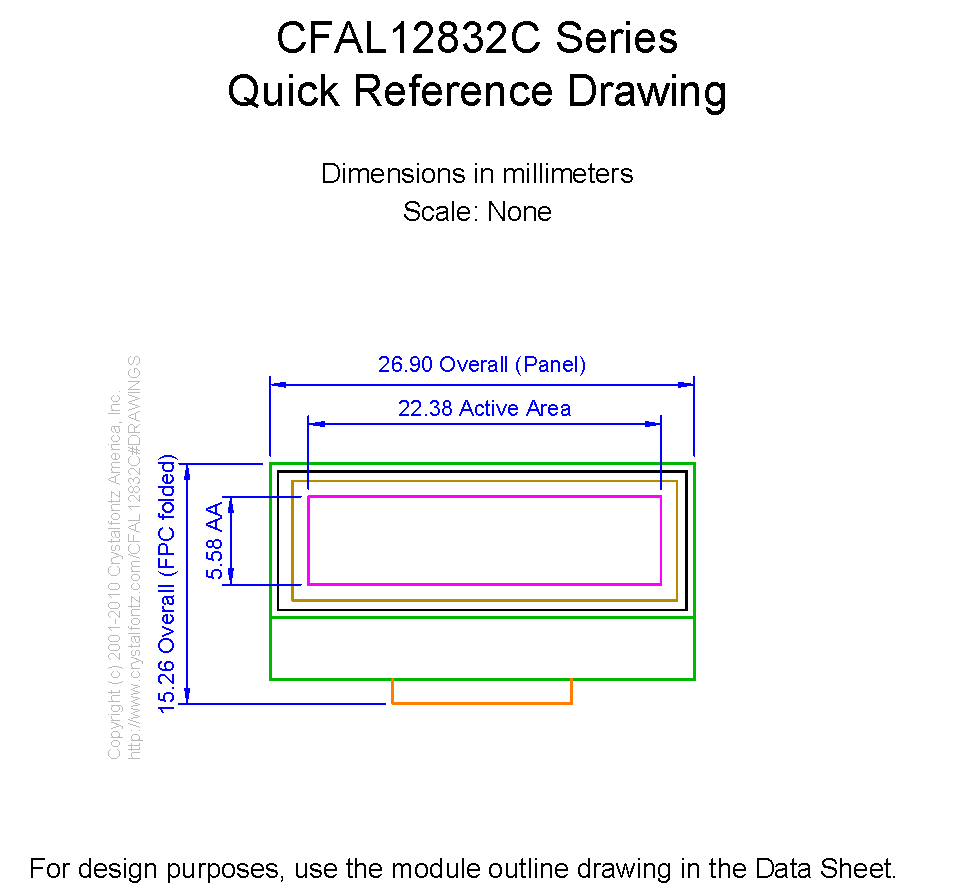

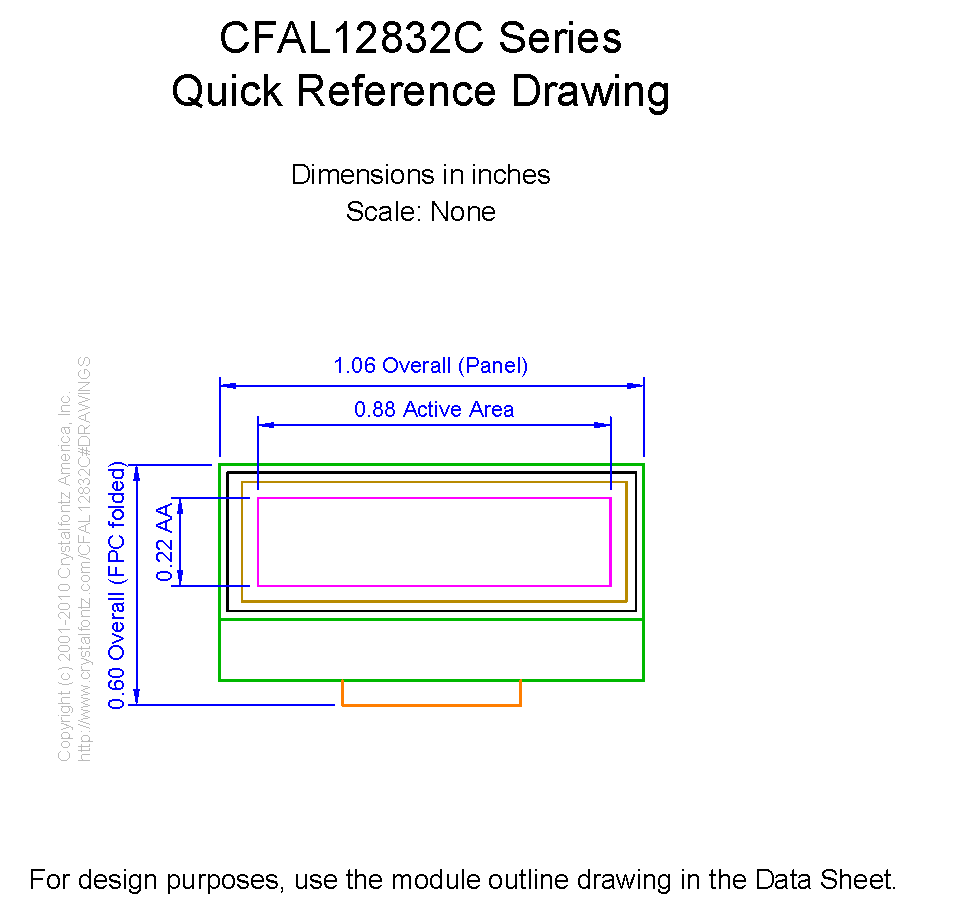

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 32

    Module Overall        width
        height
        depth

        millimeters
        26.9
        15.26
        2.25

        inches
        1.06
        0.60
        0.09

*width / height does not include Foldable Tab

        Diagonal Dimension
            0.91"

    Viewing Area        Width
        Height

        millimeters
        24.38
        7.58

        inches
        0.96
        0.30

    Active Area        Width
        Height

        millimeters
        22.38
        5.58

        inches
        0.88
        0.22

    Dot Size        Width
        Height

        millimeters
        0.16
        0.16

        inches
        0.006
        0.006

    Dot Pitch        Width
        Height

        millimeters
        0.18
        0.18

        inches
        0.007
        0.007

        Weight
            1.17g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
Polarizer
            Emissive

        Backlight Type
            None
Mode
            Positive
Foreground Color
            Blue
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            7.5V
Supply Voltage for Logic Maximum
            8.5V
Supply Voltage for Logic Typical
            8V

        Supply Current Maximum
            37mWmA
Supply Current Typical
            31mWmA

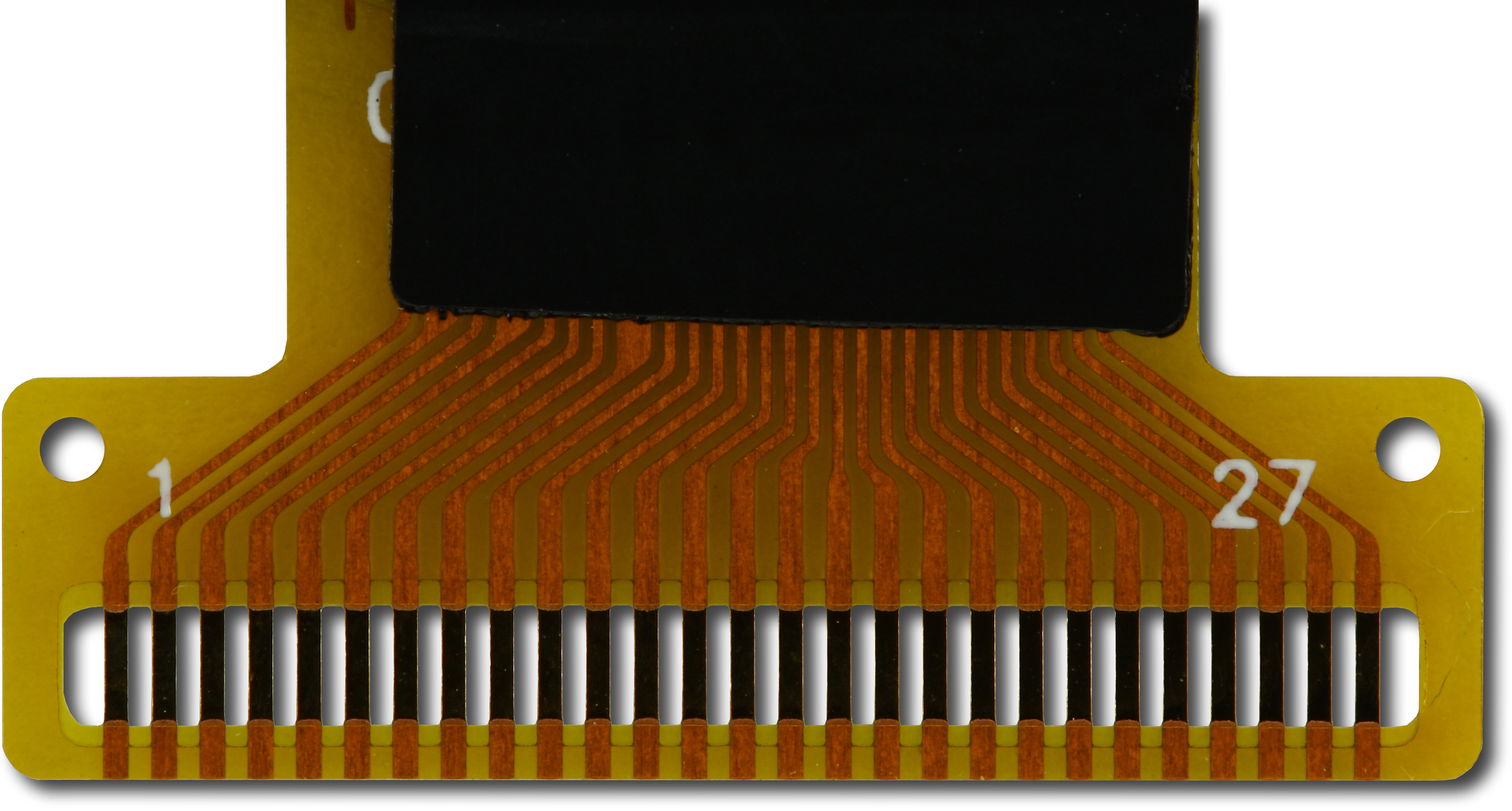

Module Connector Pitch
            0.6mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sino Wealth SH1101A
SH1101A

132 X 64 Dot Matrix OLED/PLED

Segment/Common Driver with Controller
Interface
            8-bit Parallel, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAL12832CBB1 Data Sheet v1.0.pdf
(Datasheet V 1.0, Hardware A)
 download Files and Downloads
folder_zip Software Source - ATmega2561 Demonstration Code
folder_zip CAD Export - CFAL12832C 2D CAD
picture_as_pdf 1 to 1 Template - CFAL12832C 1 TO 1.PDF

Module Overall	width	height	depth
millimeters	26.9	15.26	2.25
inches	1.06	0.60	0.09
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	24.38	7.58
inches	0.96	0.30

Active Area	Width	Height
millimeters	22.38	5.58
inches	0.88	0.22

Dot Size	Width	Height
millimeters	0.16	0.16
inches	0.006	0.006

Dot Pitch	Width	Height
millimeters	0.18	0.18
inches	0.007	0.007

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Note
Notices

Product Note:

While we do not offer any direct replacements for this product, perhaps one of our many other CFAL displays will fit your needs. Feel free to contact our tech support team to get assistance in finding the right display.

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10344: This part will soon be End of Life and no longer available. There is no cross reference or substitute part.

Products Affected:	CFAL12822A-Y-B, CFAL12864L-Y-B2, CFAL12864L-G-B2, CFAL12864L-Y-B4, CFAL12864L-G-B4, CFAL12822A-Y-B1, CFAL12864S-Y-B1, CFAL160128B-F-B2, CFAL12832C-B-B1
Date Issued:	April 21, 2011
Summary:	This part will soon be End of Life and no longer available. There is no cross reference or substitute part.

Part Change Notice #10024: Datasheet changes for CFAL12832C series

Product Affected:	CFAL12832C-B-B1
Date Issued:	December 7, 2009
Summary:	Datasheet changes for CFAL12832C series
Description:	Removed all references to internal DC-DC Converter including in System Block Diagram and a DC-DC converter circuit example that cannot be used. Wherever listed, changed references to Pin 4 from "VDD2" (VDCDC) to "NC" (No Connection). Does not apply. Wherever listed, made a distinction between "Module Depth" maximum "2.10 mm" (includes tolerance) and nominal "2.00 mm". In Physical Characteristics, Changed "Aperture Rate" from "78%" to "76%". Changed "Weight" from "1 gram (typical)" to "1.17+10% grams (typical)". In DC Characteristics, Changed "Logic Supply Voltage" minimum from "+2.6v" to "+2.4v". Changed "OLED Driver Supply Voltage" from minimum "+7v" to "+7.5v" and maximum "+9.0v" to "+8.5v". Moved "Normal Mode Power Consumption" specification from Optical Characteristics and changed typical from "32 mW" to "31 mW" and maximum from "48 mW" to "37 mW". In Optical Characteristics, changed "Response Time" from "<1 ms" to "10μs".
