[EOL] 128x22 Graphic OLED from Crystalfontz

Product

Home » Products

                This product has reached end of life

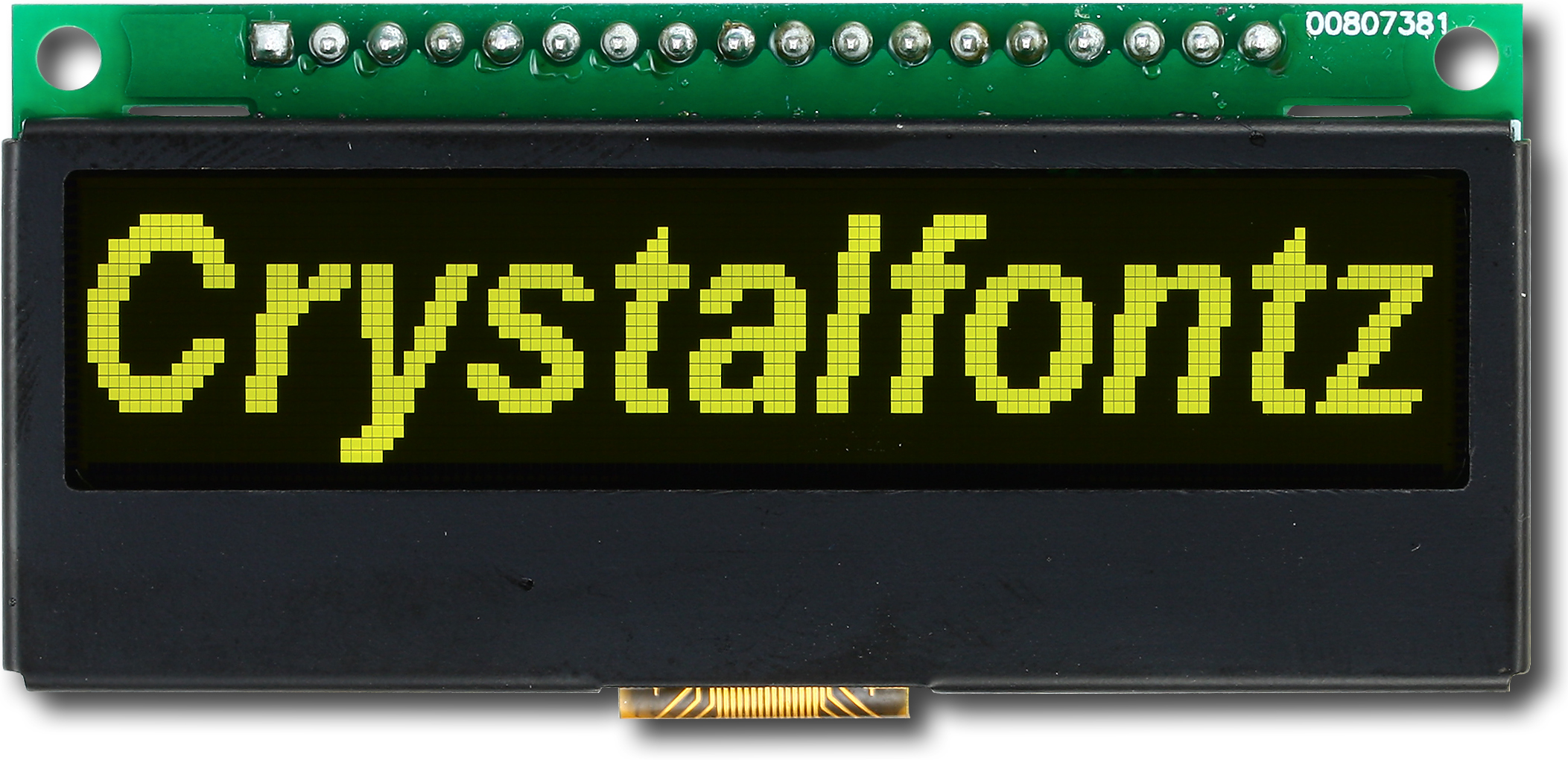

[EOL] 128x22 Graphic OLEDPart Number: CFAL12822A-Y-B128 x 22 yellow Graphic OLED module. Not recommended for new designs. Available in small quantities only.

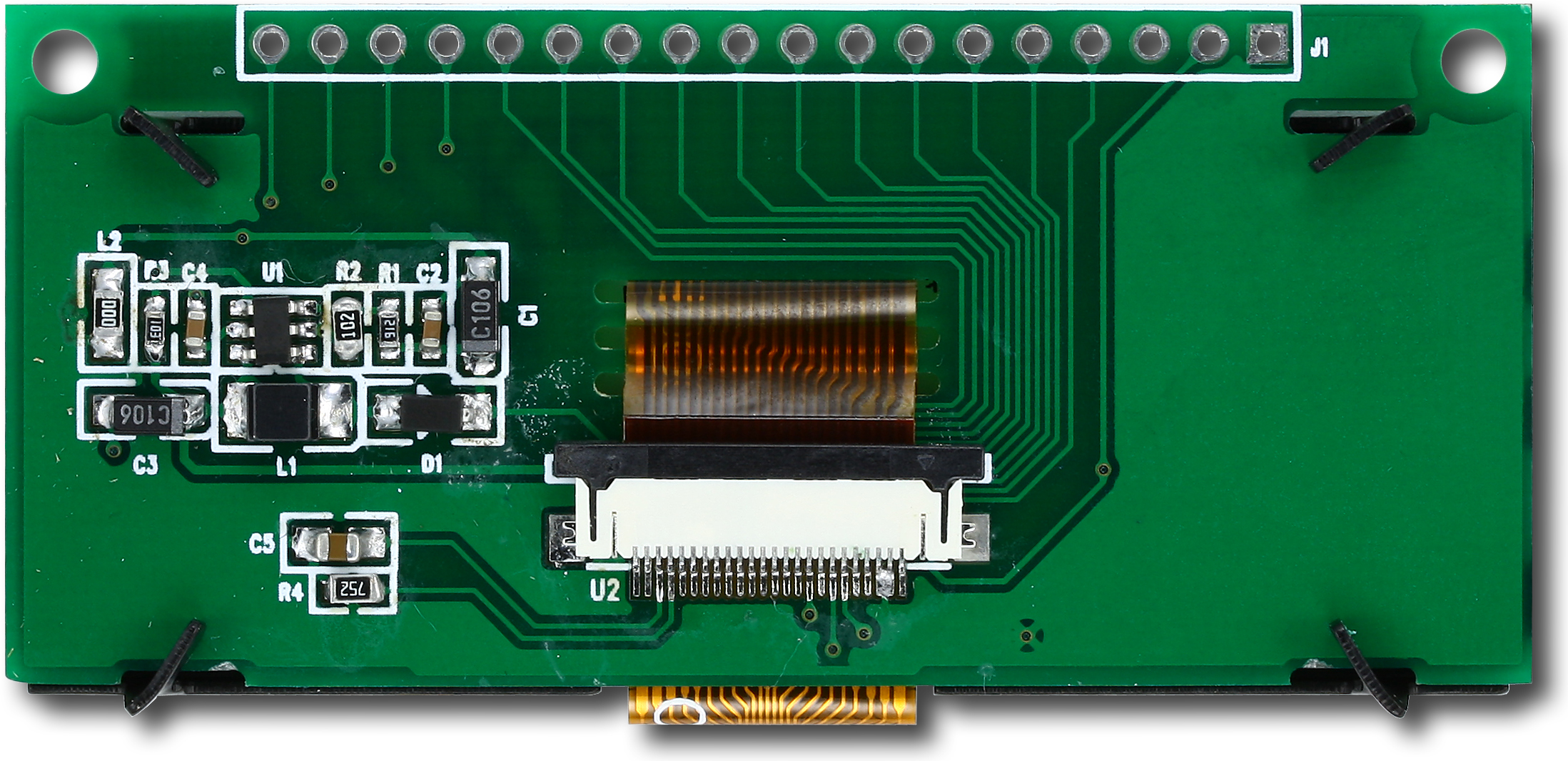

	128x22 graphic OLED display module
	3v logic levels
	Extremely wide viewing angles
	Very high contrast ratio
	Built-in Solomon SSD1305 or compatible controller
	8-bit parallel interface or SPI Interface
	RoHS Compliant

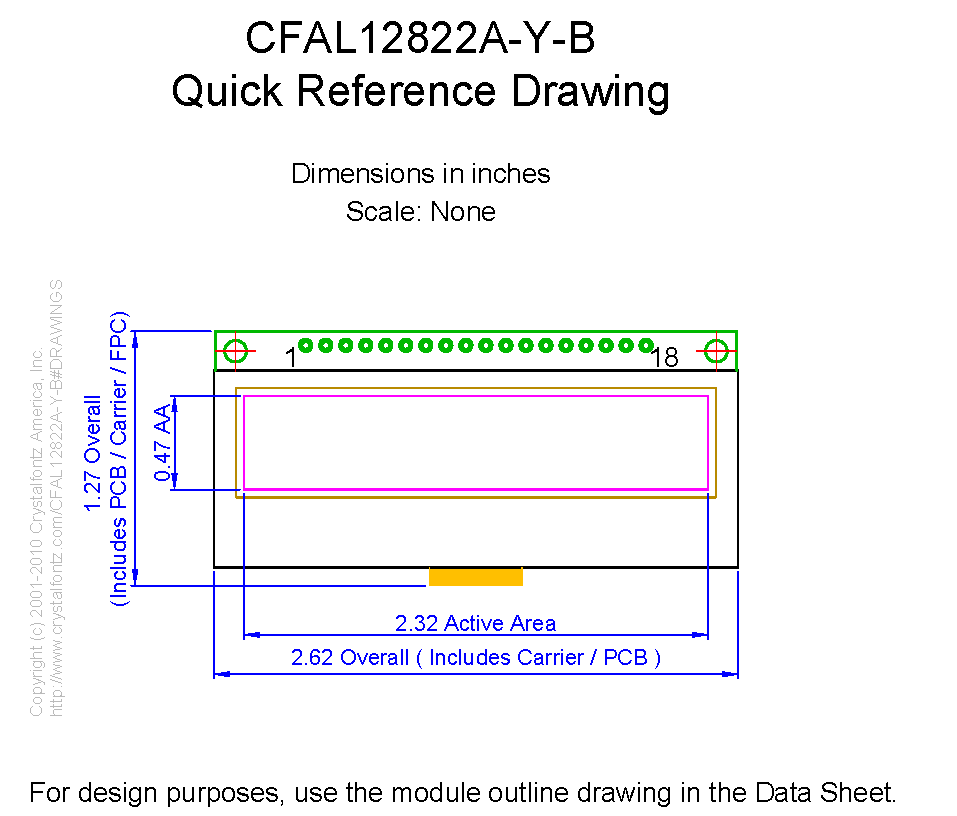

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 22


    Module Overall        width
        height
        depth


        millimeters
        66.5
        32.25
        8


        inches
        2.62
        1.27
        0.32

*width / height does not include Foldable Tab


    PCB Outline        width
        height
        depth


        millimeters
        66.5
        29.35
        8


        inches
        2.62
        1.16
        0.32



    Viewing Area        Width
        Height


        millimeters
        60.85
        13.85


        inches
        2.40
        0.55



    Active Area        Width
        Height


        millimeters
        58.85
        11.85


        inches
        2.32
        0.47



    Dot Size        Width
        Height


        millimeters
        0.43
        0.51


        inches
        0.017
        0.020



    Dot Pitch        Width
        Height


        millimeters
        0.46
        0.54


        inches
        0.018
        0.021



        Weight
            17g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
Polarizer
            Emissive


        Backlight Type
            None
Mode
            Positive
Foreground Color
            Yellow
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.10mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Solomon Systech SSD1305
SSD1305 132 x 64 Dot Matrix

OLED/PLED Segment/Common Driver with Controller
Interface
            8-bit Parallel, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAL12822A-Y-B Data Sheet v2.0.pdf
(Datasheet V 2.0, Hardware v1.1)
picture_as_pdfCFAL12822A-Y-B v1.1.pdf
(Datasheet V 1.1, Hardware 07.07.16)
picture_as_pdfCFAL12822A-Y-B v1.0.pdf
(Datasheet V A, Hardware 07.07.16)
picture_as_pdfCFAL12822AYB.pdf

 download Files and Downloads
folder_zip Software Source - Demonstration Code
folder_zip CAD Export - CFAL128SSA-Y-B 2D CAD

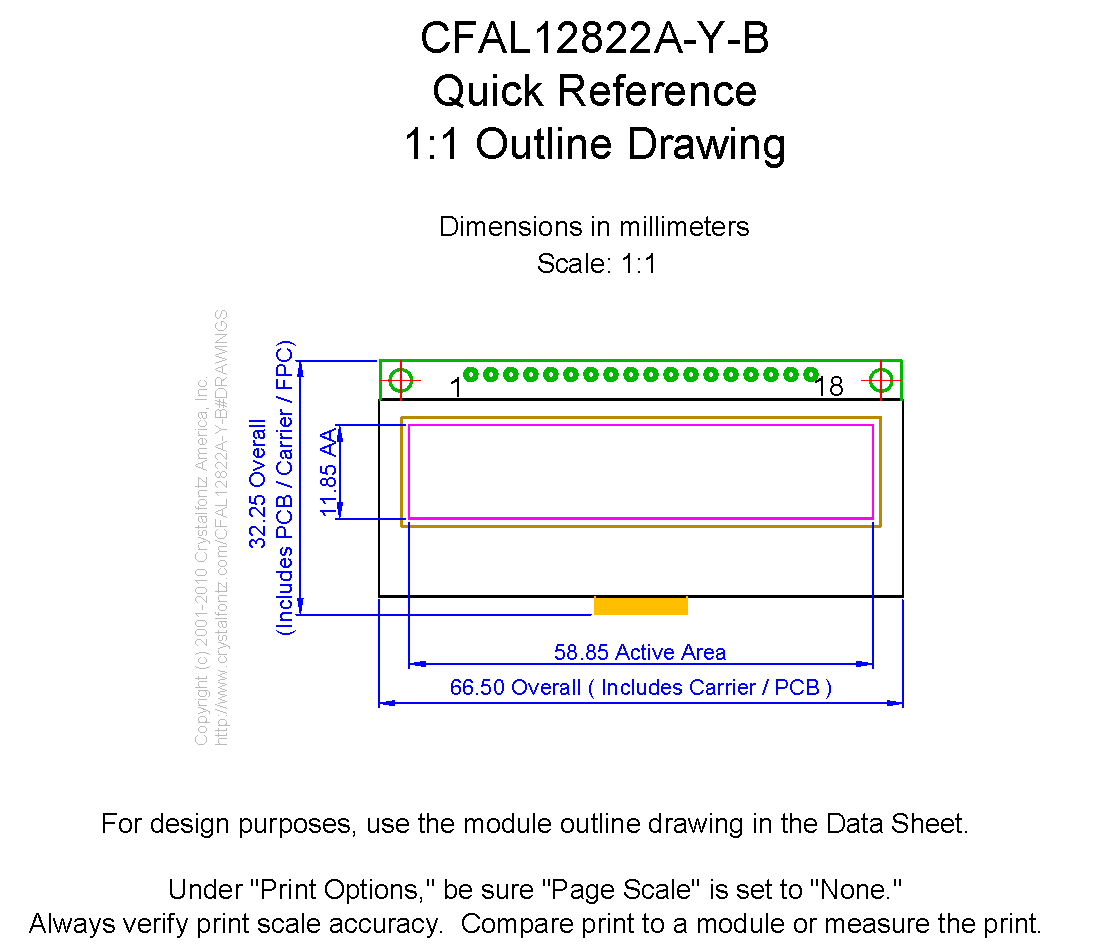

picture_as_pdf 1 to 1 Template - CFAL12822A-Y-B 1 TO 1.PDF
















Module Overall	width	height	depth
millimeters	66.5	32.25	8
inches	2.62	1.27	0.32
*width / height does not include Foldable Tab

PCB Outline	width	height	depth
millimeters	66.5	29.35	8
inches	2.62	1.16	0.32

Viewing Area	Width	Height
millimeters	60.85	13.85
inches	2.40	0.55

Active Area	Width	Height
millimeters	58.85	11.85
inches	2.32	0.47

Dot Size	Width	Height
millimeters	0.43	0.51
inches	0.017	0.020

Dot Pitch	Width	Height
millimeters	0.46	0.54
inches	0.018	0.021

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Note
Notices

Product Note:

While we do not offer any direct replacements for this product, perhaps one of our many other CFAL displays will fit your needs. Feel free to contact our tech support team to get assistance in finding the right display.

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10344: This part will soon be End of Life and no longer available. There is no cross reference or substitute part.

Products Affected:	CFAL12822A-Y-B, CFAL12864L-Y-B2, CFAL12864L-G-B2, CFAL12864L-Y-B4, CFAL12864L-G-B4, CFAL12822A-Y-B1, CFAL12864S-Y-B1, CFAL160128B-F-B2, CFAL12832C-B-B1
Date Issued:	April 21, 2011
Summary:	This part will soon be End of Life and no longer available. There is no cross reference or substitute part.

Part Change Notice #10284: CFAL12822A series of OLED module improvements

Products Affected:	CFAL12822A-Y-B, CFAL12822A-Y-B1
Date Issued:	August 23, 2010
Summary:	CFAL12822A series of OLED module improvements
Description:	The panel has been reduced in size from 65mm x 23.5mm to 63.3mm x 20.8mm. For the CFAL12822A-Y-B1, there has been added a carrier to bring the overall dimensions to 64.8mm x 23.5mm. The CFAL12822A-Y-B1 now has a driving voltage of 12v instead of 14v, and the brightness has increased from 80cd/m² to 100cd/m². Improvements in the organic material design has also increased the efficiency of the CFAL12822A series. Lifetime of CFAL12822A series is increased from 10,000 hours to 50% brightness to 20,000 hours to 50% brightness. The shape but not length or pitch of the FPC tail on the CFAL12822A-Y-B1 module has also changed.
Reason:	Manufacturing improvements.
Impact:	In the initialization for the module, a change will need to be made for command Set Lower Column Start Address from 0x10+0 to 0x10+4.
Price Change:	N/A
