[EOL] Green 24x2 Character LCD from Crystalfontz

Product

Home » Products » Sunlight Readable Displays » Character

                This product has reached end of life

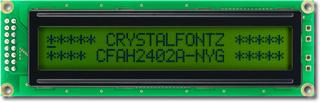

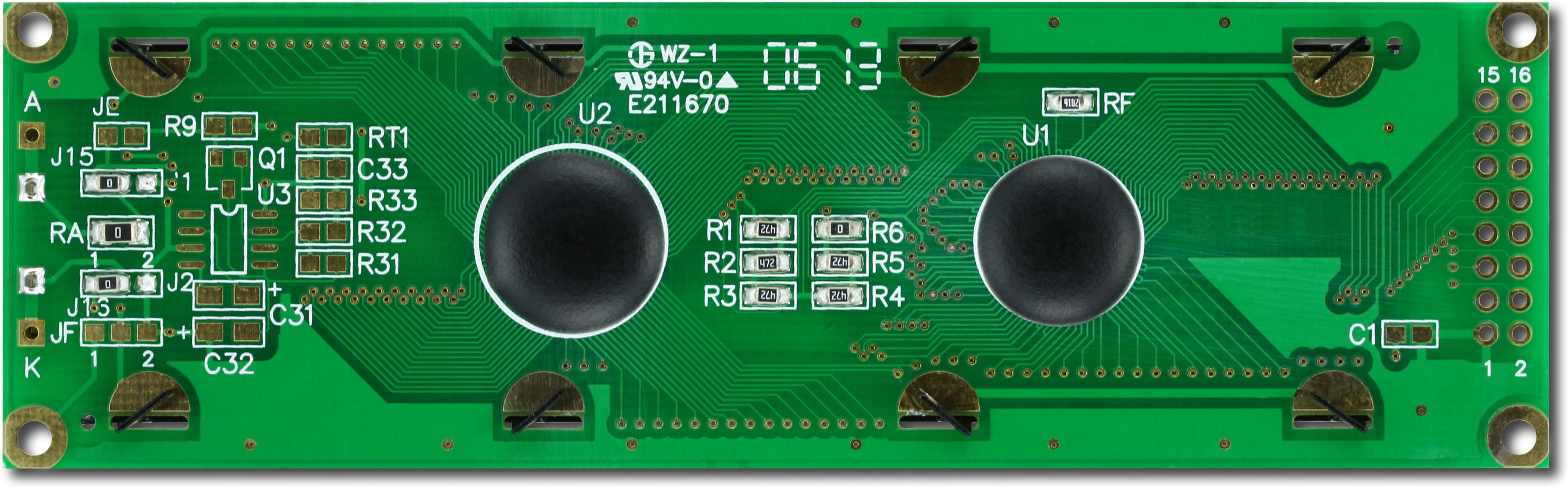

[EOL] Green 24x2 Character LCDPart Number: CFAH2402A-NYG-JTParallel Character LCD 24x2, RoHS Compliant, No Backlight, STN Positive, Yellow/Green, Reflective -20°C to +70°C 6:00
Available in several variations of backlight and polarizer  (minimum order may be required)
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller

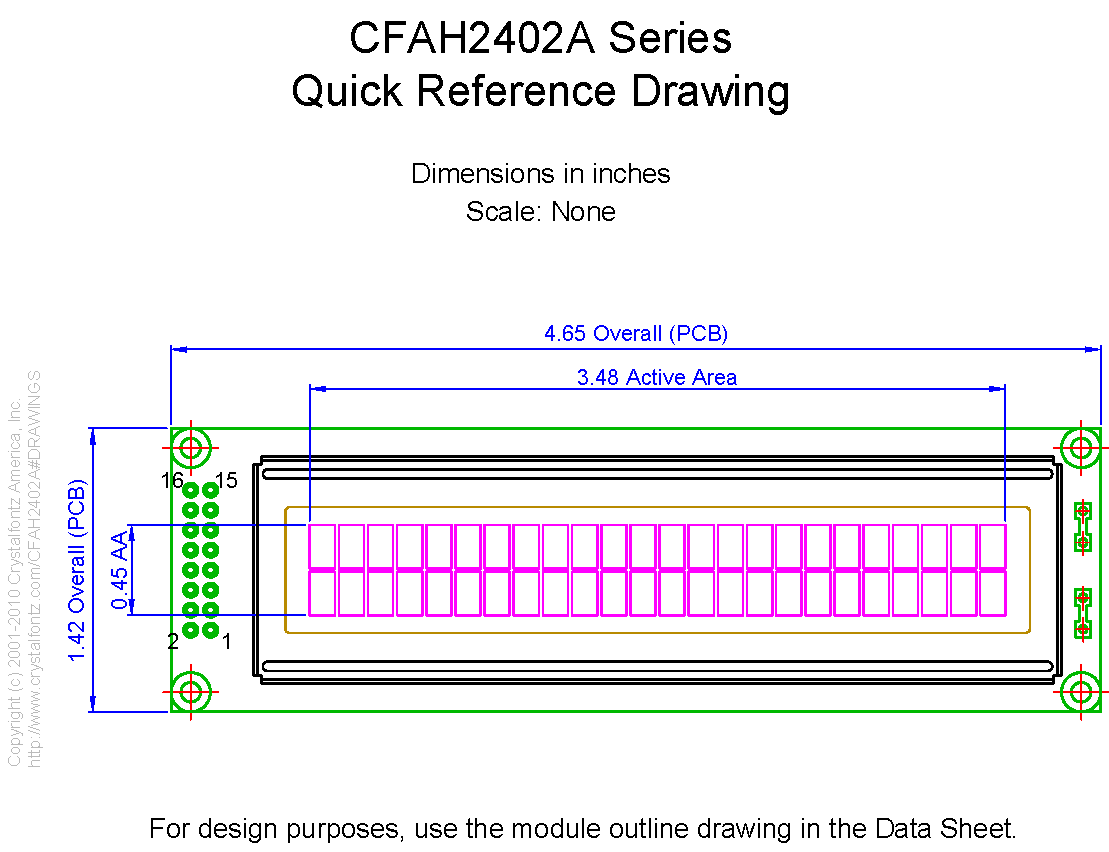

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            24 x 2

    Module Overall        width
        height
        depth

        millimeters
        118
        36
        9.5

        inches
        4.65
        1.42
        0.37

    PCB Outline        width
        height
        depth

        millimeters
        118
        36
        9.5

        inches
        4.65
        1.42
        0.37

        Diagonal Dimension
            3.51"

    Viewing Area        Width
        Height

        millimeters
        94.5
        16

        inches
        3.72
        0.63

    Active Area        Width
        Height

        millimeters
        88.3
        11.5

        inches
        3.48
        0.45

    Character Size        Width
        Height

        millimeters
        3.2
        5.55

        inches
        0.126
        0.219

    Character Pitch        Width
        Height

        millimeters
        3.7
        5.95

        inches
        0.146
        0.234

    Dot Size        Width
        Height

        millimeters
        0.6
        0.65

        inches
        0.024
        0.026

    Dot Pitch        Width
        Height

        millimeters
        0.65
        0.7

        inches
        0.026
        0.028

        Weight
            40g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Reflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Type
            None
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V
Supply Voltage for Driving Panel Typical
            4.35V

        Supply Current Minimum
            1mA
Supply Current Maximum
            1.5mA
Supply Current Typical
            1.2mA
Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH2402A-NYG-JT Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAH2402ANYGJP.pdf

 download Files and Downloads
folder_zip CAD Export - CFAH2402A 2D CAD
picture_as_pdf 1 to 1 Template - CFAH2402A 1 TO 1.PDF

Module Overall	width	height	depth
millimeters	118	36	9.5
inches	4.65	1.42	0.37

PCB Outline	width	height	depth
millimeters	118	36	9.5
inches	4.65	1.42	0.37

Viewing Area	Width	Height
millimeters	94.5	16
inches	3.72	0.63

Active Area	Width	Height
millimeters	88.3	11.5
inches	3.48	0.45

Character Size	Width	Height
millimeters	3.2	5.55
inches	0.126	0.219

Character Pitch	Width	Height
millimeters	3.7	5.95
inches	0.146	0.234

Dot Size	Width	Height
millimeters	0.6	0.65
inches	0.024	0.026

Dot Pitch	Width	Height
millimeters	0.65	0.7
inches	0.026	0.028

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11057: End-Of-Life Notification

Product Affected:	CFAH2402A-NYG-JT
Date Issued:	December 9, 2019
Summary:	End-Of-Life Notification
Description:	The part listed is being set to End of Life Status
Reason:	The Minimum Order Quantity for this part has been raise to unsustainable levels
Impact:	When our current stock is depleted, this part will not be available
Recommendation:	There are two equivalent transflective versions of this module. The equivalent versions could be operated without energizing the backlight.
Availability:	Current stock only

Part Change Notice #11042: End-of-Life Notification for CFAH2402A-NYG-JT

Product Affected:	CFAH2402A-NYG-JT
Date Issued:	March 29, 2019
Summary:	End-of-Life Notification for CFAH2402A-NYG-JT
Description:	The part listed is being set to End-of-Life Status.
Reason:	The minimum order quantity for this part has been raised to unsustainable levels.
Impact:	When current stock is depleted, this part will not be available
Recommendation:	There are two equivalent transflective versions of this module. The equivalent versions could be operated without energizing the backlight.
Availability:	Current stock only.

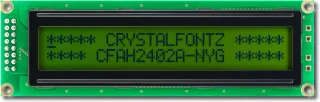

[EOL] Green 24x2 Character LCD

Part Number: CFAH2402A-NYG-JT

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11057: End-Of-Life Notification

Part Change Notice #11042: End-of-Life Notification for CFAH2402A-NYG-JT

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	STN/Yellow-Green
Polarizer	Reflective
View Direction	6 o'clock
Sunlight Readable	Yes

Backlight Type	None
Mode	Positive
Foreground Color	Dark
Background Color	Yellow-Green

Supply Voltage for Logic Minimum	4.5V
Supply Voltage for Logic Maximum	5.5V
Supply Voltage for Logic Typical	5V
Supply Voltage for Driving Panel Typical	4.35V

Supply Current Minimum	1mA
Supply Current Maximum	1.5mA
Supply Current Typical	1.2mA
Module Connector Pitch	0.1mm

Controller Documents	Sitronix ST7066U Dot Matrix LCD Controller/Driver
Interface	4-bit Parallel, 8-bit Parallel
