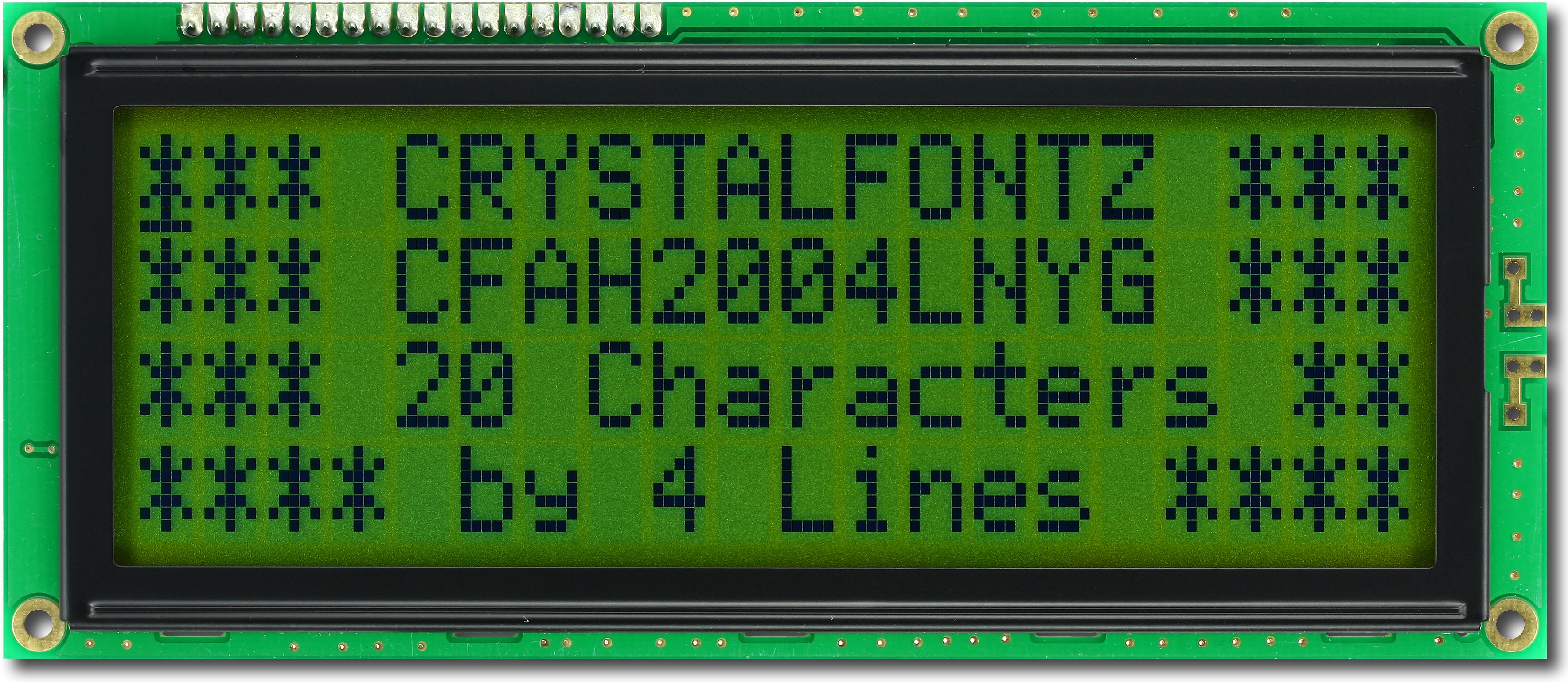

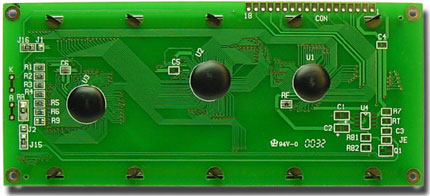

[EOL] CFAH2004LNYGEPPart Number: CFAH2004L-NYG-EPParallel Character LCD 20x4, RoHS Compliant, No Backlight, STN Positive, Yellow/Green, Reflective -20°C to +70°C 6:00
Available in several variations of backlight and polarizer  (minimum order may be required)
Large characters
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
 square_foot Physical Characteristics

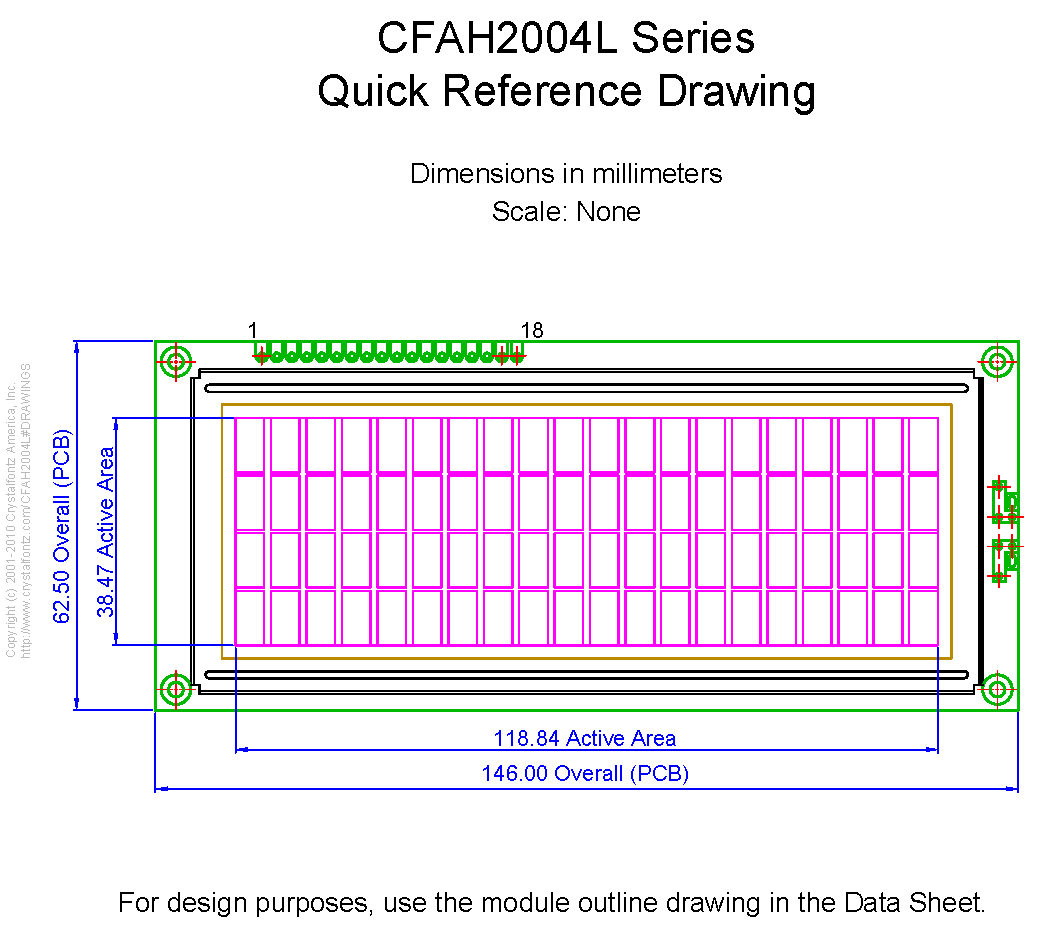

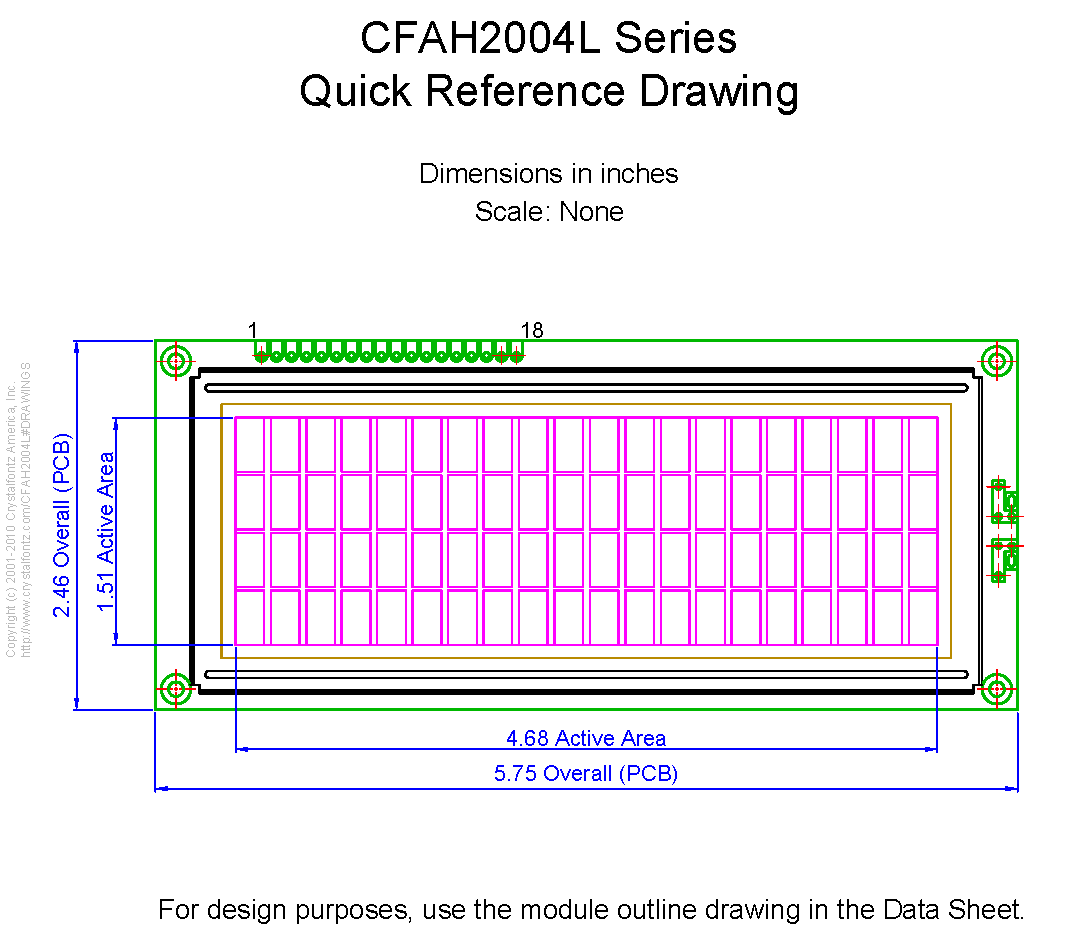

Physical Characteristics

        Characters x Lines
            20 x 4

    Module Overall        width
        height
        depth

        millimeters
        146
        62.5
        10.1

        inches
        5.75
        2.46
        0.40

    PCB Outline        width
        height
        depth

        millimeters
        146
        62.5
        10.1

        inches
        5.75
        2.46
        0.40

    Viewing Area        Width
        Height

        millimeters
        123.5
        43

        inches
        4.86
        1.69

    Active Area        Width
        Height

        millimeters
        118.84
        38.47

        inches
        4.68
        1.52

    Character Size        Width
        Height

        millimeters
        4.84
        9.22

        inches
        0.191
        0.363

    Character Pitch        Width
        Height

        millimeters
        6
        9.75

        inches
        0.236
        0.384

    Dot Size        Width
        Height

        millimeters
        0.92
        1.1

        inches
        0.036
        0.043

    Dot Pitch        Width
        Height

        millimeters
        0.98
        1.16

        inches
        0.039
        0.046

        Weight
            92g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Reflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Type
            None
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.10mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sunplus SPLC780D
16COM/40SEG Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH2004LNYGEP v1.0.pdf
(Datasheet V 1.0, Hardware D)
picture_as_pdfCFAH2004LNYGEP.pdf

 download Files and Downloads
folder_zip CAD Export - CFAH2004L 2D CAD
picture_as_pdf 1 to 1 Template - CFAH2004L 1 TO 1.PDF

[EOL] CFAH2004LNYGEP

Part Number: CFAH2004L-NYG-EP

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	STN/Yellow-Green
Polarizer	Reflective
View Direction	6 o'clock
Sunlight Readable	Yes

Backlight Type	None
Mode	Positive
Foreground Color	Dark
Background Color	Yellow-Green

Controller Documents	Sunplus SPLC780D 16COM/40SEG Controller/Driver
Interface	4-bit Parallel, 8-bit Parallel
