                This product has reached end of life. While we do not offer any direct replacements for this product, perhaps one of our many other 20x4 character displays will fit your needs. You can always contact our tech support team to get assistance in finding the best LCD display.

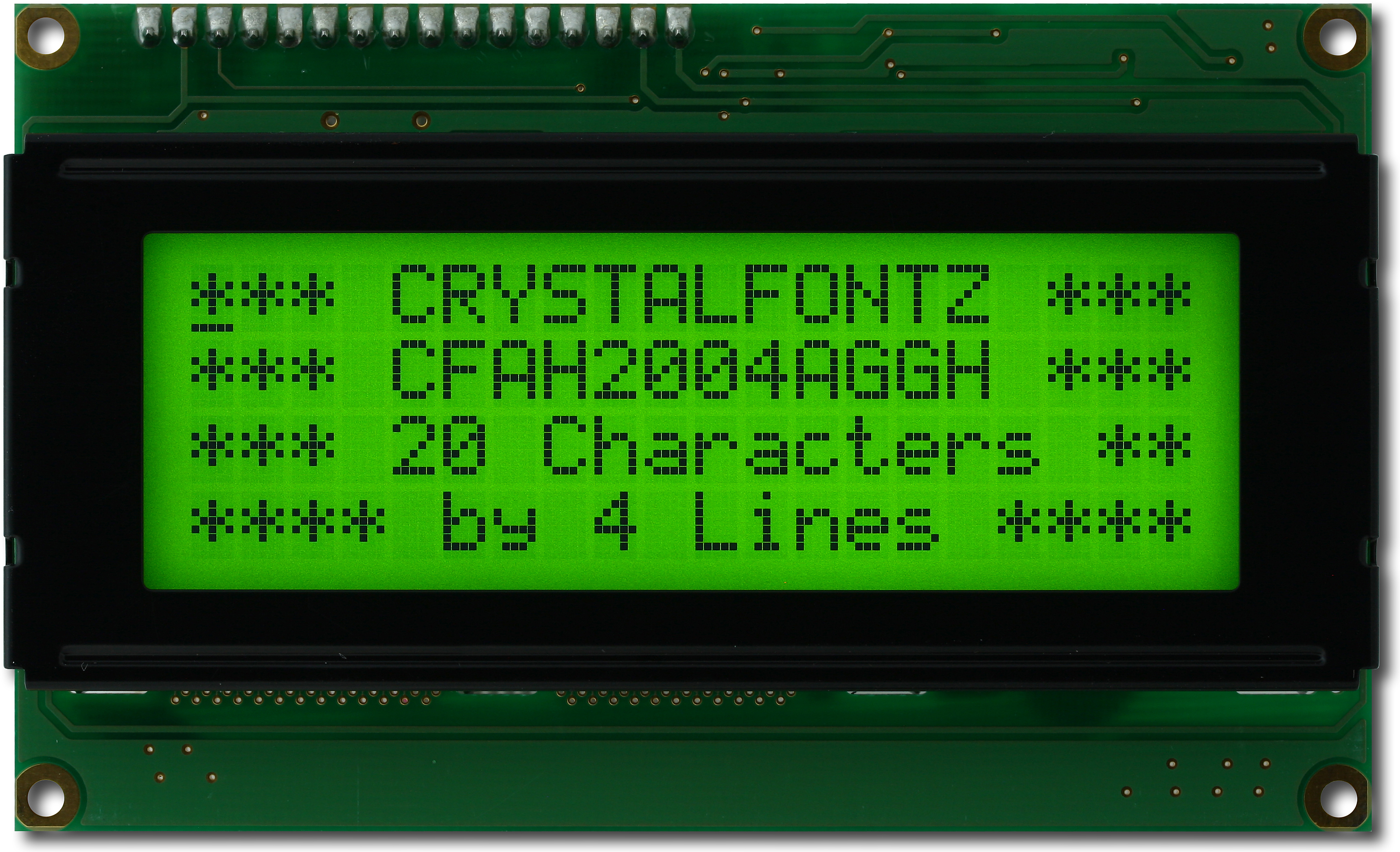

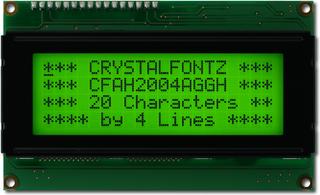

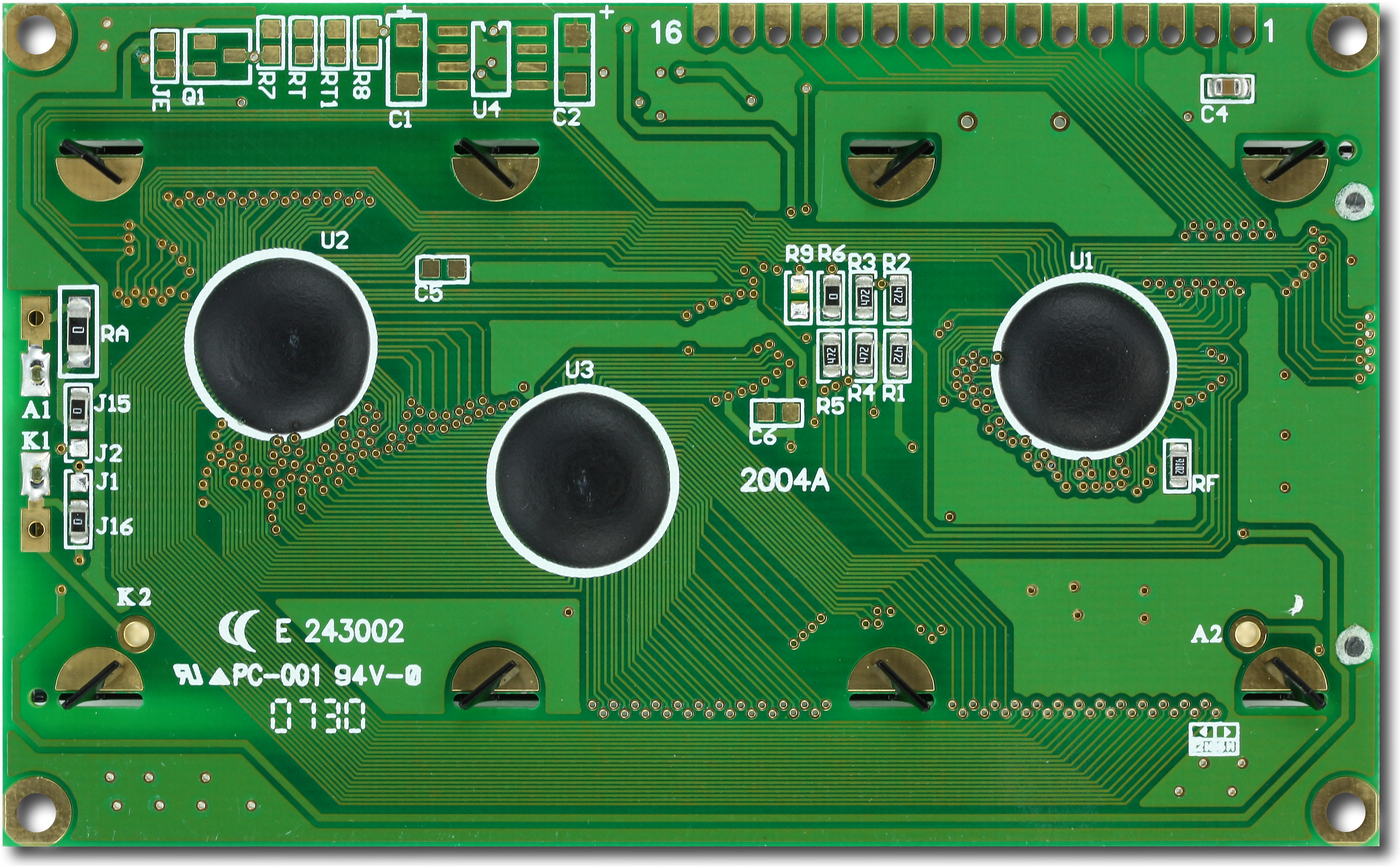

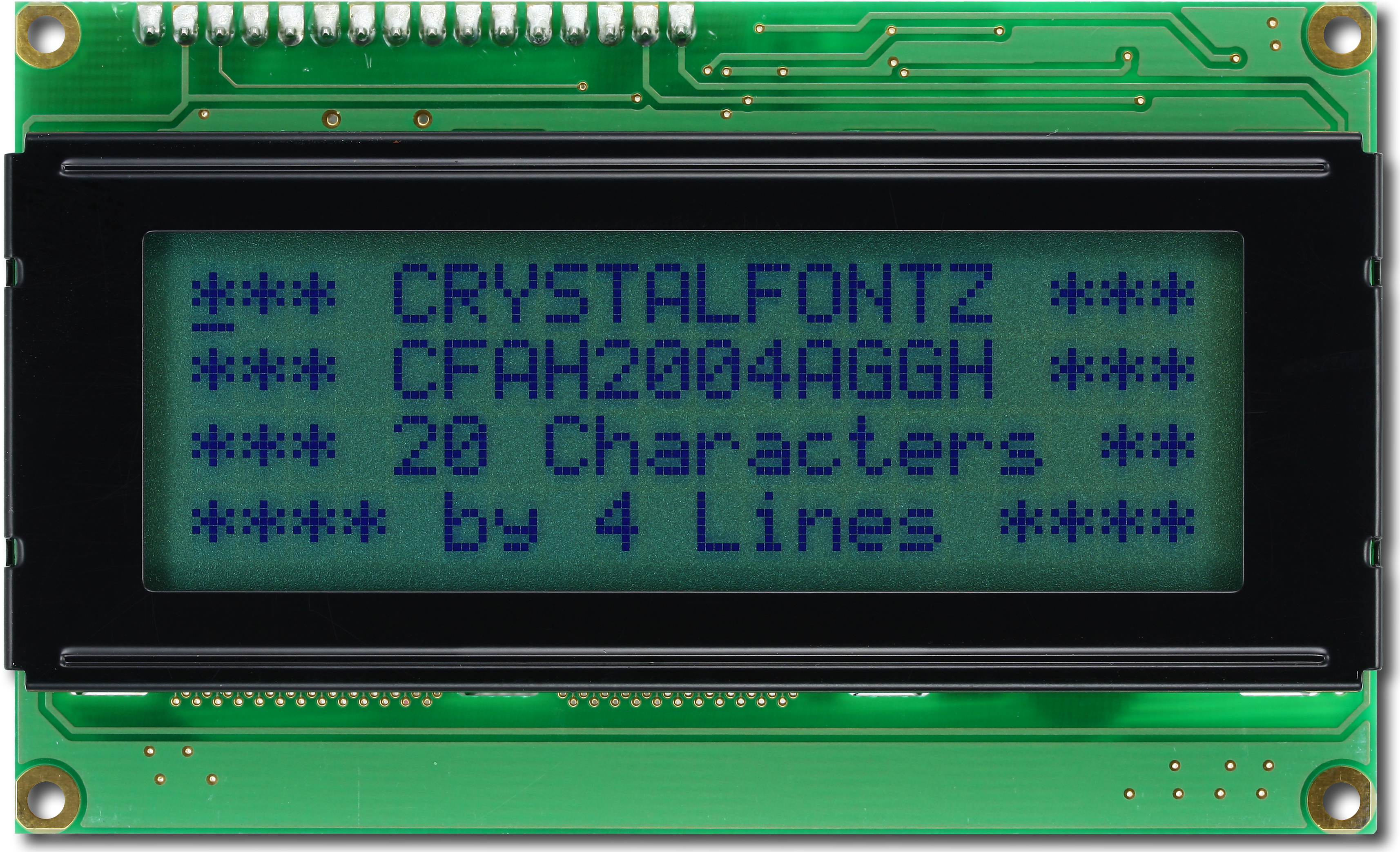

20x4 Character Green LCD (EOL)Part Number: CFAH2004A-GGH-JTParallel Character LCD 20x4, RoHS Compliant, Green LED Backlight, STN Positive, Gray, Transflective -20°C to +70°C, 6:00
Available in several variations of backlight and polarizer  (minimum order may be required)
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            20 x 4

    Module Overall        width
        height
        depth

        millimeters
        98
        60
        13.6

        inches
        3.86
        2.36
        0.54

    PCB Outline        width
        height
        depth

        millimeters
        98
        60
        13.6

        inches
        3.86
        2.36
        0.54

    Viewing Area        Width
        Height

        millimeters
        77
        25.2

        inches
        3.03
        0.99

    Active Area        Width
        Height

        millimeters
        70.4
        20.8

        inches
        2.77
        0.82

    Character Size        Width
        Height

        millimeters
        2.95
        4.75

        inches
        0.116
        0.187

    Character Pitch        Width
        Height

        millimeters
        3.55
        5.35

        inches
        0.140
        0.211

    Dot Size        Width
        Height

        millimeters
        0.55
        0.55

        inches
        0.022
        0.022

    Dot Pitch        Width
        Height

        millimeters
        0.6
        0.6

        inches
        0.024
        0.024

        Weight
            52g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Gray
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.10mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH2004AGGHJP.pdf

 download Files and Downloads
folder_zip CAD Export - CFAH2004A 2D CAD
picture_as_pdf 1 to 1 Template
