16x2 Character Transflective LCD from Crystalfontz

Product

Home » Products » Sunlight Readable Displays » Character

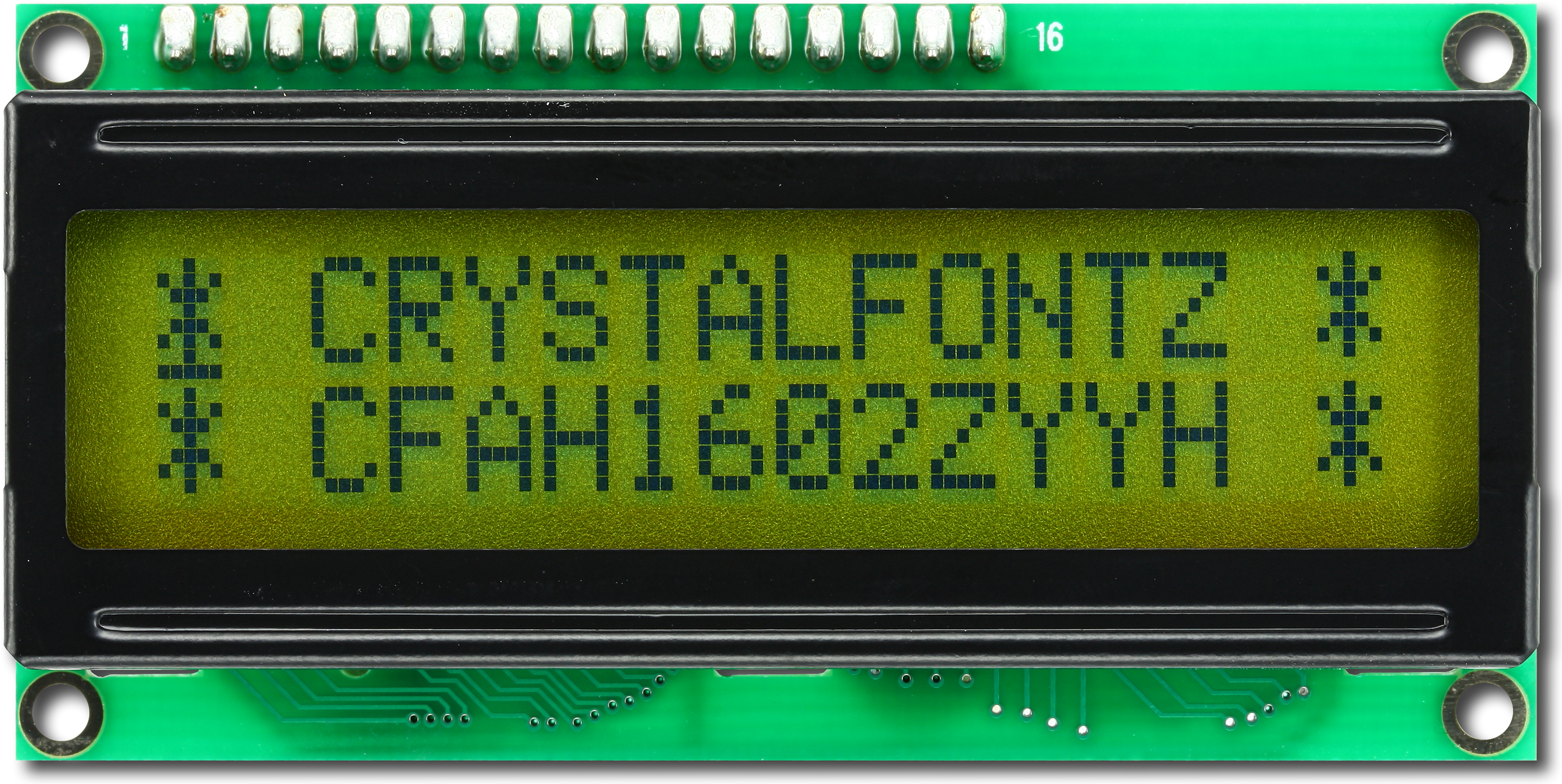

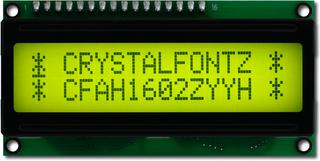

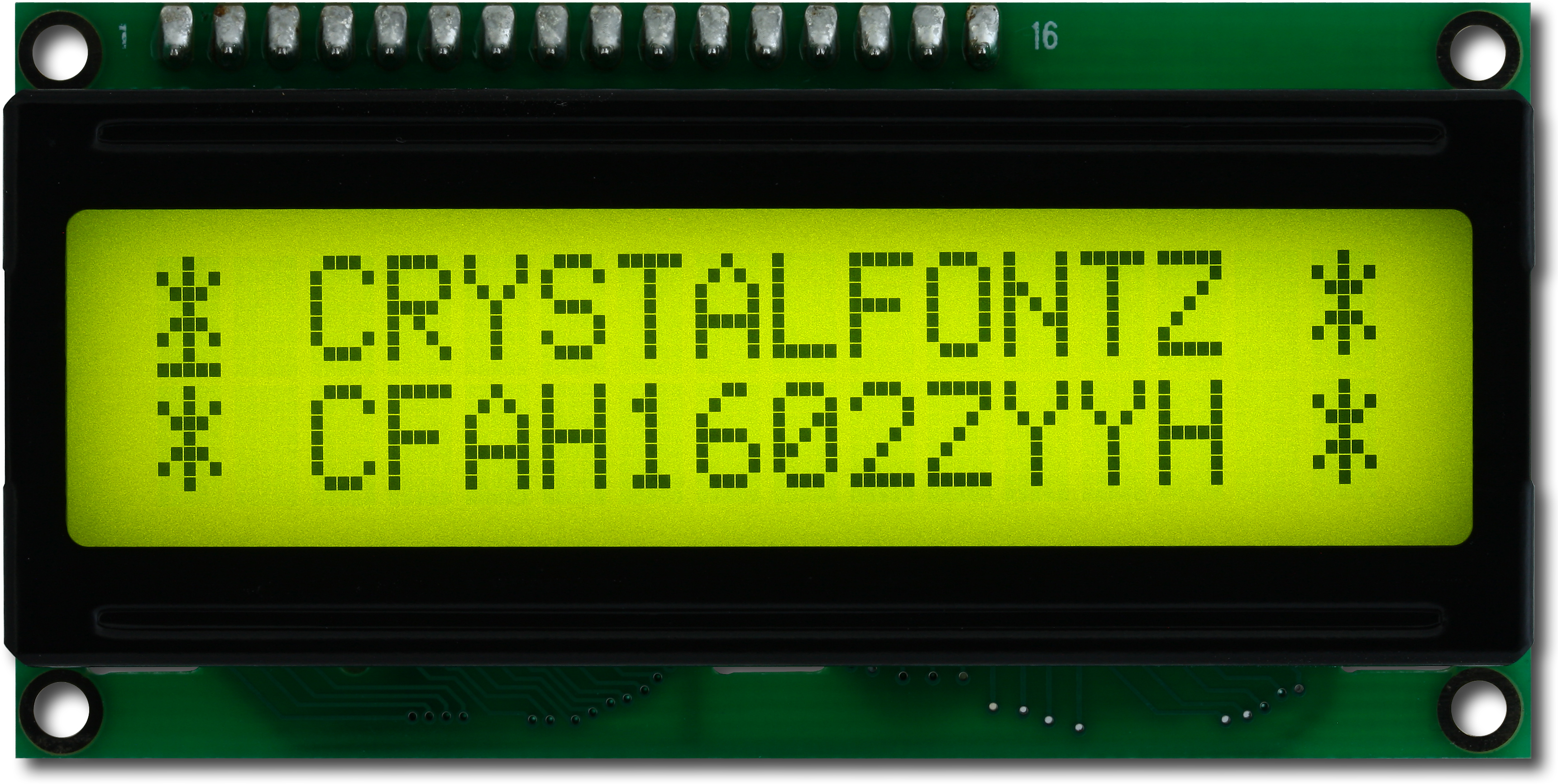

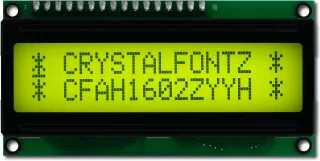

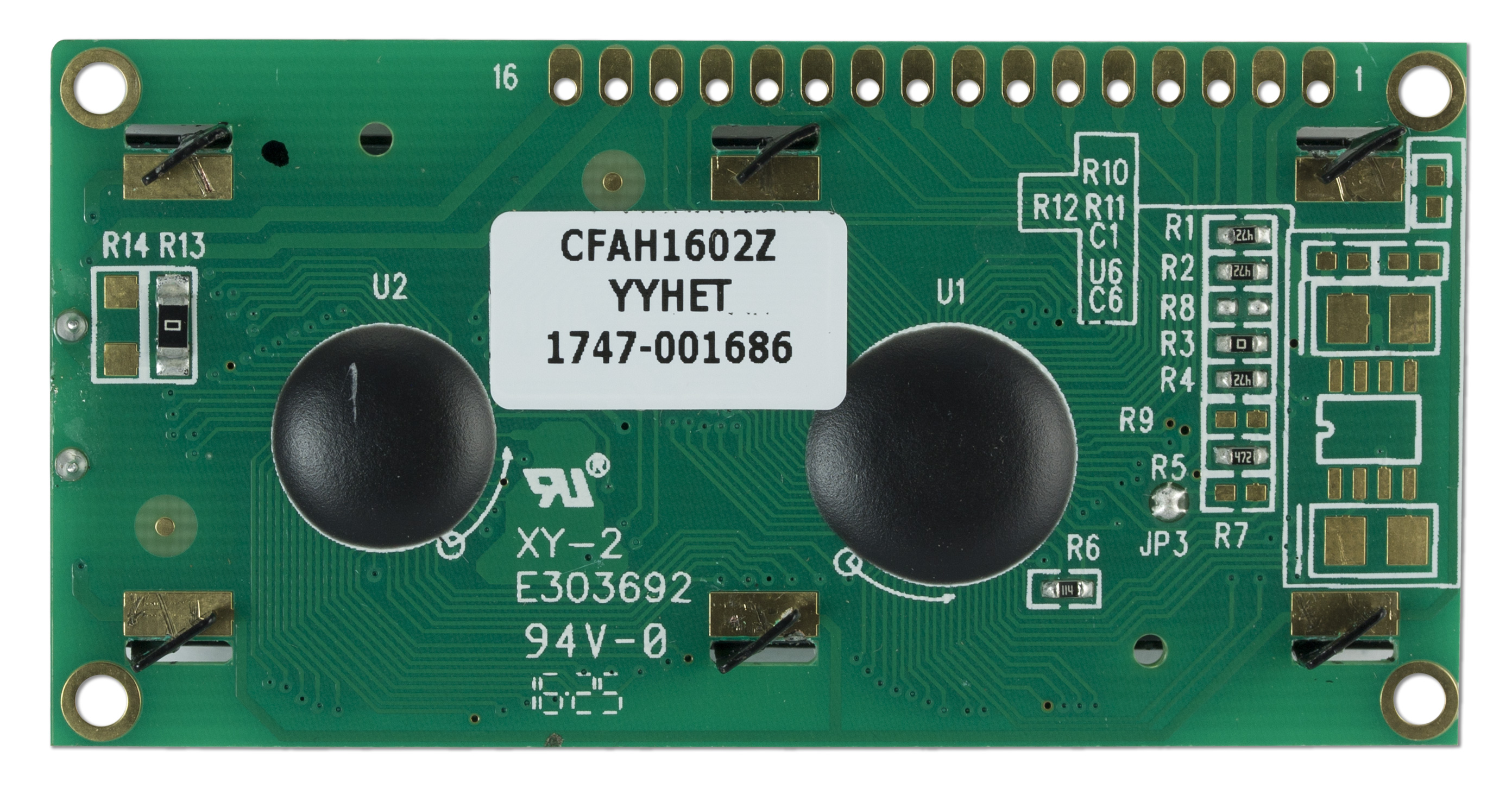

16x2 Character Transflective LCDPart Number: CFAH1602Z-YYH-ETParallel 16x2 Character LCD module with a yellow-green LED Backlight and STN-positive, yellow-green transflective glass. It boasts an operating temperature of -20°C to +70°C and a 6 o'clock viewing direction.
Available in several variations of backlight and polarizer  (minimum order may be required)
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller

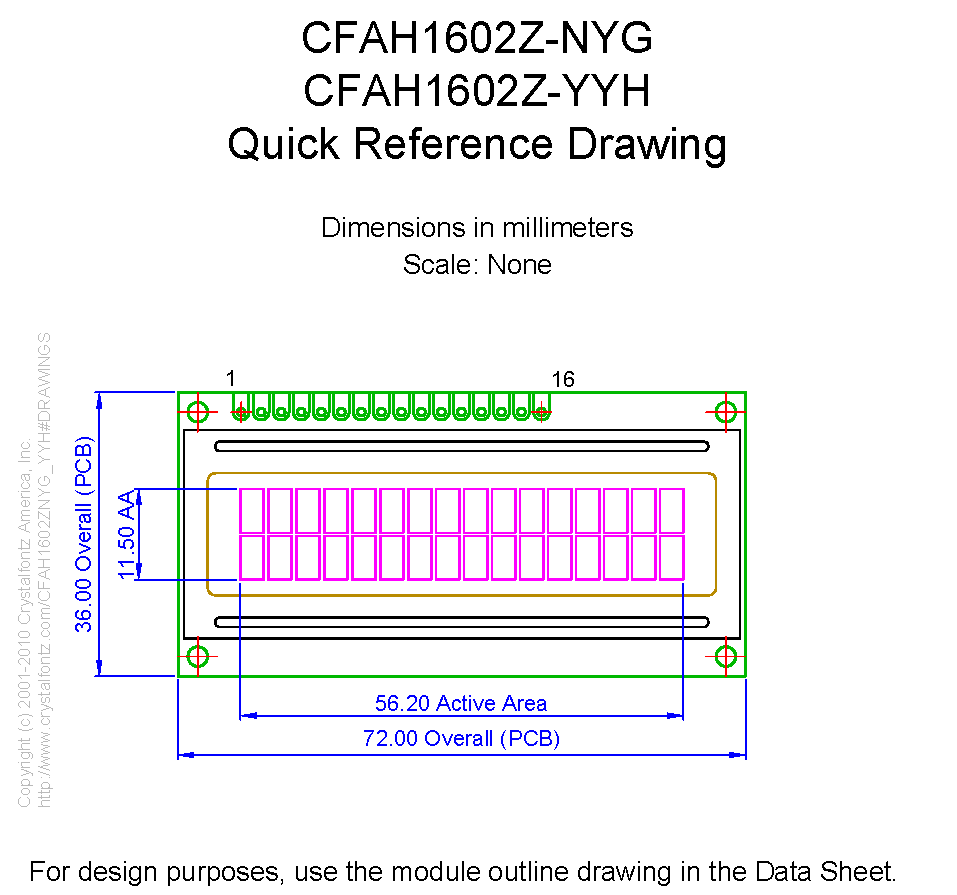

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 2


    Module Overall        width
        height
        depth


        millimeters
        72
        36
        14


        inches
        2.84
        1.42
        0.55



    PCB Outline        width
        height
        depth


        millimeters
        72
        36
        14


        inches
        2.84
        1.42
        0.55



        Diagonal Dimension
            2.26"


    Viewing Area        Width
        Height


        millimeters
        64.5
        15.5


        inches
        2.54
        0.61



    Active Area        Width
        Height


        millimeters
        56.2
        11.5


        inches
        2.21
        0.45



    Character Size        Width
        Height


        millimeters
        2.95
        5.55


        inches
        0.116
        0.219



    Character Pitch        Width
        Height


        millimeters
        3.55
        5.95


        inches
        0.140
        0.234



    Dot Size        Width
        Height


        millimeters
        0.55
        0.65


        inches
        0.022
        0.026



    Dot Pitch        Width
        Height


        millimeters
        0.6
        0.7


        inches
        0.024
        0.028



        Weight
            35g
Pin Count
            16

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAH1602ZYYHET Datasheet

Previous Versions of Datasheetspicture_as_pdfCFAH1602ZYYHET v1.0.pdf
(Datasheet V A, Hardware 1.0)
picture_as_pdfCFAH1602ZYYHET.pdf

download Files and Downloads
folder_zip CAD Export - CFAH1602Z 2D CAD
picture_as_pdf 1 to 1 Template - CFAH1602Z-NYG-YYH 1 TO 1.PDF
link Demo Code Repository on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH














Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1
            $15.10

            10
            $13.13

            20
            $12.67

            50
            $12.20

            100
            $12.01

            200 *
            $11.82

            500 *
            $8.69

            1000 *
            $6.76

160 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
