            This product is end-of-life. Please look at our other 16x2 character LCDs for a possible replacement.

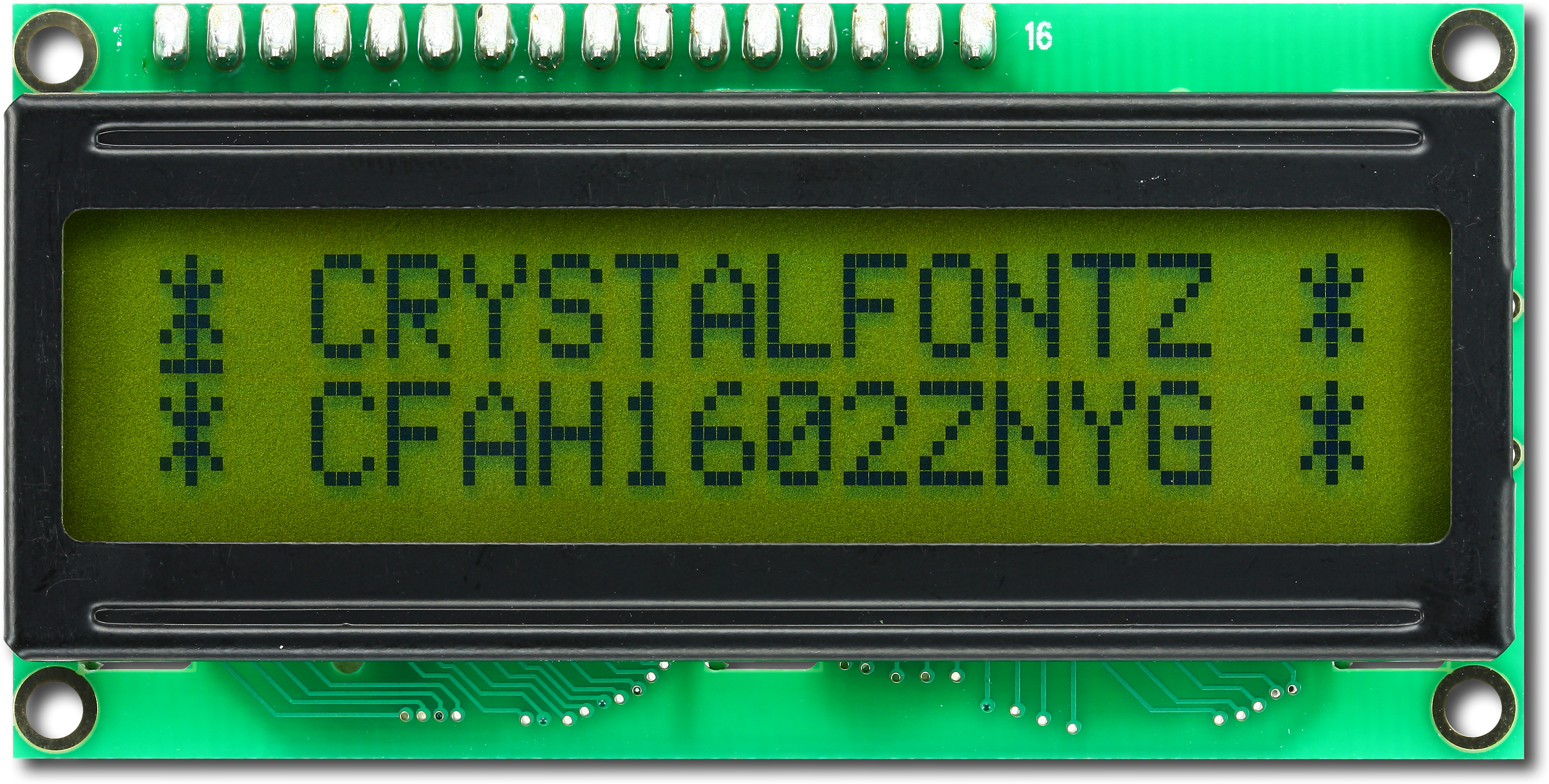

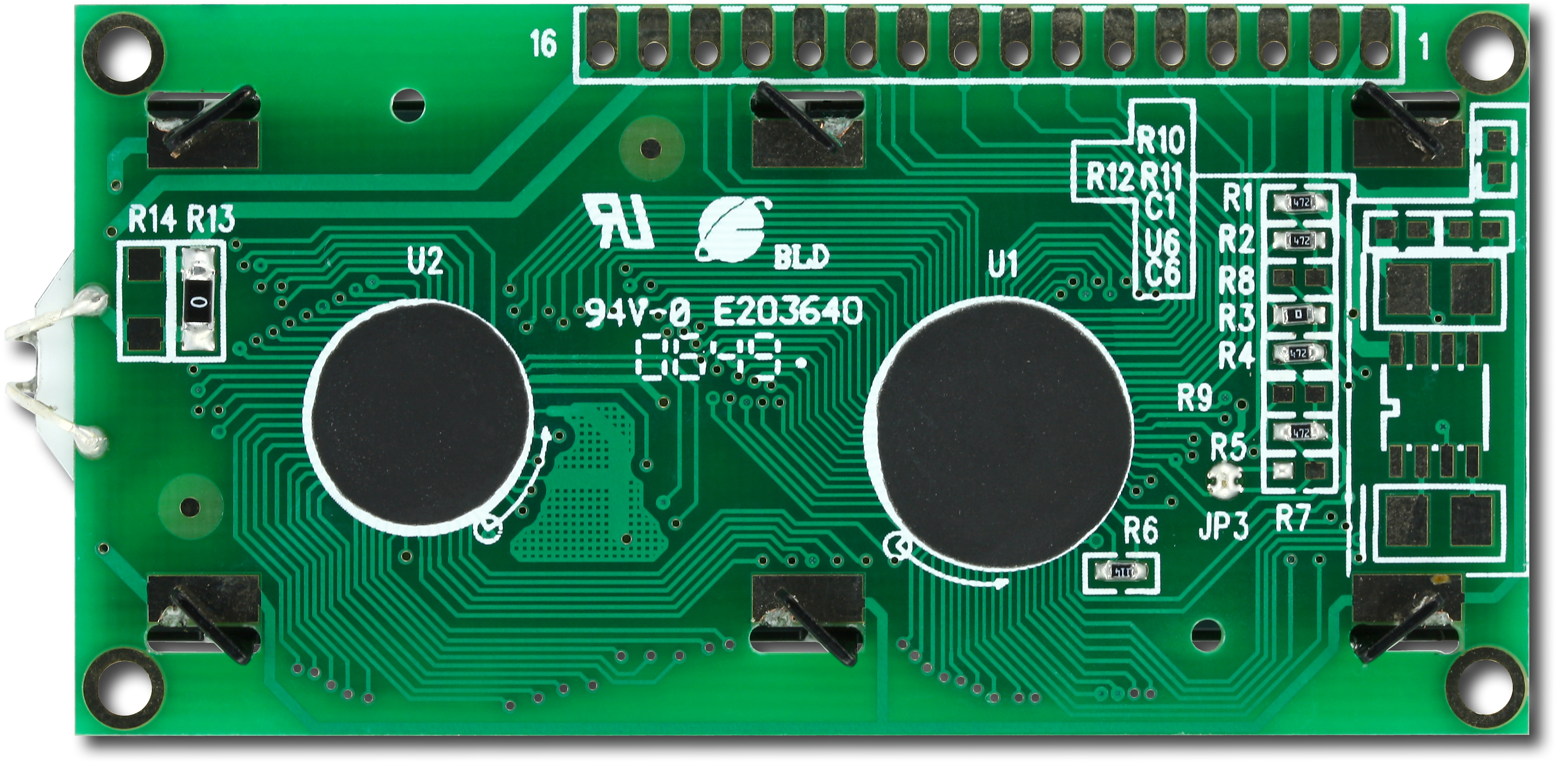

Yellow-Green 16x2 Character LCD (EOL)Part Number: CFAH1602Z-NYG-ETParallel Character LCD 16x2, RoHS Compliant, No Backlight, STN Positive, Yellow/Green, Reflective -20°C to +70°C 6:00
Available in several variations of backlight and polarizer  (minimum order may be required)
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
 square_foot Physical Characteristics

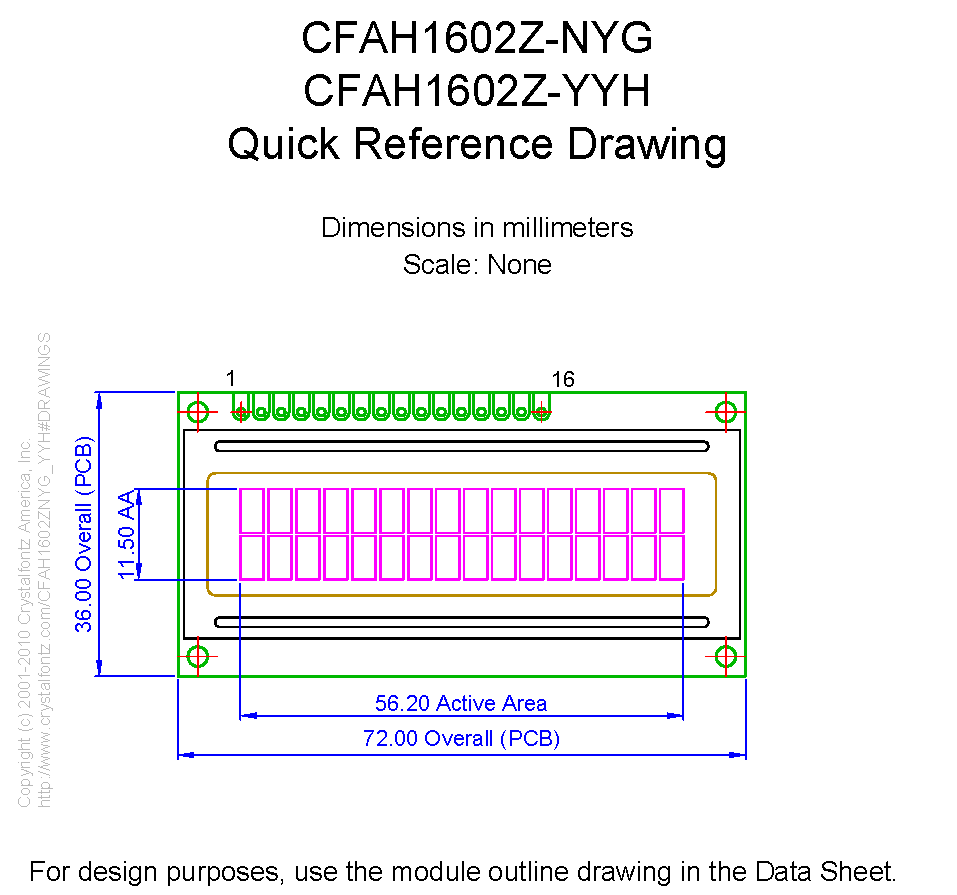

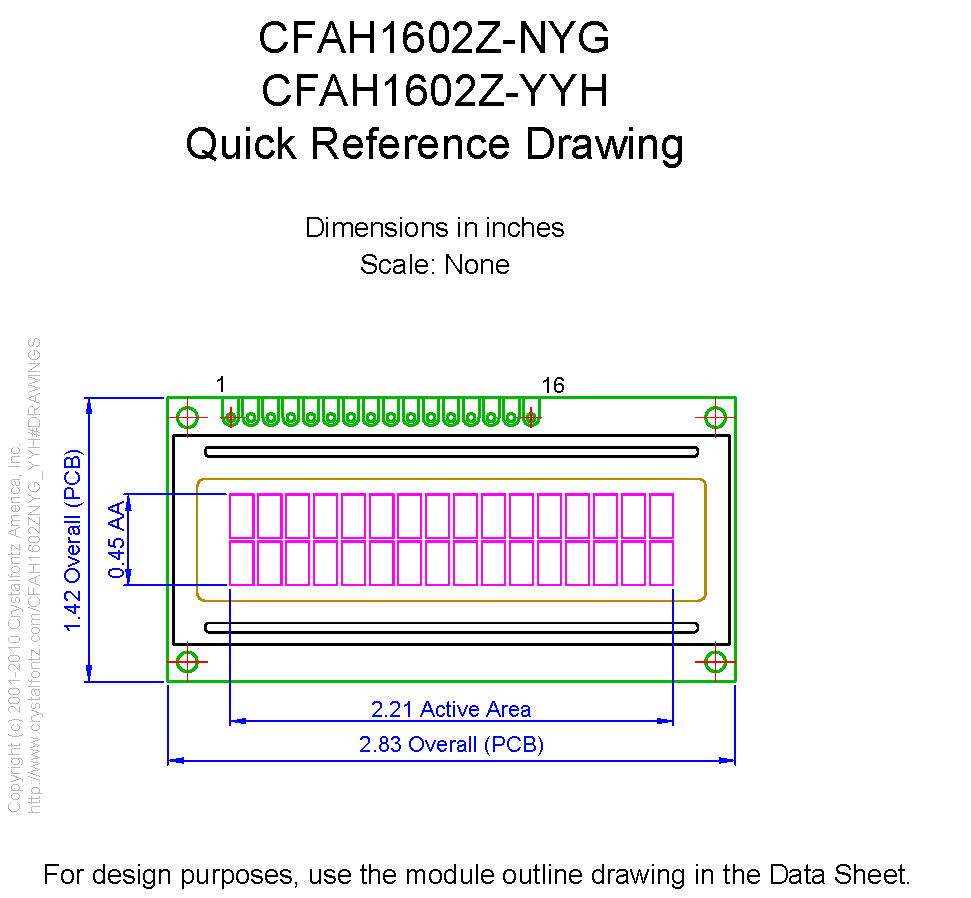

Physical Characteristics

        Characters x Lines
            16 x 2

    Module Overall        width
        height
        depth

        millimeters
        72
        36
        10

        inches
        2.84
        1.42
        0.39

    PCB Outline        width
        height
        depth

        millimeters
        72
        36
        10

        inches
        2.84
        1.42
        0.39

        Diagonal Dimension
            2.26"

    Viewing Area        Width
        Height

        millimeters
        51
        14.8

        inches
        2.01
        0.58

    Active Area        Width
        Height

        millimeters
        47.56
        11

        inches
        1.87
        0.43

    Character Size        Width
        Height

        millimeters
        2.95
        4.9

        inches
        0.116
        0.193

    Character Pitch        Width
        Height

        millimeters
        3.55
        5.59

        inches
        0.140
        0.220

    Dot Size        Width
        Height

        millimeters
        0.55
        0.65

        inches
        0.022
        0.026

    Dot Pitch        Width
        Height

        millimeters
        0.6
        0.7

        inches
        0.024
        0.028

        Weight
            25g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Reflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Type
            None
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sunplus SPLC780D
16COM/40SEG Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH1602ZNYGET v1.0.pdf
(Datasheet V 1.0, Hardware A)
Previous Versions of Datasheetpicture_as_pdfCFAH1602ZNYGET.pdf

 download Files and Downloads
folder_zip CAD Export - CFAH1602Z 2D CAD
picture_as_pdf 1 to 1 Template - CFAH1602Z-NYG-YYH 1 TO 1.PDF

Module Overall	width	height	depth
millimeters	72	36	10
inches	2.84	1.42	0.39

PCB Outline	width	height	depth
millimeters	72	36	10
inches	2.84	1.42	0.39

Viewing Area	Width	Height
millimeters	51	14.8
inches	2.01	0.58

Active Area	Width	Height
millimeters	47.56	11
inches	1.87	0.43

Character Size	Width	Height
millimeters	2.95	4.9
inches	0.116	0.193

Character Pitch	Width	Height
millimeters	3.55	5.59
inches	0.140	0.220

Dot Size	Width	Height
millimeters	0.55	0.65
inches	0.022	0.026

Dot Pitch	Width	Height
millimeters	0.6	0.7
inches	0.024	0.028

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Product Update #10875: This part will soon be End of Life and no longer available. There is no cross reference or substitute part.

Products Affected:	CFAH2002Z-YYH-JP, CFAH1602W-RTI-JP, CFAH1602W-YTI-JP, CFAH1602Z-NYG-ET, CFAH1602Z-TMI-ET
Date Issued:	September 13, 2017
Summary:	This part will soon be End of Life and no longer available. There is no cross reference or substitute part.
Description:
Reason:	The Sunplus display controller is being discontinued by the manufacturer.
Impact:	No replacements will be offered for these parts.
Recommendation:	Contact support@crystalfontz.com to explore other modules that may work for you.
Availability:	Once current stocks are depleted these products will no longer be available.

Yellow-Green 16x2 Character LCD (EOL)

Part Number: CFAH1602Z-NYG-ET

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Product Update #10875: This part will soon be End of Life and no longer available. There is no cross reference or substitute part.

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	STN/Yellow-Green
Polarizer	Reflective
View Direction	6 o'clock
Sunlight Readable	Yes

Backlight Type	None
Mode	Positive
Foreground Color	Dark
Background Color	Yellow-Green

Controller Documents	Sunplus SPLC780D 16COM/40SEG Controller/Driver
Interface	4-bit Parallel, 8-bit Parallel
