This product has reached end of life and has been replaced by CFAH1602LYYHJT

Product

Home » Products

                This product is discontinued and has been replaced by CFAH1602L-YYH-JT

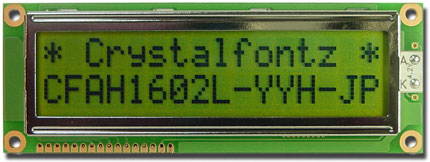

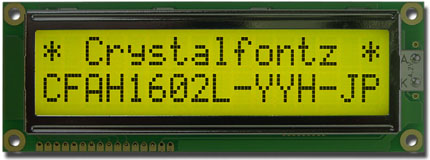

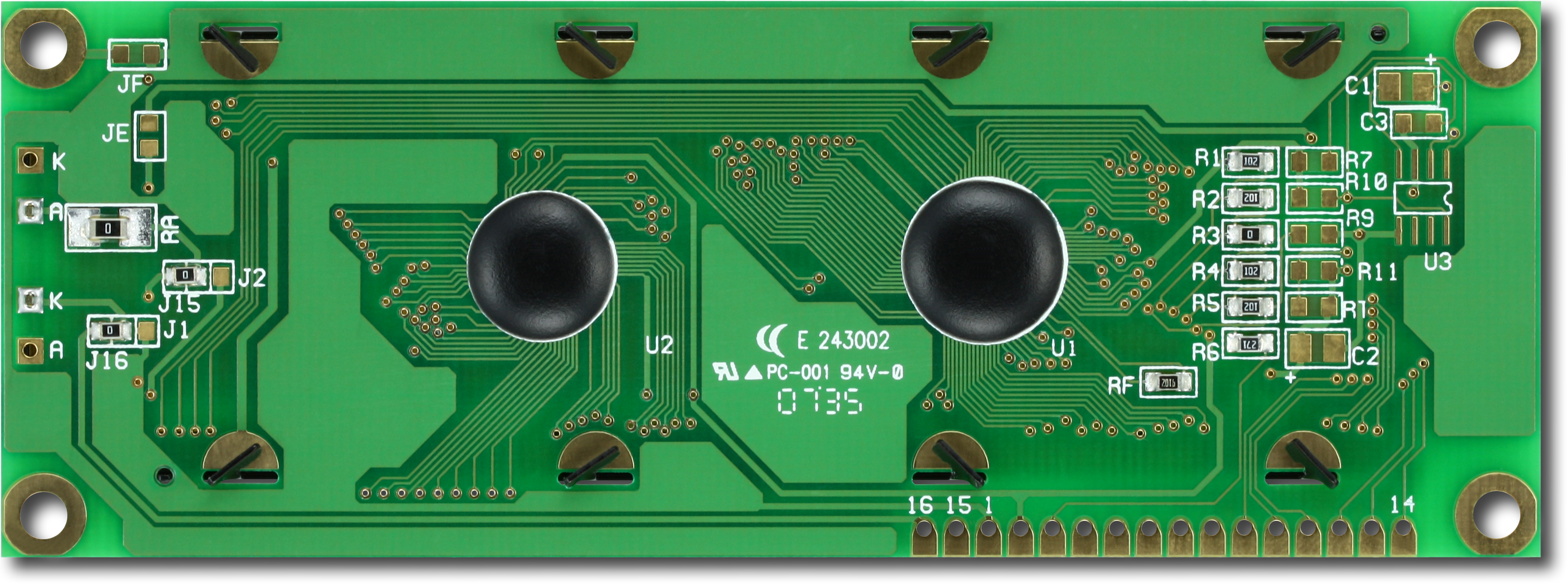

16x2 Character Yellow LCD (EOL)Part Number: CFAH1602L-YYH-JPParallel Character LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C to +70°C 6:00
Available in several variations of backlight and polarizer  (minimum order may be required)
Large Characters
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 2

    Module Overall        width
        height
        depth

        millimeters
        122
        44
        13.6

        inches
        4.80
        1.73
        0.54

    PCB Outline        width
        height
        depth

        millimeters
        122
        44
        13.6

        inches
        4.80
        1.73
        0.54

    Viewing Area        Width
        Height

        millimeters
        99
        24

        inches
        3.90
        0.95

    Active Area        Width
        Height

        millimeters
        94.84
        20

        inches
        3.73
        0.79

    Character Size        Width
        Height

        millimeters
        4.84
        8.06

        inches
        0.191
        0.317

    Character Pitch        Width
        Height

        millimeters
        6
        10.34

        inches
        0.236
        0.407

    Dot Size        Width
        Height

        millimeters
        0.92
        1.1

        inches
        0.036
        0.043

    Dot Pitch        Width
        Height

        millimeters
        0.98
        1.16

        inches
        0.039
        0.046

        Weight
            66g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sunplus SPLC780D
16COM/40SEG Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH1602LYYHJP v2.0.pdf
(Datasheet V 2.0, Hardware A)
picture_as_pdfCFAH1602LYYHJP.pdf

 download Files and Downloads
folder_zip CAD Export - CFAH1602L 2D CAD
picture_as_pdf 1 to 1 Template - CFAH1602L 1 TO 1.PDF

16x2 Character Yellow LCD (EOL)

Part Number: CFAH1602L-YYH-JP

Physical Characteristics

Optical Characteristics

Environmental

Electronics

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	STN/Yellow-Green
Polarizer	Transflective
View Direction	6 o'clock
Sunlight Readable	Yes

Backlight Color	Yellow-Green
Backlight Type	LED
Mode	Positive
Foreground Color	Dark
Background Color	Yellow-Green

Controller Documents	Sunplus SPLC780D 16COM/40SEG Controller/Driver
Interface	4-bit Parallel, 8-bit Parallel
