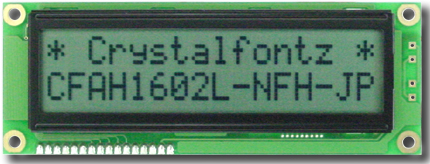

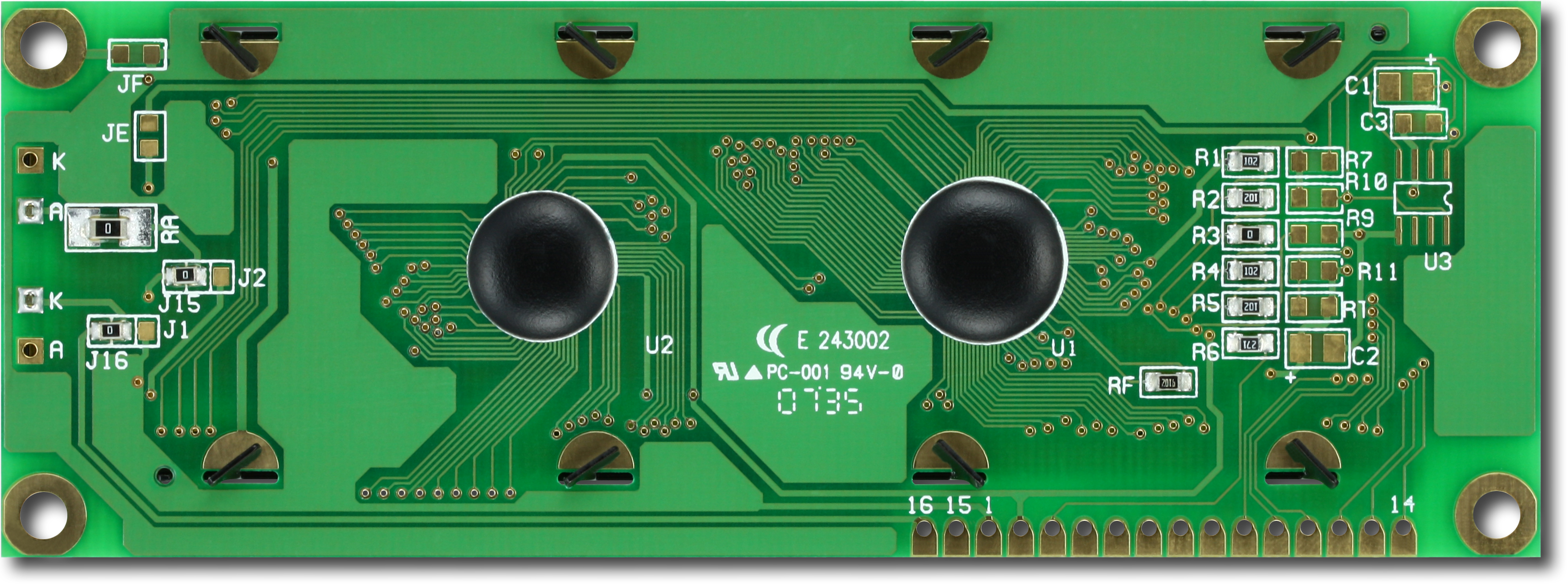

16x2 Gray Character LCD (EOL)Part Number: CFAH1602L-NFH-JPParallel Character LCD 16x2, RoHS Compliant, No Backlight, FSTN Positive, Transflective -20°C to +70°C 6:00
Available in several variations of backlight and polarizer  (minimum order may be required)
Large Characters
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 2

    Module Overall        width
        height
        depth

        millimeters
        122
        44
        13.6

        inches
        4.80
        1.73
        0.54

    PCB Outline        width
        height
        depth

        millimeters
        122
        44
        13.6

        inches
        4.80
        1.73
        0.54

    Viewing Area        Width
        Height

        millimeters
        99
        24

        inches
        3.90
        0.95

    Active Area        Width
        Height

        millimeters
        94.84
        20

        inches
        3.73
        0.79

    Character Size        Width
        Height

        millimeters
        4.84
        8.06

        inches
        0.191
        0.317

    Character Pitch        Width
        Height

        millimeters
        6
        10.34

        inches
        0.236
        0.407

    Dot Size        Width
        Height

        millimeters
        0.92
        1.1

        inches
        0.036
        0.043

    Dot Pitch        Width
        Height

        millimeters
        0.98
        1.16

        inches
        0.039
        0.046

        Weight
            49g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Light Gray
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Type
            None
Mode
            Positive
Foreground Color
            Dark
Background Color
            Light Gray

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sunplus SPLC780D
16COM/40SEG Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel
