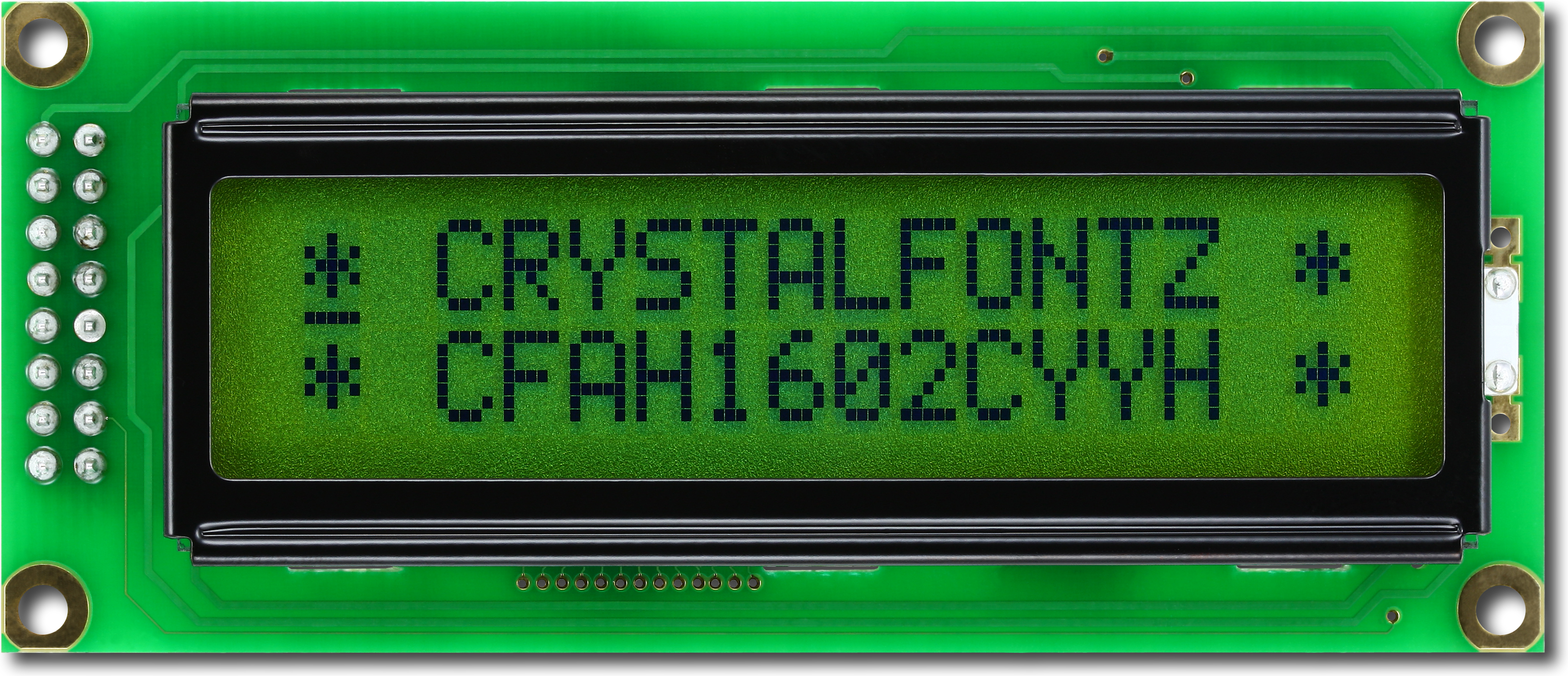

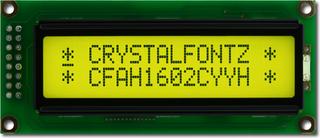

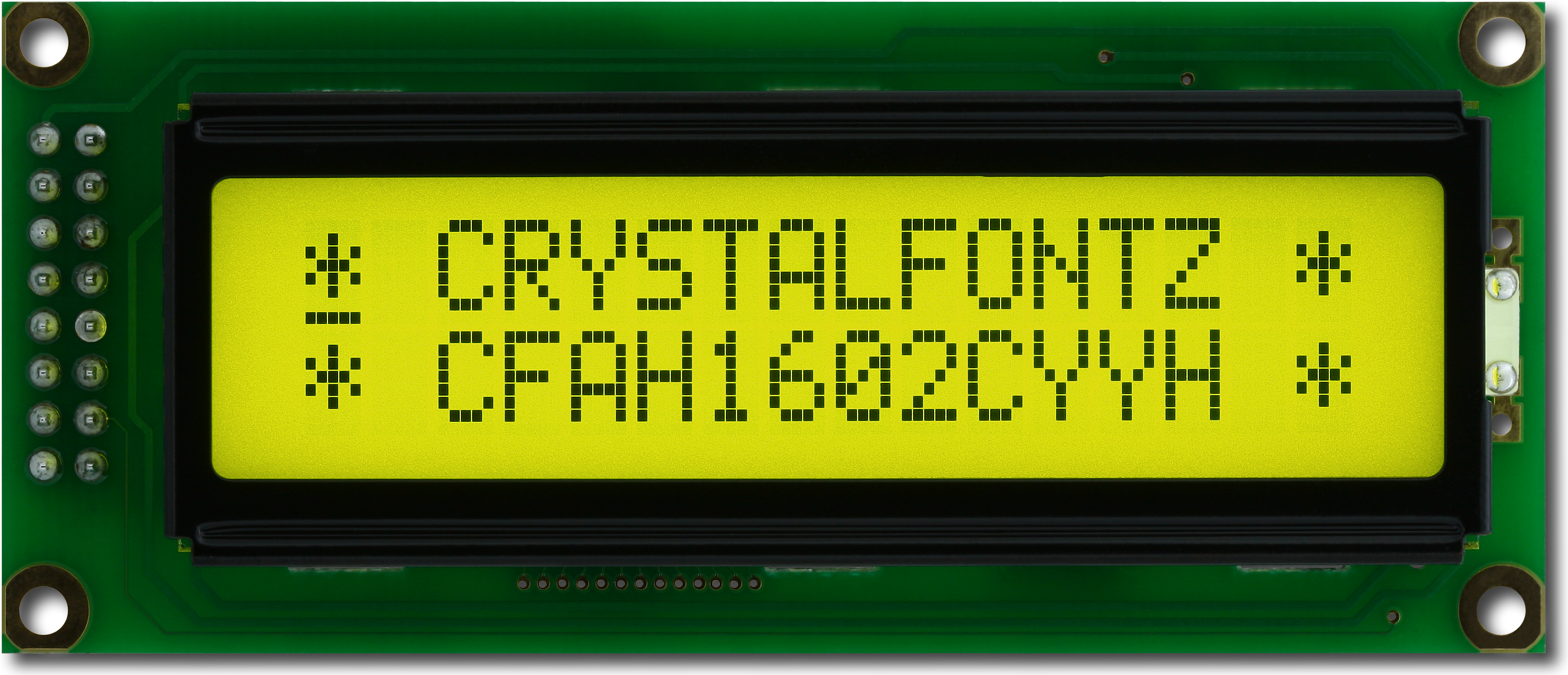

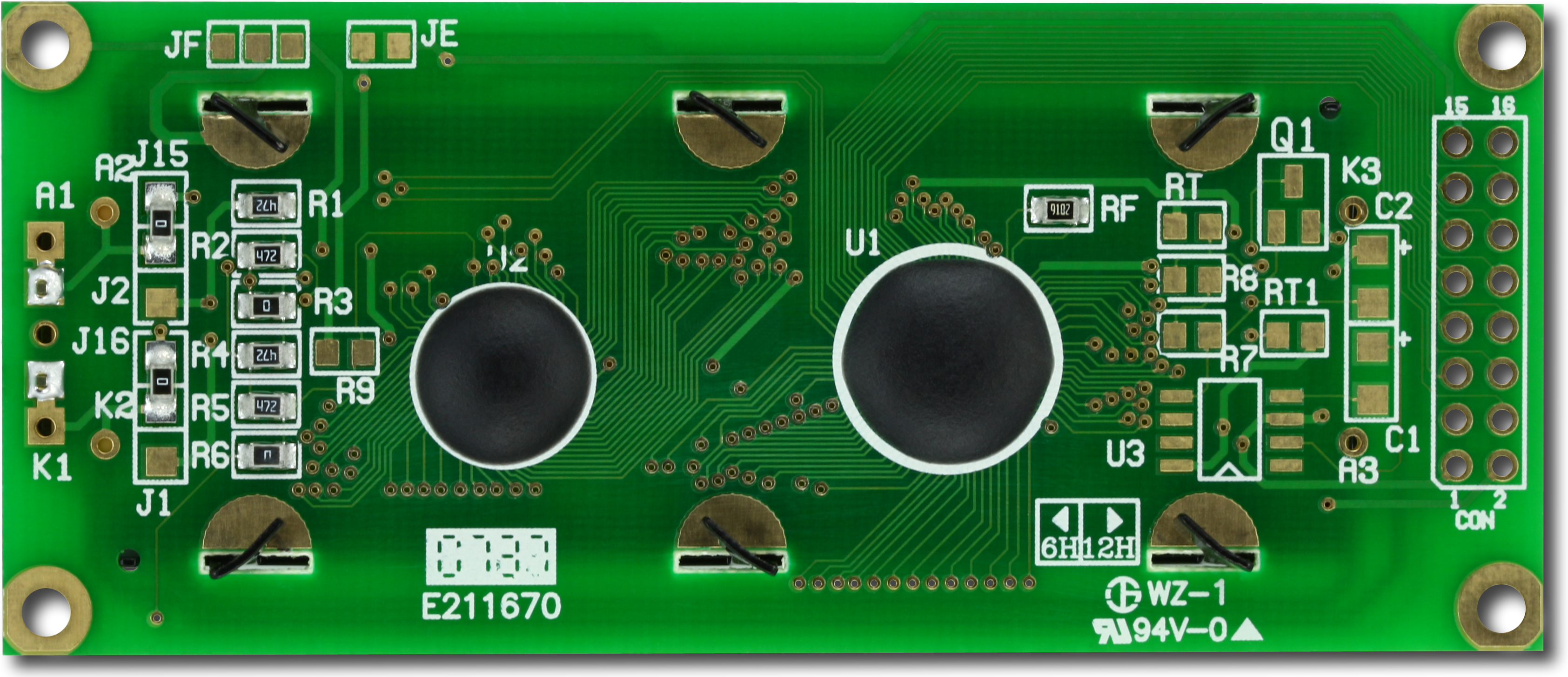

[EOL] Yellow 16x2 Character LCD

Part Number: CFAH1602C-YYH-JPV

Parallel Character LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C to +70°C 6:00, Negative Voltage Generator

• Fit (except for JTV/JPV) and form compatible with the CFAG14432A Series of Graphic LCD modules. Upgrade your product that uses this CFAH1602C character display by switching to the graphic CFAG14432A, or, lower your costs by replacing that graphic with this character module
• Available in several variations of backlight and polarizer (minimum order may be required)
• 8-bit or 4-bit parallel interface
• Industry-standard HD44780 compatible controller

• square_foot Physical Characteristics

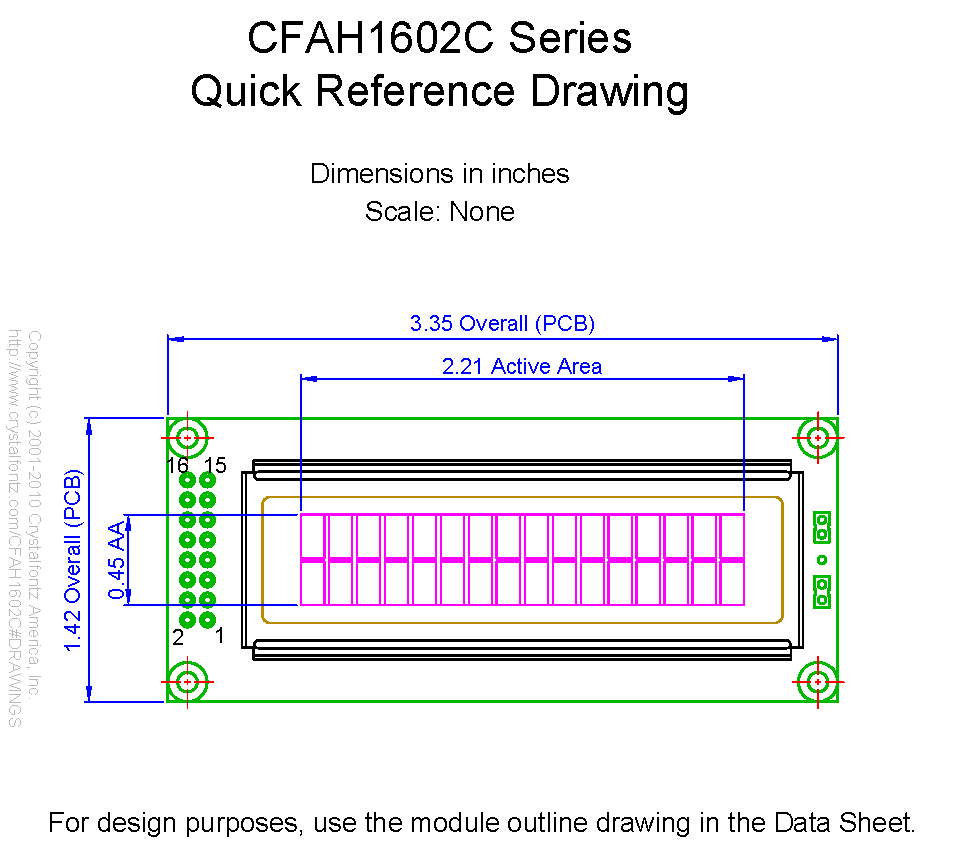

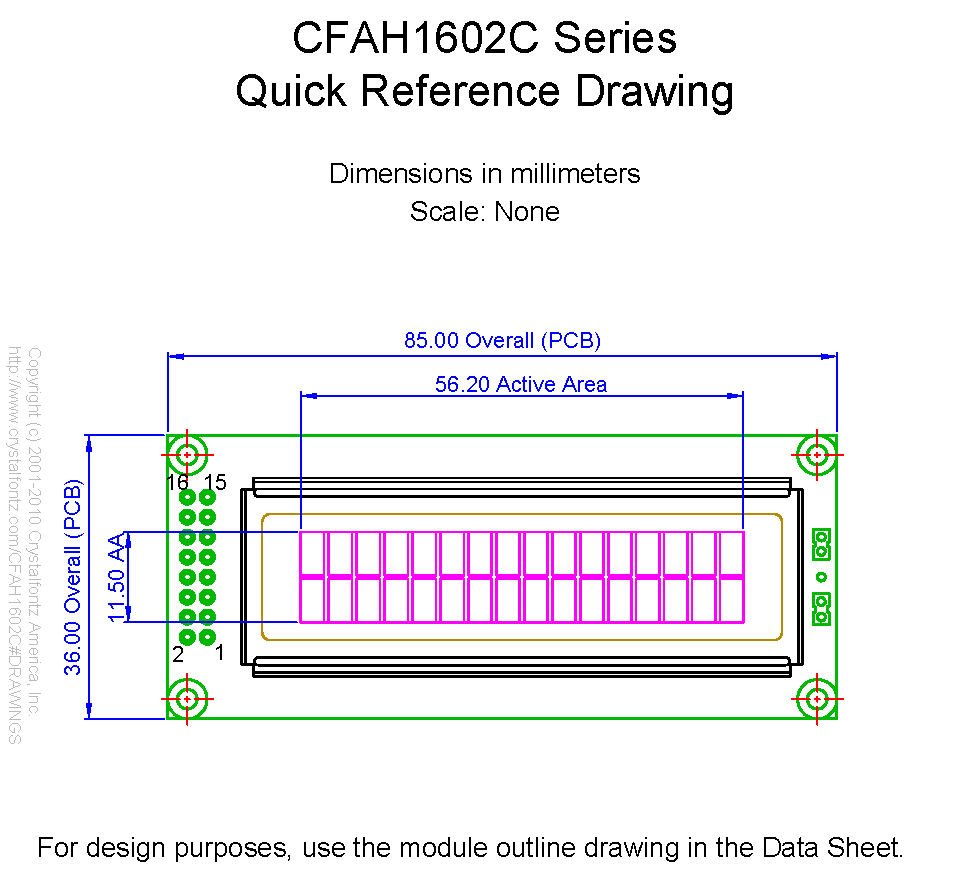

  Physical Characteristics

  Characters x Lines

  16 x 2

  Module Overall	width	height	depth
  millimeters	85	36	13.2
  inches	3.35	1.42	0.52

  PCB Outline	width	height	depth
  millimeters	85	36	13.2
  inches	3.35	1.42	0.52

  Viewing Area	Width	Height
  millimeters	66	16
  inches	2.60	0.63

  Active Area	Width	Height
  millimeters	56.2	11.5
  inches	2.21	0.45

  Character Size	Width	Height
  millimeters	2.95	5.55
  inches	0.116	0.219

  Character Pitch	Width	Height
  millimeters	3.55	5.95
  inches	0.140	0.234

  Dot Size	Width	Height
  millimeters	0.55	0.65
  inches	0.022	0.026

  Dot Pitch	Width	Height
  millimeters	0.6	0.7
  inches	0.024	0.028

  Weight

  32g

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type/Glass Color	STN/Yellow-Green
  Polarizer	Transflective
  View Direction	6 o'clock
  Sunlight Readable	Yes

  Backlight Color	Yellow-Green
  Backlight Type	LED
  Mode	Positive
  Foreground Color	Dark
  Background Color	Yellow-Green

• electric_bolt Electrical Specification

  Electrical Specifications

  Module Connector Pitch

  0.10mm

• nature Environmental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

  Humidity	min	max
  Non-condensing	0%	90%

• cable Electronics

  Electronics

  Controller Documents	Sunplus SPLC780D 16COM/40SEG Controller/Driver
  Interface	4-bit Parallel, 8-bit Parallel

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAH1602CYYHJPV v2.0.pdf


  (Datasheet V 2.0, Hardware A)


  picture_as_pdf

  CFAH1602CYYHJPV v1.0.pdf


  (Datasheet V 1, Hardware A)


  picture_as_pdf

  CFAH1602CYYHJPV.pdf




• download Files and Downloads
  folder_zip CAD Export - CFAH1602C 2D CAD


  picture_as_pdf 1 to 1 Template - CFAH1602C 1 TO 1.PDF
