16x2 Backlit Yellow-Green Character LCD from Crystalfontz

Product

Home » Products » Sunlight Readable Displays » Character

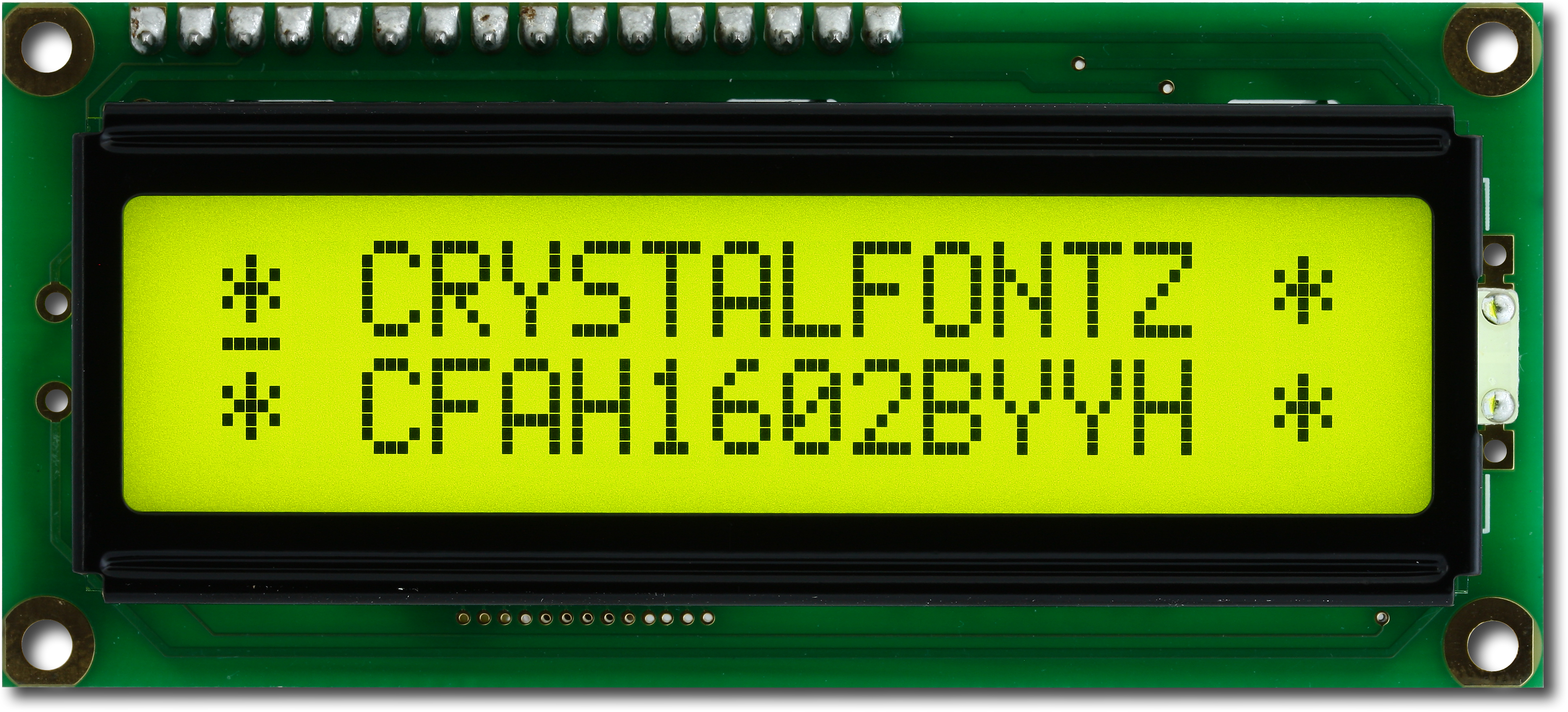

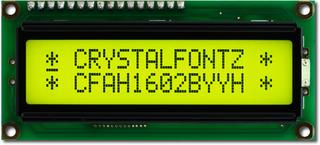

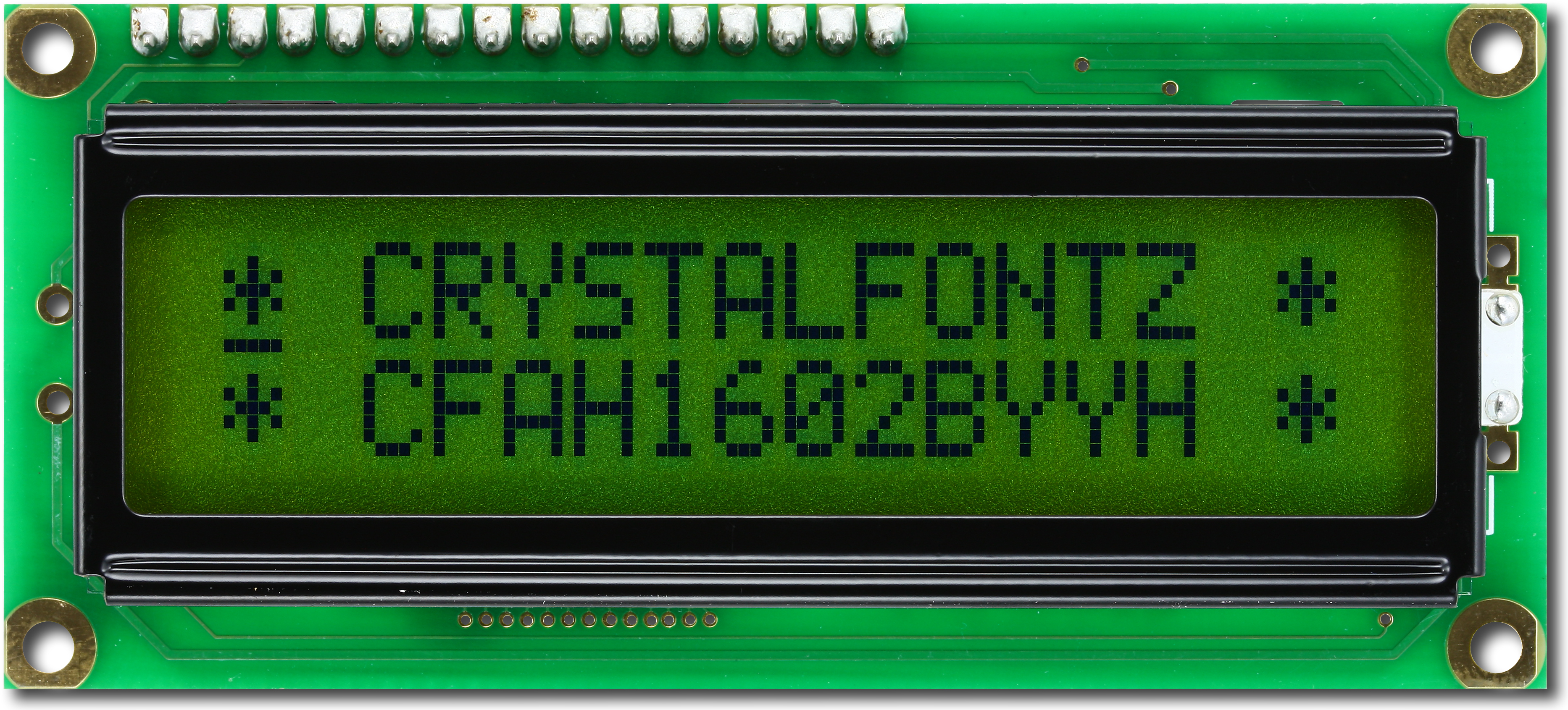

16x2 Backlit Yellow-Green Character LCDPart Number: CFAH1602B-YYH-JTSunlight readable 16x2 character LCD with an LED backlight.
Characters / Columns: 16x2
Optics: 6:00 viewing direction
Backlight: Yellow-green LED
Glass: STN Positive, Transflective
Controller: Sitronix ST7066U (HD44780 compatible)
Operating Temp: -20°C to +70°C
Interfaces: 4 & 8 bit parallel
Compliance: REACH & RoHS Compliant
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED Backlight
Negative Voltage GeneratorDark on Yellow-Green
Yellow-Green LED BacklightYellow-Green on Dark
Yellow-Green LED BacklightWhite on Blue
White LED BacklightDark on Yellow-Green
No BacklightDark on Green
No Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 2


    Module Overall        width
        height
        depth


        millimeters
        80
        36
        13.2


        inches
        3.15
        1.42
        0.52



    PCB Outline        width
        height
        depth


        millimeters
        80
        36
        13.2


        inches
        3.15
        1.42
        0.52



        Diagonal Dimension
            2.26"


    Viewing Area        Width
        Height


        millimeters
        66
        16


        inches
        2.60
        0.63



    Active Area        Width
        Height


        millimeters
        56.2
        11.5


        inches
        2.21
        0.45



    Character Size        Width
        Height


        millimeters
        2.95
        5.55


        inches
        0.116
        0.219



    Character Pitch        Width
        Height


        millimeters
        3.55
        5.95


        inches
        0.140
        0.234



    Dot Size        Width
        Height


        millimeters
        0.55
        0.65


        inches
        0.022
        0.026



    Dot Pitch        Width
        Height


        millimeters
        0.6
        0.7


        inches
        0.024
        0.028



        Weight
            33g
Pin Count
            16

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            2.54mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH1602BYYHJT Datasheet

 download Files and Downloads
folder_zip Software Source - 8-Bit Parallel Arduino Sketch
folder_zip CAD Export - CFAH1602B Family 2D CAD
picture_as_pdf 1 to 1 Template - CFAH1602B 1 TO 1.PDF
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH














Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $9.61

            5
            $8.87

            10
            $7.81

            20
            $7.54

            50
            $7.28

            100
            $7.18

            200
            $7.13

            300
            $6.77

            500
            $6.73

            1000 *
            $6.20

718 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.



Colors	Dark on Yellow-Green Yellow-Green LED Backlight Negative Voltage Generator Dark on Yellow-Green Yellow-Green LED Backlight Yellow-Green on Dark Yellow-Green LED Backlight White on Blue White LED Backlight Dark on Yellow-Green No Backlight Dark on Green No Backlight

Module Overall	width	height	depth
millimeters	80	36	13.2
inches	3.15	1.42	0.52

PCB Outline	width	height	depth
millimeters	80	36	13.2
inches	3.15	1.42	0.52

Viewing Area	Width	Height
millimeters	66	16
inches	2.60	0.63

Active Area	Width	Height
millimeters	56.2	11.5
inches	2.21	0.45

Character Size	Width	Height
millimeters	2.95	5.55
inches	0.116	0.219

Character Pitch	Width	Height
millimeters	3.55	5.95
inches	0.140	0.234

Dot Size	Width	Height
millimeters	0.55	0.65
inches	0.022	0.026

Dot Pitch	Width	Height
millimeters	0.6	0.7
inches	0.024	0.028

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$9.61
5	$8.87
10	$7.81
20	$7.54
50	$7.28
100	$7.18
200	$7.13
300	$6.77
500	$6.73
1000 *	$6.20

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

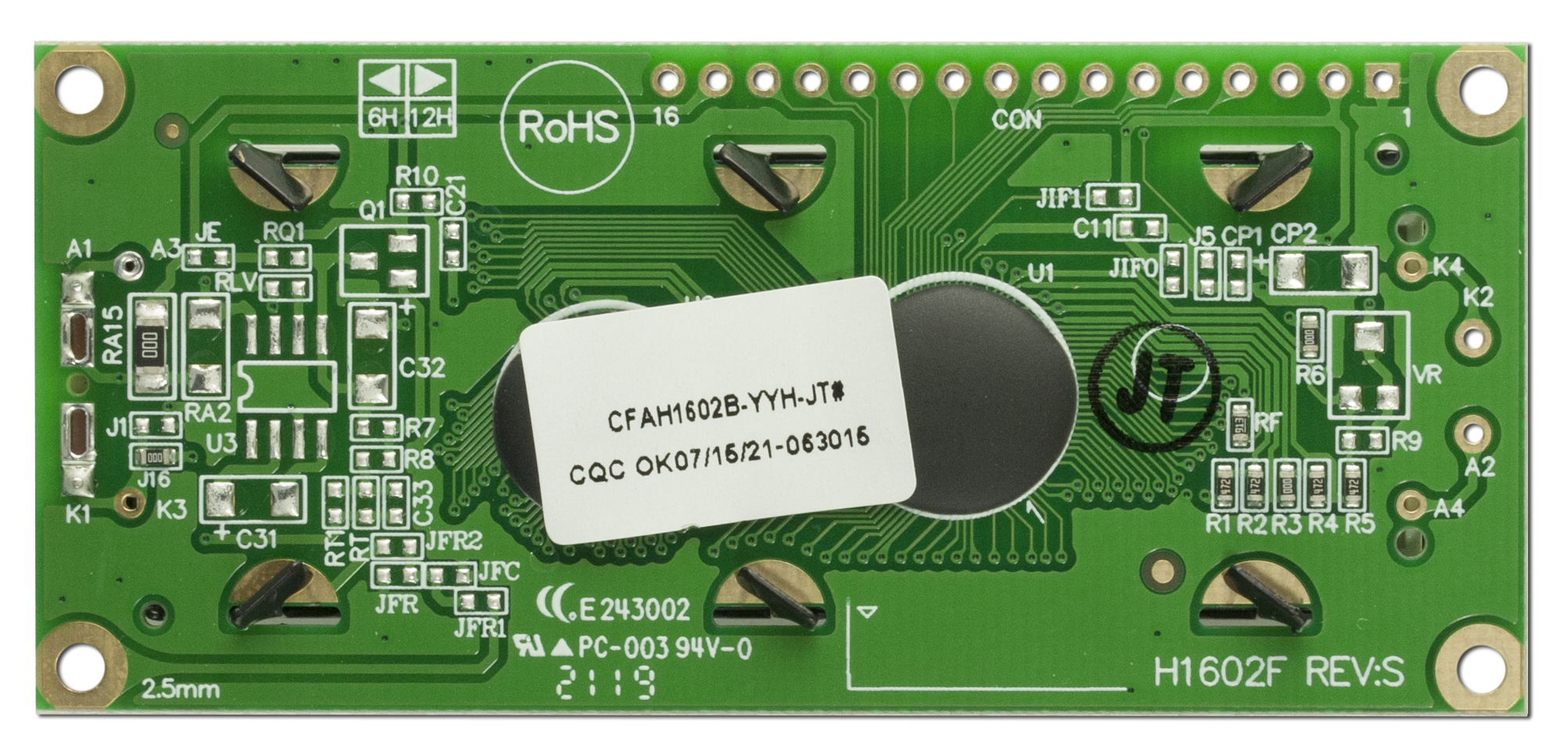

Product Update #11030: The PCB of the CFAH1602B family is being revised. The new Rev will be Rev S

Products Affected:	CFAH1602B-NGG-JTV, CFAH1602B-NYG-JT, CFAH1602B-TMI-JT, CFAH1602B-YMI-JT, CFAH1602B-YTI-JT, CFAH1602B-YYH-JT, CFAH1602B-YYH-JTE, CFAH1602B-YYH-JTV
Date Issued:	January 15, 2019
Summary:	The PCB of the CFAH1602B family is being revised. The new Rev will be Rev S
Reason:	This is a continuing effort to improve our products. 1. The Temperature Compensation Circuit is being revised and improved 2. A new and better controller chip package will be used 3. The layout is being modified to improve manufacturability.
Impact:	The function of the module will be identical. Customers modifying backlight resistors may have to modify work instructions.
Recommendation:	Customers do not need to make special buys. Samples may be purchased if a customer wishes to test modules with the revised PCBs.
Availability:	Modules with the revised PCBs will be available as current stocks are depleted.
Price Change:	No price change is anticipated
