This product has reached end of life and has been replaced by CFAH1602BYMIJT

Product

Home » Products

                This product is discontinued and has been replaced by CFAH1602B-YMI-JT

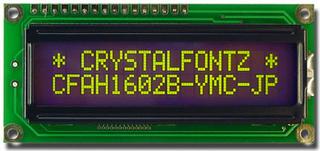

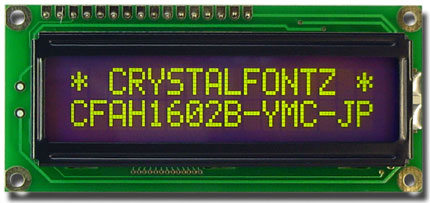

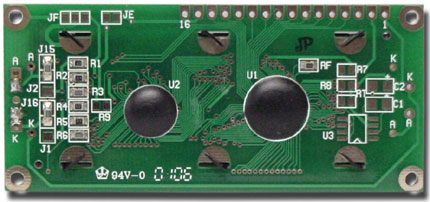

[EOL] STN Negative 16x2 Character LCDPart Number: CFAH1602B-YMI-JPParallel Character LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, STN Negative, Blue, Transmissive -20°C to +70°C 6:00
Fit (except for JTV/JPV) and form compatible with the CFAG14432B Series of Graphic LCD modules. Upgrade your product that uses this CFAH1602B character display by switching to the graphic CFAG14432B, or, lower your costs by replacing that graphic with this character module
Available in several variations of backlight and polarizer  (minimum order may be required)
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 2

    Module Overall        width
        height
        depth

        millimeters
        80
        36
        13.5

        inches
        3.15
        1.42
        0.53

    PCB Outline        width
        height
        depth

        millimeters
        80
        36
        13.5

        inches
        3.15
        1.42
        0.53

    Viewing Area        Width
        Height

        millimeters
        66
        16

        inches
        2.60
        0.63

    Active Area        Width
        Height

        millimeters
        56.2
        11.5

        inches
        2.21
        0.45

    Character Size        Width
        Height

        millimeters
        2.95
        5.55

        inches
        0.116
        0.219

    Character Pitch        Width
        Height

        millimeters
        3.55
        5.95

        inches
        0.140
        0.234

    Dot Size        Width
        Height

        millimeters
        0.55
        0.65

        inches
        0.022
        0.026

    Dot Pitch        Width
        Height

        millimeters
        0.6
        0.7

        inches
        0.024
        0.028

        Weight
            33g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Negative
Foreground Color
            Yellow
Background Color
            Dark

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sunplus SPLC780D
16COM/40SEG Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH1602BYMIJP v2.0.pdf
(Datasheet V 2.0, Hardware A)
picture_as_pdfCFAH1602BYMIJP.pdf
(Datasheet V 1.0, Hardware A)
 download Files and Downloads
picture_as_pdf 1 to 1 Template - CFAH1602B 1 TO 1.PDF

[EOL] STN Negative 16x2 Character LCD

Part Number: CFAH1602B-YMI-JP

Physical Characteristics

Optical Characteristics

Environmental

Electronics

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	STN/Blue
Polarizer	Transmissive
View Direction	6 o'clock

Backlight Color	Yellow-Green
Backlight Type	LED
Mode	Negative
Foreground Color	Yellow
Background Color	Dark

Controller Documents	Sunplus SPLC780D 16COM/40SEG Controller/Driver
Interface	4-bit Parallel, 8-bit Parallel
