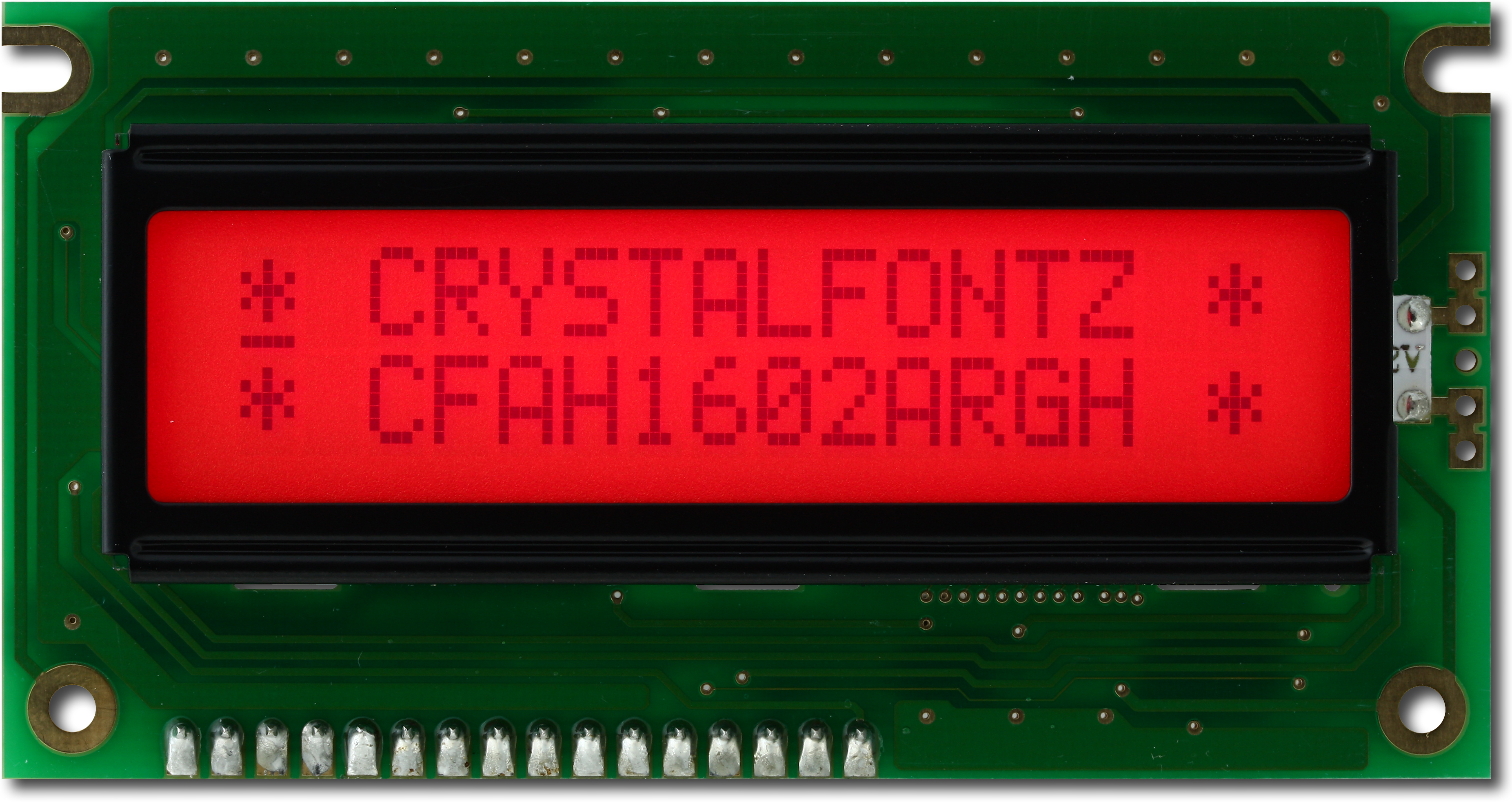

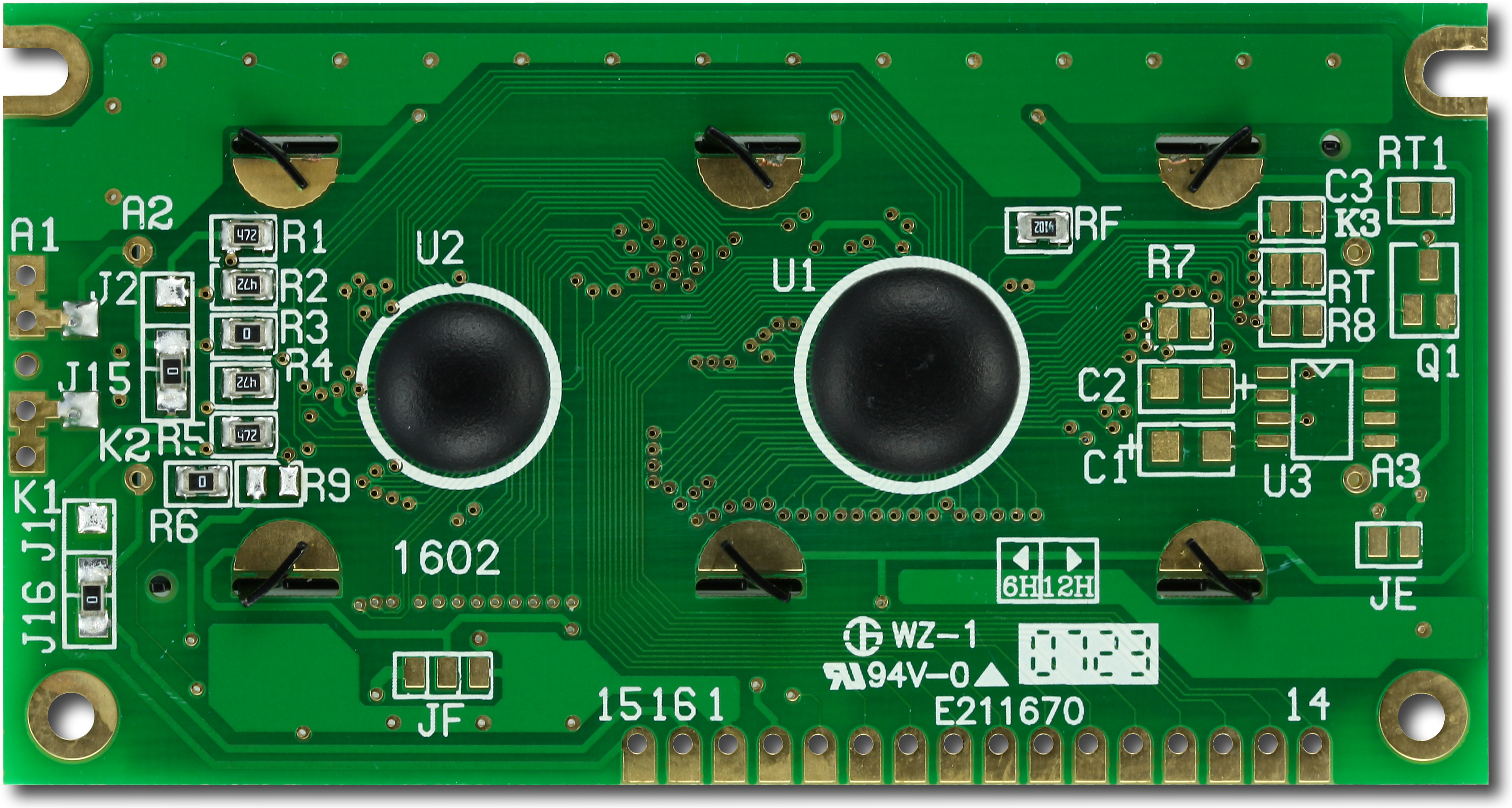

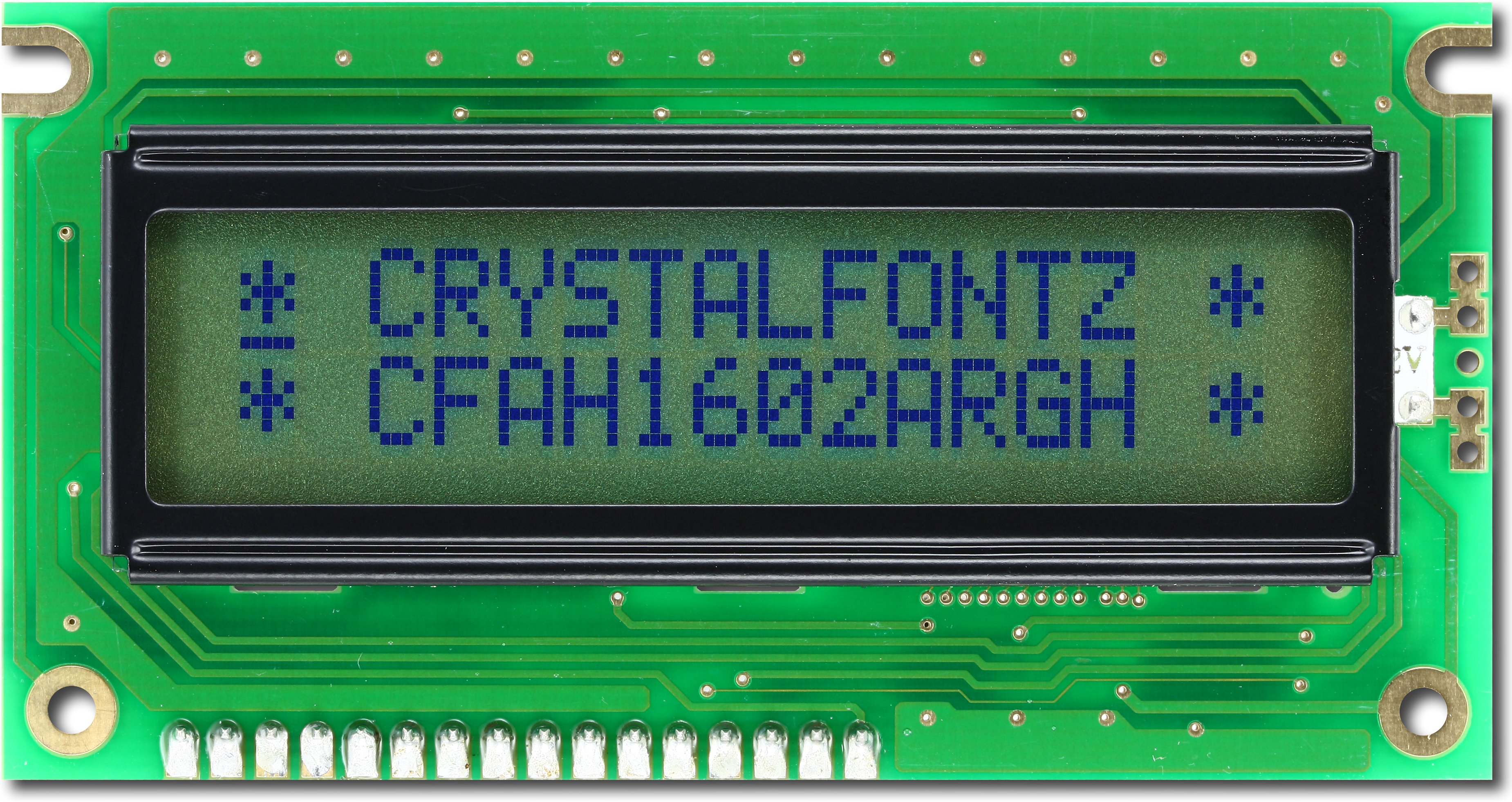

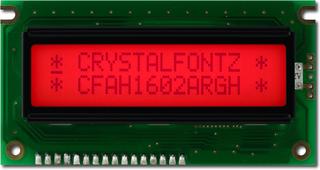

16x2 Red Character LCD (EOL)Part Number: CFAH1602A-RGH-JTParallel Character LCD 16x2, RoHS Compliant, Red LED Backlight, STN Positive, Gray, Transflective -20°C to +70°C, 6:00
Form compatible with the CFAG14432C Series of Graphic LCD modules. Upgrade your product that uses this CFAH1602A character display by switching to a graphic CFAG14432C, or, lower your costs by replacing the graphic with this character module
Form compatible with the CFAG12232A Series of Graphic LCD modules. Upgrade your product that uses this CFAH1602A character display by switching to a graphic CFAG12232A, or, lower your costs by replacing the graphic with this character module
Available in several variations of backlight and polarizer  (minimum order may be required)
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 2

    Module Overall        width
        height
        depth

        millimeters
        84
        44
        13.2

        inches
        3.31
        1.73
        0.52

    PCB Outline        width
        height
        depth

        millimeters
        84
        44
        13.2

        inches
        3.31
        1.73
        0.52

        Diagonal Dimension
            2.26"

    Viewing Area        Width
        Height

        millimeters
        66
        17

        inches
        2.60
        0.67

    Active Area        Width
        Height

        millimeters
        56.2
        11.5

        inches
        2.21
        0.45

    Character Size        Width
        Height

        millimeters
        2.95
        5.55

        inches
        0.116
        0.219

    Character Pitch        Width
        Height

        millimeters
        3.55
        5.95

        inches
        0.140
        0.234

    Dot Size        Width
        Height

        millimeters
        0.55
        0.65

        inches
        0.022
        0.026

    Dot Pitch        Width
        Height

        millimeters
        0.6
        0.7

        inches
        0.024
        0.028

        Weight
            36g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Gray
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            Red
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Red

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH1602ARGHJP.pdf

Previous Versions of Datasheetpicture_as_pdfCFAH1602ARGHJP.pdf

 download Files and Downloads
folder_zip CAD Export - CFAH1602A 2D CAD
picture_as_pdf 1 to 1 Template - CFAH1602A

16x2 Red Character LCD (EOL)

Part Number: CFAH1602A-RGH-JT

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	STN/Gray
Polarizer	Transflective
View Direction	6 o'clock
Sunlight Readable	Yes

Backlight Color	Red
Backlight Type	LED
Mode	Positive
Foreground Color	Dark
Background Color	Red

Controller Documents	Sitronix ST7066U Dot Matrix LCD Controller/Driver
Interface	4-bit Parallel, 8-bit Parallel
