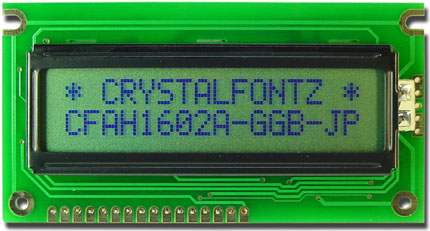

[EOL]Yellow-Green 16x2 Character LCD

Part Number: CFAH1602A-GGH-JP

Parallel Character LCD 16x2, RoHS Compliant, Green LED Backlight, STN Positive, Gray, Transflective -20°C to +70°C 6:00

• Form compatible with the CFAG14432C Series of Graphic LCD modules. Upgrade your product that uses this CFAH1602A character display by switching to a graphic CFAG14432C, or, lower your costs by replacing the graphic with this character module
• Form compatible with the CFAG12232A Series of Graphic LCD modules. Upgrade your product that uses this CFAH1602A character display by switching to a graphic CFAG12232A, or, lower your costs by replacing the graphic with this character module
• Available in several variations of backlight and polarizer (minimum order may be required)
• 8-bit or 4-bit parallel interface
• Industry-standard HD44780 compatible controller

• square_foot Physical Characteristics

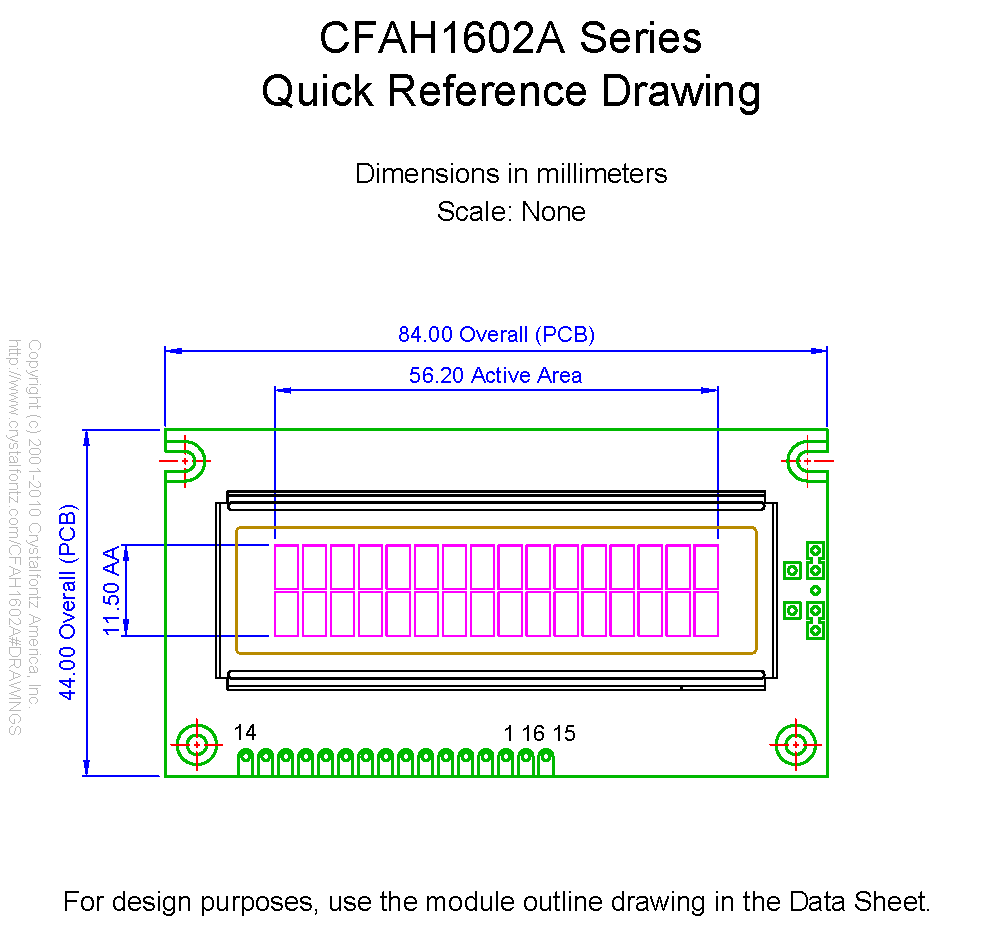

  Physical Characteristics

  Characters x Lines

  16 x 2

  Module Overall	width	height	depth
  millimeters	84	44	13.2
  inches	3.31	1.73	0.52

  PCB Outline	width	height	depth
  millimeters	84	44	13.2
  inches	3.31	1.73	0.52

  Viewing Area	Width	Height
  millimeters	66	17
  inches	2.60	0.67

  Active Area	Width	Height
  millimeters	56.2	11.5
  inches	2.21	0.45

  Character Size	Width	Height
  millimeters	2.95	5.55
  inches	0.116	0.219

  Character Pitch	Width	Height
  millimeters	3.55	5.95
  inches	0.140	0.234

  Dot Size	Width	Height
  millimeters	0.55	0.65
  inches	0.022	0.026

  Dot Pitch	Width	Height
  millimeters	0.6	0.7
  inches	0.024	0.028

  Weight

  36g

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type/Glass Color	STN/Gray
  Polarizer	Transflective
  View Direction	6 o'clock
  Sunlight Readable	Yes

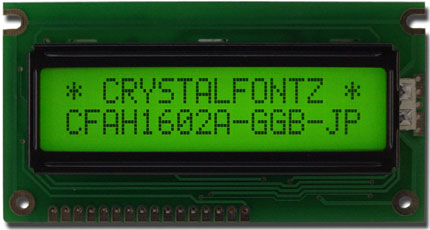

  Backlight Color	Green
  Backlight Type	LED
  Mode	Positive
  Foreground Color	Dark
  Background Color	Green

• nature Environmental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

  Humidity	min	max
  Non-condensing	0%	90%

• cable Electronics

  Electronics

  Controller Documents	Sunplus SPLC780D 16COM/40SEG Controller/Driver
  Interface	4-bit Parallel, 8-bit Parallel

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAH1602AGGHJP.pdf





  picture_as_pdf

  CFAH1602AGGHJP.pdf




• download Files and Downloads
  folder_zip CAD Export - CFAH1602A 2D CAD


  picture_as_pdf 1 to 1 Template - CFAH1602A
