                This product is discontinued and has been replaced by CFAH1601A-NYG-JT

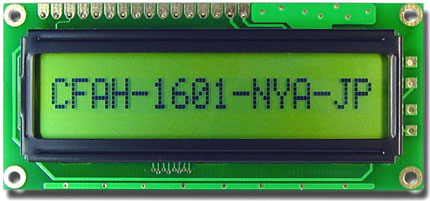

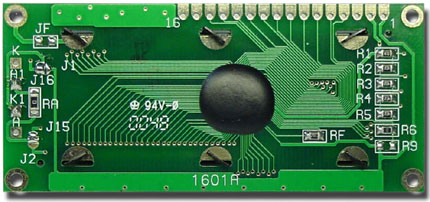

16x1 Character LCD [EOL]Part Number: CFAH1601A-NYG-JPParallel Character LCD 16x1, RoHS Compliant, No Backlight, STN Positive, Yellow/Green, Reflective -20°C to +70°C 6:00
Fit and form compatible with the CFAG14432B Series of Graphic LCD modules. Upgrade your product that uses this CFAH1601A character display by switching to the graphic CFAG14432B, or, lower your costs by replacing that graphic with this character module
Available in several variations of backlight and polarizer (minimum order may be required)
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 1

    Module Overall        width
        height
        depth

        millimeters
        80
        36
        9.4

        inches
        3.15
        1.42
        0.37

    PCB Outline        width
        height
        depth

        millimeters
        80
        36
        9.4

        inches
        3.15
        1.42
        0.37

    Viewing Area        Width
        Height

        millimeters
        66
        16

        inches
        2.60
        0.63

    Active Area        Width
        Height

        millimeters
        59.6
        6.56

        inches
        2.35
        0.26

    Character Size        Width
        Height

        millimeters
        3.07
        6.56

        inches
        0.121
        0.258

    Character Pitch        Width

        millimeters
        3.77

        inches
        0.148

    Dot Size        Width
        Height

        millimeters
        0.55
        0.75

        inches
        0.022
        0.030

    Dot Pitch        Width
        Height

        millimeters
        0.63
        0.83

        inches
        0.025
        0.033

        Weight
            24g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Reflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Type
            None
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sunplus SPLC780D
16COM/40SEG Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH1601ANYGJP.pdf
(Datasheet V 1.0, Hardware A)
 download Files and Downloads
folder_zip CAD Export - CFAH1601A 2D CAD
picture_as_pdf 1 to 1 Template - CFAH1601A 1 TO 1.PDF
