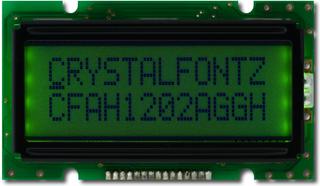

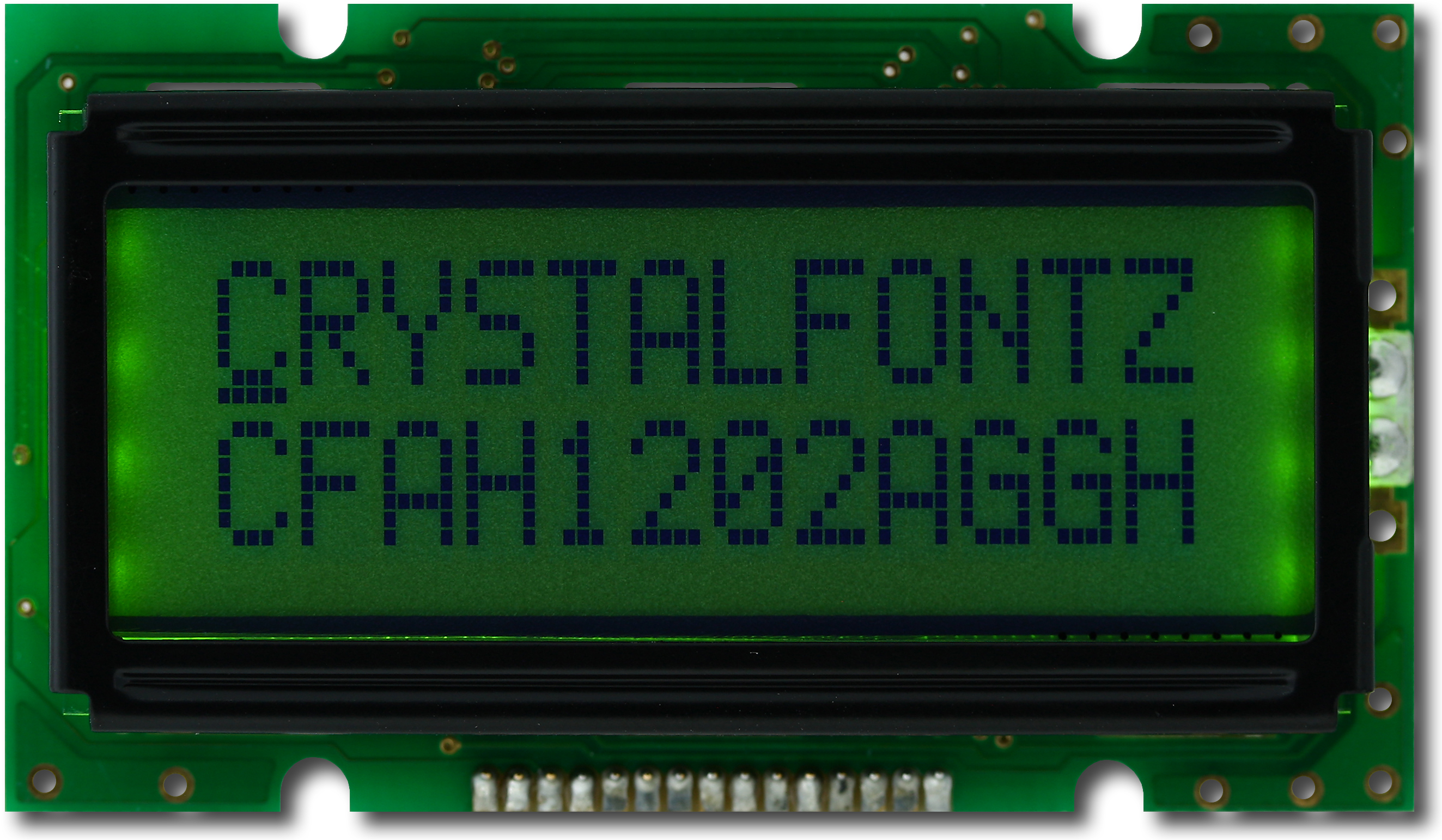

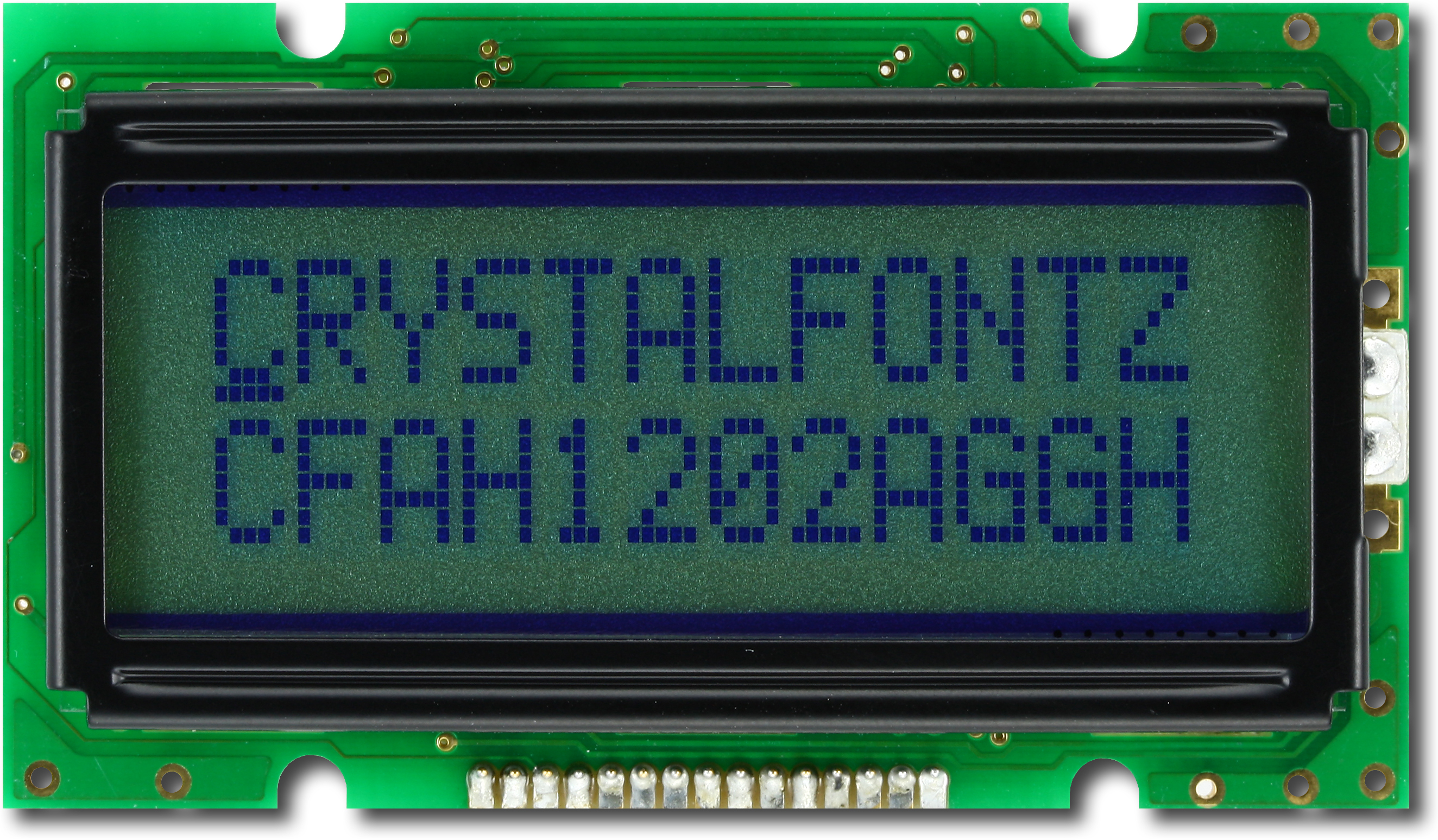

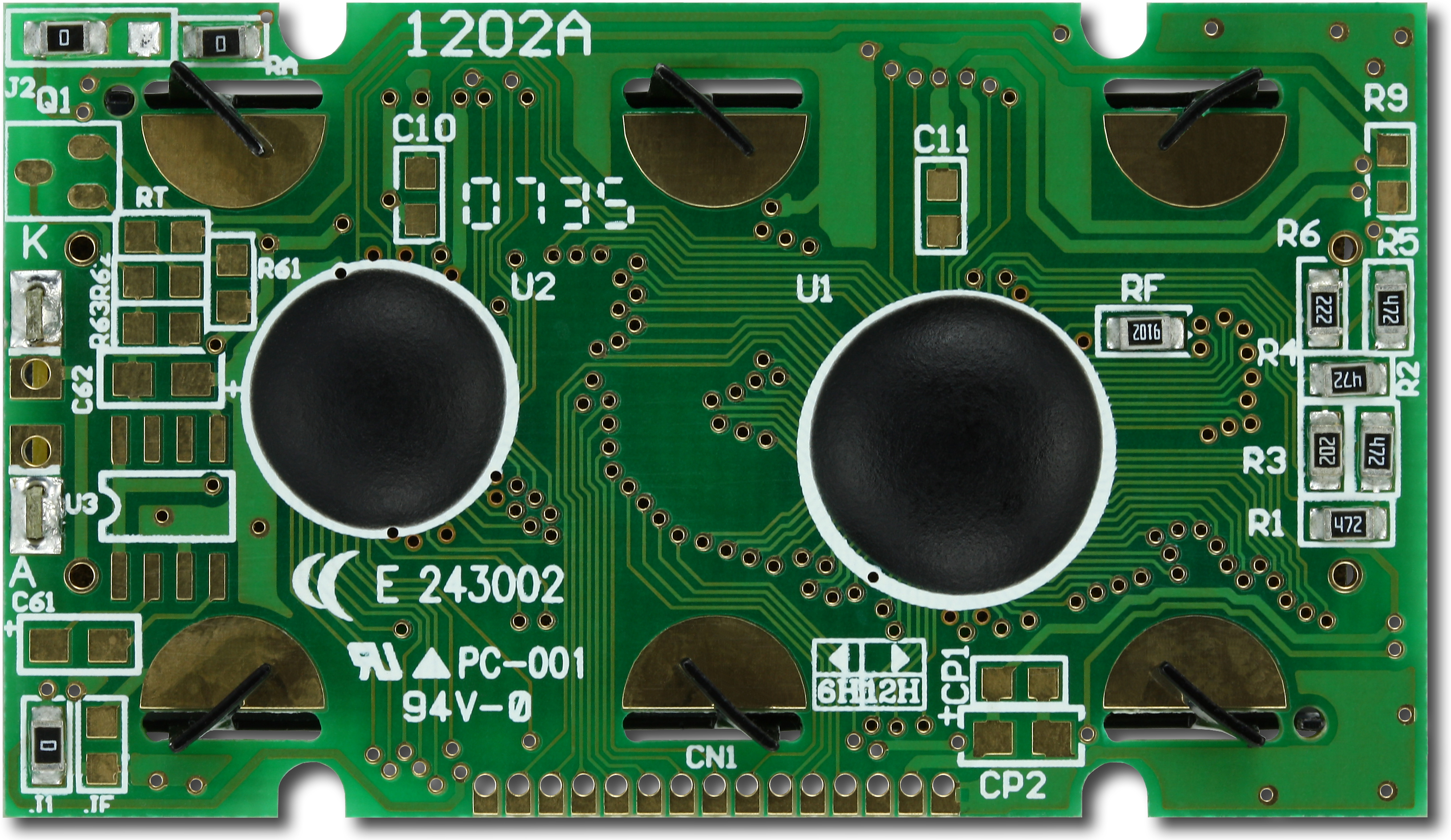

Green 12x2 Character LCD (EOL) from Crystalfontz

Product

Home » Products

                This product has reached end of life. While we do not offer any direct replacements for this product, perhaps one of our other CFAH1202A displays will fit your needs. Feel free to contact our tech support team to get assistance in finding the right display.
Green 12x2 Character LCD (EOL)Part Number: CFAH1202A-GGH-JTParallel Character LCD 12x2, RoHS Compliant, Green LED Backlight, STN Positive, Gray, Transflective, -20°C to +70°C, 6:00, Edge Style Backlight
Available in several variations of backlight and polarizer  (minimum order may be required)
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            12:00 x 2

    Module Overall        width
        height
        depth

        millimeters
        55.7
        32
        9.7

        inches
        2.19
        1.26
        0.38

    PCB Outline        width
        height
        depth

        millimeters
        55.7
        32
        9.7

        inches
        2.19
        1.26
        0.38

        Diagonal Dimension
            1.56"

    Viewing Area        Width
        Height

        millimeters
        46
        14.5

        inches
        1.81
        0.57

    Active Area        Width
        Height

        millimeters
        37.85
        11.7

        inches
        1.49
        0.46

    Character Size        Width
        Height

        millimeters
        2.65
        5.55

        inches
        0.104
        0.219

    Character Pitch        Width
        Height

        millimeters
        3.2
        6.2

        inches
        0.126
        0.244

    Dot Size        Width
        Height

        millimeters
        0.45
        0.6

        inches
        0.018
        0.024

    Dot Pitch        Width
        Height

        millimeters
        0.55
        0.7

        inches
        0.022
        0.028

        Weight
            16g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Gray
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.05mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH1202AGGHJT v1.0.pdf
(Datasheet V 1.0, Hardware F)
 download Files and Downloads
folder_zip CAD Export - CFAH1202A 2D CAD.zip
picture_as_pdf 1 to 1 Template - CFAH1202A 1 TO 1.PDF

Module Overall	width	height	depth
millimeters	55.7	32	9.7
inches	2.19	1.26	0.38

PCB Outline	width	height	depth
millimeters	55.7	32	9.7
inches	2.19	1.26	0.38

Viewing Area	Width	Height
millimeters	46	14.5
inches	1.81	0.57

Active Area	Width	Height
millimeters	37.85	11.7
inches	1.49	0.46

Character Size	Width	Height
millimeters	2.65	5.55
inches	0.104	0.219

Character Pitch	Width	Height
millimeters	3.2	6.2
inches	0.126	0.244

Dot Size	Width	Height
millimeters	0.45	0.6
inches	0.018	0.024

Dot Pitch	Width	Height
millimeters	0.55	0.7
inches	0.022	0.028

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10011: Rev. F

Products Affected:	CFAH1202A-GGH-JT, CFAH1202A-NYG-JT, CFAH1202A-YYH-JT, CFAH1202A-TMI-JT, CFAH1202A-TTI-JT
Date Issued:	September 9, 2008
Summary:	Rev. F
Last revision:	Rev. E
Description:	Minor layout changes to back of board
Reason:	Manufacturing improvements
Impact:	None
Price Change:	None

Green 12x2 Character LCD (EOL)

Part Number: CFAH1202A-GGH-JT

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10011: Rev. F

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	STN/Gray
Polarizer	Transflective
View Direction	6 o'clock
Sunlight Readable	Yes

Backlight Color	Green
Backlight Type	LED
Mode	Positive
Foreground Color	Dark
Background Color	Green

Controller Documents	Sitronix ST7066U Dot Matrix LCD Controller/Driver
Interface	4-bit Parallel, 8-bit Parallel
