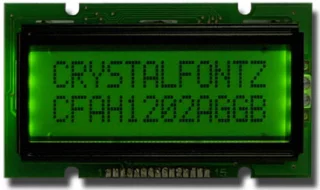

Green Black 12x2 Character LCD (EOL) from Crystalfontz

Product

Home » Products

                This product has reached end of life.  While we do not offer any direct replacements for this product, perhaps one of our many other CFAH displays will fit your needs. Feel free to contact our tech support team to get assistance in finding the right display.

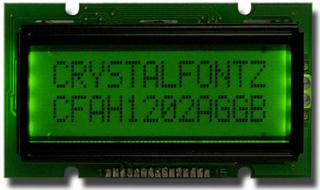

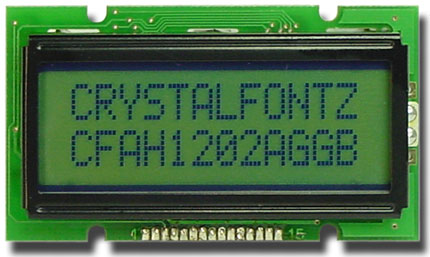

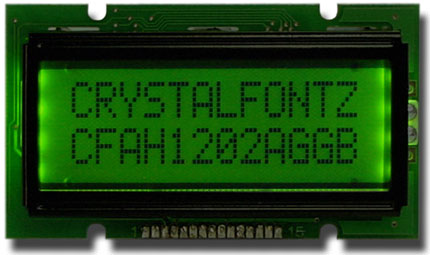

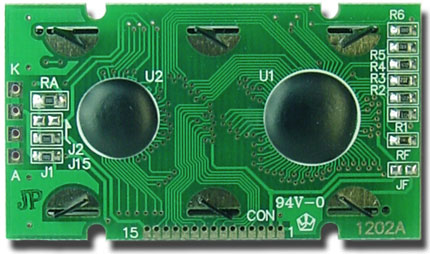

Green Black 12x2 Character LCD (EOL)Part Number: CFAH1202A-GGH-JPParallel Character LCD 12x2, RoHS Compliant, Green LED Backlight, STN Positive, Gray, Transflective -20°C to +70°C 6:00, Edge Style Backlight
Available in several variations of backlight and polarizer  (minimum order may be required)
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller

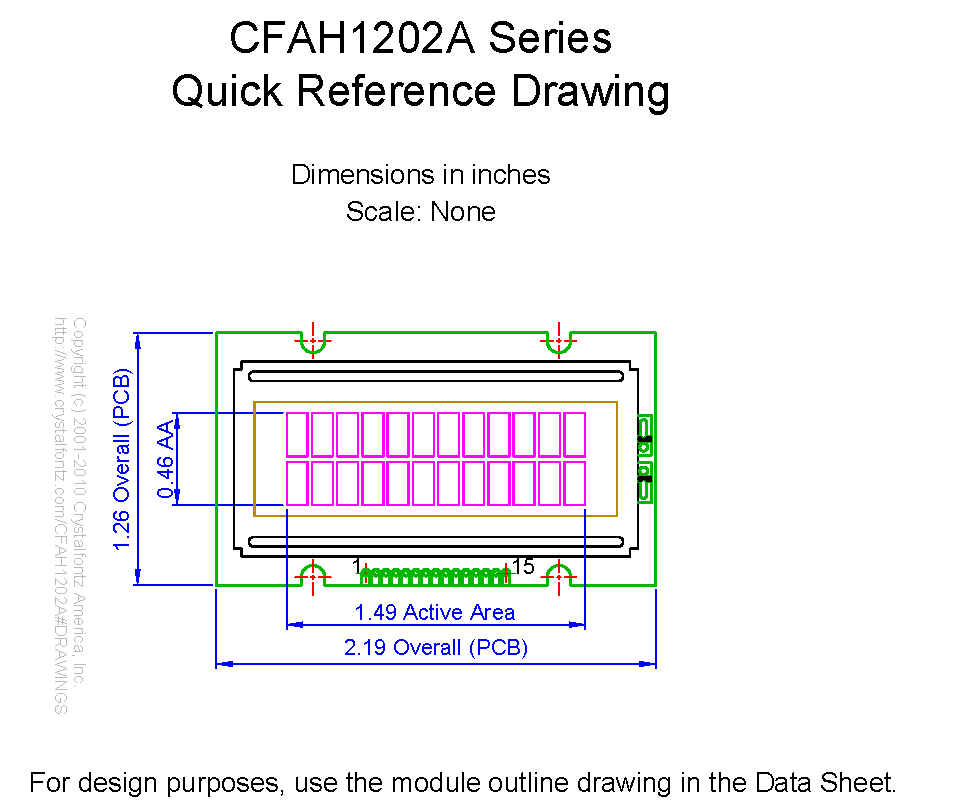

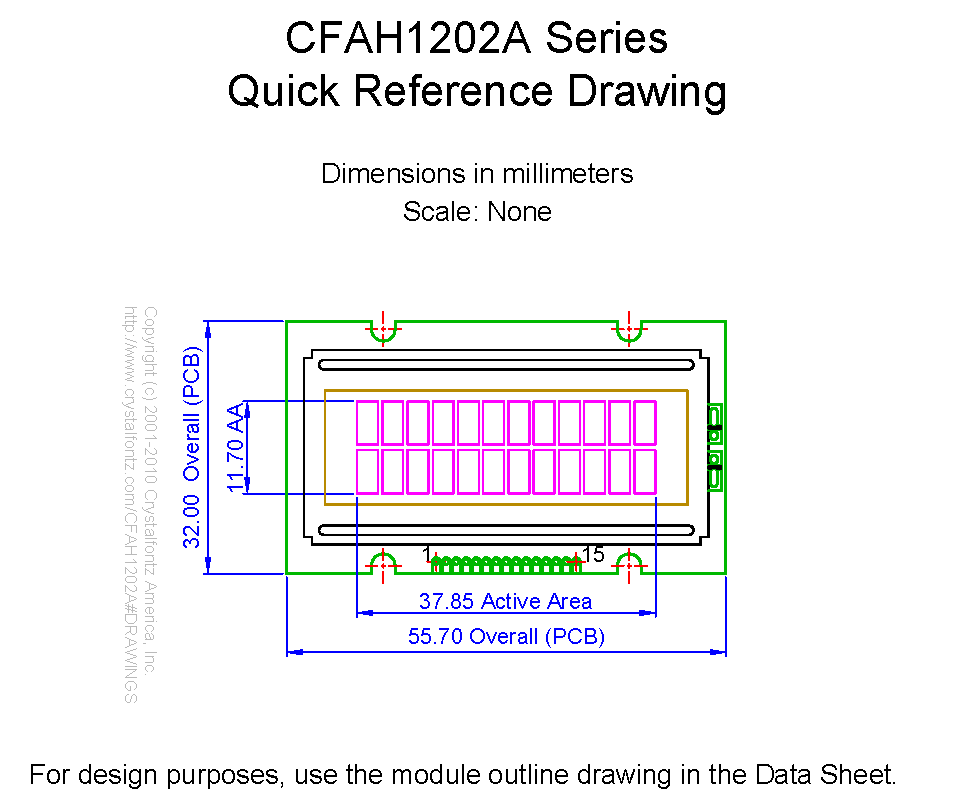

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            12 x 2

    Module Overall        width
        height
        depth

        millimeters
        55.7
        32
        9.7

        inches
        2.19
        1.26
        0.38

    PCB Outline        width
        height
        depth

        millimeters
        55.7
        32
        9.7

        inches
        2.19
        1.26
        0.38

    Viewing Area        Width
        Height

        millimeters
        46
        14.5

        inches
        1.81
        0.57

    Active Area        Width
        Height

        millimeters
        37.85
        11.7

        inches
        1.49
        0.46

    Character Size        Width
        Height

        millimeters
        2.65
        5.55

        inches
        0.104
        0.219

    Character Pitch        Width
        Height

        millimeters
        3.2
        6.2

        inches
        0.126
        0.244

    Dot Size        Width
        Height

        millimeters
        0.45
        0.6

        inches
        0.018
        0.024

    Dot Pitch        Width
        Height

        millimeters
        0.55
        0.7

        inches
        0.022
        0.028

        Weight
            16g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Gray
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Green

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sunplus SPLC780D
16COM/40SEG Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH1202AGGHJP v3.0.pdf
(Datasheet V 3.0, Hardware E)
Previous Versions of Datasheetpicture_as_pdfCFAH1202AGGHJP.pdf
(Datasheet V 2.0, Hardware E)
 download Files and Downloads
folder_zip CAD Export - CFAH1202A 2D CAD.zip
picture_as_pdf 1 to 1 Template - CFAH1202A 1 TO 1.PDF
