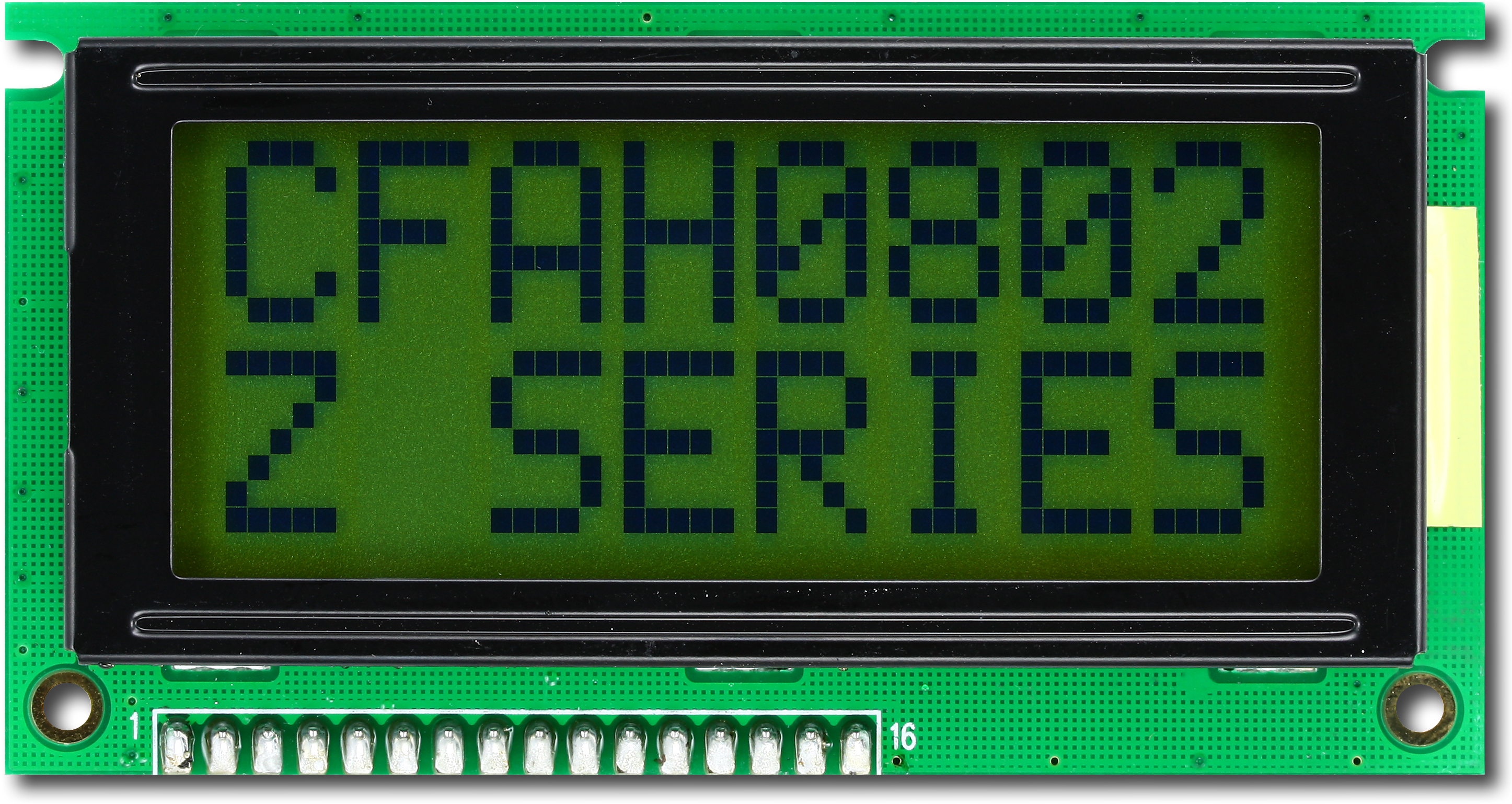

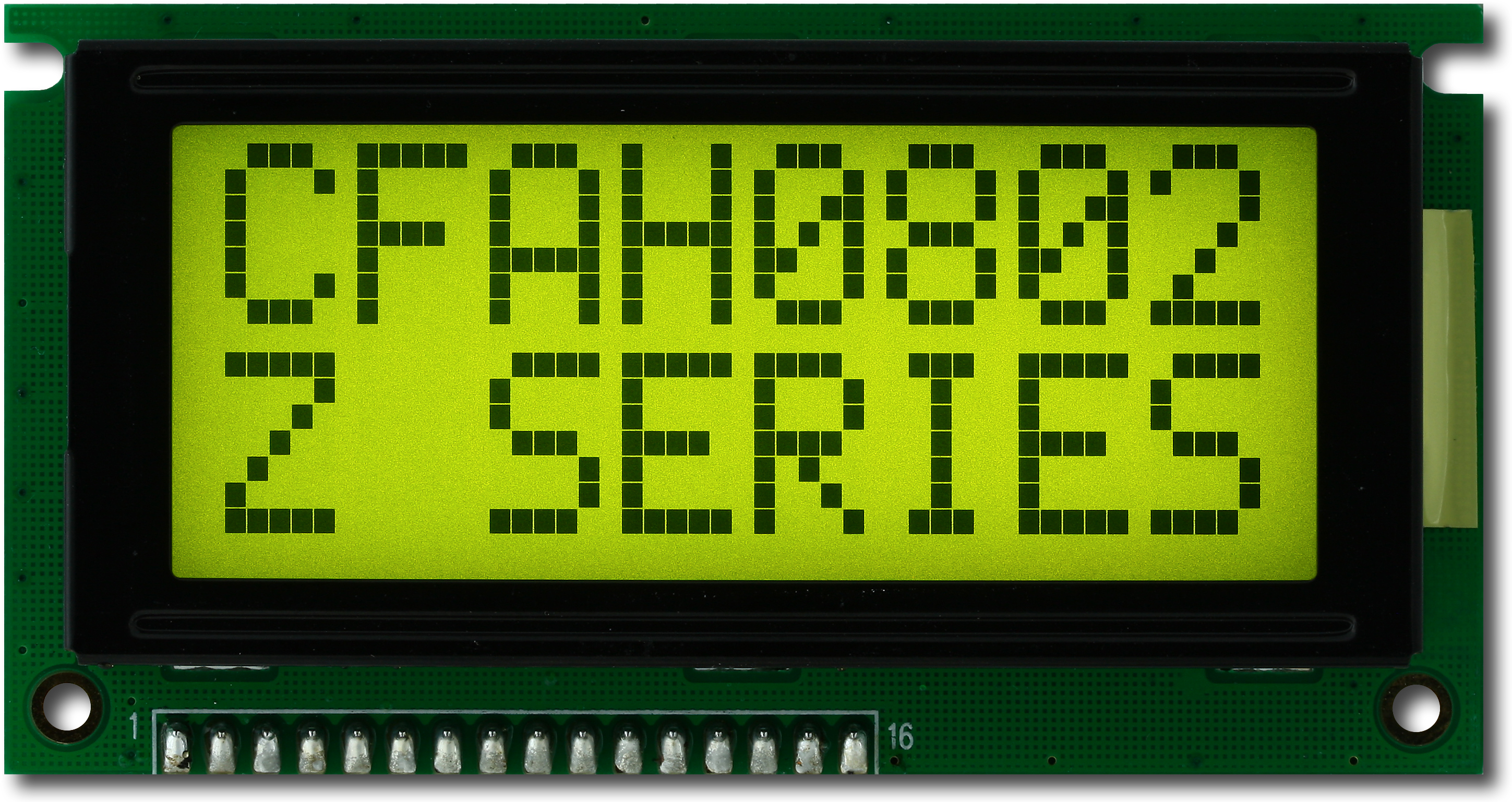

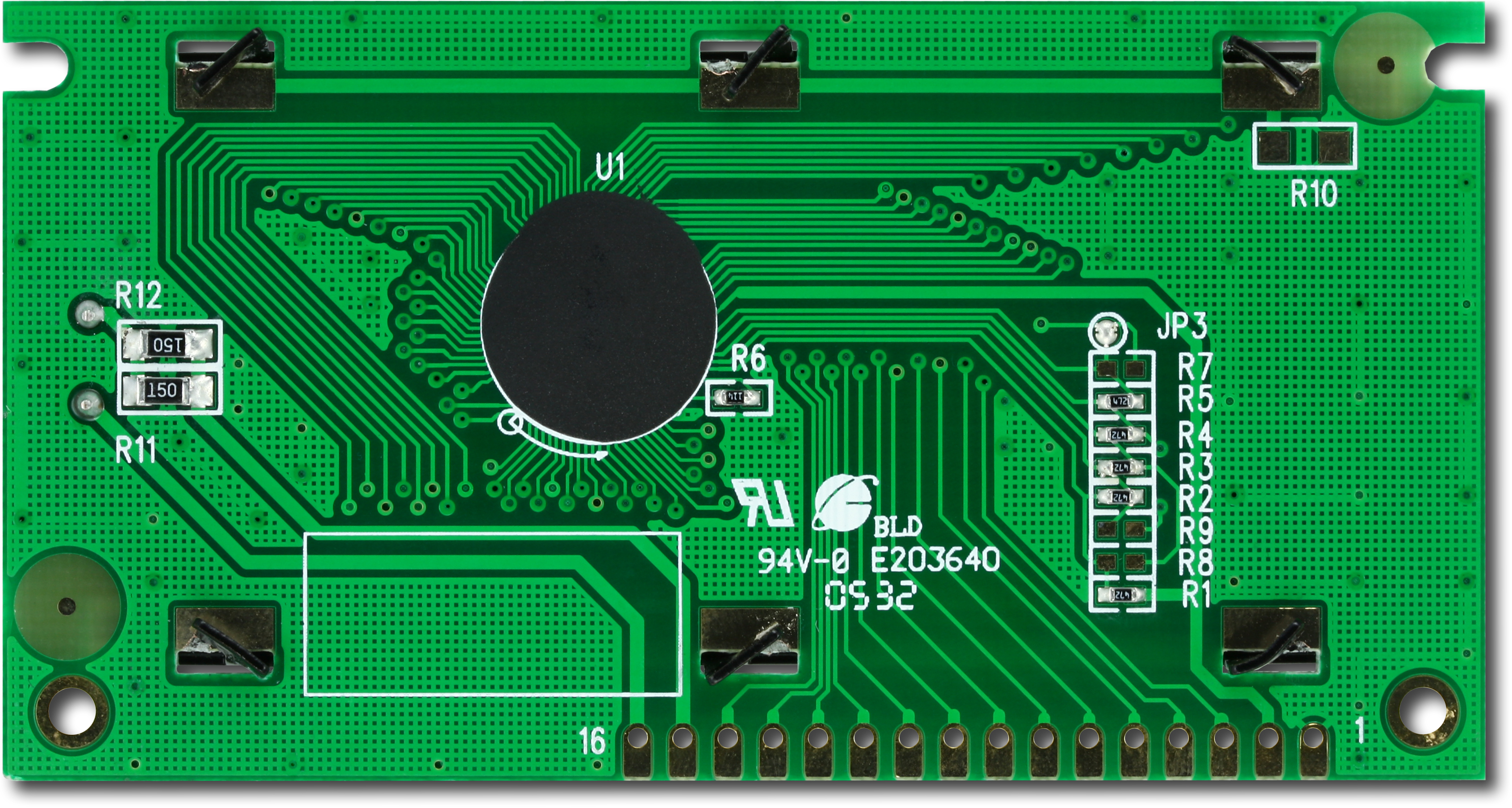

Sunlight Readable 8x2 Character LCDPart Number: CFAH0802Z-YYH-JPSunlight readable 8x2 parallel character LCD with LED backlight.
Characters / Columns: 8x2
Optics: 6:00 viewing direction
Backlight: Yellow-green LED
Glass: STN Positive, Transflective
Controller: Sitronix ST7066U (HD44780 compatible)
Operating Temp: -20°C to +70°C
Interfaces: 4 & 8 bit parallel
Compliance: REACH & RoHS Compliant

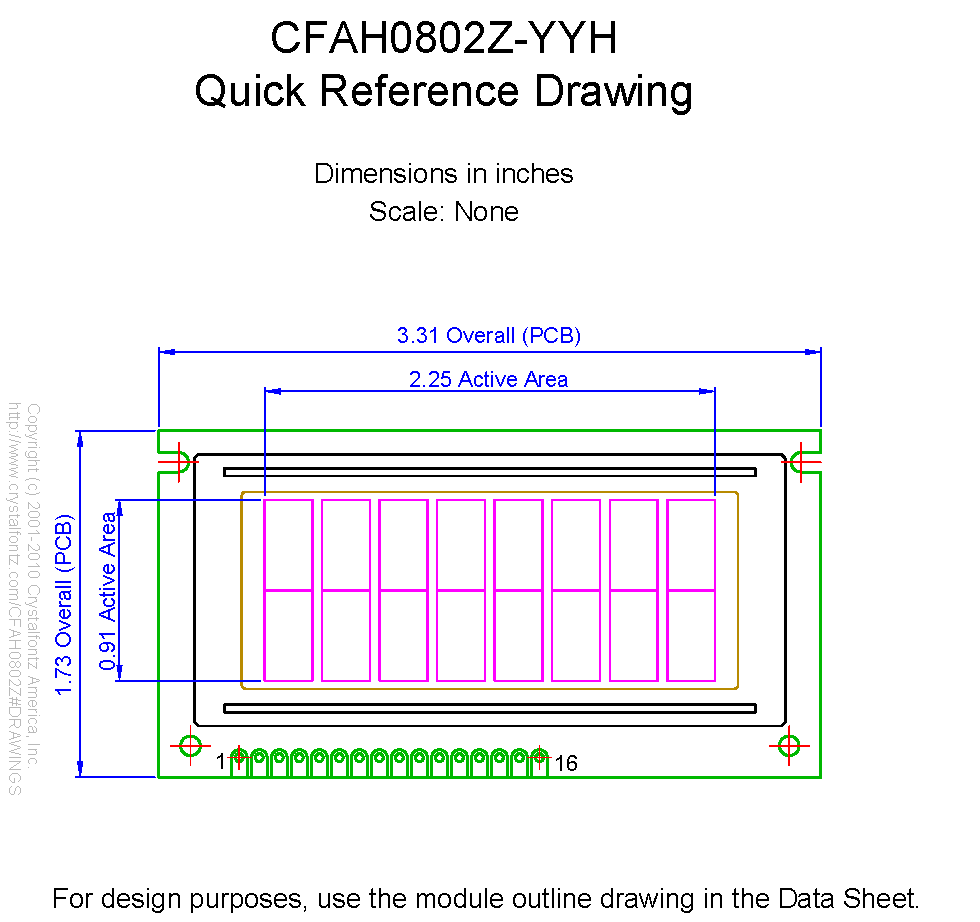

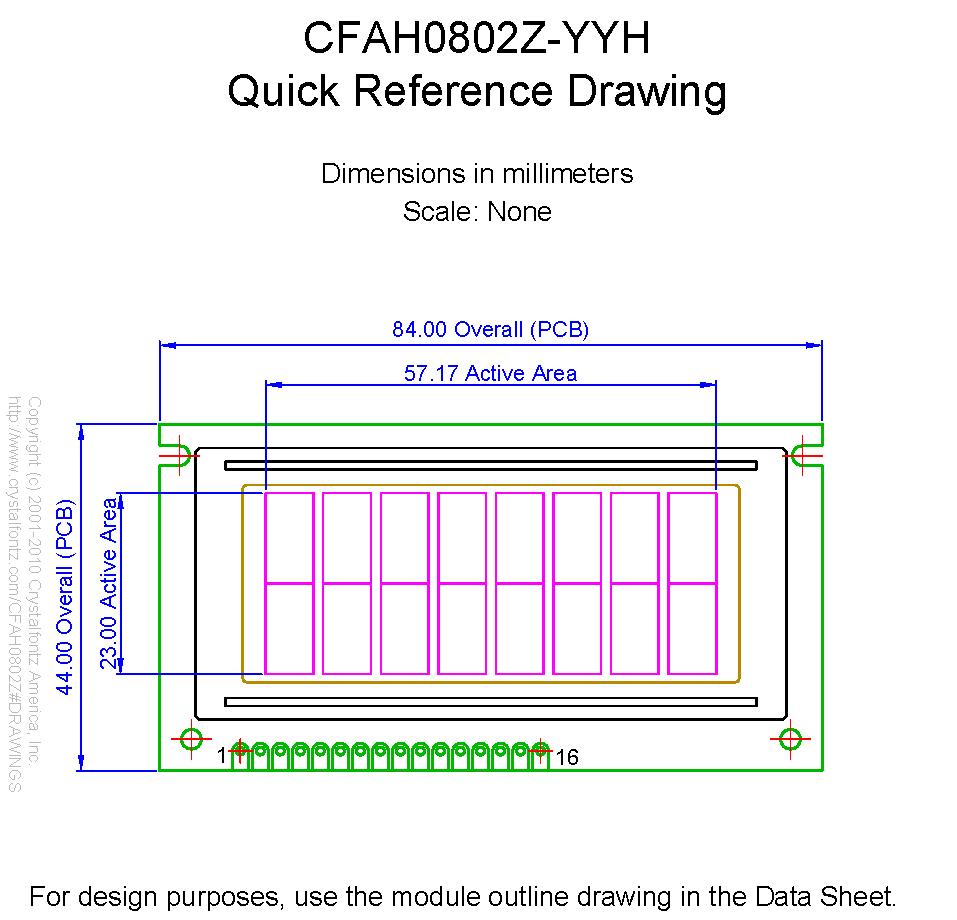

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            8 x 2


    Module Overall        width
        height
        depth


        millimeters
        79
        44
        14


        inches
        3.11
        1.73
        0.55



    PCB Outline        width
        height
        depth


        millimeters
        79
        44
        14


        inches
        3.11
        1.73
        0.55



        Diagonal Dimension
            2.43"


    Viewing Area        Width
        Height


        millimeters
        63
        25


        inches
        2.48
        0.98



    Active Area        Width
        Height


        millimeters
        57.17
        23


        inches
        2.25
        0.91



    Character Size        Width
        Height


        millimeters
        6.07
        11.44


        inches
        0.239
        0.450



    Character Pitch        Width
        Height


        millimeters
        7.3
        11.56


        inches
        0.287
        0.455



    Dot Size        Width
        Height


        millimeters
        1.15
        1.36


        inches
        0.045
        0.054



    Dot Pitch        Width
        Height


        millimeters
        1.23
        1.44


        inches
        0.048
        0.057



        Weight
            45g
Pin Count
            16

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH0802ZYYHJP Datasheet

Previous Versions of Datasheetspicture_as_pdfCFAH0802ZYYHJP v1.1.pdf
(Datasheet V 1.1, Hardware A)
picture_as_pdfCFAH0802ZYYHJP v2.0.pdf
(Datasheet V 2.0, Hardware A)
 download Files and Downloads
folder_zip Software Source - Arduino 6800 Demo Code
folder_zip CAD Export - CFAH0802Z-YYH 2D CAD
picture_as_pdf 1 to 1 Template - CFAH0802Z-YYH
link Fork this on Github
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH














Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1 *
            $13.47

            5 *
            $11.25

            10 *
            $10.95

            20 *
            $10.58

            50 *
            $10.21

            100 *
            $10.06

            200 *
            $9.99

            300 *
            $9.91

            500 *
            $9.84

            1000 *
            $7.60

0 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.



Module Overall	width	height	depth
millimeters	79	44	14
inches	3.11	1.73	0.55

PCB Outline	width	height	depth
millimeters	79	44	14
inches	3.11	1.73	0.55

Viewing Area	Width	Height
millimeters	63	25
inches	2.48	0.98

Active Area	Width	Height
millimeters	57.17	23
inches	2.25	0.91

Character Size	Width	Height
millimeters	6.07	11.44
inches	0.239	0.450

Character Pitch	Width	Height
millimeters	7.3	11.56
inches	0.287	0.455

Dot Size	Width	Height
millimeters	1.15	1.36
inches	0.045	0.054

Dot Pitch	Width	Height
millimeters	1.23	1.44
inches	0.048	0.057

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1 *	$13.47
5 *	$11.25
10 *	$10.95
20 *	$10.58
50 *	$10.21
100 *	$10.06
200 *	$9.99
300 *	$9.91
500 *	$9.84
1000 *	$7.60

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10876: SunPlus Controller Change

Products Affected:	CFAH0802D-YYH-JP, CFAH0802D-NYG-JP, CFAH0802Z-YYH-JP, CFAH1602Y-NYG-ET, CFAH1602Y-YYH-ET, CFAH1602Z-YYH-ET
Date Issued:	September 13, 2017
Summary:	SunPlus Controller Change
Description:	The parts listed currently use a SunPlus SPLC7800D Controller Chip. This controller is being discontinued by the manufacturer. The part will be replaced by a Sitronix ST7066U controller. A PCB revision will be made as part of the change to the new controller chip.
Reason:	The SunPlus SPLC7800 Controller is EOL. The new controller is a different size package with different pinouts.
Impact:	There should be no impact to users.
Recommendation:	It is highly recommended that users of the displays with the SunPlus controller verify that there are no operational differences in the systems where they are used.
Availability:	Last time buys of the current parts may be made until November 15, 2017, depending upon the availability of the SunPlus Controller.
Price Change:	To be determined when the parts with the Sitronix controllers are available.
Response:	Last time buys are available until 11/17/2017
