                This product has reached end of life.  Take a look at all of our in-stock 8x2 character LCDs.

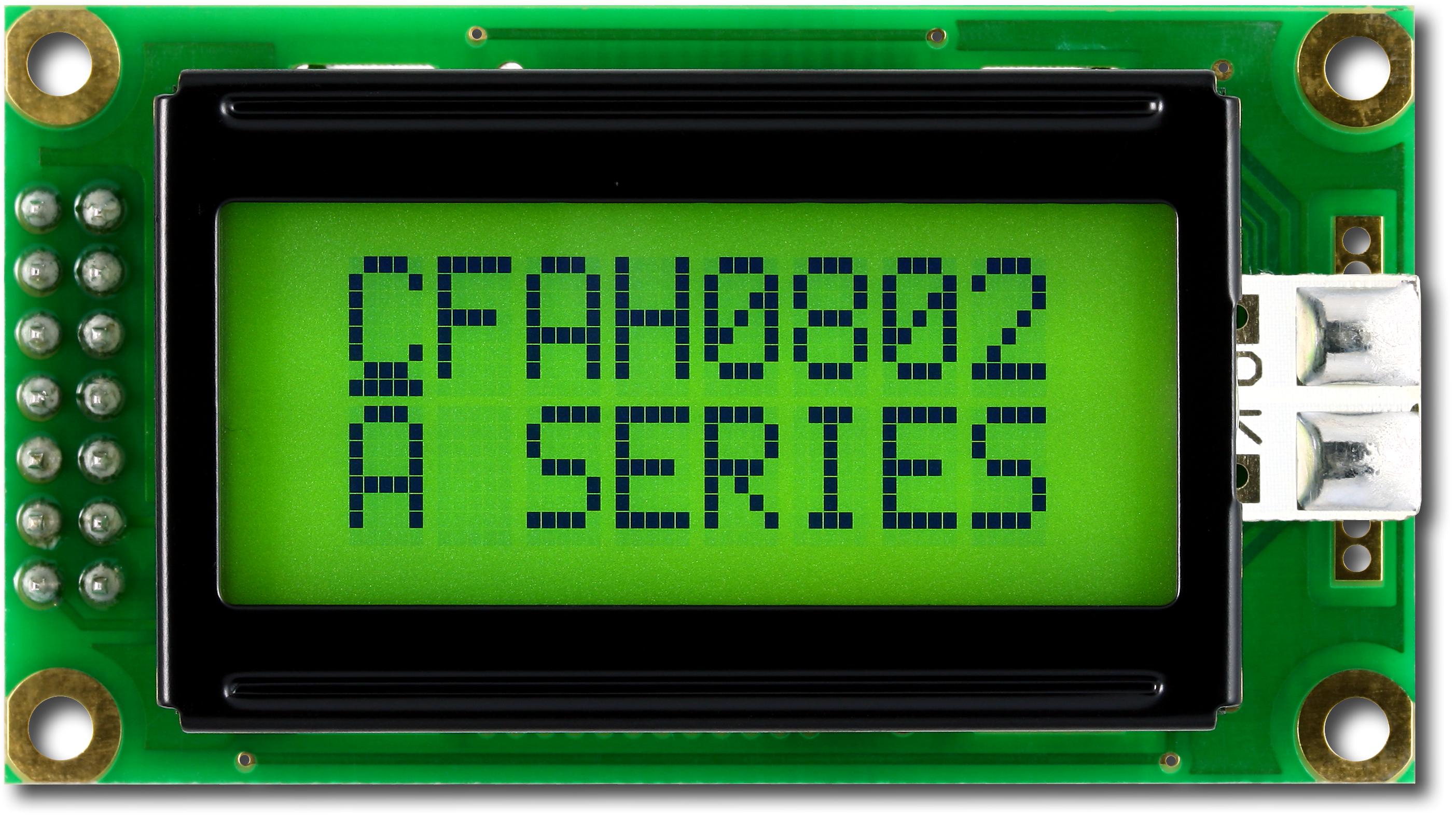

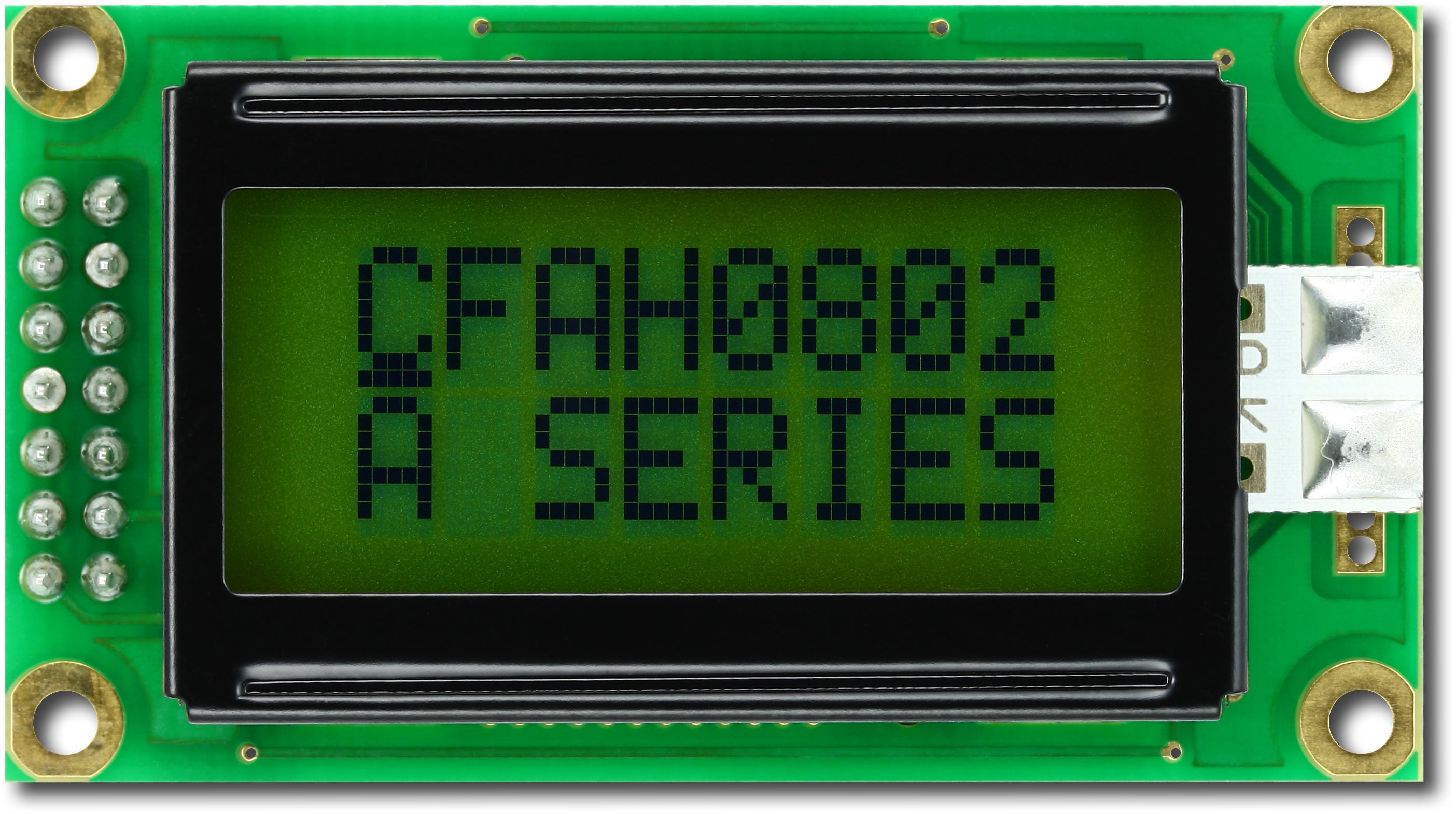

Black on Green 8x2 Character LCD (EOL)Part Number: CFAH0802A-GYH-JPParallel Character LCD 8x2, RoHS Compliant, Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C to +70°C 6:00
Available in several variations of backlight and polarizer  (minimum order may be required)
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            8 x 2

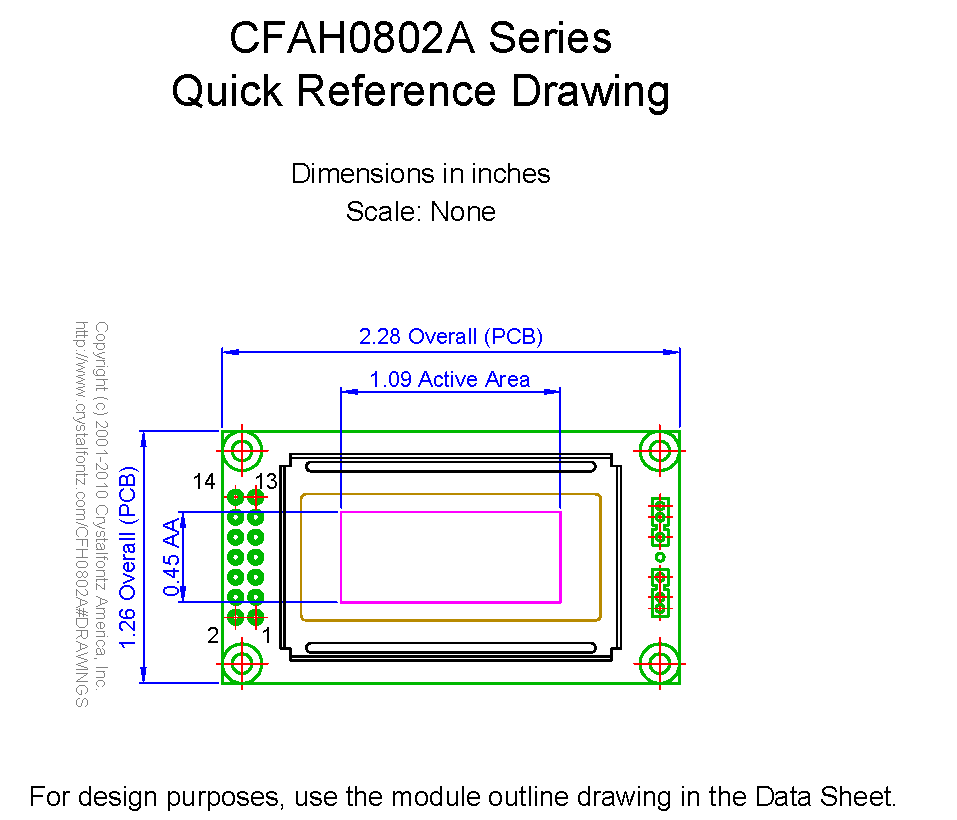

    Module Overall        width
        height
        depth

        millimeters
        58
        32
        13.5

        inches
        2.28
        1.26
        0.53

    PCB Outline        width
        height
        depth

        millimeters
        58
        32
        13.5

        inches
        2.28
        1.26
        0.53

    Viewing Area        Width
        Height

        millimeters
        38
        16

        inches
        1.50
        0.63

    Active Area        Width
        Height

        millimeters
        27.81
        11.5

        inches
        1.10
        0.45

    Character Size        Width
        Height

        millimeters
        2.96
        5.56

        inches
        0.117
        0.219

    Character Pitch        Width
        Height

        millimeters
        3.55
        5.94

        inches
        0.140
        0.234

    Dot Size        Width
        Height

        millimeters
        0.56
        0.66

        inches
        0.022
        0.026

    Dot Pitch        Width
        Height

        millimeters
        0.6
        0.7

        inches
        0.024
        0.028

        Weight
            21g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Green

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

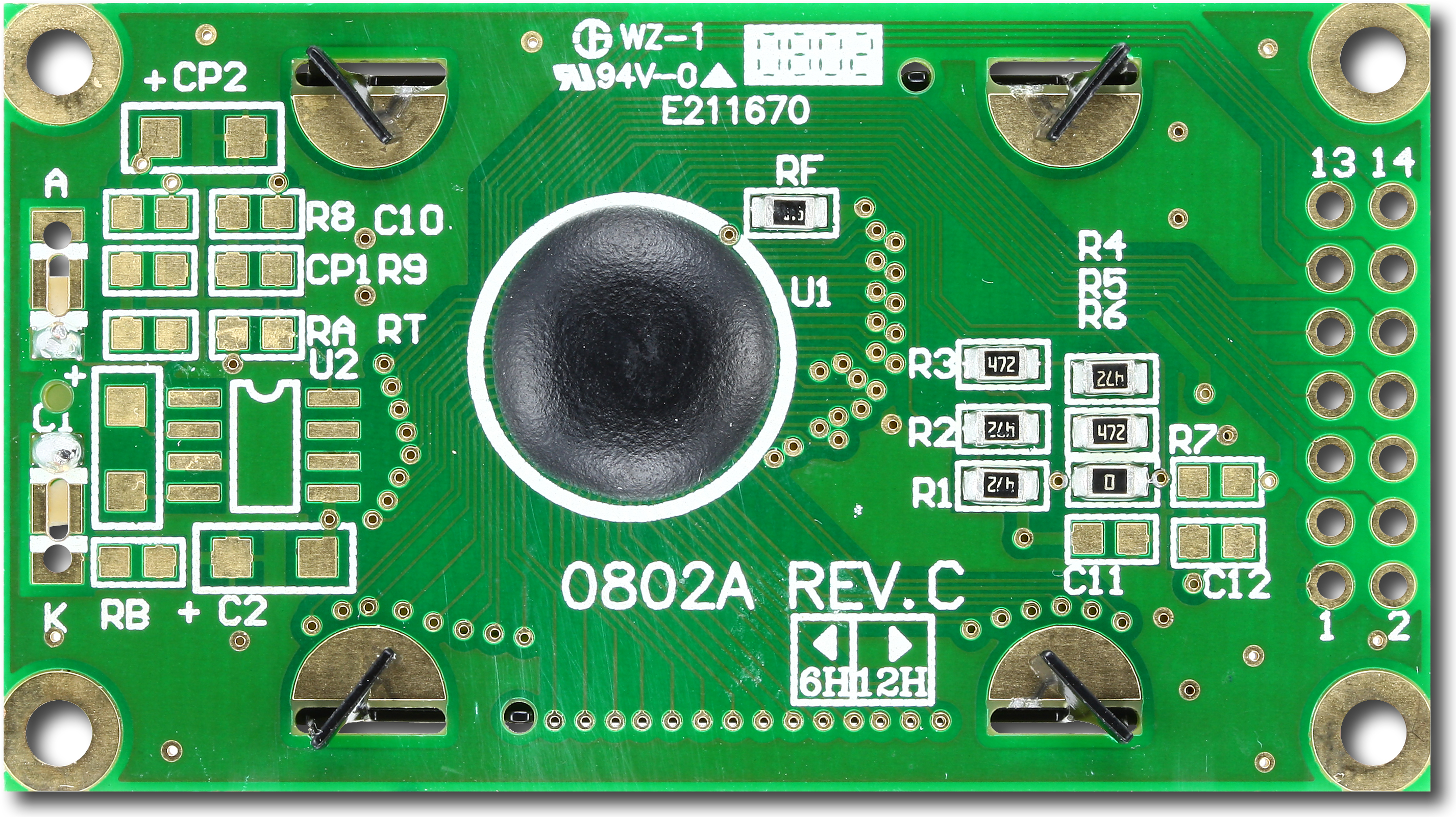

 cable Electronics
Electronics

        Controller Documents
            Sunplus SPLC780D
16COM/40SEG Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH0802AGYHJP v2.0.pdf
(Datasheet V 2.0, Hardware A)
Previous Versions of Datasheetpicture_as_pdfCFAH0802AGYHJP v1.0.pdf
(Datasheet V 1.0, Hardware A)
 download Files and Downloads
picture_as_pdf 1 to 1 Template - CFAH0802A
link Demo Code Repository on Github

Black on Green 8x2 Character LCD (EOL)

Part Number: CFAH0802A-GYH-JP

Physical Characteristics

Optical Characteristics

Environmental

Electronics

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	STN/Yellow-Green
Polarizer	Transflective
View Direction	6 o'clock
Sunlight Readable	Yes

Backlight Color	Green
Backlight Type	LED
Mode	Positive
Foreground Color	Dark
Background Color	Green

Controller Documents	Sunplus SPLC780D 16COM/40SEG Controller/Driver
Interface	4-bit Parallel, 8-bit Parallel
