Home » Products » Sunlight Readable Displays » Character

                This part is not recommended for new designs as it's End-of-Life. Once current stock is depleted it will be unavailable.

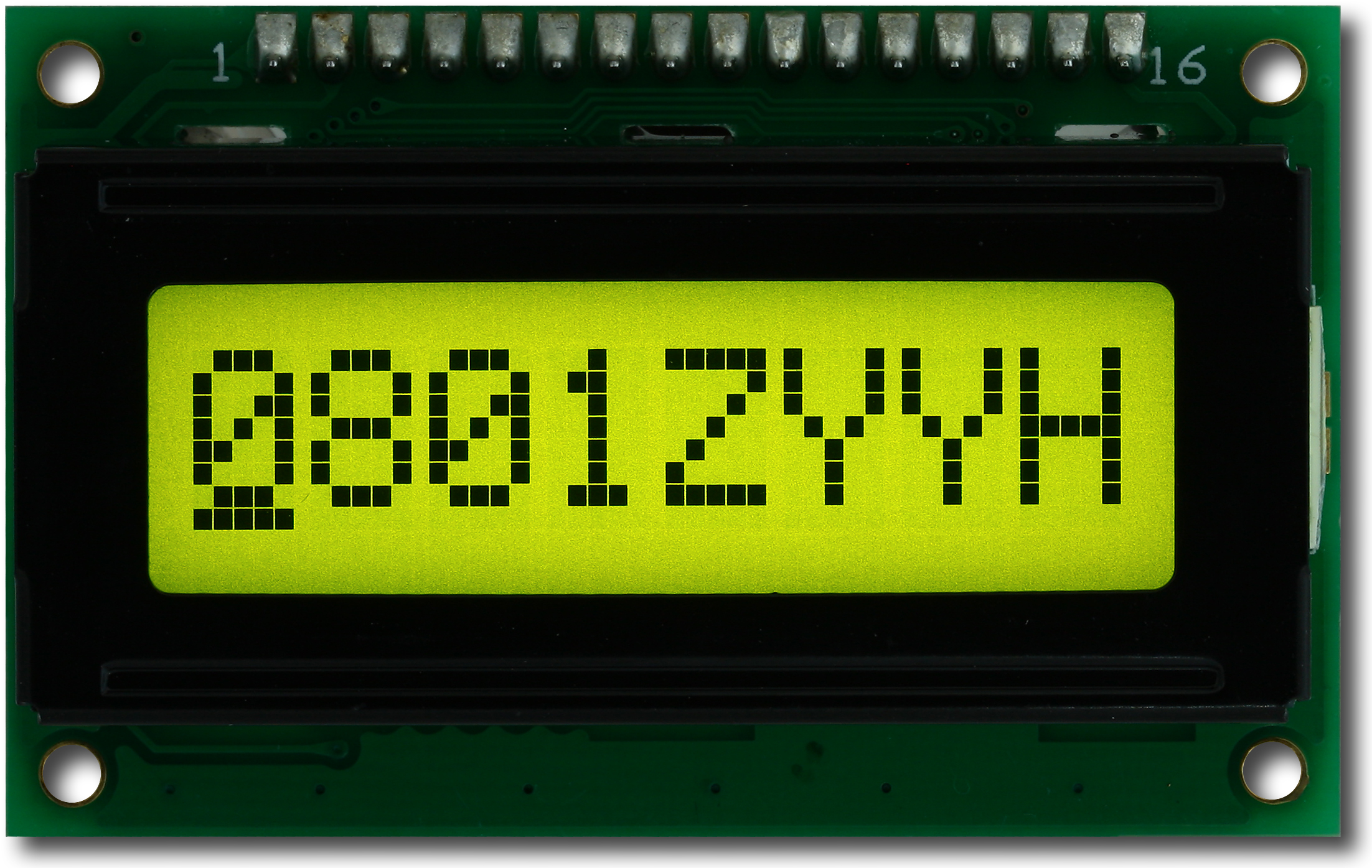

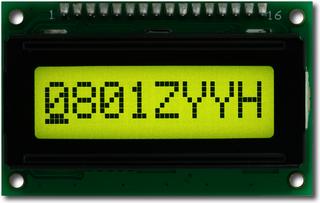

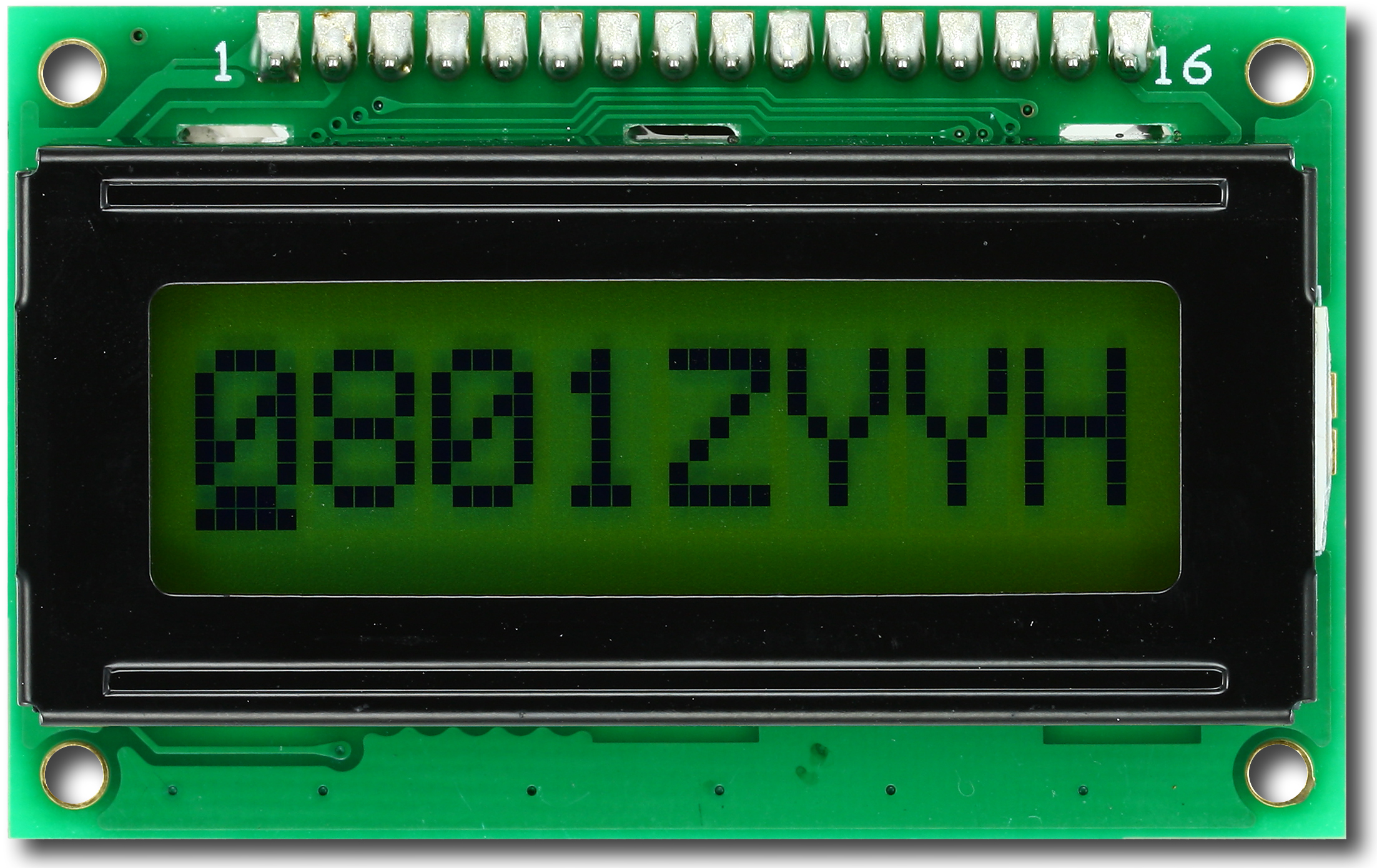

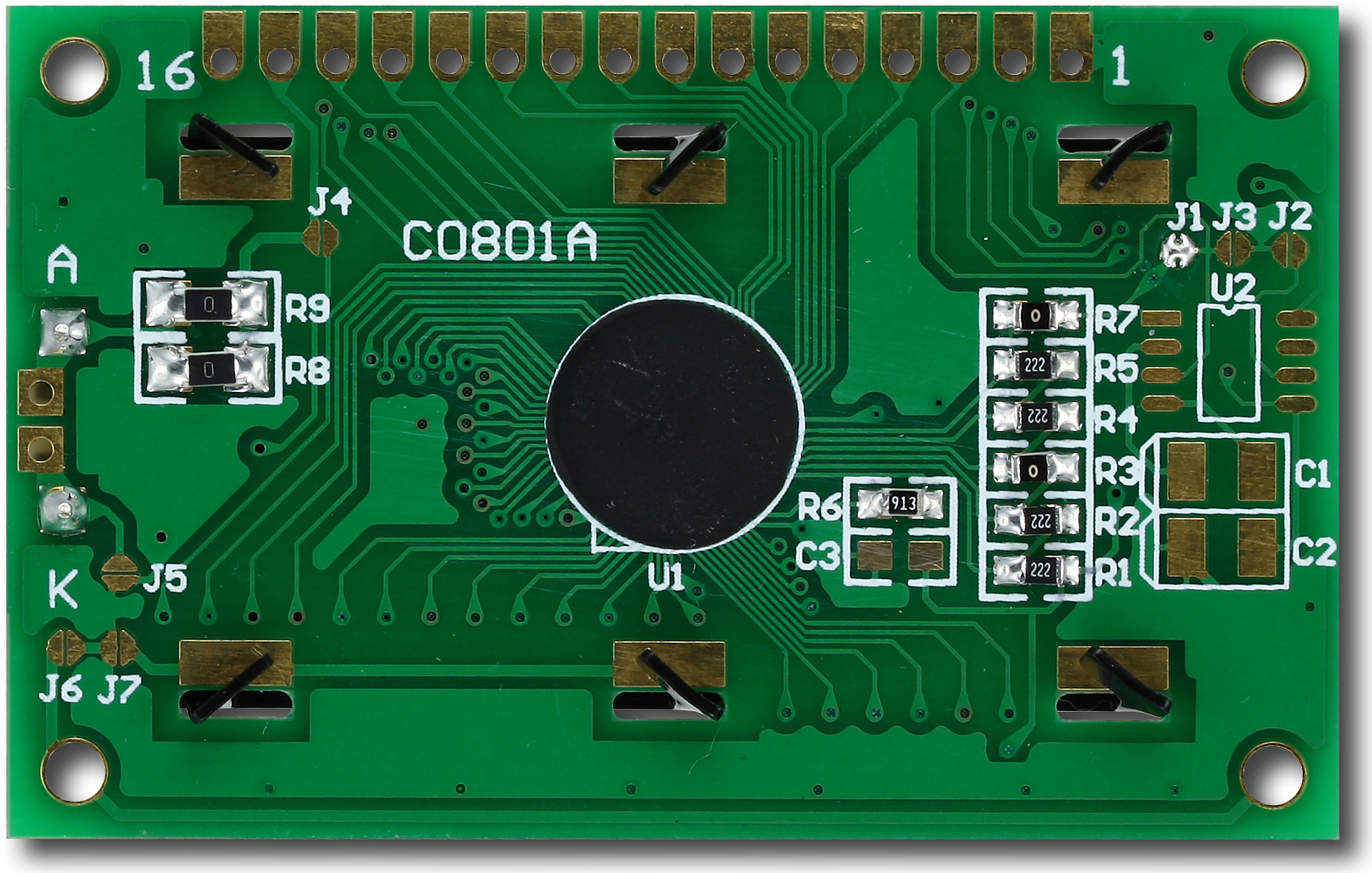

Sunlight Readable 8x1 Character LCDPart Number: CFAH0801Z-YYH-JP8x1 Sunlight readable LCD, 8 characters, one row.
Characters / Columns: 8x1
Optics: 6:00 viewing direction
Backlight: Yellow-green LED
Glass: STN Positive, Transflective
Controller: Sunplus SPLC780D (HD44780 compatible)
Operating Temp: -20°C to +70°C
Interfaces: 4 & 8 bit parallel
Compliance: REACH & RoHS Compliant
 square_foot Physical Characteristics

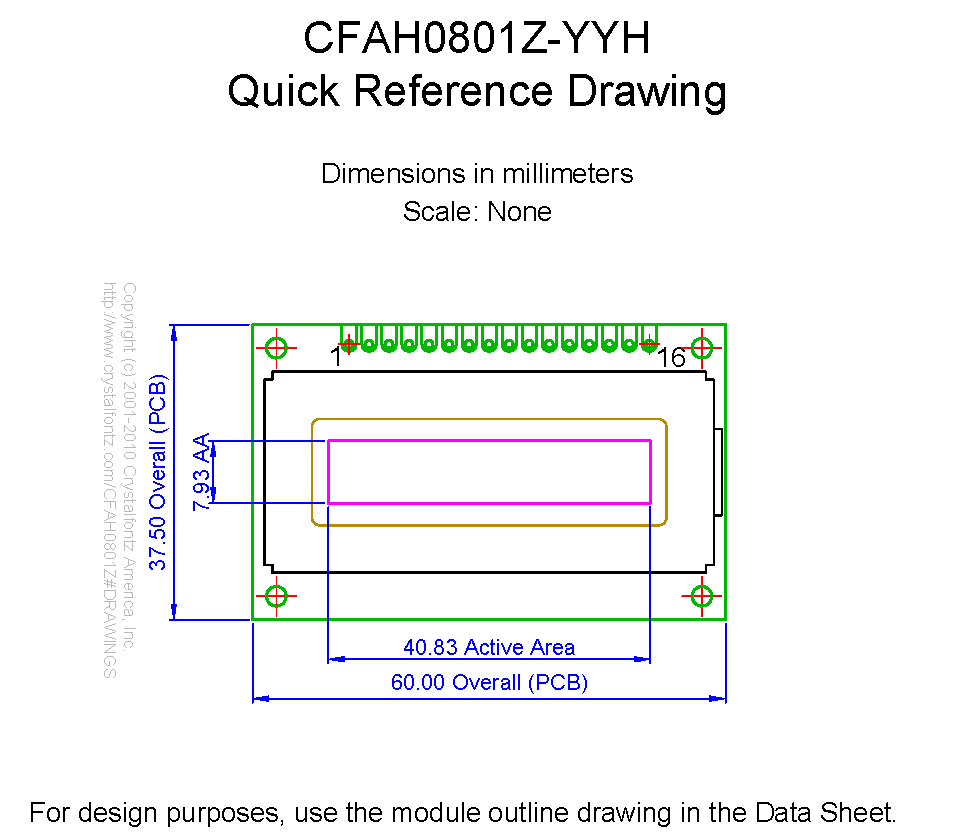

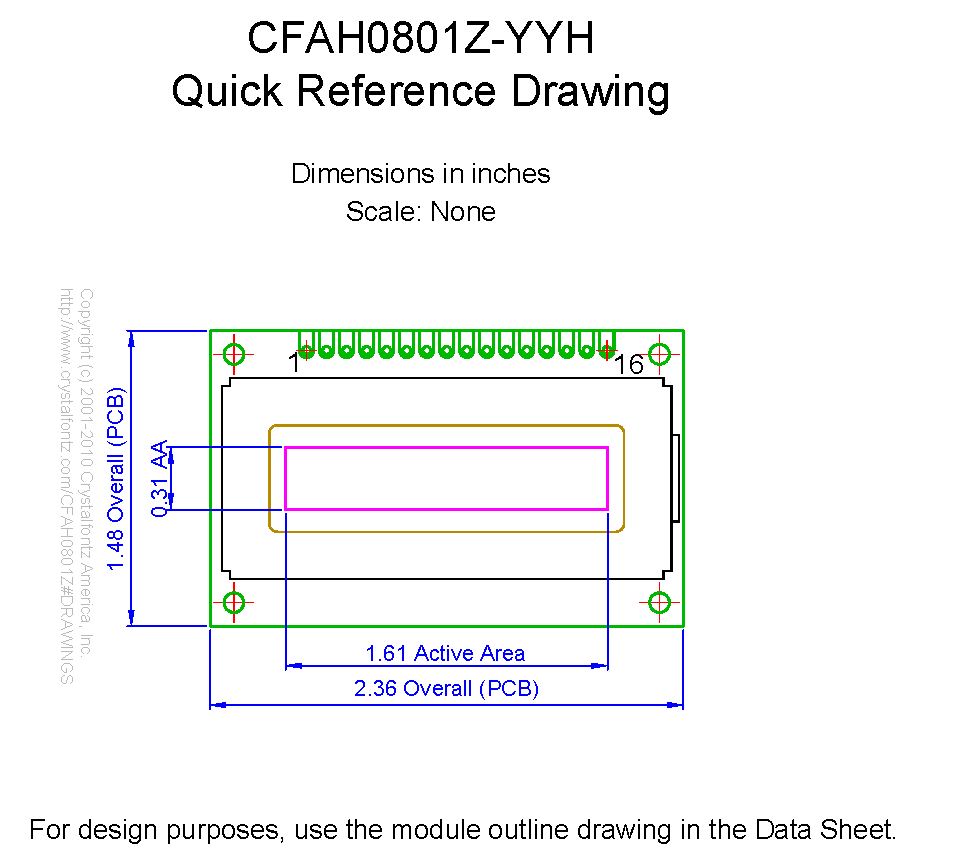

Physical Characteristics

        Characters x Lines
            8 x 1

    Module Overall        width
        height
        depth

        millimeters
        60
        37.5
        14

        inches
        2.36
        1.48
        0.55

    PCB Outline        width
        height
        depth

        millimeters
        60
        37.5
        14

        inches
        2.36
        1.48
        0.55

        Diagonal Dimension
            1.64"

    Viewing Area        Width
        Height

        millimeters
        45
        13.5

        inches
        1.77
        0.53

    Active Area        Width
        Height

        millimeters
        40.83
        7.93

        inches
        1.61
        0.31

    Character Size        Width
        Height

        millimeters
        4.43
        7.93

        inches
        0.174
        0.312

    Character Pitch        Width
        Height

        millimeters
        5.2
        7.93

        inches
        0.205
        0.312

    Dot Size        Width
        Height

        millimeters
        0.83
        0.93

        inches
        0.033
        0.037

    Dot Pitch        Width
        Height

        millimeters
        0.9
        1

        inches
        0.035
        0.039

        Weight
            83g
Pin Count
            16

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sunplus SPLC780D
16COM/40SEG Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH0801ZYYHJP Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAH0801Z-YYH 2D CAD
picture_as_pdf 1 to 1 Template - CFAH0801Z-YYH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $5.41

263 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.

Module Overall	width	height	depth
millimeters	60	37.5	14
inches	2.36	1.48	0.55

PCB Outline	width	height	depth
millimeters	60	37.5	14
inches	2.36	1.48	0.55

Viewing Area	Width	Height
millimeters	45	13.5
inches	1.77	0.53

Active Area	Width	Height
millimeters	40.83	7.93
inches	1.61	0.31

Character Size	Width	Height
millimeters	4.43	7.93
inches	0.174	0.312

Character Pitch	Width	Height
millimeters	5.2	7.93
inches	0.205	0.312

Dot Size	Width	Height
millimeters	0.83	0.93
inches	0.033	0.037

Dot Pitch	Width	Height
millimeters	0.9	1
inches	0.035	0.039

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$5.41

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10910: End-of-Life Notification

Products Affected:	CFAG14432A-YYH-TT, CFAG20232C-YYH-TT, CFAG14432A-TFH-TT, CFAG320240K-YYH-TZ, CFAG14432C-TFH-TT, CFAG12864I-TMI-TN, CFAG12864F-STI-TY, CFAG12864F-TMI-TY, CFAG12864G-STI-TY, CFAH0801Z-YYH-JP, CFAG19264A-STI-TN
Date Issued:	December 13, 2017
Summary:	End-of-Life Notification
Description:	The parts listed have been set to End of Life Status.
Reason:	Critical components have been discontinued by the manufacturer.
Impact:	No replacements have been identified
Recommendation:	These parts are not recommended for new designs.
Availability:	Once current stock is depleted, these parts will no longer be available
Price Change:	N/A
