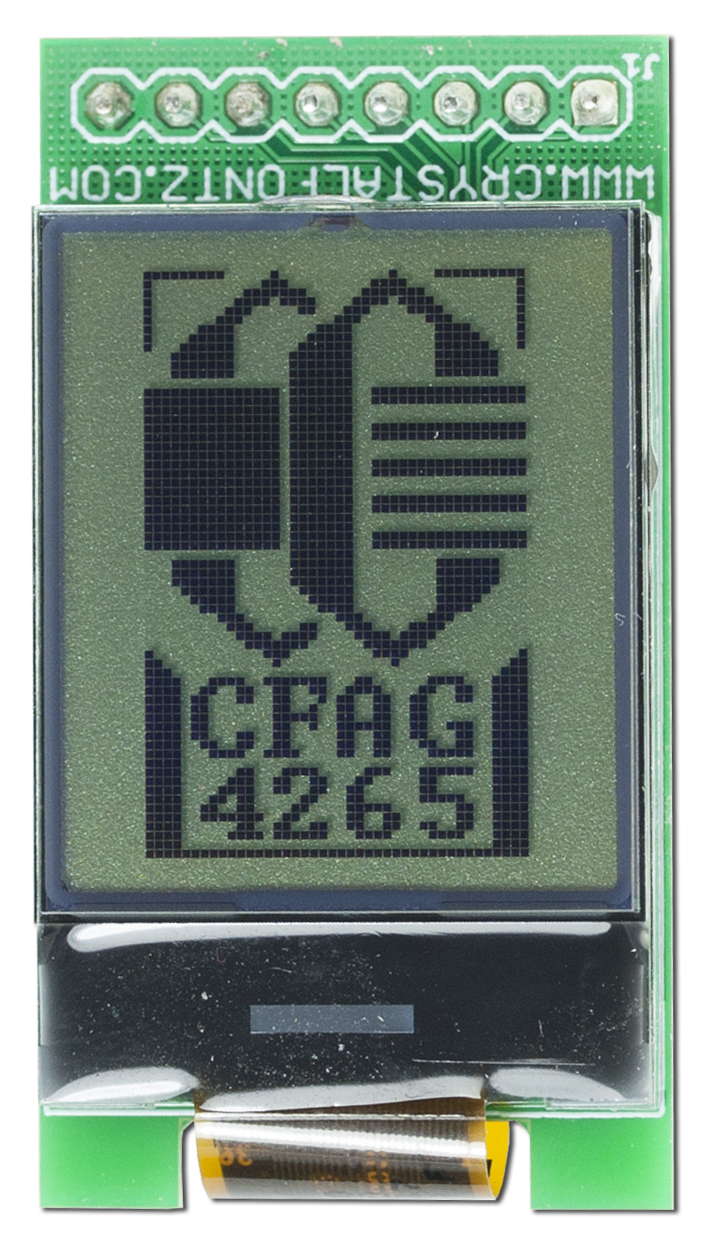

      One Inch LCD on Carrier Board
      Part Number: CFAG4265A0-TFK-E1-1

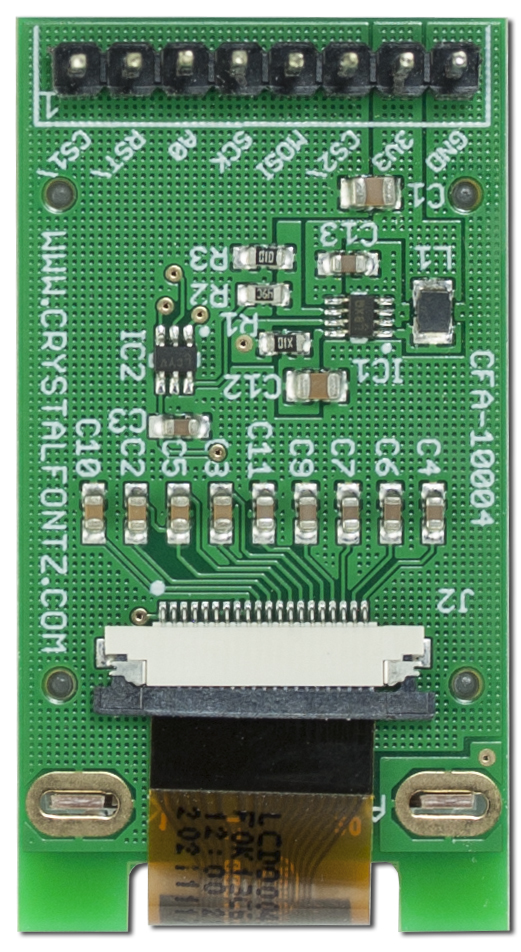

         Quickly develop with this small graphic display module  mounted to a CFA10004 carrier board. The carrier board includes a current-controlled, switching LED driver, including SPI control of the LED backlight brightness. All external components for panel voltage generation are also included.
COG (Chip-On-Glass) display module is mounted on the carrier board with the ZIF connector, the adhesive protection liner is removed, and backlight connections are already soldered.
Carrier board only adds 4 grams, for a total weight of 10 grams for this module.
 square_foot Physical Characteristics
Physical Characteristics

        Diagonal Dimension
            1."

 download Files and Downloads
folder_zip Hardware Design - CFA10004 Hardware
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $42.69

            5
            $35.73

            10
            $34.71

            20
            $33.68

            50
            $32.46

            100 *
            $32.05

            200 *
            $31.85

            300 *
            $31.44

            500 *
            $31.23

            1000 *
            $31.03

66 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.

Quantity	Unit Price
1	$42.69
5	$35.73
10	$34.71
20	$33.68
50	$32.46
100 *	$32.05
200 *	$31.85
300 *	$31.44
500 *	$31.23
1000 *	$31.03

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10888: (New Product) CFAG4265A0-TFK-E1-1

New Product:	CFAG4265A0-TFK-E1-1
Date Issued:	October 30, 2017
Summary:	(New Product) CFAG4265A0-TFK-E1-1
Description:	Standard Graphic Modules: Complete demonstration kit for our 42x65 one inch lcd display. Includes display, carrier board, and 3.3v Seeeduino/Arduino
