320x240 Resistive Touch Screen LCD from Crystalfontz

Product

Home » Products » Sunlight Readable Displays » Graphic

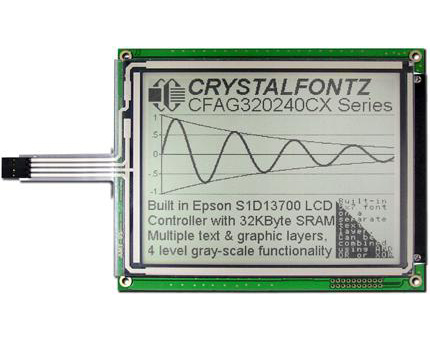

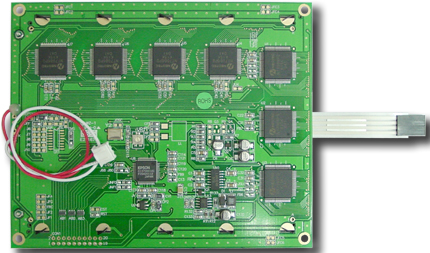

320x240 Resistive Touch Screen LCDPart Number: CFAG320240CX-TFH-T-TSSunlight readable 320x240 graphic LCD with negative voltage generator, temperature compensation and a 4-wire analog resistive touchscreen.
Resolution: 320x240 pixels
Optics: 6:00 viewing direction
Backlight: White Edge LED
Glass: STN Positive, Transflective
Controller: Epson S1D13700
Touchscreen: 4-wire Analog Resistive Touch Screen
Operating Temp: -20°C to +70°C
Compliance: REACH & RoHS Compliant
An Arduino library can be found here: CFAG320240CX Arduino Library.

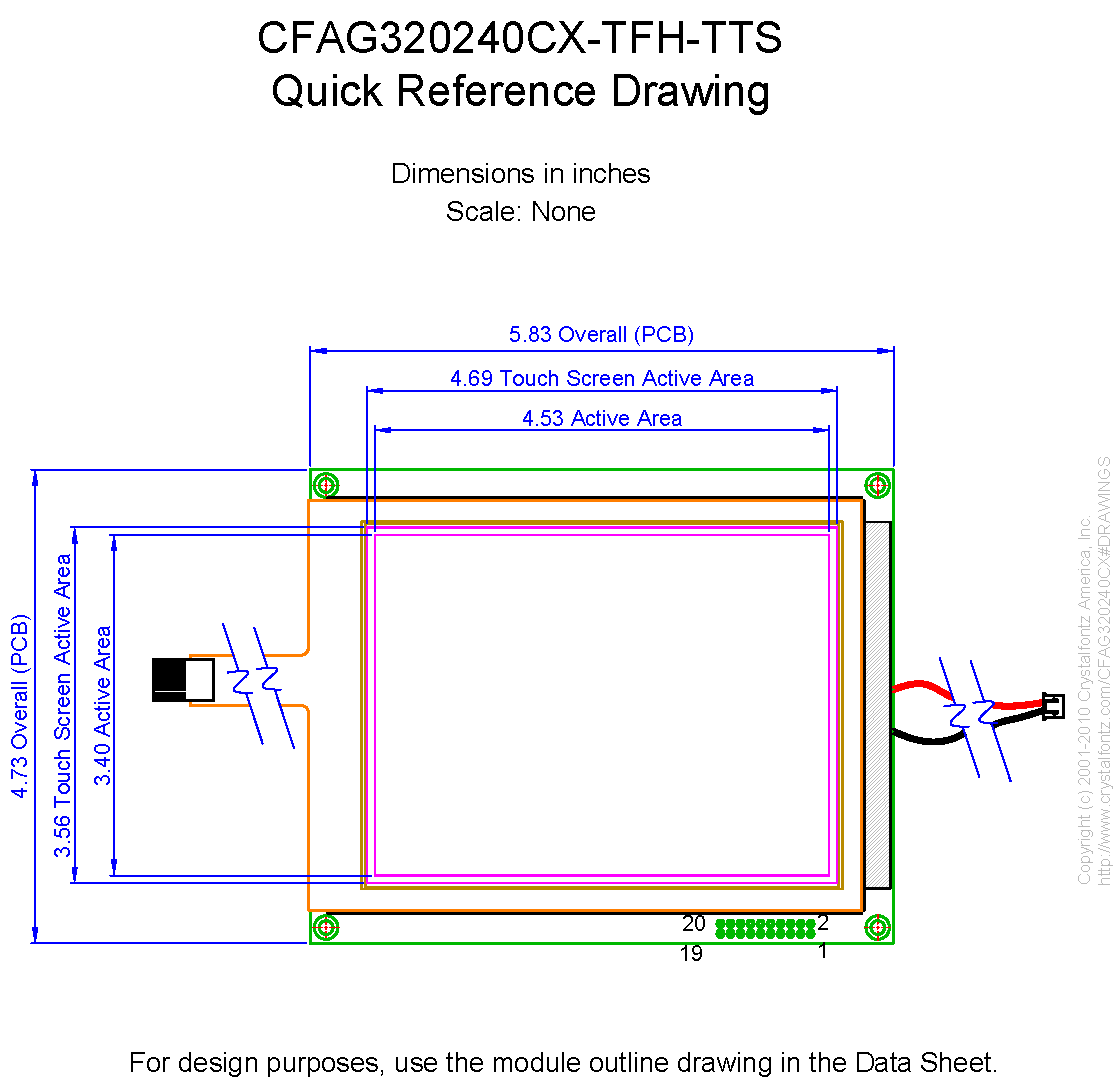

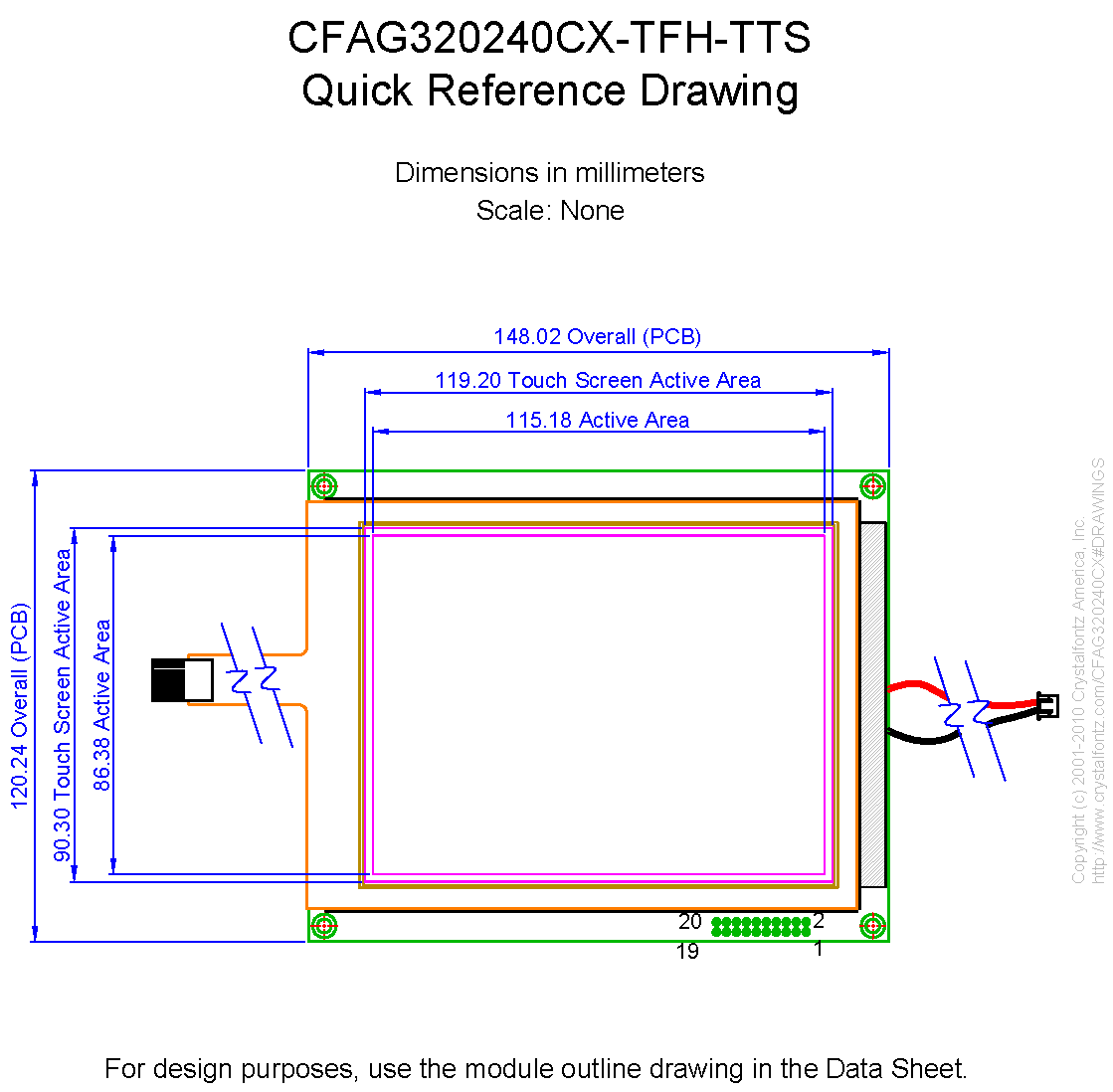

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            320 x 240


    Module Overall        width
        height
        depth


        millimeters
        148.02
        120.24
        17.3


        inches
        5.83
        4.73
        0.68

*width / height does not include Foldable Tab


    PCB Outline        width
        height
        depth


        millimeters
        148.02
        120.24
        17.3


        inches
        5.83
        4.73
        0.68



        Diagonal Dimension
            5.67"


    Viewing Area        Width
        Height


        millimeters
        120.14
        92.14


        inches
        4.73
        3.63



    Active Area        Width
        Height


        millimeters
        115.18
        86.38


        inches
        4.54
        3.40



    Dot Size        Width
        Height


        millimeters
        0.34
        0.34


        inches
        0.013
        0.013



    Dot Pitch        Width
        Height


        millimeters
        0.36
        0.36


        inches
        0.014
        0.014



        Weight
            278g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Light Gray
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            White
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            White

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V
Supply Current Minimum
            65mA


        Supply Current Maximum
            85mA
Supply Current Typical
            75mA
Module Connector Pitch
            0.1mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            3.4V
Forward Voltage Maximum
            3.6V
Forward Voltage Typical
            3.5V


        Forward Current Minimum
            40mA
Forward Current Maximum
            160mA
Forward Current Typical
            128mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Epson S1D13700
Hardware Functional Specification


Interface
            8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAG320240CXTFHTTS Datasheet

download Files and Downloads
folder_zip Software Source - 6800 ATMega2561
Demo Code
folder_zip Software Source - Arduino Demo Code
folder_zip CAD Export - CFAG320240CX-TFH-TTS 2D CAD
picture_as_pdf 1 to 1 Template - CFAG320240CX-TFH-TTS 1 TO 1.PDF
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH










Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1
            $160.31

            10
            $141.19

            20 *
            $137.04

            50 *
            $132.06

            100 *
            $130.40

            200 *
            $129.57

            300 *
            $122.27

            500 *
            $121.47

            1000 *
            $115.12

14 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering


						LCD Starter Kit with Potentiometer
Everything you need to connect $11.06 ea.





Module Overall	width	height	depth
millimeters	148.02	120.24	17.3
inches	5.83	4.73	0.68
*width / height does not include Foldable Tab

PCB Outline	width	height	depth
millimeters	148.02	120.24	17.3
inches	5.83	4.73	0.68

Viewing Area	Width	Height
millimeters	120.14	92.14
inches	4.73	3.63

Active Area	Width	Height
millimeters	115.18	86.38
inches	4.54	3.40

Dot Size	Width	Height
millimeters	0.34	0.34
inches	0.013	0.013

Dot Pitch	Width	Height
millimeters	0.36	0.36
inches	0.014	0.014

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$160.31
10	$141.19
20 *	$137.04
50 *	$132.06
100 *	$130.40
200 *	$129.57
300 *	$122.27
500 *	$121.47
1000 *	$115.12

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #11258: Small Change to Bezel

Products Affected:	CFAG320240CX-TFH-T-TS, CFAG320240CX-TFH-T
Date Issued:	March 5, 2024
Summary:	Small Change to Bezel
Description:	The bezel is being modified to improve manufacturing. The four holes on the front of the bezel are being widened to work with a better alignment tool. All other dimensions remain the same.
Reason:	Continuous improvement
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Product Update #11086: Glass Provider Change

Products Affected:	CFAG320240CX-TFH-T-TS, CFAG320240CX-TFH-T
Date Issued:	May 12, 2021
Summary:	Glass Provider Change
Description:	This is a notification that the glass used on this display is being manufactured by a new supplier. Please contact sales@crystalfontz.com if samples are required.
Reason:	New glass supplier.
