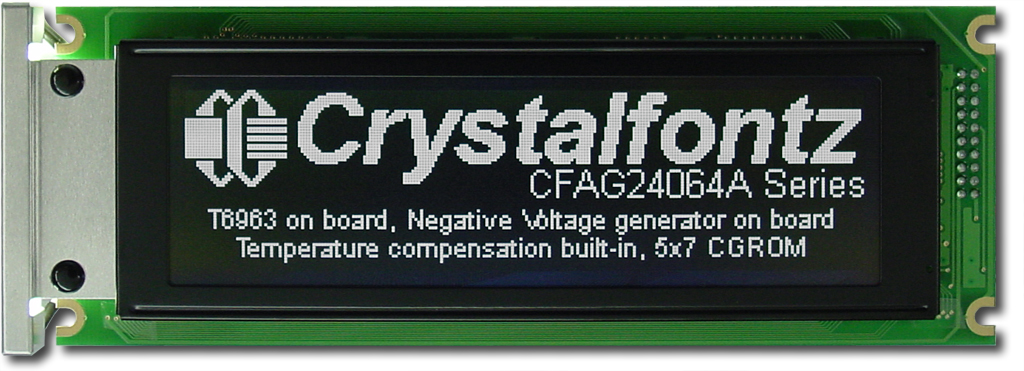

[EOL] Dark 40x64  Parallel Graphic LCDPart Number: CFAG24064A-FTI-TZ240x64 Graphic LCD, RoHS Compliant, White CCFL Backlight, Negative FSTN LCD, Transflective -20°C to +70°C 6:00 viewing angle. Negative Voltage Generator, Temperature Compensation.

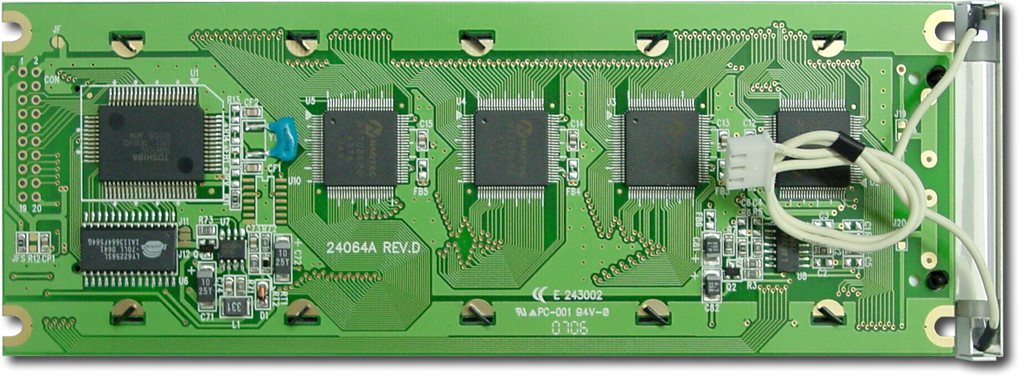

240x64 graphic LCD module
Built-in Toshiba T6963C or compatible controller
240x64 graphic mode --or-- 40 x 8 text mode using built-in 5x7 Character Generator ROM
Available in several variations of backlight and polarizer  (minimum order may be required)
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 64

    Module Overall        width
        height
        depth

        millimeters
        189
        65
        13.8

        inches
        7.44
        2.56
        0.54

    PCB Outline        width
        height
        depth

        millimeters
        180
        65
        13.8

        inches
        7.09
        2.56
        0.54

    Viewing Area        Width
        Height

        millimeters
        133
        39

        inches
        5.24
        1.54

    Active Area        Width
        Height

        millimeters
        127.16
        33.88

        inches
        5.01
        1.33

    Dot Size        Width
        Height

        millimeters
        0.49
        0.49

        inches
        0.019
        0.019

    Dot Pitch        Width
        Height

        millimeters
        0.53
        0.53

        inches
        0.021
        0.021

        Weight
            160g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Black
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            CCFL
Mode
            Negative
Foreground Color
            White
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG24064AFTITZ Preliminary Data Sheet.pdf

 download Files and Downloads
folder_zip Software Source - Example code - ATMEGA2561
folder_zip CAD Export - CFAG24064A-FMI-FTI 2D CAD.ZIP
picture_as_pdf 1 to 1 Template - CFAG24064A-FMI-FTI 1 TO 1 LF
picture_as_pdf 1 to 1 Template - CFAG24064A-FMI-FTI 1 TO 1 RT

Other components worth considering

						LCD Starter Kit with Potentiometer
Everything you need to connect $12.59 ea.

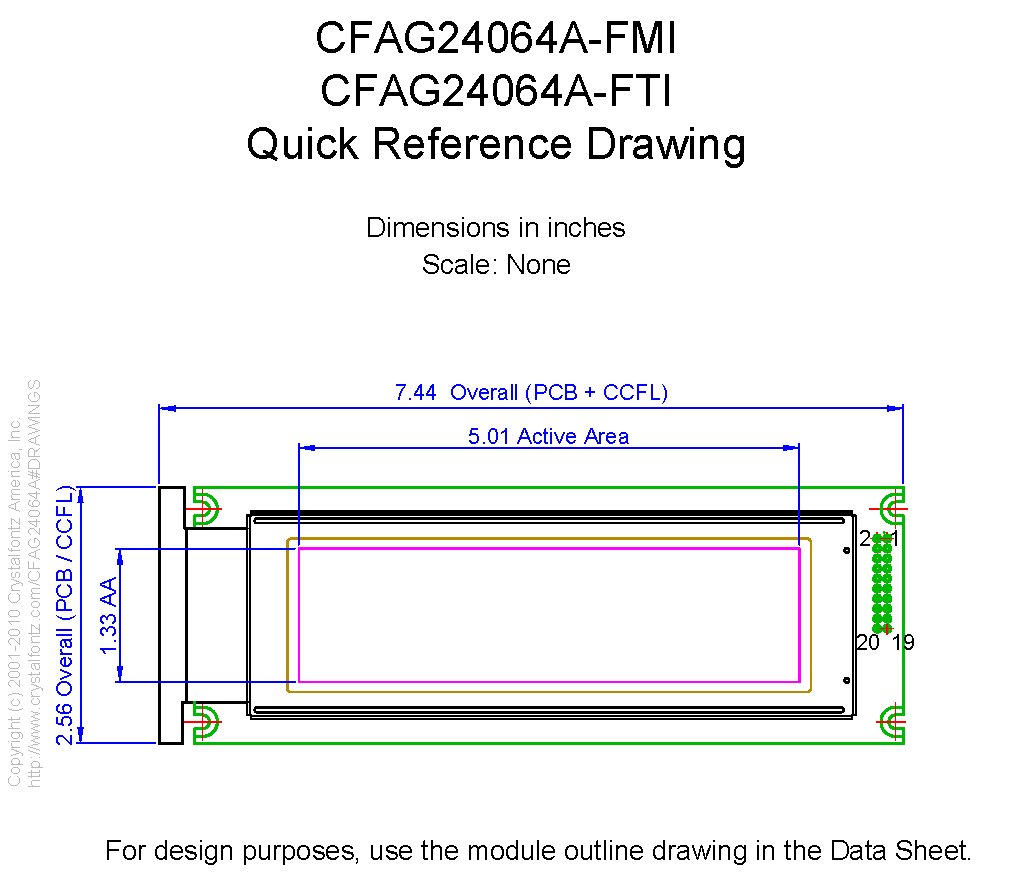

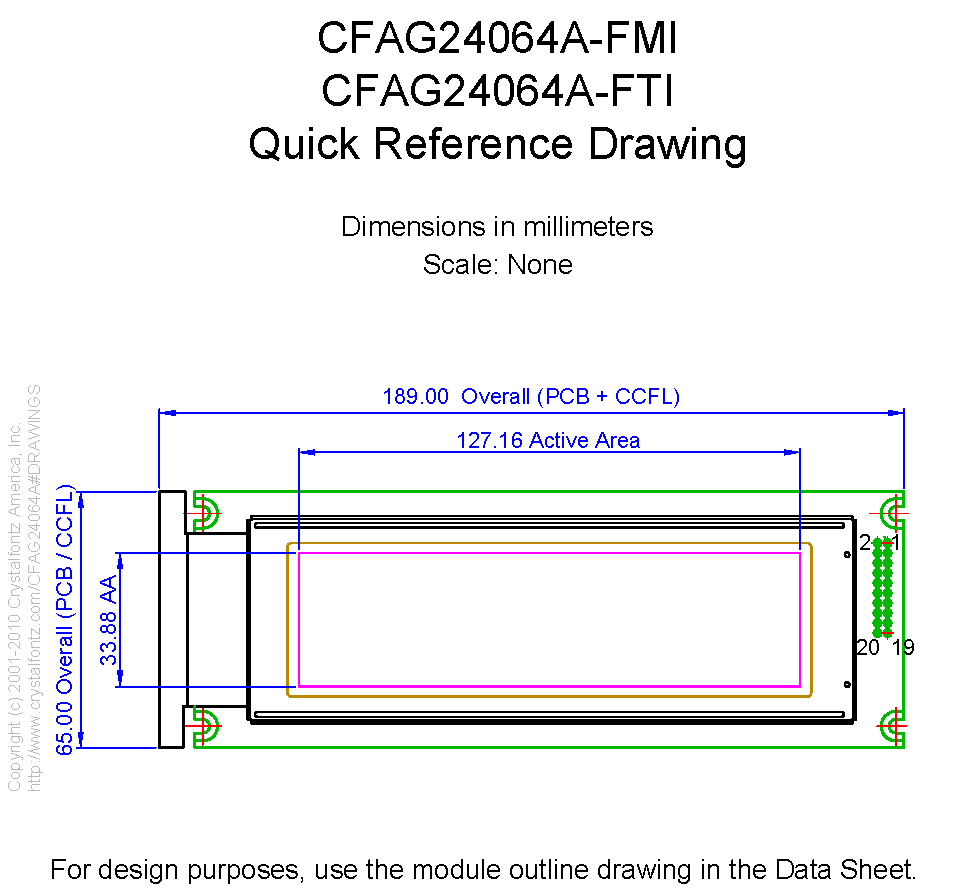

Module Overall	width	height	depth
millimeters	189	65	13.8
inches	7.44	2.56	0.54

PCB Outline	width	height	depth
millimeters	180	65	13.8
inches	7.09	2.56	0.54

Viewing Area	Width	Height
millimeters	133	39
inches	5.24	1.54

Active Area	Width	Height
millimeters	127.16	33.88
inches	5.01	1.33

Dot Size	Width	Height
millimeters	0.49	0.49
inches	0.019	0.019

Dot Pitch	Width	Height
millimeters	0.53	0.53
inches	0.021	0.021

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Note
Notices

Product Note:

Recommended replacement: CFAG24064A-TTI-TZ

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10592: EL and CCFL backlight display modules End of Life

Products Affected:	CFAG12864B-WGH-N, CFAG12864B-WGH-V, CFAG320240CX-FMI-T, CFAG24064A-FMI-TZ, CFAG24064A-FTI-TZ, CFAX12864U1-WFH, CFAX12864T1-WFH, CFAX12864T-WFH, CFAX12864U-WFH
Date Issued:	June 13, 2014
Summary:	EL and CCFL backlight display modules End of Life
Last revision:	Varies
Description:	EL and CCFL backlight display module are going End Of Life 2014-06-31.
Reason:	Market trends and new product development have reduced demand for EL and CCFL backlights with a move to longer life and less expensive LED backlights. Backlight inverters that support EL and CCFL backlights are also EOL: https://www.crystalfontz.com/news/pcn.php?id=10591
Impact:	EL and CCFL backlight display modules will no longer be available.
Recommendation:	It is recommended that customers currently using EL or CCFL based modules to transition to an LED based counterpart. This will re
Availability:	Last orders must be received no later than 2014-06-31. Last shipments will be late September of 2014. Current inventory at Crystalfontz America will not be replenished and sold until exhausted.
Price Change:	No price change.
