[EOL] Yellow 240x128 Graphic LCD from Crystalfontz

Product

Home » Products » Sunlight Readable Displays » Graphic

                This product has reached end of life. Please take a look at the similar active 240x128 Graphic LCDs.

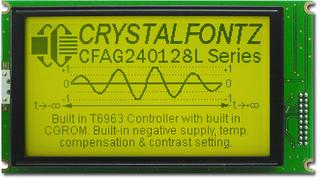

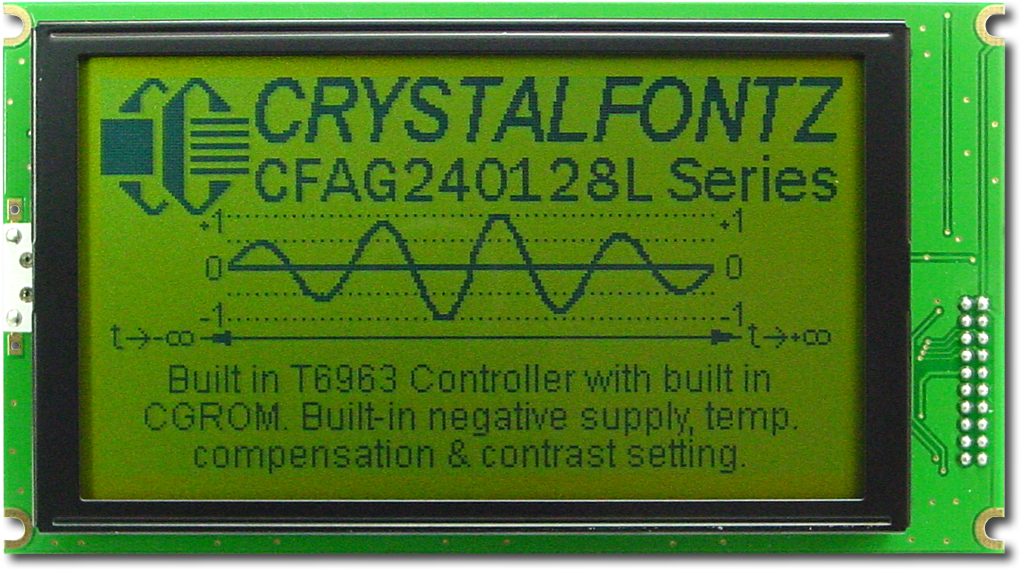

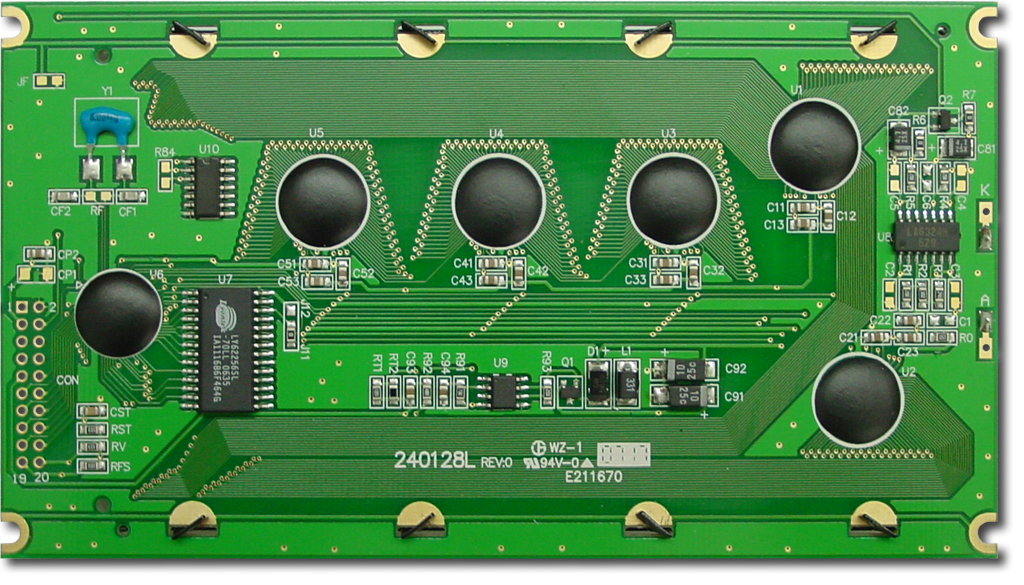

[EOL] Yellow 240x128 Graphic LCDPart Number: CFAG240128L-YYH-TZ(EOL)240x128 Graphic LCD, RoHS Compliant, Yellow/Green LED Backlight, STN Positive Yellow/Green, Transflective, -20°C to +70°C, 6:00 viewing angle. Negative Voltage Generator, Temperature Compensation
240x128 graphic LCD module
Built-in Toshiba T6963C or compatible controller
240x128 graphic mode --or-- 40 x 8 text mode using built-in 5x7 Character Generator ROM
Available in several variations of backlight and polarizer  (minimum order may be required)

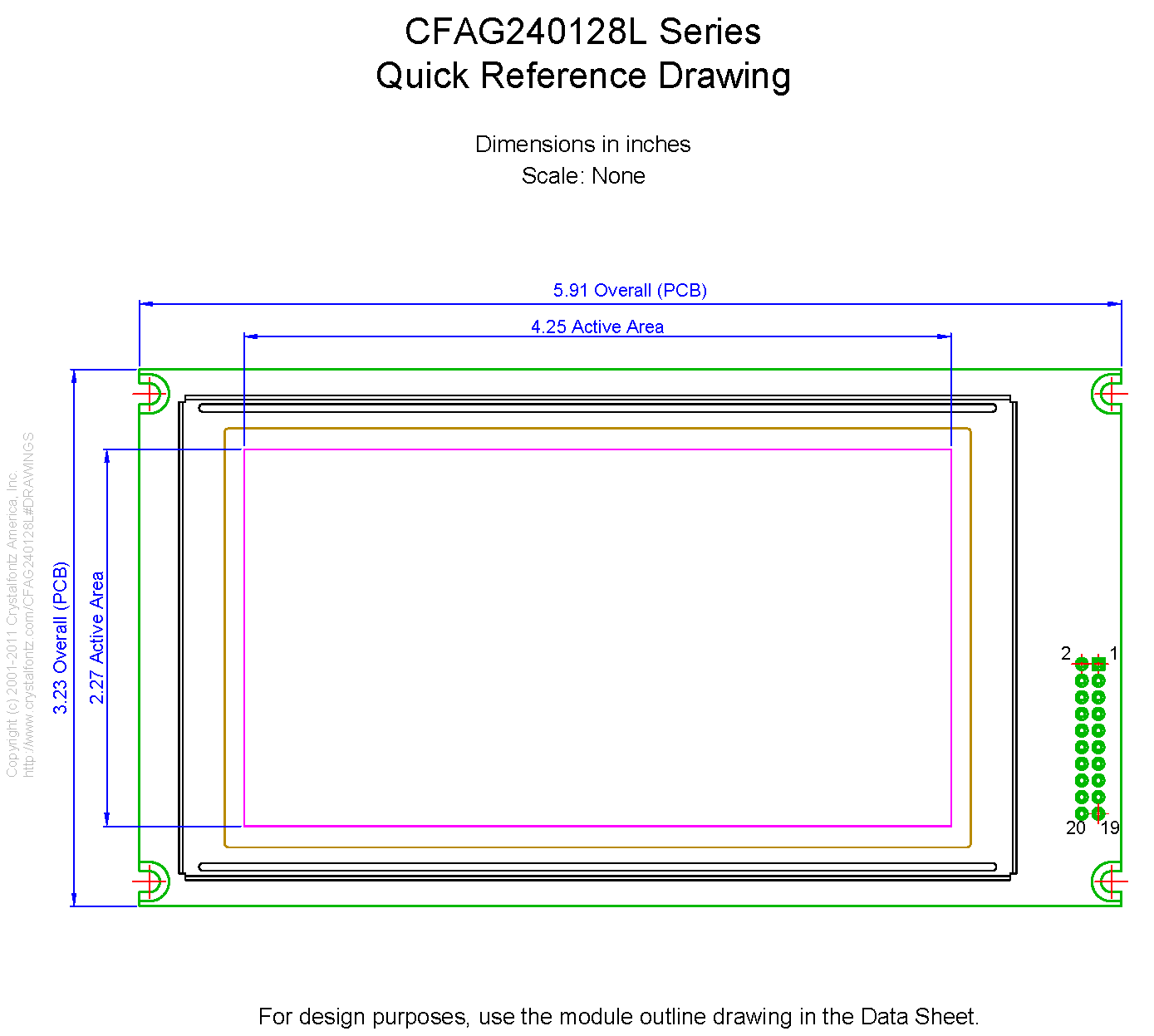

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 128

    Module Overall        width
        height
        depth

        millimeters
        150
        82
        14.3

        inches
        5.91
        3.23
        0.56

    PCB Outline        width
        height
        depth

        millimeters
        150
        82
        14.3

        inches
        5.91
        3.23
        0.56

        Diagonal Dimension
            4.82"

    Viewing Area        Width
        Height

        millimeters
        114
        64

        inches
        4.49
        2.52

    Active Area        Width
        Height

        millimeters
        107.98
        57.58

        inches
        4.25
        2.27

    Dot Size        Width
        Height

        millimeters
        0.43
        0.43

        inches
        0.017
        0.017

    Dot Pitch        Width
        Height

        millimeters
        0.45
        0.45

        inches
        0.018
        0.018

        Weight
            173g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG240128LYYHTZ vPreliminary 3.1.pdf
(Datasheet V Preliminary_3.1, Hardware 0.0)
Previous Versions of Datasheetspicture_as_pdfCFAG240128LYYHTZ vPreliminary 3.0.pdf
(Datasheet V Preliminary_3.0)
picture_as_pdfCFAG240128LYYHTZ vPrelim2.pdf
(Datasheet V Preliminary2)
picture_as_pdfCFAG240128LYYHTZ.pdf

 download Files and Downloads
folder_zip CAD Export - cfag240128L 2D CAD
picture_as_pdf 1 to 1 Template - CFAG240128L 1 to 1.pdf

Other components worth considering

						LCD Starter Kit with Potentiometer
Everything you need to connect $12.59 ea.

Module Overall	width	height	depth
millimeters	150	82	14.3
inches	5.91	3.23	0.56

PCB Outline	width	height	depth
millimeters	150	82	14.3
inches	5.91	3.23	0.56

Viewing Area	Width	Height
millimeters	114	64
inches	4.49	2.52

Active Area	Width	Height
millimeters	107.98	57.58
inches	4.25	2.27

Dot Size	Width	Height
millimeters	0.43	0.43
inches	0.017	0.017

Dot Pitch	Width	Height
millimeters	0.45	0.45
inches	0.018	0.018

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Note
Notices

Product Note:

This product is End-of-Life and not recommended for new designs. Existing stock will be sold until it is gone. While we do not offer any direct replacements, perhaps one of our many other CFAG displays will fit your needs. Feel free to contact our tech support team to get assistance in finding the right display.

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10593: CFAG240128L-YYH-TZ discontinued.

Product Affected:	CFAG240128L-YYH-TZ
Date Issued:	June 13, 2014
Summary:	CFAG240128L-YYH-TZ discontinued.
Description:	CFAG240128L-YYH-TZ is not longer being manufactured. Other display modules in this family are still available and are current production.
Reason:	Market trends have reduced demand for the Yellow-Green LCD in this format.
Impact:	Product is discontinued.
Recommendation:	Contact Cystalfontz Engineering Support if you are in need of a positive mode display module in the CFAG240128L family.
Availability:	Currently inventory will not be replenished and available until sold
Price Change:	Price reduced for existing inventory.
