240x128 Resistive Touch Screen from Crystalfontz

Product

Home » Products » Graphic LCD Displays » Interface » 8-bit Parallel

                This display is no longer available. Contact Support for replacement options.

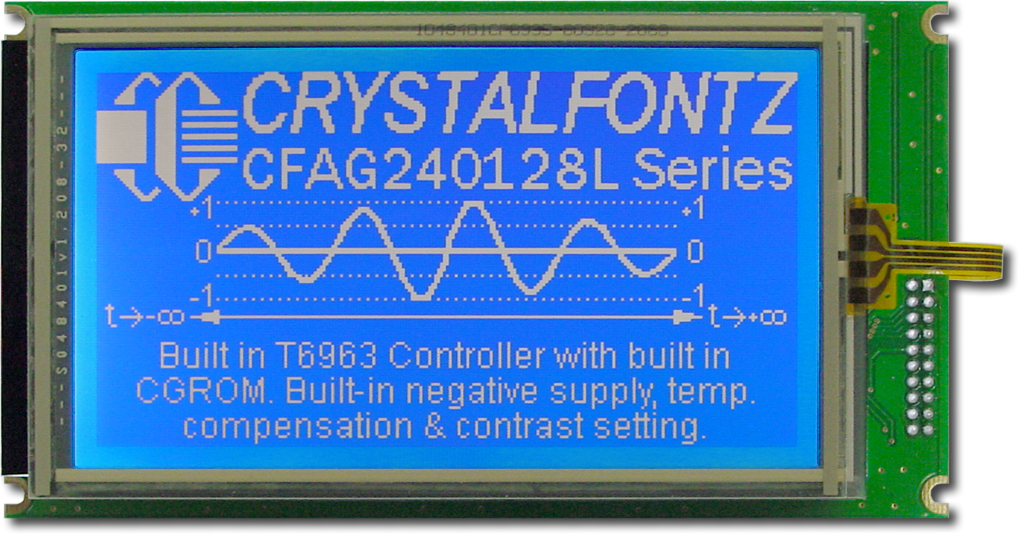

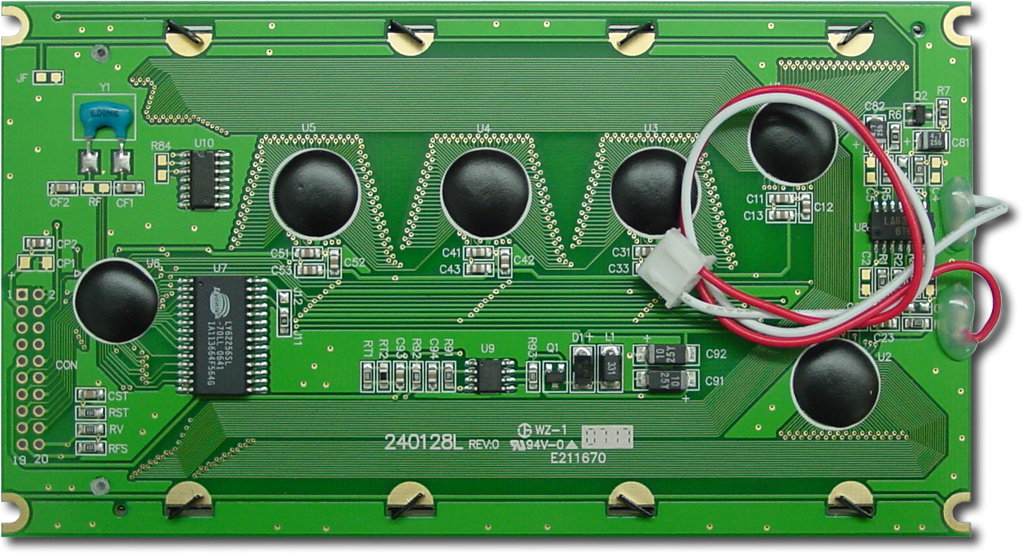

240x128 Resistive Touch ScreenPart Number: CFAG240128L-TMI-TZTS240x128 Graphic LCD. Negative Voltage Generator, Temperature Compensation and 4-wire resistive analog touch screen.
Resolution: 240x128 pixels
Optics: 6:00 viewing direction
Backlight: White Edge LED
Glass: STN Negative, Transmissive
Controller: Toshiba T6963C (RAiO Technology RA6963 Compatible) Controller
Operating Temp: -20°C to +70°C
Compliance: REACH & RoHS Compliant
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 128


    Module Overall        width
        height
        depth


        millimeters
        150
        82
        15.8


        inches
        5.91
        3.23
        0.62

*width / height does not include Foldable Tab


    PCB Outline        width
        height
        depth


        millimeters
        150
        82
        15.8


        inches
        5.91
        3.23
        0.62



        Diagonal Dimension
            4.82"


    Viewing Area        Width
        Height


        millimeters
        114
        64


        inches
        4.49
        2.52



    Active Area        Width
        Height


        millimeters
        107.98
        57.58


        inches
        4.25
        2.27



    Dot Size        Width
        Height


        millimeters
        0.43
        0.43


        inches
        0.017
        0.017



    Dot Pitch        Width
        Height


        millimeters
        0.45
        0.45


        inches
        0.018
        0.018



        Optional Connectors
            CS050Z24GA0


        Weight
            217g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Toshiba T6963C
T6963C

DOT MATRIX LCD CONTROLLER LSI
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG240128LTMITZTS Datasheet

Previous Versions of Datasheetspicture_as_pdfCFAG240128LTMITZTS vPreliminary 3.0.pdf
(Datasheet V Preliminary_3.0)
picture_as_pdfCFAG240128LTMITZTS vPrelim2.pdf
(Datasheet V Preliminary2)
picture_as_pdfCFAG240128LTMITZTS.pdf

 download Files and Downloads
folder_zip Software Source - Arduino Demo Code
folder_zip CAD Export - cfag240128L 2D CAD
picture_as_pdf 1 to 1 Template - CFAG240128L 1 to 1.pdf
















Module Overall	width	height	depth
millimeters	150	82	15.8
inches	5.91	3.23	0.62
*width / height does not include Foldable Tab

PCB Outline	width	height	depth
millimeters	150	82	15.8
inches	5.91	3.23	0.62

Viewing Area	Width	Height
millimeters	114	64
inches	4.49	2.52

Active Area	Width	Height
millimeters	107.98	57.58
inches	4.25	2.27

Dot Size	Width	Height
millimeters	0.43	0.43
inches	0.017	0.017

Dot Pitch	Width	Height
millimeters	0.45	0.45
inches	0.018	0.018

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11188: End-of-Life Notification

Products Affected:	CFAG240128L-STI-TZ, CFAG240128L-TMI-TZ, CFAG240128L-TMI-TZTS
Date Issued:	March 28, 2023
Summary:	End-of-Life Notification
Description:	The controller used on these displays is changing from the NT7086E to NT7086G. Contact support@crystalfontz.com for the latest information on replacement options.
Reason:	Controller chip going EOL.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

240x128 Resistive Touch Screen

Part Number: CFAG240128L-TMI-TZTS

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11188: End-of-Life Notification

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	STN/Blue
Polarizer	Transmissive
View Direction	6 o'clock

Backlight Color	White
Backlight Type	LED
Mode	Negative
Foreground Color	White
Background Color	Blue

Controller Documents	Toshiba T6963C T6963C DOT MATRIX LCD CONTROLLER LSI
Interface	8-bit Parallel
