This product has reached end of life and has been replaced by CFAG240128BTMITZ

Product

Home » Products

                This product is discontinued and has been replaced by CFAG240128B-TMI-TZ

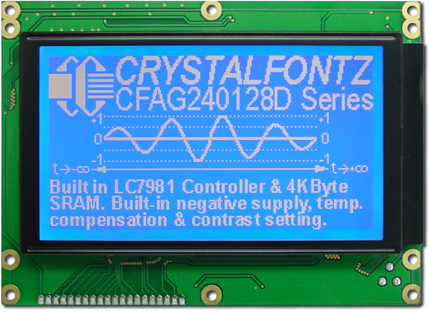

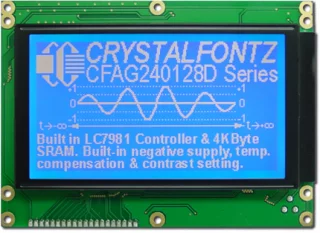

240x128  Parallel Graphic LCD (EOL)Part Number: CFAG240128D-TMI-TZ	240x128 graphic LCD module

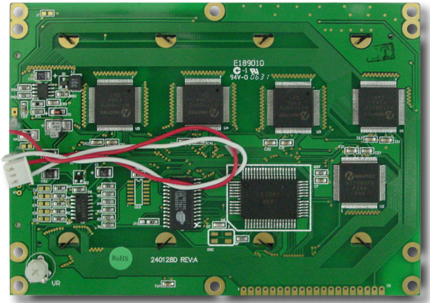

	Built-in Sanyo LC7981 or compatible controller with Neotec NT7086 segment drivers
	240x128 graphic mode 40 x 16 text mode
	Available in several variations of backlight and polarizer  (minimum order may be required)
	Wide temperature range: -20°C to 70°C (-4°F to 158°F)
	RoHS Compliant
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 128

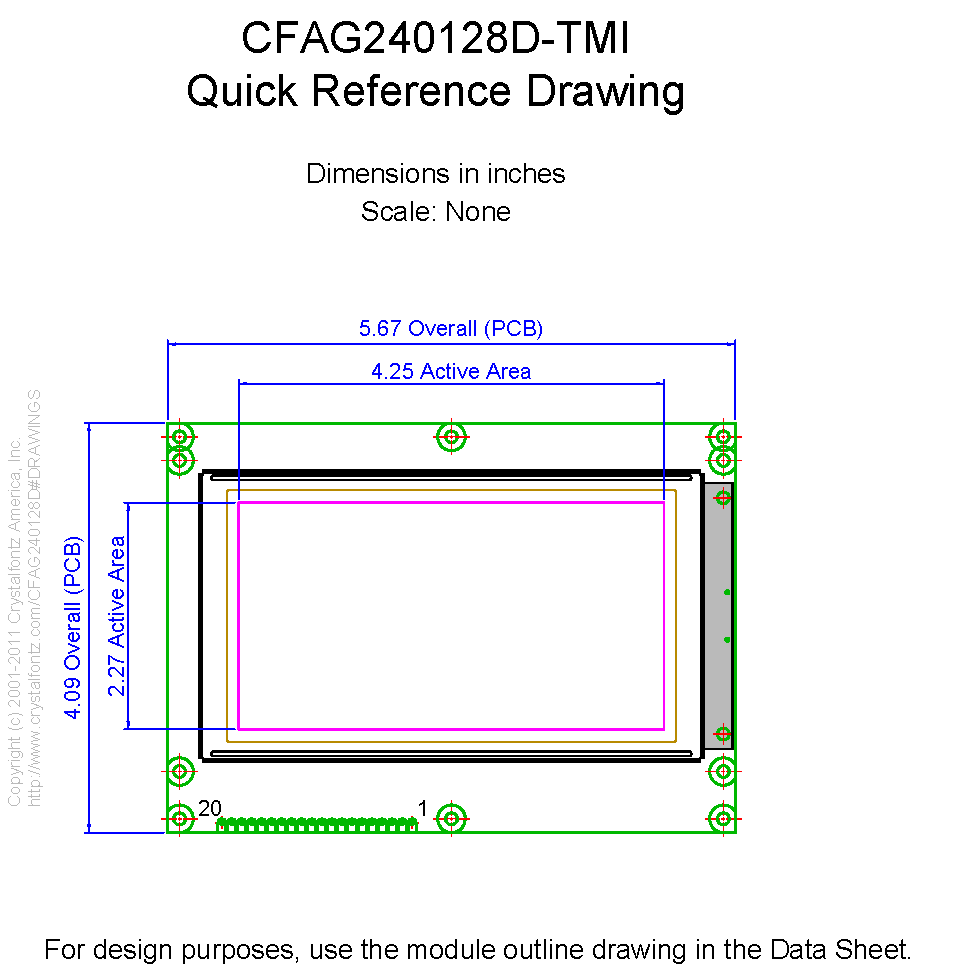

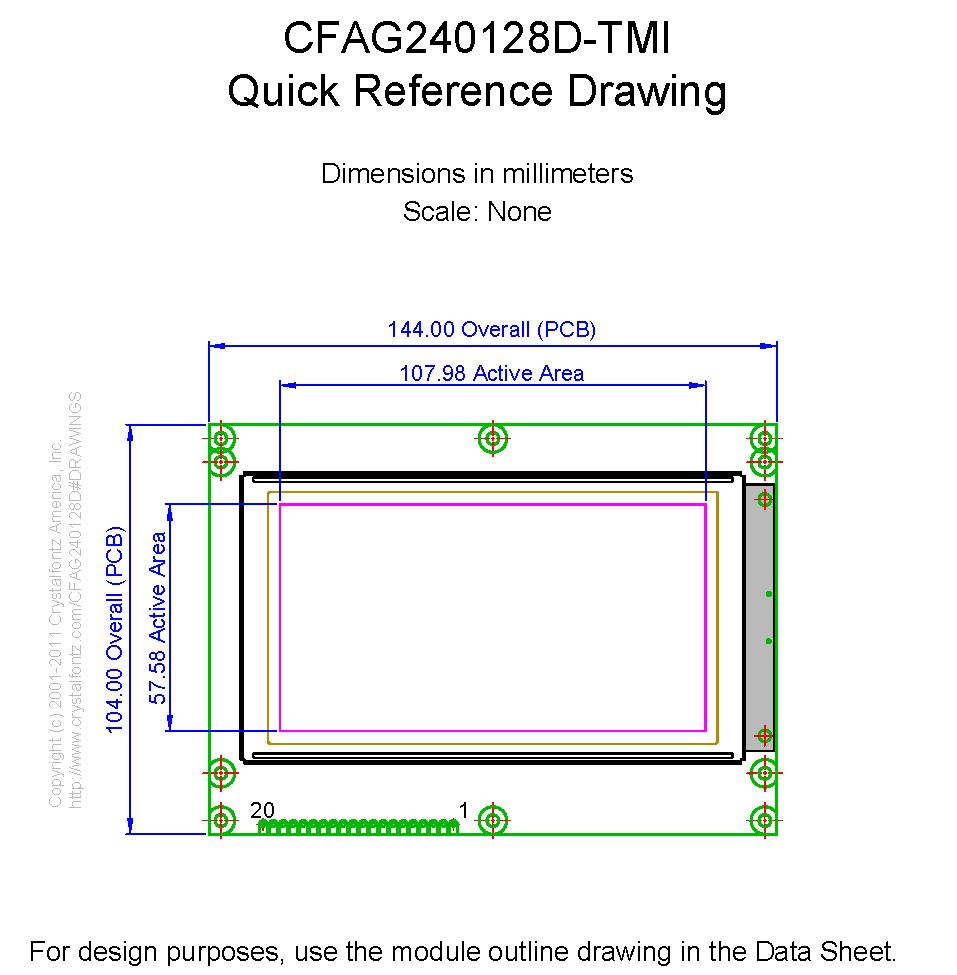

    Module Overall        width
        height
        depth

        millimeters
        144
        104
        14.3

        inches
        5.67
        4.09
        0.56

    PCB Outline        width
        height
        depth

        millimeters
        144
        104
        14.3

        inches
        5.67
        4.09
        0.56

    Viewing Area        Width
        Height

        millimeters
        114
        64

        inches
        4.49
        2.52

    Active Area        Width
        Height

        millimeters
        107.98
        57.58

        inches
        4.25
        2.27

    Dot Size        Width
        Height

        millimeters
        0.43
        0.43

        inches
        0.017
        0.017

    Dot Pitch        Width
        Height

        millimeters
        0.45
        0.45

        inches
        0.018
        0.018

        Weight
            203g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sanyo LC7981
LC7981 Controller for LT Dot Matrix Graphic Display
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG240128DTMITZ.pdf

 download Files and Downloads
folder_zip CAD Export - CFAG240128D-FMI-TMI-YYH 2D CAD
picture_as_pdf 1 to 1 Template - CFAG240128D-TMI 1 TO .PDF

Module Overall	width	height	depth
millimeters	144	104	14.3
inches	5.67	4.09	0.56

PCB Outline	width	height	depth
millimeters	144	104	14.3
inches	5.67	4.09	0.56

Viewing Area	Width	Height
millimeters	114	64
inches	4.49	2.52

Active Area	Width	Height
millimeters	107.98	57.58
inches	4.25	2.27

Dot Size	Width	Height
millimeters	0.43	0.43
inches	0.017	0.017

Dot Pitch	Width	Height
millimeters	0.45	0.45
inches	0.018	0.018

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Note
Notices

Product Note:

This product has gone end of life due to the discontinuance of the Sanyo LC7981 LCD controller. The recommended replacement CFAG240128B-TMI-TZ is a physical replacement, but not a drop-in as it uses a different controller.

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10458: SANYO Semiconductor has announced a product discontinuance of the LC7981 LCD Controller. Please see the attachment below for the official release from SANYO Semiconductor.

Products Affected:	CFAG128128B-TFH-VZ, CFAG128128B-TMI-VZ, CFAG128128B-YYH-VZ, CFAG160160B-YYH-VU, CFAG160160B-TFH-VZ, CFAG160160B-TMI-VZ, CFAG16080A-TMI-TZ, CFAG16080A-YYH-TZ, CFAG240128D-FMI-T, CFAG240128D-TMI-TZ, CFAG240128D-YYH-TZ, CFAG128128B-TTI-VZ, CFAG192128A-TMI-TZ
Date Issued:	March 29, 2013
Summary:	SANYO Semiconductor has announced a product discontinuance of the LC7981 LCD Controller. Please see the attachment below for the official release from SANYO Semiconductor.
Description:	SANYO Semiconductor has announced product discontinuance of the LC7981 LCD Controller. At this time SANYO has no plans to provide a replacement for the LC7981 which is used in several products as an LCD controller. Our partner factory is making a lifetime buy of the LC7981.
Reason:	SANYO Semiconductor has announced the end of life of the LC7981 LCD Controller.
Impact:	Below are the product families that are affected by this end of life notice. CFAG128128B CFAG160160B CFAG16080A CFAG240128D CFAG192128A
Recommendation:	We are requesting that you provide us with a forecast of what your company would need to make it through the end of 2014. This would be considered a life time buy and would require 100% payment up front. We would need to have all final Purchase Orders submitted to us by no later than April 15th 2013 so we can make proper allocation and purchasing arrangements.
Availability:	At this time we have no suitable replacements for the following product families: CFAG192128A CFAG160160B The following product families have parts available with the same active area, however; these parts would require changes in your product: EOL Product / Potential Replacement CFAG128128B / CFAG128128C CFAG16080A / CFAG16080C1 (additional data forthcoming) CFAG240128D / CFAG240128B/E/T3 Updated: 2013-04-15
Response:	We are requesting that you provide us with a forecast of what your company would need to make it through the end of 2014. This would be considered a life time buy and would require 100% payment up front. We would need to have all final Purchase Orders submitted to us by no later than April 15th 2013 so we can make proper allocation and purchasing arrangements.
Attachment:	ProductDiscontinuanceSTNDriver130116.pdf (11KB)

240x128 Parallel Graphic LCD (EOL)

Part Number: CFAG240128D-TMI-TZ

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

Product Note:

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10458: SANYO Semiconductor has announced a product discontinuance of the LC7981 LCD Controller. Please see the attachment below for the official release from SANYO Semiconductor.

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	STN/Blue
Polarizer	Transmissive
View Direction	6 o'clock

Backlight Color	White
Backlight Type	LED
Mode	Negative
Foreground Color	White
Background Color	Blue

Controller Documents	Sanyo LC7981 LC7981 Controller for LT Dot Matrix Graphic Display
Interface	8-bit Parallel
