160x32 Sunlight Readable Graphic LCD from Crystalfontz

Product

Home » Products » Sunlight Readable Displays » Graphic

                        Limited stock on-hand. Once the remaining stock is depleted this product will be special order only.

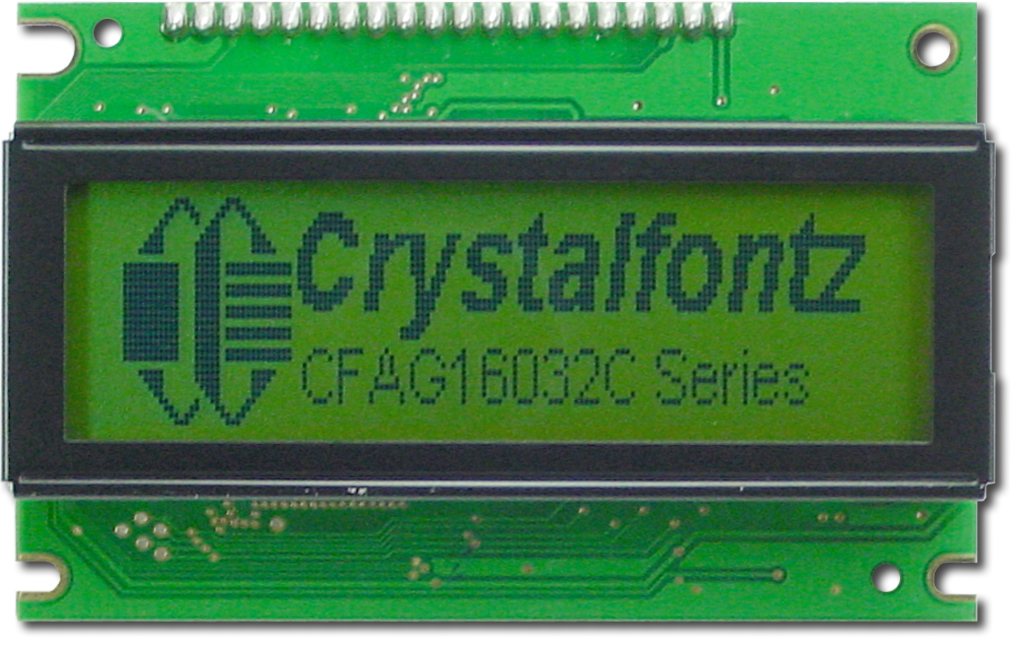

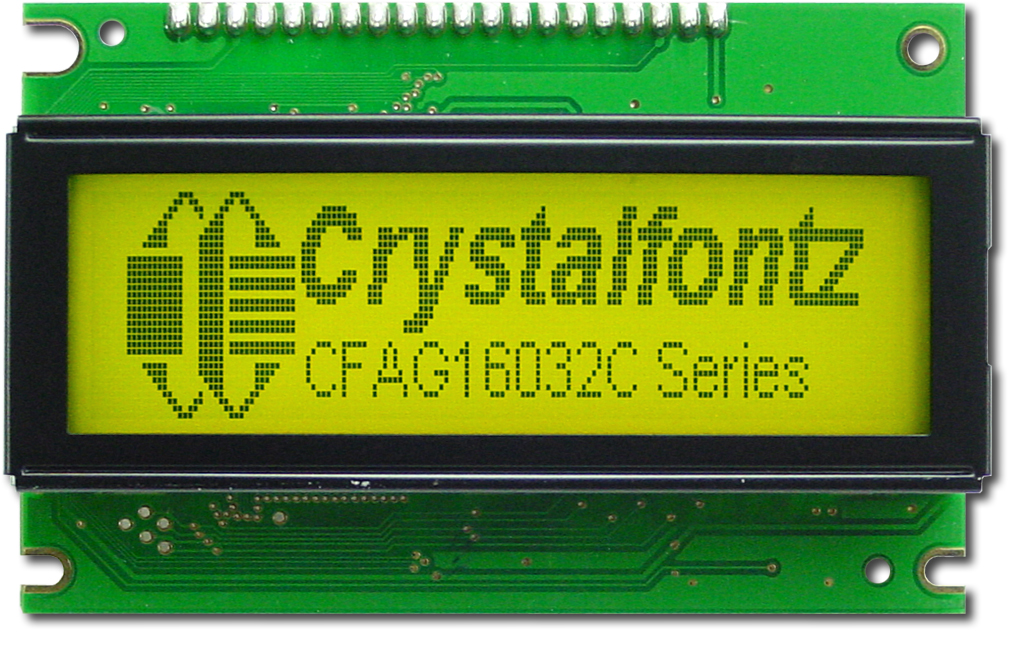

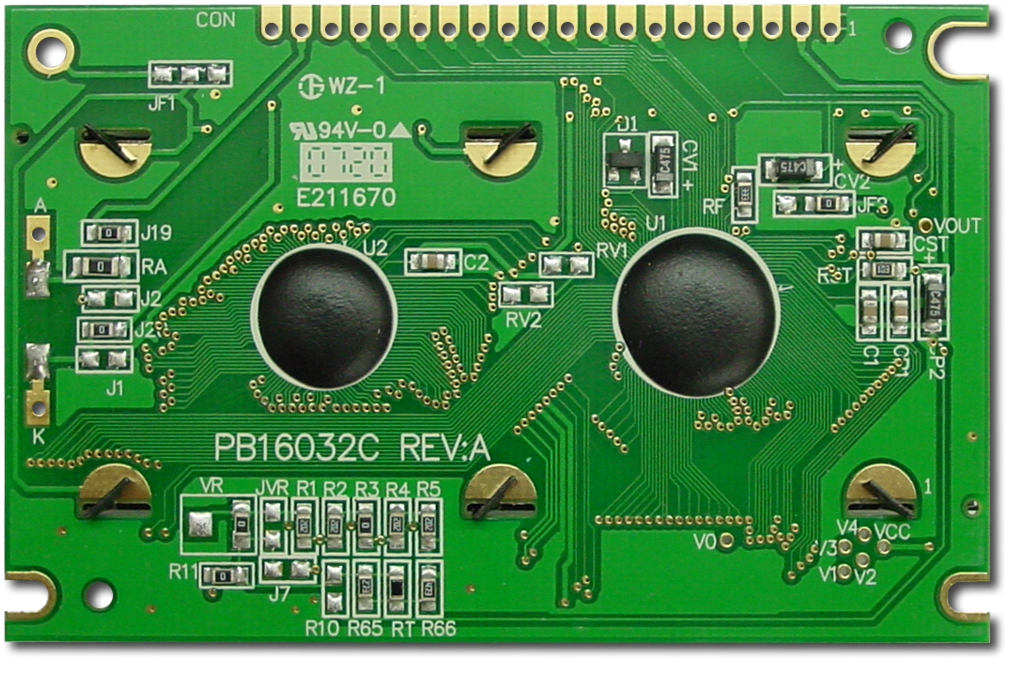

160x32 Sunlight Readable Graphic LCDPart Number: CFAG16032C-YYH-TTSunlight readable 160x32 graphic LCD with positive voltage generator and temperature compensation.
Resolution: 160x32 pixels
Optics: 6:00 viewing direction
Backlight: Yellow-green LED
Glass: STN Positive, Transflective
Controller: Sitronix ST7920 (Hitachi HD44780 Compatible) Controller
Character Generator: Chinese and English
Operating Temp:  -20°C to +70°C
Compliance: REACH & RoHS Compliant

Order Soon! We only have 7 left! square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            160 x 32

    Module Overall        width
        height
        depth

        millimeters
        85.2
        55
        14.6

        inches
        3.35
        2.17
        0.58

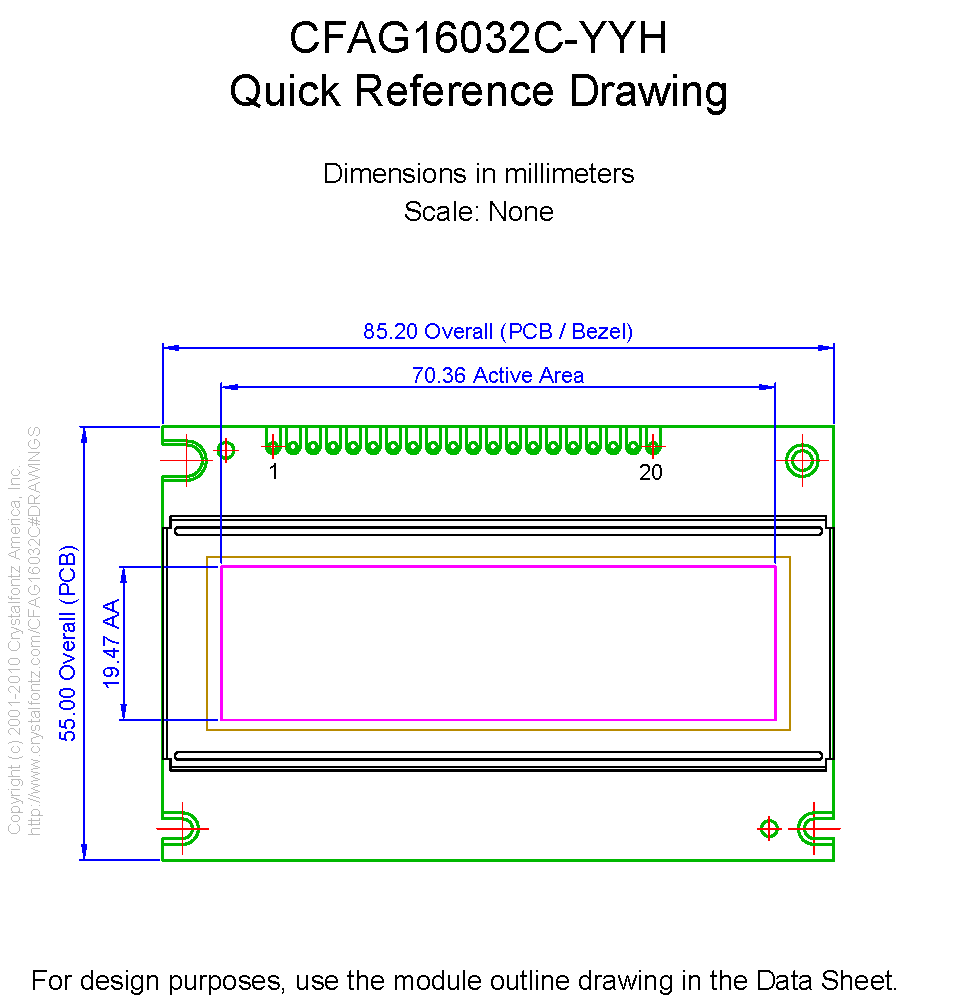

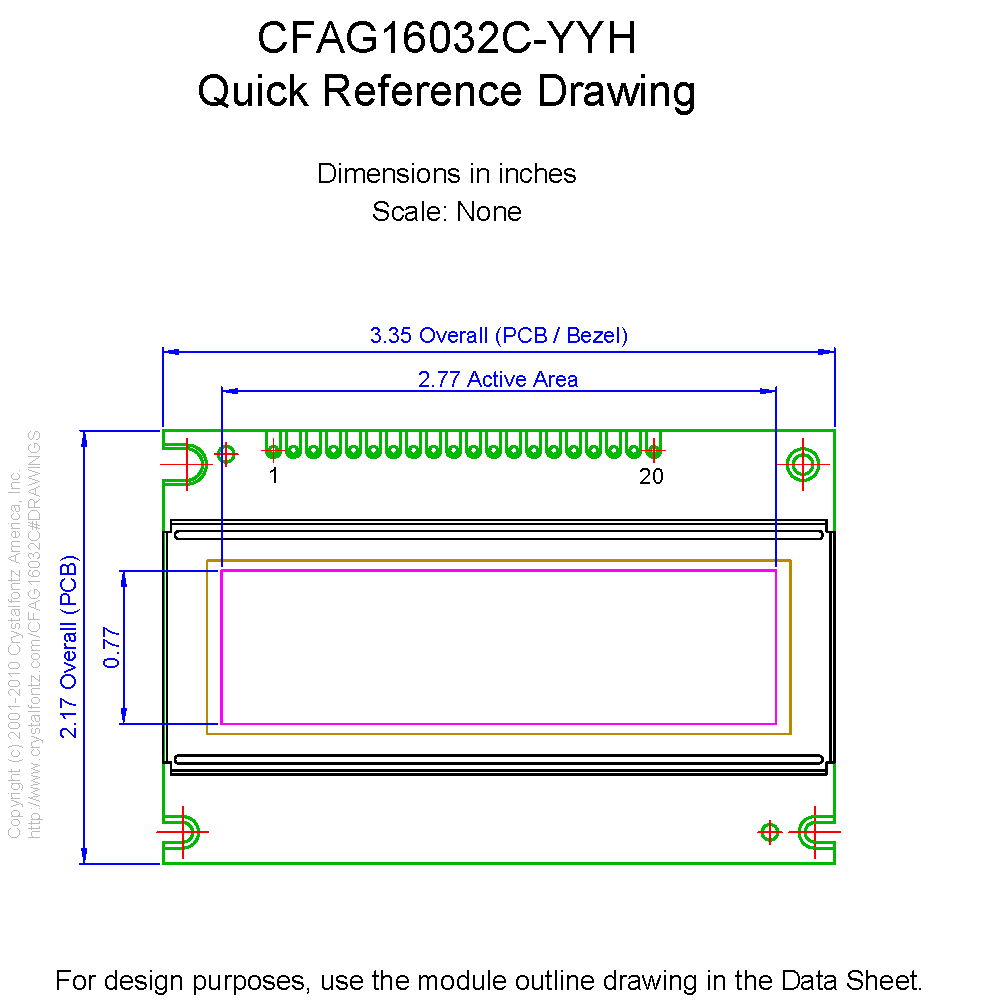

    PCB Outline        width
        height
        depth

        millimeters
        85.2
        55
        14.6

        inches
        3.35
        2.17
        0.58

        Diagonal Dimension
            2.87"

    Viewing Area        Width
        Height

        millimeters
        74
        22

        inches
        2.91
        0.87

    Active Area        Width
        Height

        millimeters
        70.36
        19.47

        inches
        2.77
        0.77

    Dot Size        Width
        Height

        millimeters
        0.4
        0.56

        inches
        0.016
        0.022

    Dot Pitch        Width
        Height

        millimeters
        0.44
        0.61

        inches
        0.017
        0.024

        Weight
            53g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7920
ST7920

Chinese Fonts built in LCD controller/driver
Interface
            4-bit Parallel, 8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAG16032CYYHTT Datasheet

download Files and Downloads
folder_zip CAD Export - CFAG16032C 2D CAD
picture_as_pdf 1 to 1 Template - CFAG16032C-1-TO-1.PDF
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH

Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:

Price:

            Quantity
            Unit Price

            1
            $15.00

7 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering

						LCD Starter Kit with Potentiometer
Everything you need to connect $11.06 ea.
