                This product has reached end of life. The recommended migration path for the CFAG160160B-YYH-VU is the dark-on-light gray CFAG160160D5-TFH-VGB. Engineers should review the datasheet and evaluate for any project impact. Please contact Technical Support if you have any questions about adapting a new display to your product or would like to special order this display in yellow or blue.

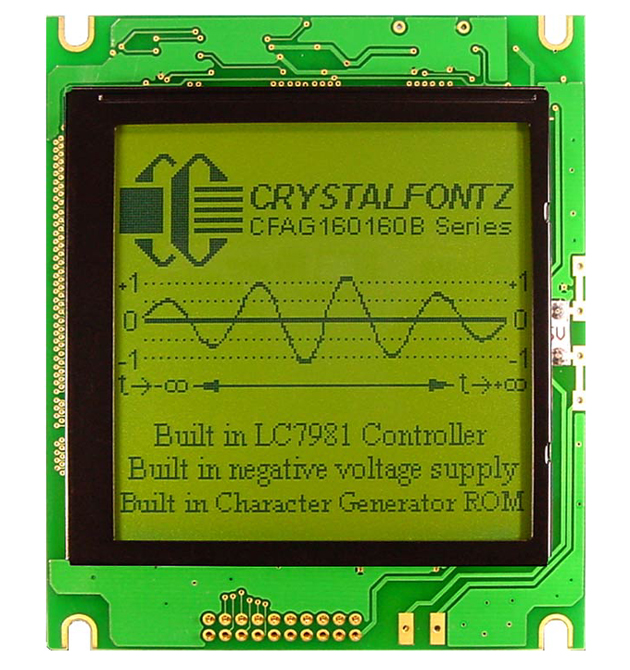

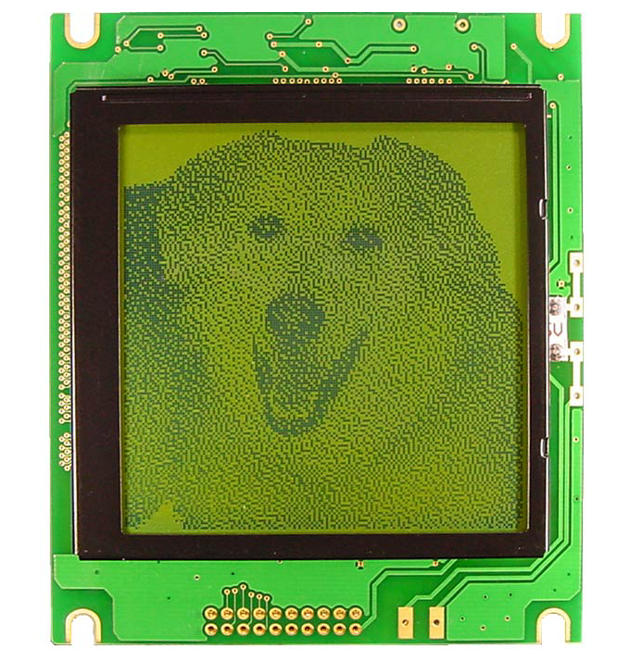

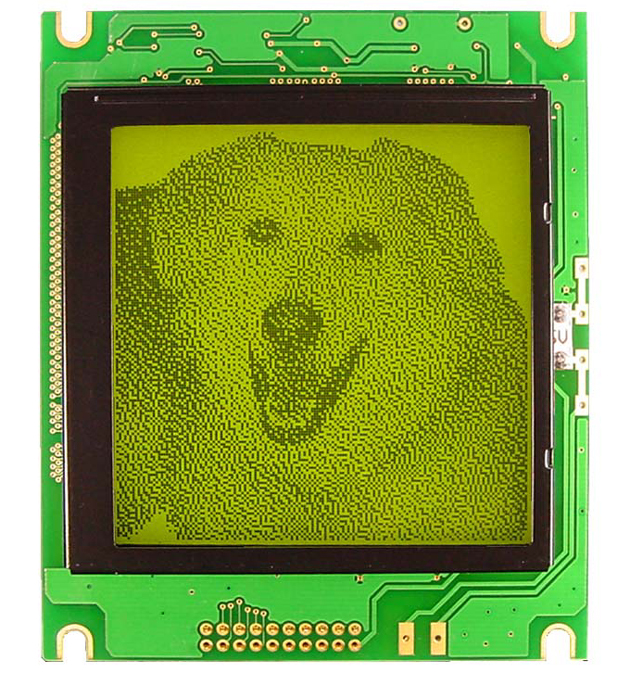

[EOL] Green 160x160  Parallel Graphic LCDPart Number: CFAG160160B-YYH-VUThe CFAG160160B-YYH-VU is a 160x160 graphic LCD module.

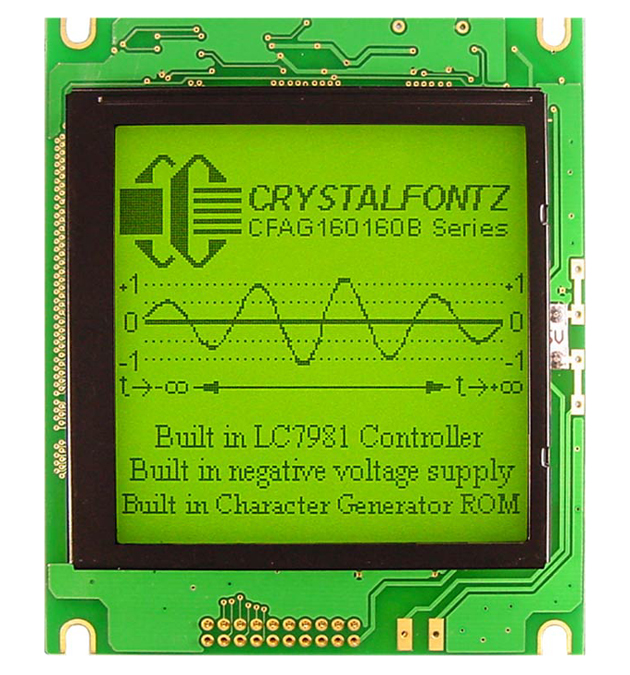

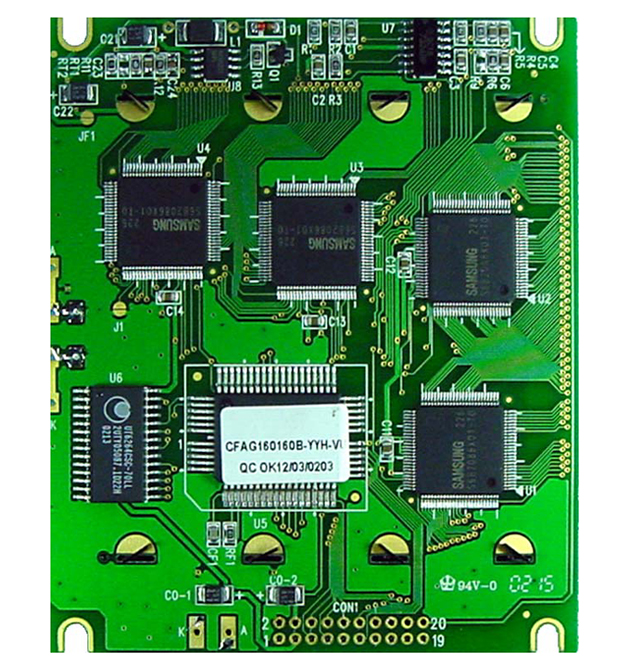

Built-in Neotec NT7086 controller (Sanyo LC7981 compatible)

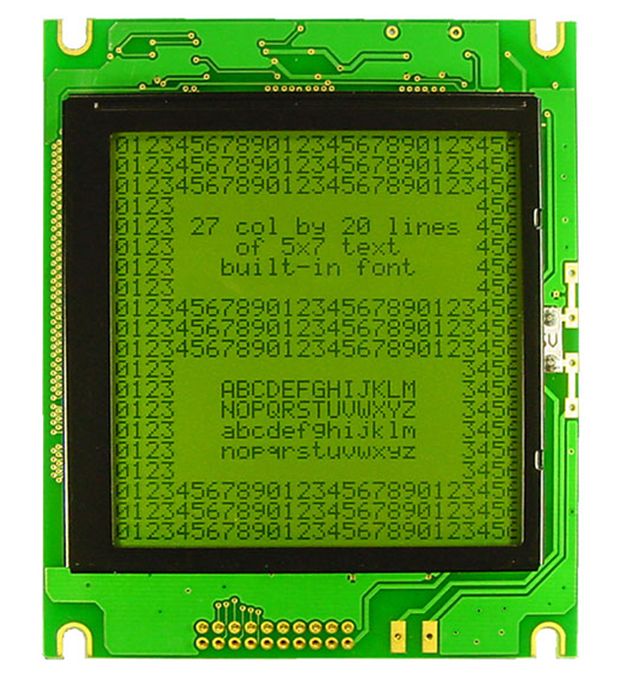

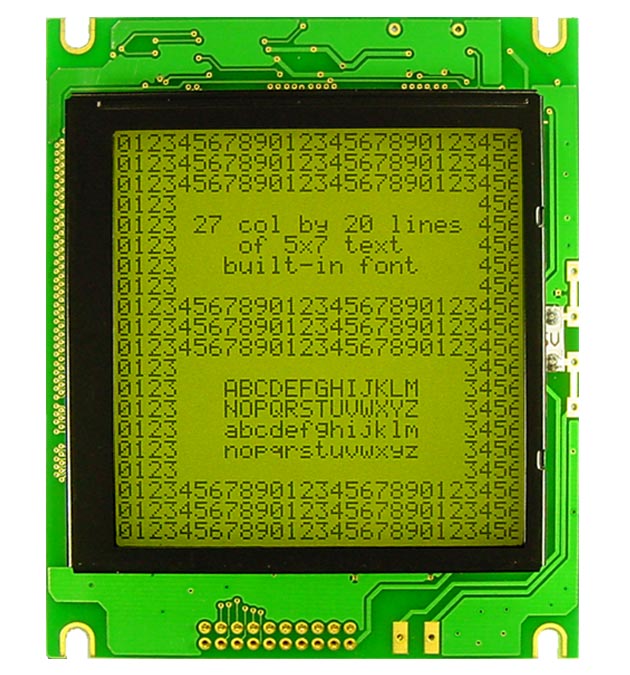

160x160 graphic mode --or-- 27 x 20 text mode using built-in 5x7 Character Generator ROM.
Available in several variations of backlight and polarizer  (minimum order may be required)
Wide temperature range: -20°C to 70°C.
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            160 x 160

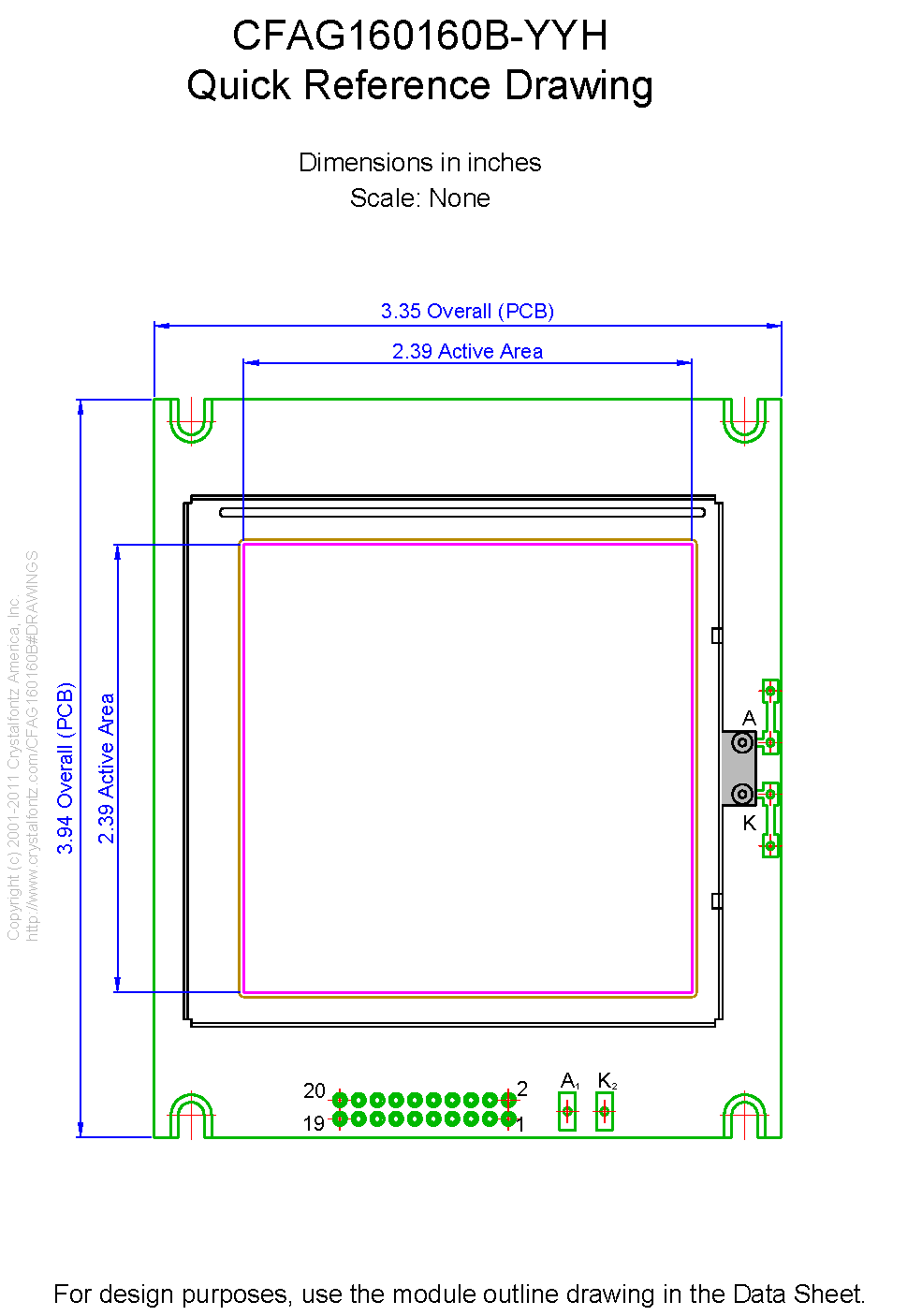

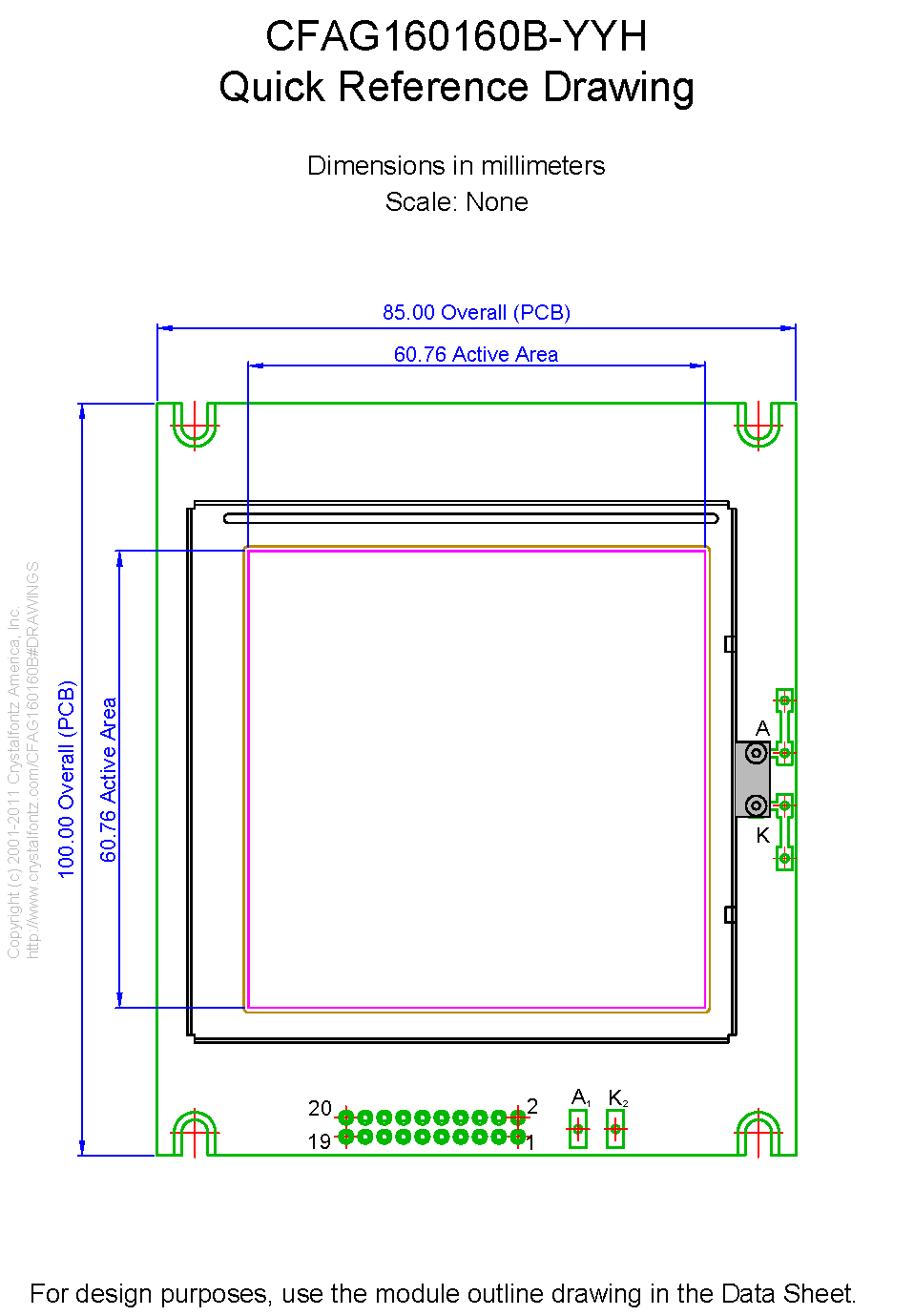

    Module Overall        width
        height
        depth

        millimeters
        85
        100
        14.5

        inches
        3.35
        3.94
        0.57

    PCB Outline        width
        height
        depth

        millimeters
        85
        100
        14.5

        inches
        3.35
        3.94
        0.57

        Diagonal Dimension
            3.38"

    Viewing Area        Width
        Height

        millimeters
        62
        62

        inches
        2.44
        2.44

    Active Area        Width
        Height

        millimeters
        60.76
        60.76

        inches
        2.39
        2.39

    Dot Size        Width
        Height

        millimeters
        0.34
        0.34

        inches
        0.013
        0.013

    Dot Pitch        Width
        Height

        millimeters
        0.38
        0.38

        inches
        0.015
        0.015

        Weight
            89g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Neotec NT7086
NT7086PQ

LCD Driver
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG160160BYYHVU.pdf

 download Files and Downloads
folder_zip Software Source - Demonstration Code
folder_zip CAD Export - CFAG160160B-YYH 2D CAD.ZIP
picture_as_pdf 1 to 1 Template - CFAG160160B-YYH 1 TO 1 .PDF

Module Overall	width	height	depth
millimeters	85	100	14.5
inches	3.35	3.94	0.57

PCB Outline	width	height	depth
millimeters	85	100	14.5
inches	3.35	3.94	0.57

Viewing Area	Width	Height
millimeters	62	62
inches	2.44	2.44

Active Area	Width	Height
millimeters	60.76	60.76
inches	2.39	2.39

Dot Size	Width	Height
millimeters	0.34	0.34
inches	0.013	0.013

Dot Pitch	Width	Height
millimeters	0.38	0.38
inches	0.015	0.015

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10458: SANYO Semiconductor has announced a product discontinuance of the LC7981 LCD Controller. Please see the attachment below for the official release from SANYO Semiconductor.

Products Affected:	CFAG128128B-TFH-VZ, CFAG128128B-TMI-VZ, CFAG128128B-YYH-VZ, CFAG160160B-YYH-VU, CFAG160160B-TFH-VZ, CFAG160160B-TMI-VZ, CFAG16080A-TMI-TZ, CFAG16080A-YYH-TZ, CFAG240128D-FMI-T, CFAG240128D-TMI-TZ, CFAG240128D-YYH-TZ, CFAG128128B-TTI-VZ, CFAG192128A-TMI-TZ
Date Issued:	March 29, 2013
Summary:	SANYO Semiconductor has announced a product discontinuance of the LC7981 LCD Controller. Please see the attachment below for the official release from SANYO Semiconductor.
Description:	SANYO Semiconductor has announced product discontinuance of the LC7981 LCD Controller. At this time SANYO has no plans to provide a replacement for the LC7981 which is used in several products as an LCD controller. Our partner factory is making a lifetime buy of the LC7981.
Reason:	SANYO Semiconductor has announced the end of life of the LC7981 LCD Controller.
Impact:	Below are the product families that are affected by this end of life notice. CFAG128128B CFAG160160B CFAG16080A CFAG240128D CFAG192128A
Recommendation:	We are requesting that you provide us with a forecast of what your company would need to make it through the end of 2014. This would be considered a life time buy and would require 100% payment up front. We would need to have all final Purchase Orders submitted to us by no later than April 15th 2013 so we can make proper allocation and purchasing arrangements.
Availability:	At this time we have no suitable replacements for the following product families: CFAG192128A CFAG160160B The following product families have parts available with the same active area, however; these parts would require changes in your product: EOL Product / Potential Replacement CFAG128128B / CFAG128128C CFAG16080A / CFAG16080C1 (additional data forthcoming) CFAG240128D / CFAG240128B/E/T3 Updated: 2013-04-15
Response:	We are requesting that you provide us with a forecast of what your company would need to make it through the end of 2014. This would be considered a life time buy and would require 100% payment up front. We would need to have all final Purchase Orders submitted to us by no later than April 15th 2013 so we can make proper allocation and purchasing arrangements.
Attachment:	ProductDiscontinuanceSTNDriver130116.pdf (11KB)
