                This product has reached end of life  and has been replaced by White on Dark Blue 160x128 Graphic LCD.

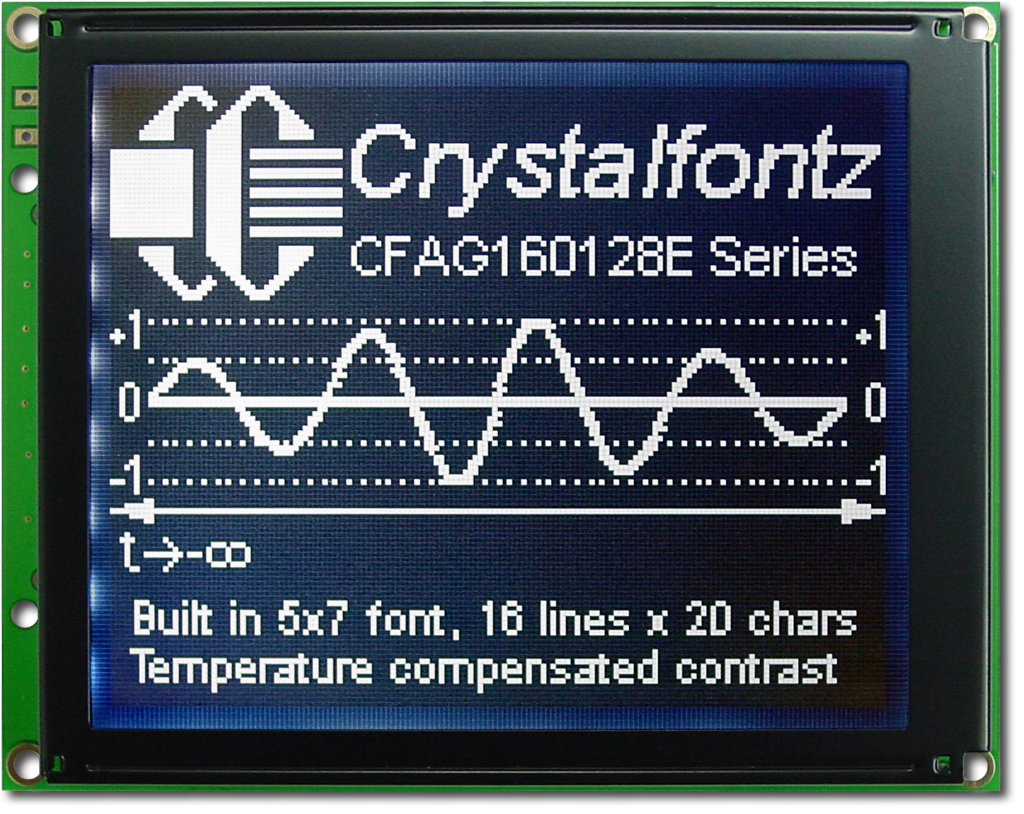

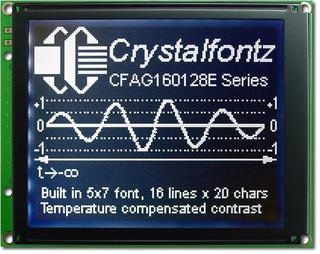

[EOL] 160x128 Parallel Graphic LCDPart Number: CFAG160128E-STI-TZBlack and white 160x128 graphic LCD with temperature compensation and negative voltage generator
Resolution: 160x128 pixels
Optics: 6:00 viewing direction
Backlight: White Edge LED
Glass: FSTN negative, Transmissive

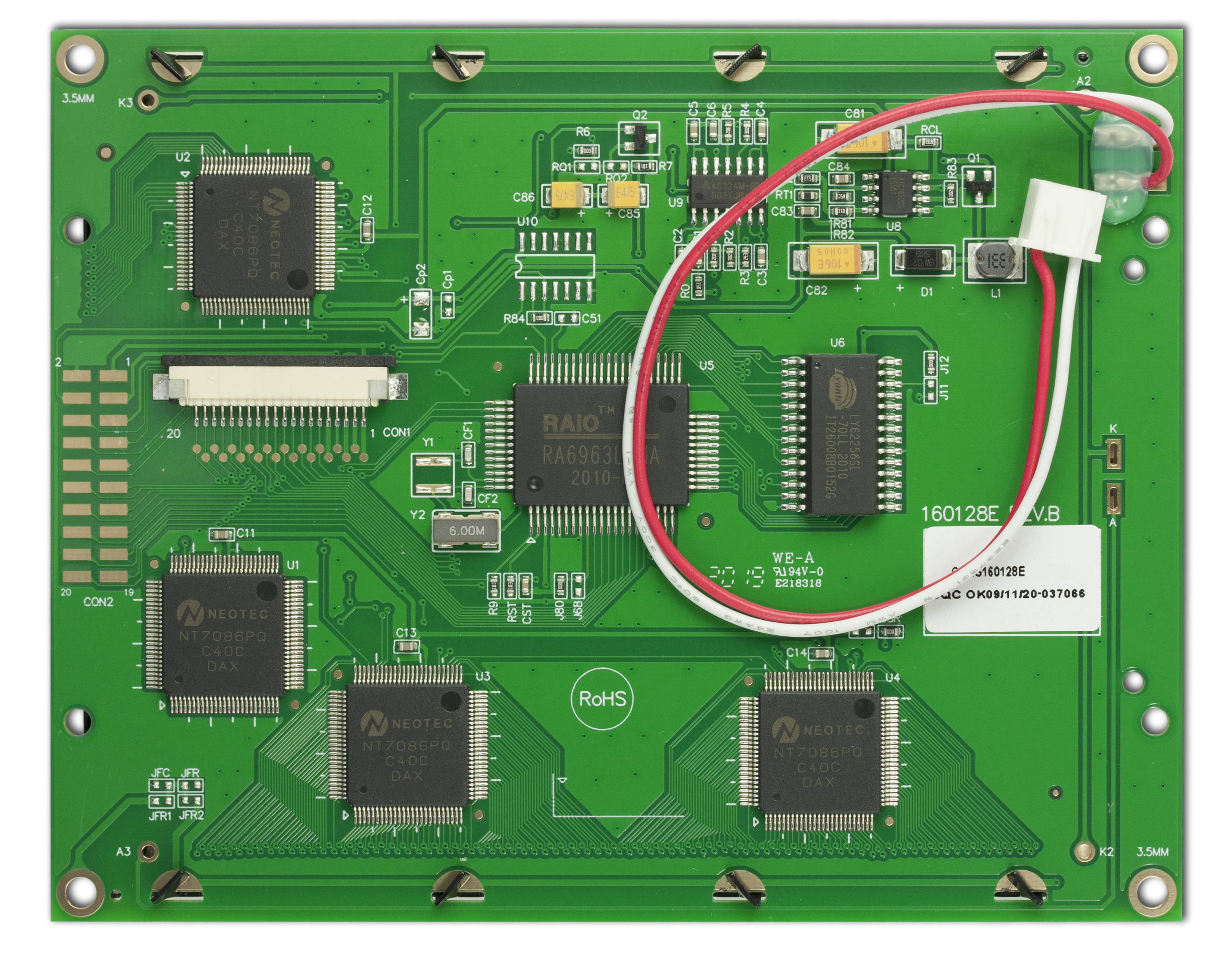

Controller: RAiO Technology RA6963 (Toshiba T6963C Compatible)
Character Generator: 128-word ROM for ASCII or numeric display in text mode
Operating Temp:  -20°C to +70°C
Compliance: REACH & RoHS Compliant

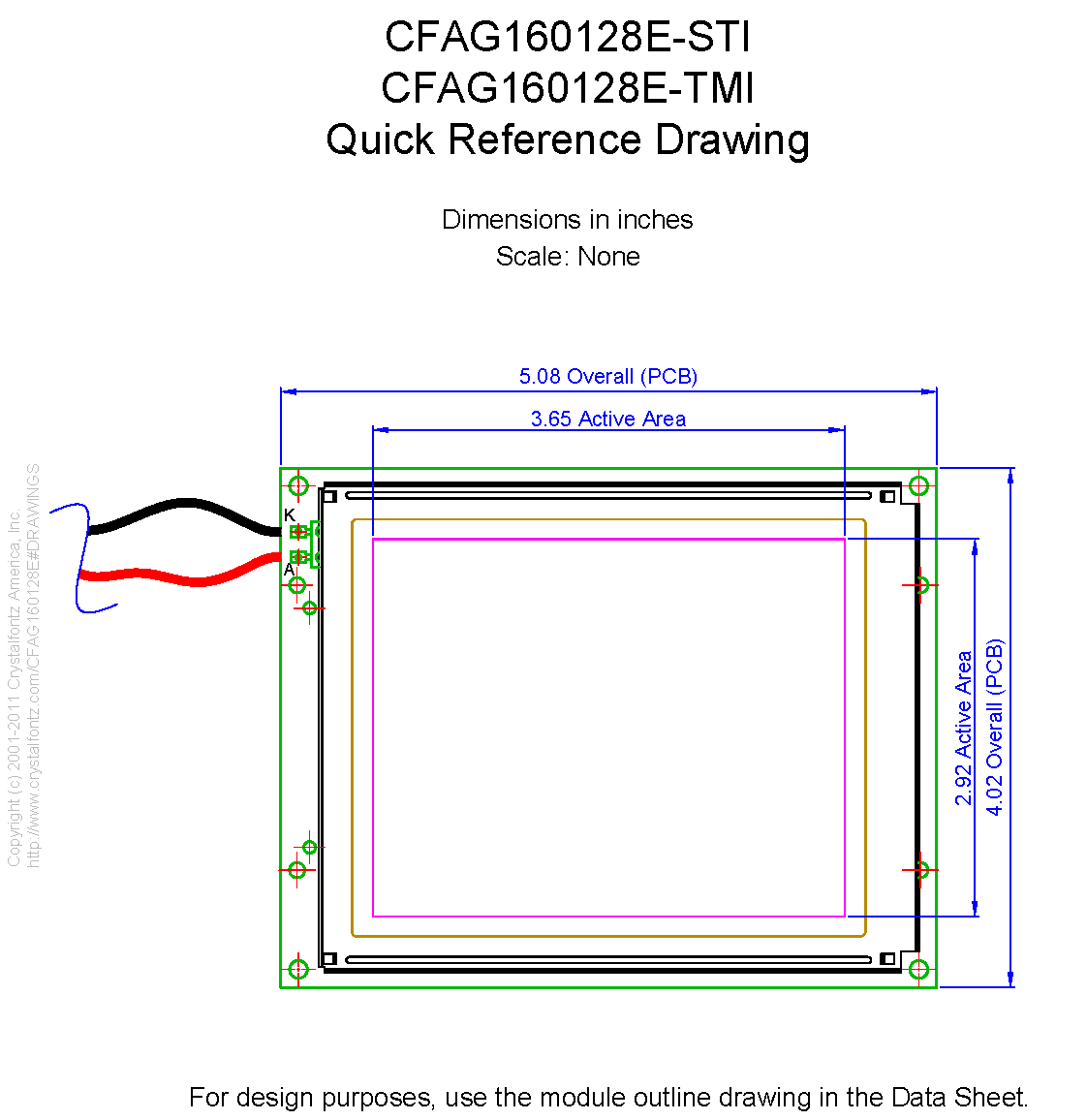

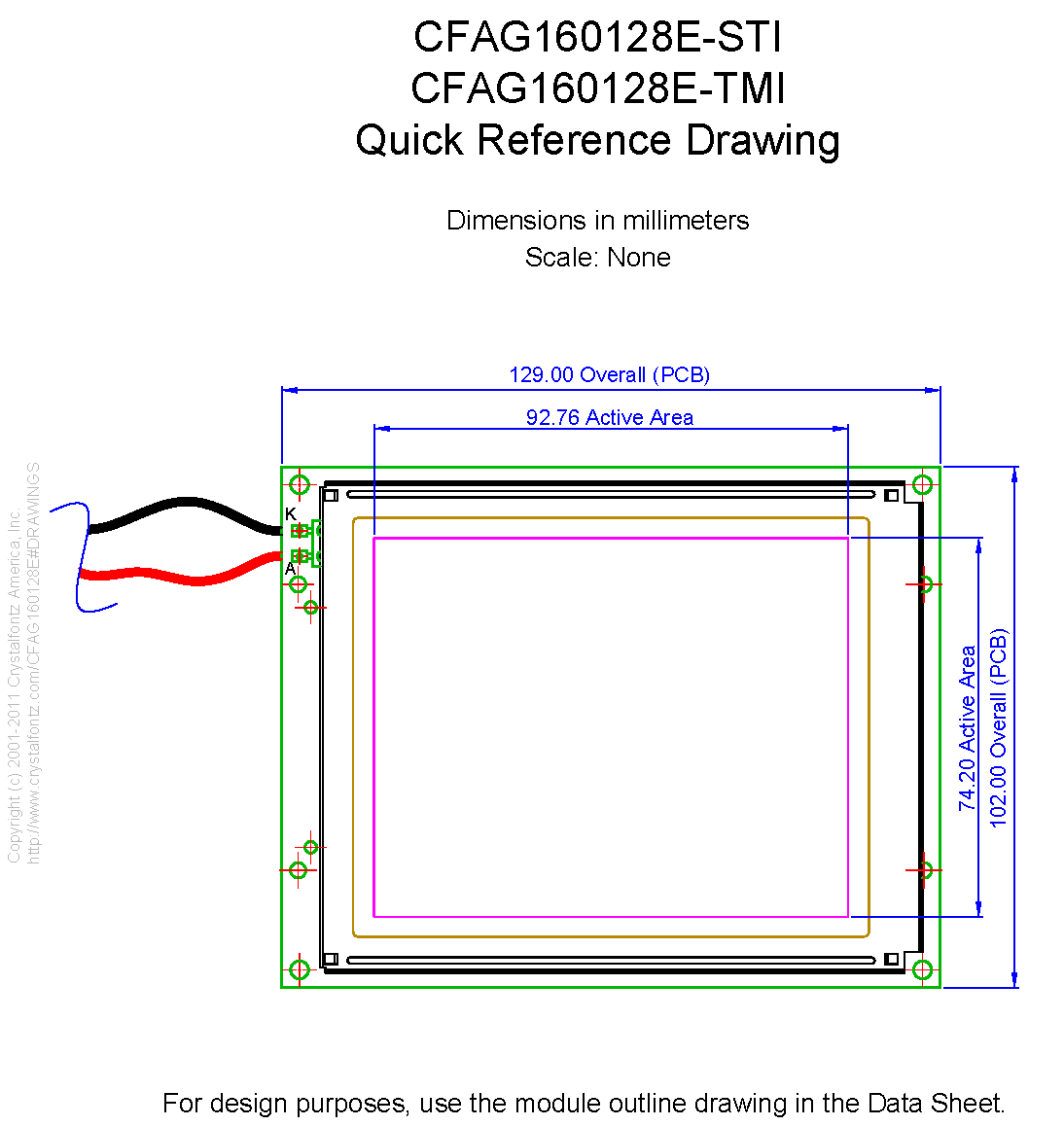

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            160 x 128

    Module Overall        width
        height
        depth

        millimeters
        129
        102
        16.5

        inches
        5.08
        4.02
        0.65

    PCB Outline        width
        height
        depth

        millimeters
        129
        102
        16.5

        inches
        5.08
        4.02
        0.65

        Diagonal Dimension
            4.84"

    Viewing Area        Width
        Height

        millimeters
        101
        82

        inches
        3.98
        3.23

    Active Area        Width
        Height

        millimeters
        95.76
        76.76

        inches
        3.77
        3.02

    Dot Size        Width
        Height

        millimeters
        0.56
        0.56

        inches
        0.022
        0.022

    Dot Pitch        Width
        Height

        millimeters
        0.6
        0.6

        inches
        0.024
        0.024

        Weight
            195g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Black
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Raio Technology RA6963
RA6963 Dot Matrix LCD Controller Specification
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG160128E-STI-TZ Datasheet

 download Files and Downloads
folder_zip Software Source - Example code - ATMEGA2561 8 bit parallel interface
folder_zip CAD Export - CFAG160128E-STI-TMI 2D CAD
picture_as_pdf 1 to 1 Template - CFAG160128E-STI-TMI 1 to 1.pdf

Module Overall	width	height	depth
millimeters	129	102	16.5
inches	5.08	4.02	0.65

PCB Outline	width	height	depth
millimeters	129	102	16.5
inches	5.08	4.02	0.65

Viewing Area	Width	Height
millimeters	101	82
inches	3.98	3.23

Active Area	Width	Height
millimeters	95.76	76.76
inches	3.77	3.02

Dot Size	Width	Height
millimeters	0.56	0.56
inches	0.022	0.022

Dot Pitch	Width	Height
millimeters	0.6	0.6
inches	0.024	0.024

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11074: End-of-life notification

Product Affected:	CFAG160128E-STI-TZ
Date Issued:	February 3, 2021
Summary:	End-of-life notification
Description:	This part is going EOL and will be replaced by a new part number due to a glass change that affects the contrast. Please refer to the CFAG160128E-STI-TZ product page on our website for the latest updates on replacement parts.
Reason:	Switching glass providers.
Availability:	The replacement product will be available shortly. Contact sales@crystalfontz.com for more information and for samples.
