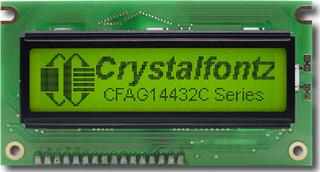

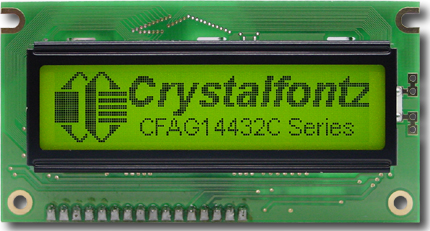

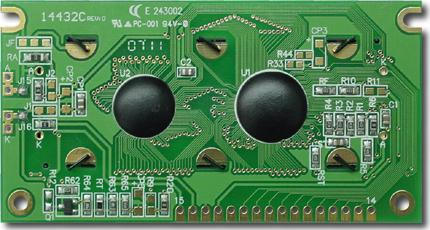

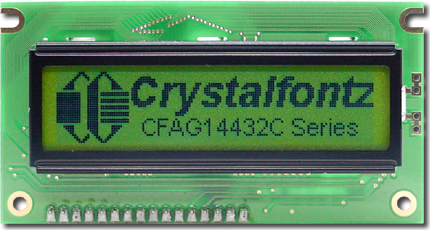

Green Sunlight Readable 144x32 Graphic LCDPart Number: CFAG14432C-YYH-TTSunlight readable 144x32 Graphic LCD with negative voltage generator and temperature compensation
Resolution: 144x32 pixels
Optics: 6:00 viewing direction
Backlight: Yellow-green LED
Glass: STN Positive, Transflective
Controller: Sitronix ST7920 (Hitachi HD44780 Compatible)
Character Generator: Chinese and English
Operating Temp:  -20°C to +70°C
Compliance: RoHS Compliant

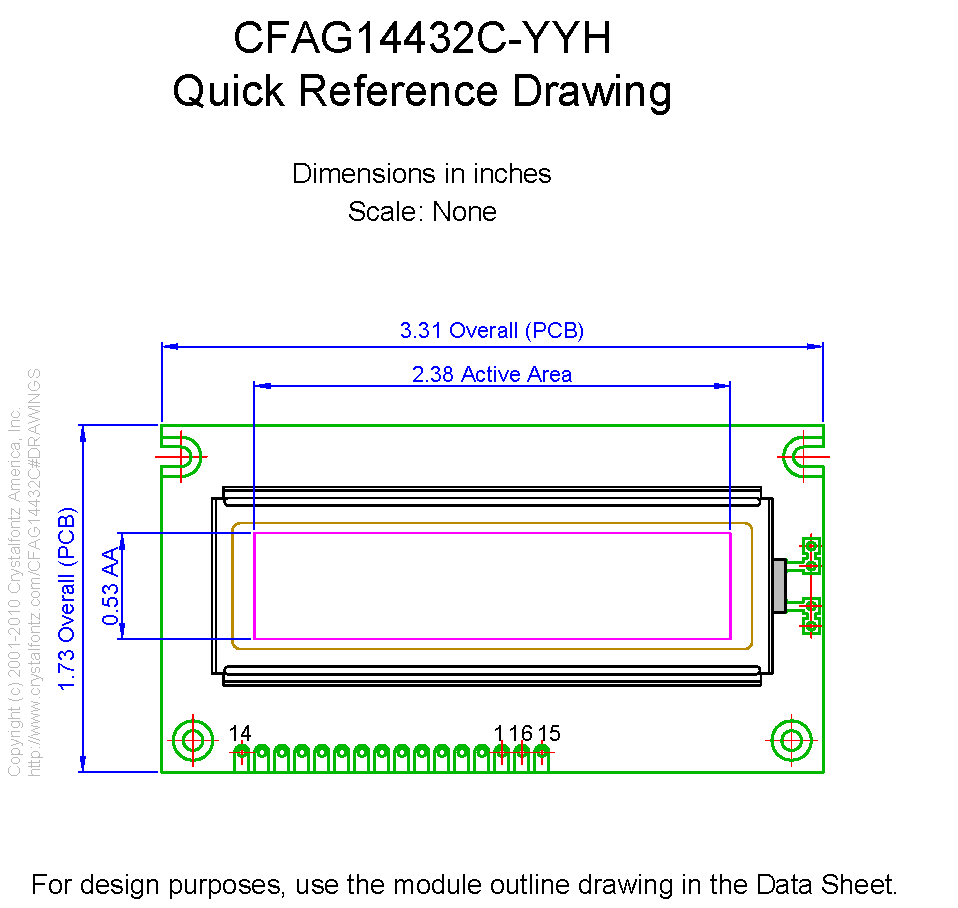

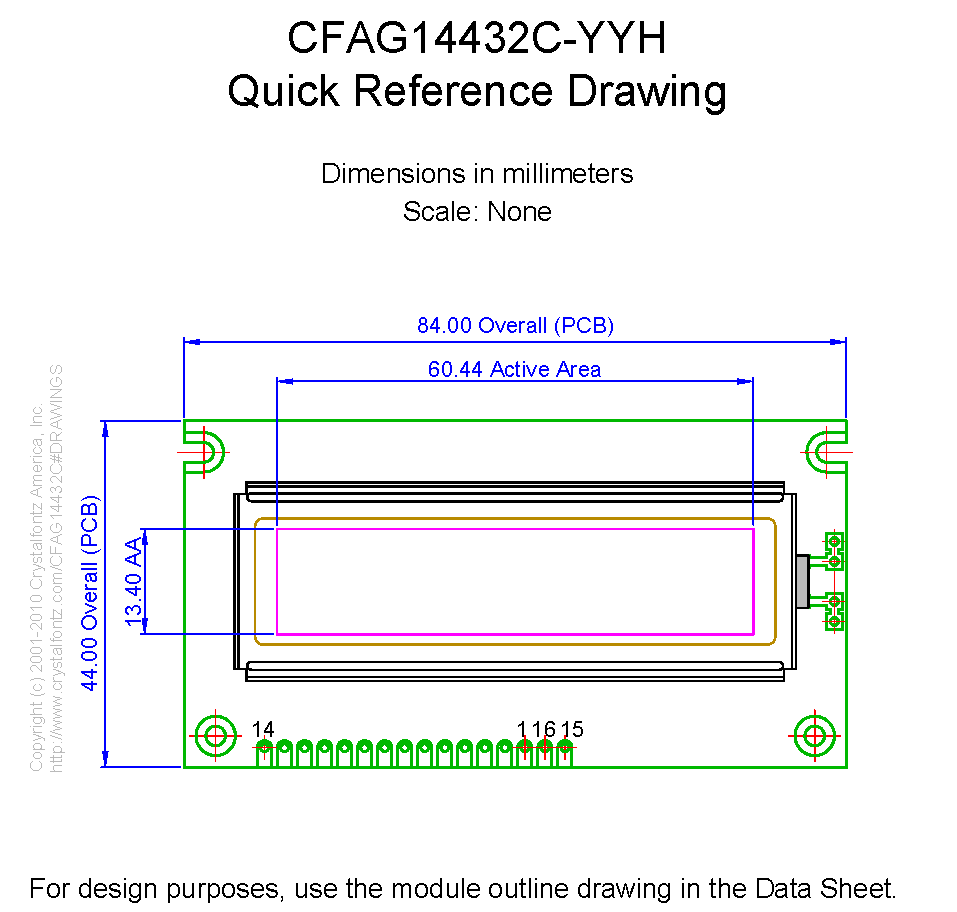

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            144 x 32


    Module Overall        width
        height
        depth


        millimeters
        84
        44
        13.5


        inches
        3.31
        1.73
        0.53



    PCB Outline        width
        height
        depth


        millimeters
        84
        44
        13.5


        inches
        3.31
        1.73
        0.53



        Diagonal Dimension
            2.44"


    Viewing Area        Width
        Height


        millimeters
        66
        16


        inches
        2.60
        0.63



    Active Area        Width
        Height


        millimeters
        60.44
        13.4


        inches
        2.38
        0.53



    Dot Size        Width
        Height


        millimeters
        0.38
        0.38


        inches
        0.015
        0.015



    Dot Pitch        Width
        Height


        millimeters
        0.42
        0.42


        inches
        0.017
        0.017



        Weight
            35g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7920
ST7920

Chinese Fonts built in LCD controller/driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG14432CYYHTT Datasheet

 download Files and Downloads
folder_zip Software Source - ATMEGA2561 w/ SPI interface
folder_zip CAD Export - CFAG14432C-YYH 2D CAD
picture_as_pdf 1 to 1 Template - CFAG14432C-YYH 1 TO 1.PDF
picture_as_pdf Other Document - UniCode to ST7920-0C CGROM Mapping
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH














Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $23.81

            10 *
            $23.13

            20 *
            $19.63

            50 *
            $17.17

            100 *
            $15.17

            200 *
            $13.70

            500 *
            $12.13

            1000 *
            $11.16

6 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
