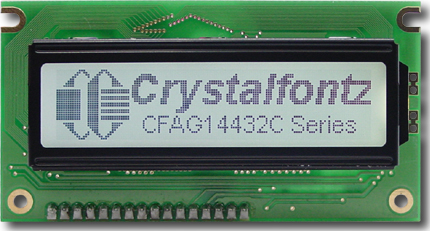

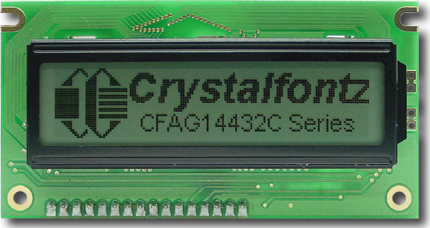

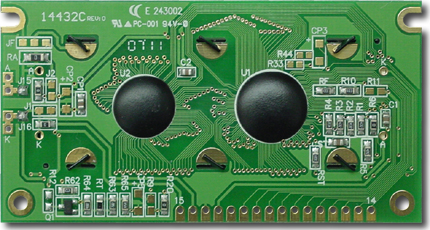

[EOL] Gray 144x32 Serial Graphic LCD

Part Number: CFAG14432C-TFH-TT

144x32 Graphic LCD, RoHS Compliant, White Edge LED Backlight, FSTN Positive, Transflective -20°C to +70°C 6:00 viewing angle. Negative Voltage Generator, Temperature Compensation

  • Form and function compatible with the CFAH1602A Series of Character LCD modules. Upgrade your product that uses a CFAH1602A character display by switching to this graphic CFAG14432C, or, lower your costs by replacing this graphic with that character module
  • 144x32 graphic LCD module
  • Available in several variations of backlight and polarizer (minimum order may be required)
  • Built-in Sitronix ST7920 or other compatible controller
  • 8-bit, 4-bit parallel interface, or SPI interface

  • square_foot Physical Characteristics

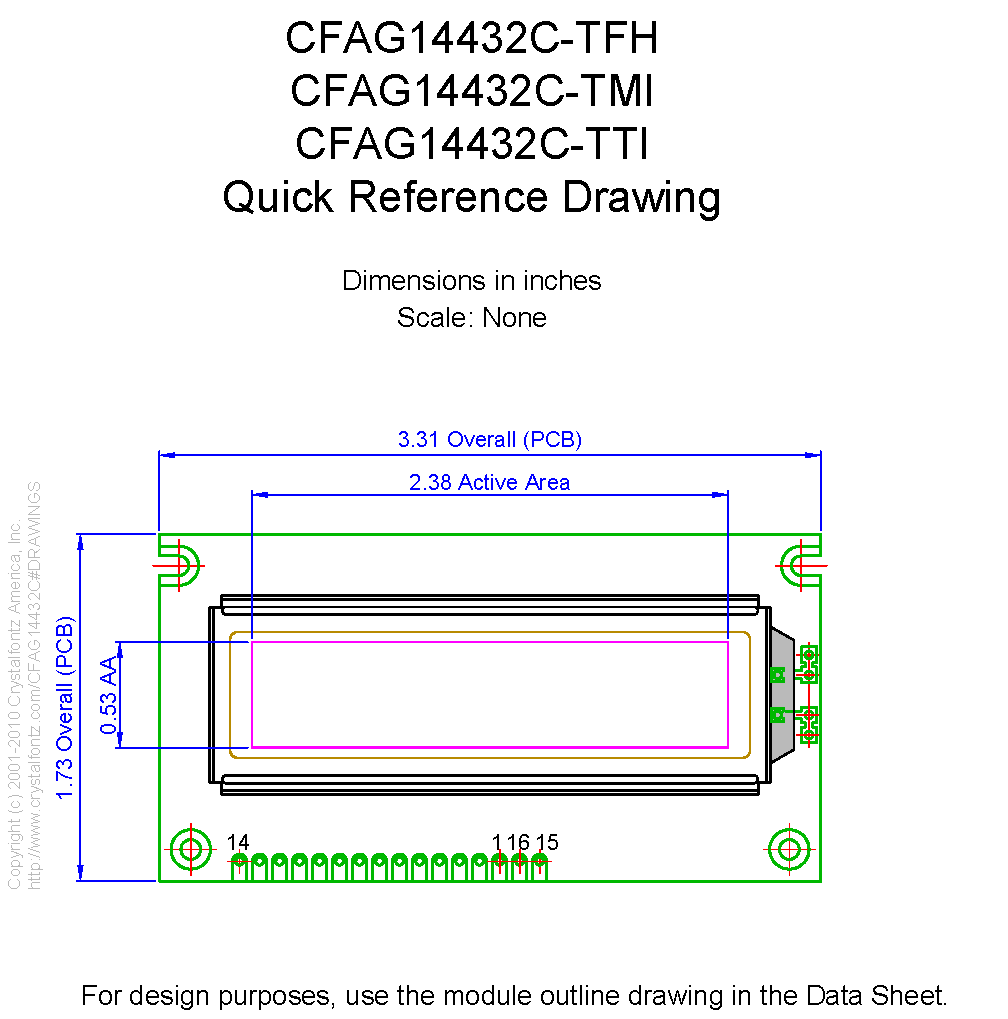

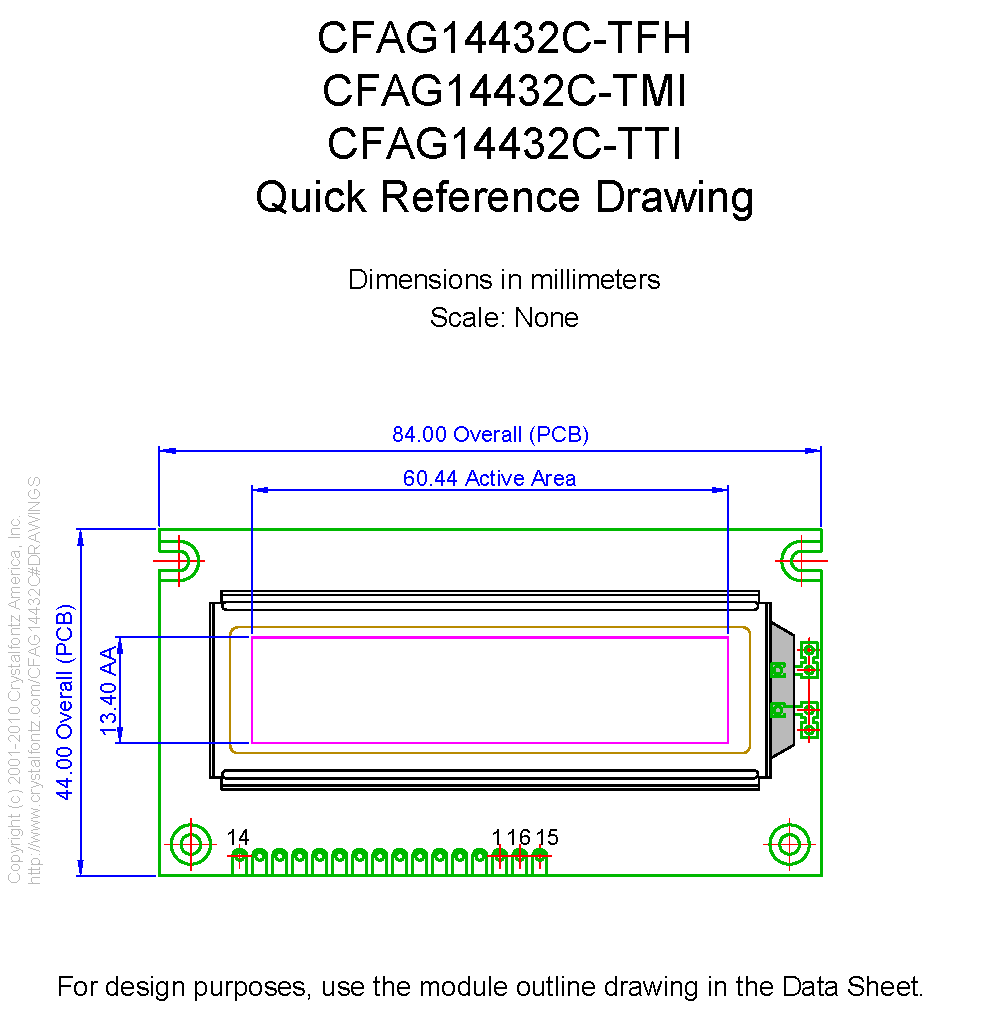

    Physical Characteristics

    Column Dots x Row Dots 144 x 32
    Module Overall width height depth
    millimeters 84 44 13.5
    inches 3.31 1.73 0.53
    PCB Outline width height depth
    millimeters 84 44 13.5
    inches 3.31 1.73 0.53
    Diagonal Dimension 2.44"
    Viewing Area Width Height
    millimeters 66 16
    inches 2.60 0.63
    Active Area Width Height
    millimeters 60.44 13.4
    inches 2.38 0.53
    Dot Size Width Height
    millimeters 0.38 0.38
    inches 0.015 0.015
    Dot Pitch Width Height
    millimeters 0.42 0.42
    inches 0.017 0.017
    Weight 35g
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type/Glass Color FSTN/Light Gray
    Polarizer Transflective
    View Direction 6 o'clock
    Sunlight Readable Yes
    Backlight Color White
    Backlight Type LED
    Mode Positive
    Foreground Color Dark
    Background Color White
  • electric_bolt Electrical Specification

    Electrical Specifications

    Module Connector Pitch 0.1mm
  • nature Environmental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
    Humidity min max
    Non-condensing 0% 90%
  • cable Electronics

    Electronics

    Controller Documents Sitronix ST7920
    ST7920
    Chinese Fonts built in LCD controller/driver
    Interface 4-bit Parallel, 8-bit Parallel, SPI
  • picture_as_pdf Datasheets
  • download Files and Downloads
Other components worth considering
4694 LCD Starter Kit with Potentiometer
Everything you need to connect $12.59 ea.

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAG14432C-TFH-TT or RSS RSS feed for changes to CFAG14432C-TFH-TT
  • text_snippet
    Product Update #10910: End-of-Life Notification
    Products Affected: CFAG14432A-YYH-TT, CFAG20232C-YYH-TT, CFAG14432A-TFH-TT, CFAG320240K-YYH-TZ, CFAG14432C-TFH-TT, CFAG12864I-TMI-TN, CFAG12864F-STI-TY, CFAG12864F-TMI-TY, CFAG12864G-STI-TY, CFAH0801Z-YYH-JP, CFAG19264A-STI-TN
    Date Issued: December 13, 2017
    Summary: End-of-Life Notification
    Description: The parts listed have been set to End of Life Status.
    Reason: Critical components have been discontinued by the manufacturer.
    Impact: No replacements have been identified
    Recommendation: These parts are not recommended for new designs.
    Availability: Once current stock is depleted, these parts will no longer be available
    Price Change: N/A
