[EOL] 144x32 Sunlight Readable Graphic LCD from Crystalfontz

Product

Home » Products » Serial LCD Displays » Graphic » Resolution » 42x65

            This product has reached end of life.  However, we have many other 144x32 Graphic LCDs available to choose from.

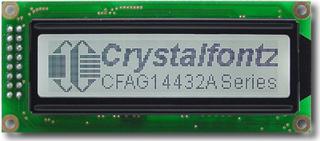

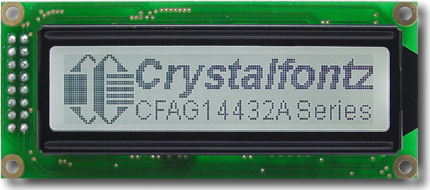

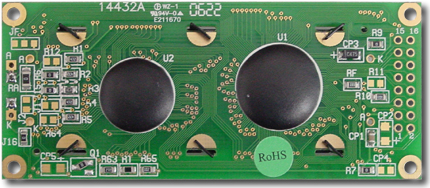

[EOL] 144x32 Sunlight Readable Graphic LCDPart Number: CFAG14432A-TFH-TTBlack and gray, sunlight readable 144x32 graphic LCD with negative voltage generator and temperature compensation.
Resolution: 144x32 pixels
Optics: 6:00 viewing direction
Backlight: White LED
Glass: STN Positive, Transflective
Controller: Sitronix ST7920 (Hitachi HD44780 Compatible) Controller
Character Generator: Chinese and English
Operating Temp:  -20°C to +70°C
Compliance: REACH & RoHS Compliant

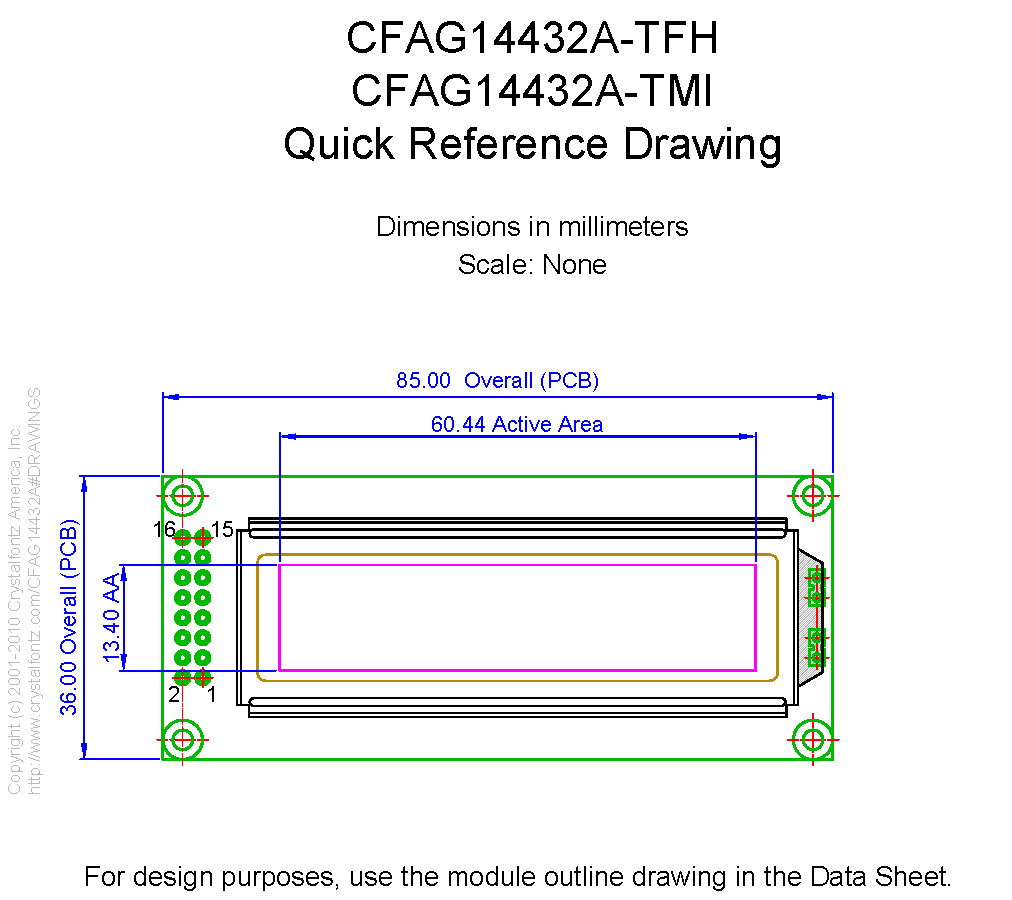

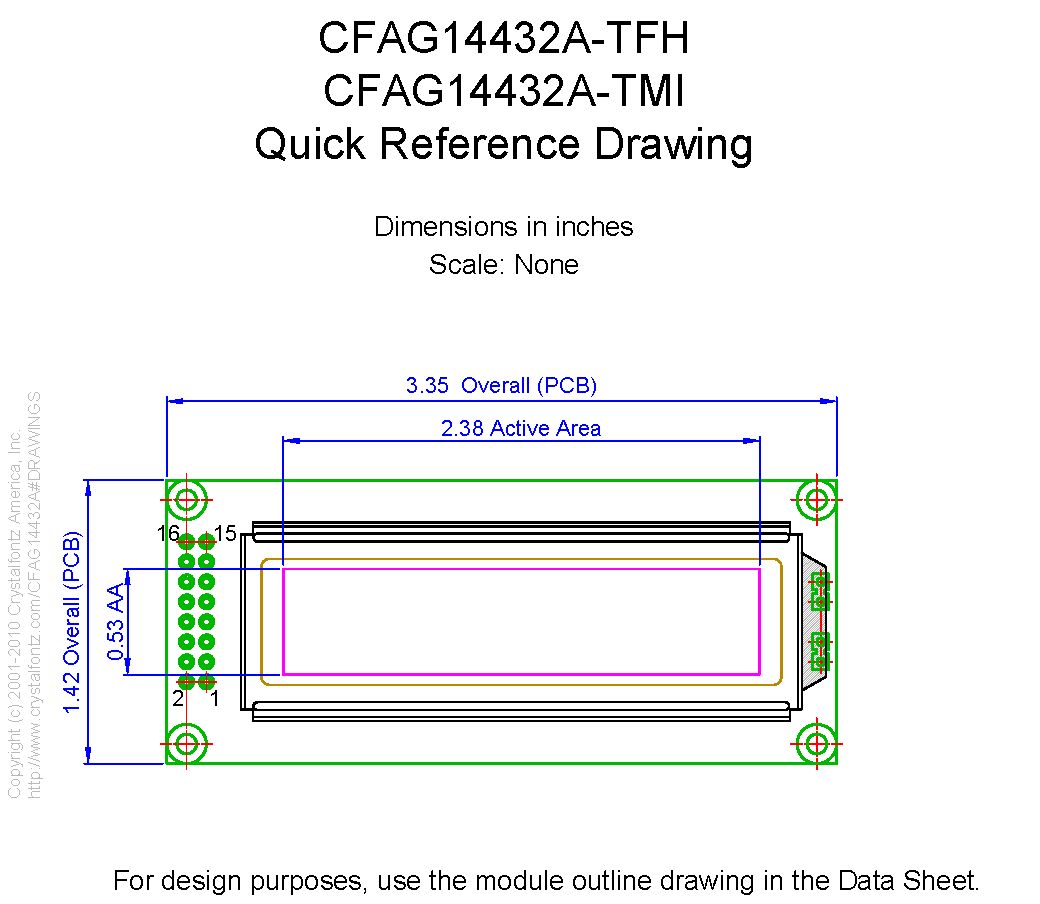

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            144 x 32

    Module Overall        width
        height
        depth

        millimeters
        85
        36
        13.2

        inches
        3.35
        1.42
        0.52

    PCB Outline        width
        height
        depth

        millimeters
        85
        36
        13.2

        inches
        3.35
        1.42
        0.52

        Diagonal Dimension
            2.44"

    Viewing Area        Width
        Height

        millimeters
        66
        16

        inches
        2.60
        0.63

    Active Area        Width
        Height

        millimeters
        60.44
        13.4

        inches
        2.38
        0.53

    Dot Size        Width
        Height

        millimeters
        0.38
        0.38

        inches
        0.015
        0.015

    Dot Pitch        Width
        Height

        millimeters
        0.42
        0.42

        inches
        0.017
        0.017

        Weight
            33g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Light Gray
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            White
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            White

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7920
ST7920

Chinese Fonts built in LCD controller/driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG14432A-TFH-TT Datasheet

 download Files and Downloads
folder_zip Software Source - ATMEGA2561 w/ SPI interface
folder_zip CAD Export - CFAG14432A-TFH-TMI 2D CAD
picture_as_pdf 1 to 1 Template - CFAG14432A-TFH-TMI 1 TO 1.PDF
picture_as_pdf Other Document - UniCode to ST7920-0C CGROM Mapping

Other components worth considering

						LCD Starter Kit with Potentiometer
Everything you need to connect $12.59 ea.

Module Overall	width	height	depth
millimeters	85	36	13.2
inches	3.35	1.42	0.52

PCB Outline	width	height	depth
millimeters	85	36	13.2
inches	3.35	1.42	0.52

Viewing Area	Width	Height
millimeters	66	16
inches	2.60	0.63

Active Area	Width	Height
millimeters	60.44	13.4
inches	2.38	0.53

Dot Size	Width	Height
millimeters	0.38	0.38
inches	0.015	0.015

Dot Pitch	Width	Height
millimeters	0.42	0.42
inches	0.017	0.017

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Product Update #10910: End-of-Life Notification

Products Affected:	CFAG14432A-YYH-TT, CFAG20232C-YYH-TT, CFAG14432A-TFH-TT, CFAG320240K-YYH-TZ, CFAG14432C-TFH-TT, CFAG12864I-TMI-TN, CFAG12864F-STI-TY, CFAG12864F-TMI-TY, CFAG12864G-STI-TY, CFAH0801Z-YYH-JP, CFAG19264A-STI-TN
Date Issued:	December 13, 2017
Summary:	End-of-Life Notification
Description:	The parts listed have been set to End of Life Status.
Reason:	Critical components have been discontinued by the manufacturer.
Impact:	No replacements have been identified
Recommendation:	These parts are not recommended for new designs.
Availability:	Once current stock is depleted, these parts will no longer be available
Price Change:	N/A
