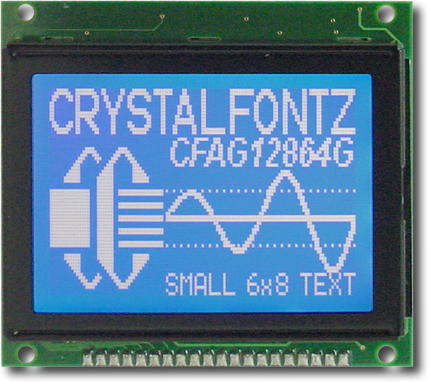

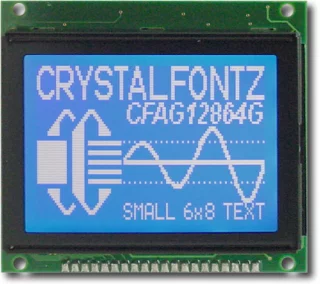

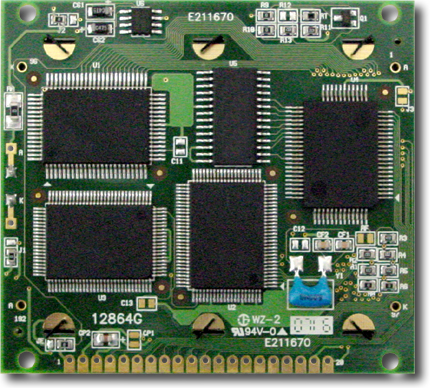

128x64 Graphic LCDPart Number: CFAG12864G-TMI-TY128x64 graphic LCD with white letters on blue background, on-board negative voltage generator and temperature compensation.
Glass: STN Negative, Transmissive
Backlight: White Edge LED
Compliance: RoHS Compliant
Resolution:128x64 pixels
Controller: Toshiba T6963C
Operating Temp:  -20°C to +70°C
Optics:  6:00 viewing direction
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        78
        70
        12.1

        inches
        3.07
        2.76
        0.48

    PCB Outline        width
        height
        depth

        millimeters
        78
        70
        12.1

        inches
        3.07
        2.76
        0.48

        Diagonal Dimension
            2.68"

    Viewing Area        Width
        Height

        millimeters
        62
        44

        inches
        2.44
        1.73

    Active Area        Width
        Height

        millimeters
        56.3
        38.38

        inches
        2.22
        1.51

    Dot Size        Width
        Height

        millimeters
        0.42
        0.58

        inches
        0.017
        0.023

    Dot Pitch        Width
        Height

        millimeters
        0.44
        0.6

        inches
        0.017
        0.024

        Weight
            84g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Toshiba T6963C
T6963C

DOT MATRIX LCD CONTROLLER LSI
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG12864GTMITY Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAG12864G-STI-TMI 2D CAD

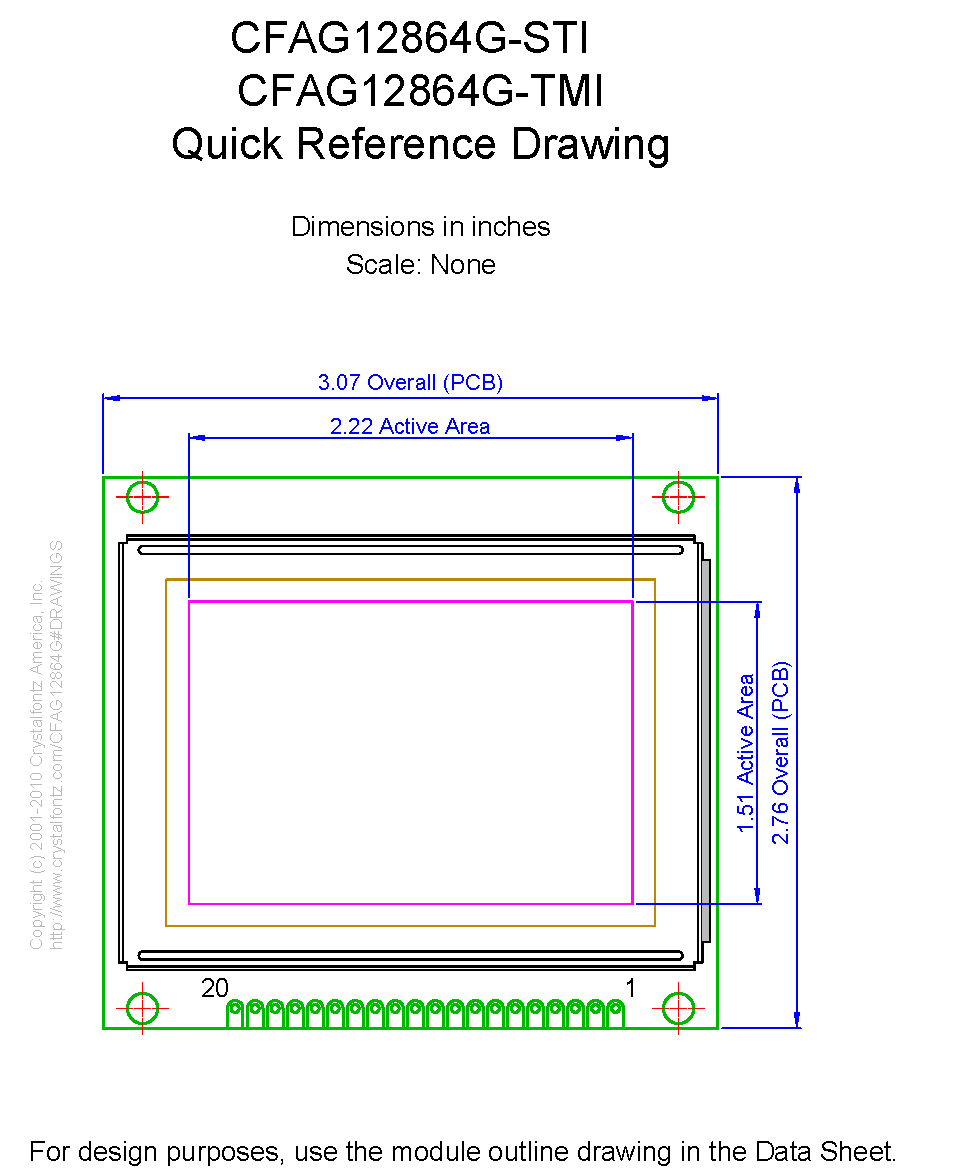

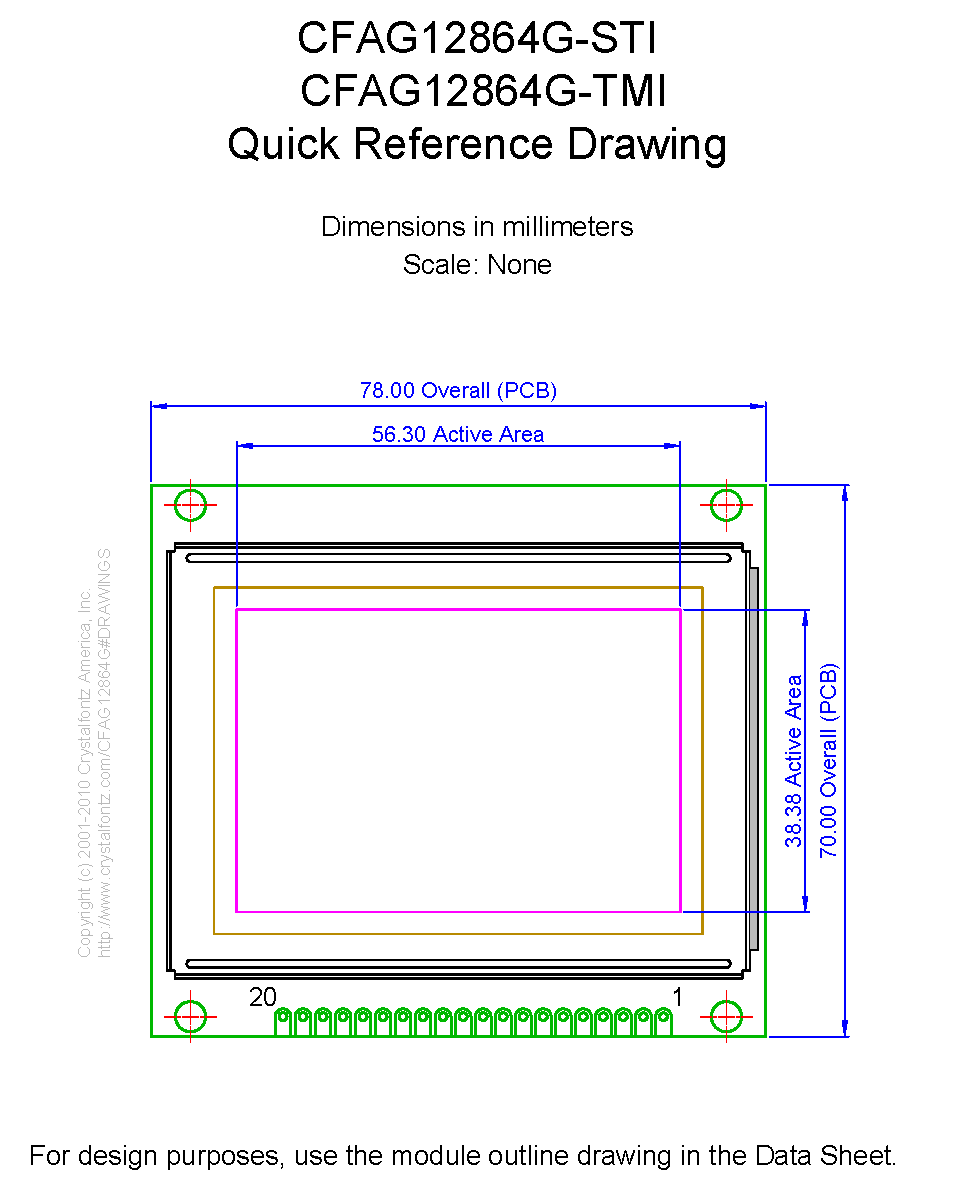

picture_as_pdf 1 to 1 Template - CFAG12864G-STI-TMI 1 TO 1.PDF

Module Overall	width	height	depth
millimeters	78	70	12.1
inches	3.07	2.76	0.48

PCB Outline	width	height	depth
millimeters	78	70	12.1
inches	3.07	2.76	0.48

Viewing Area	Width	Height
millimeters	62	44
inches	2.44	1.73

Active Area	Width	Height
millimeters	56.3	38.38
inches	2.22	1.51

Dot Size	Width	Height
millimeters	0.42	0.58
inches	0.017	0.023

Dot Pitch	Width	Height
millimeters	0.44	0.6
inches	0.017	0.024

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%
