            This product has reached end of life. Please see our other 128x64 displays.

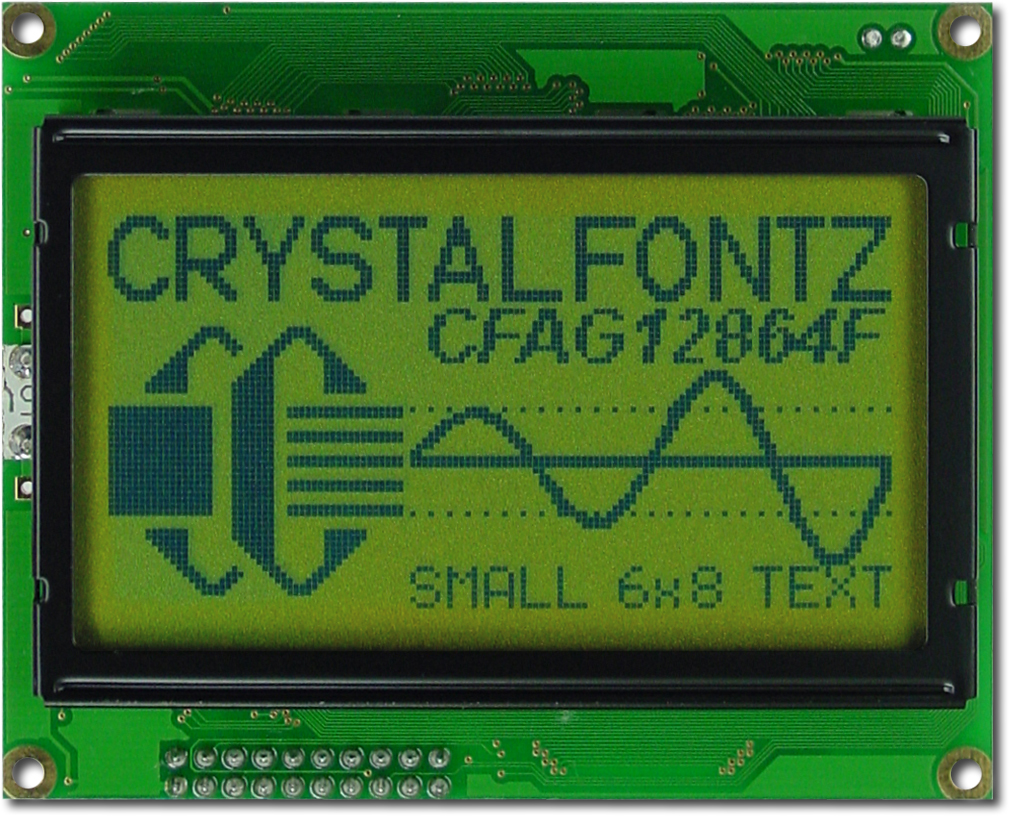

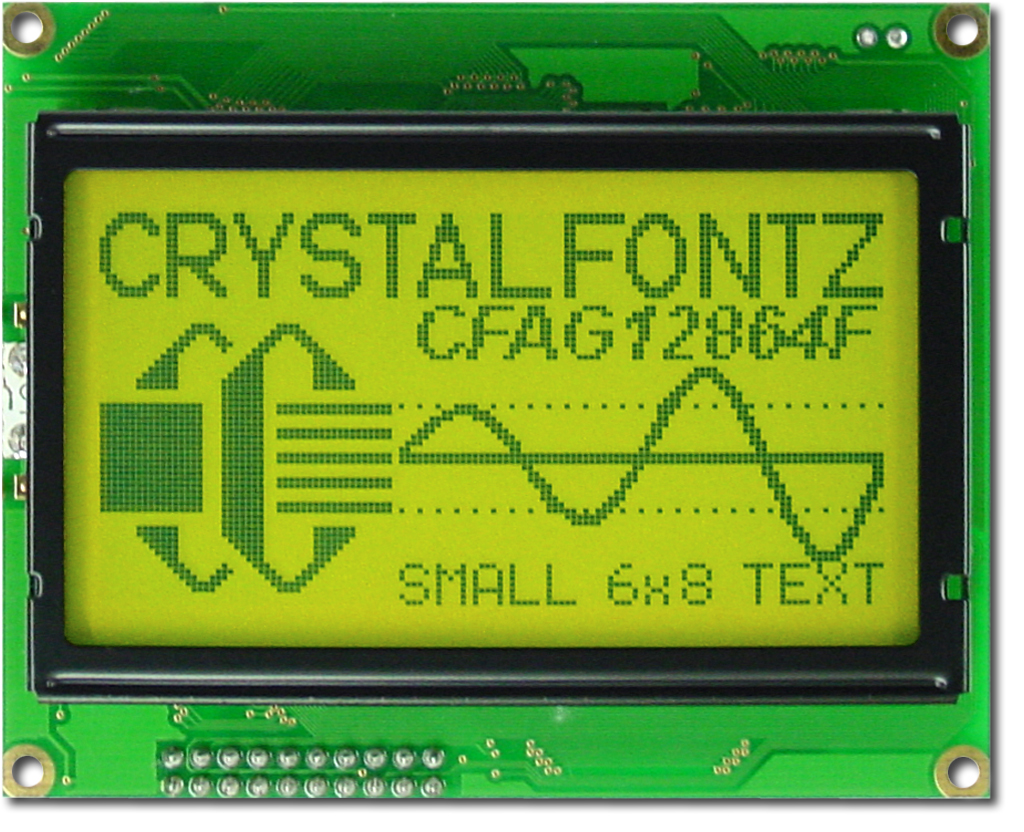

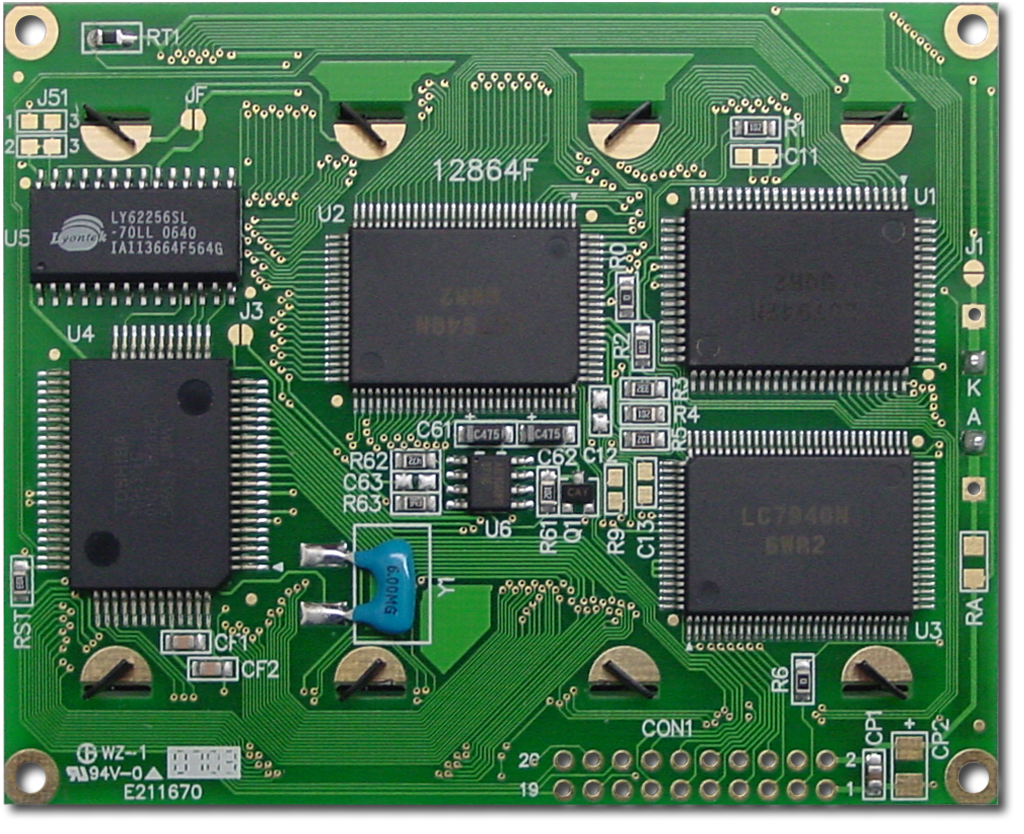

128x64 Transflective Graphic LCD (EOL)Part Number: CFAG12864F-YYH-TYSunlight readable 128x64 Yellow-Green Graphic LCD
Wide temperature range: -20°C to 70°C (-4°F to 158°F)
Built-in Toshiba T6963C or compatible controller
LED Backlight

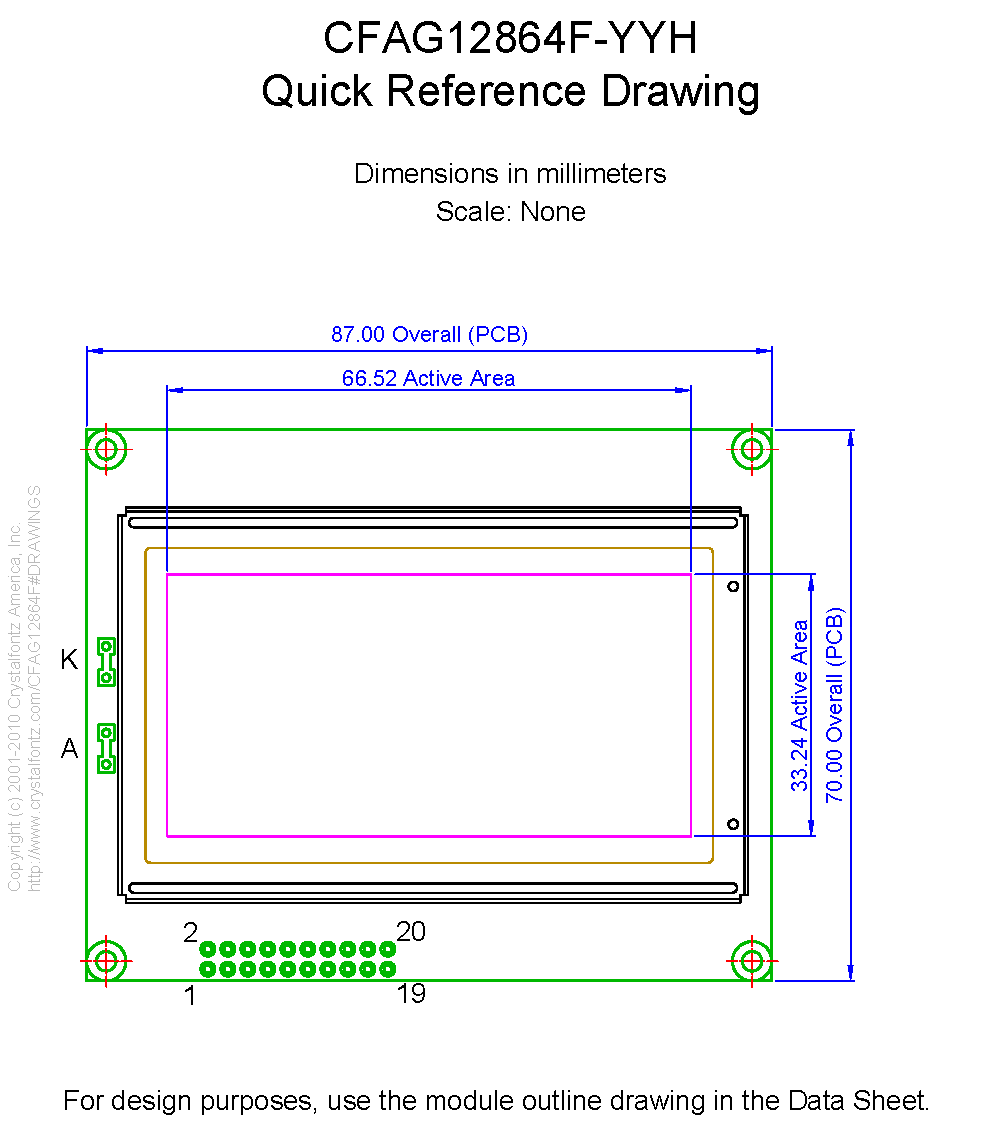

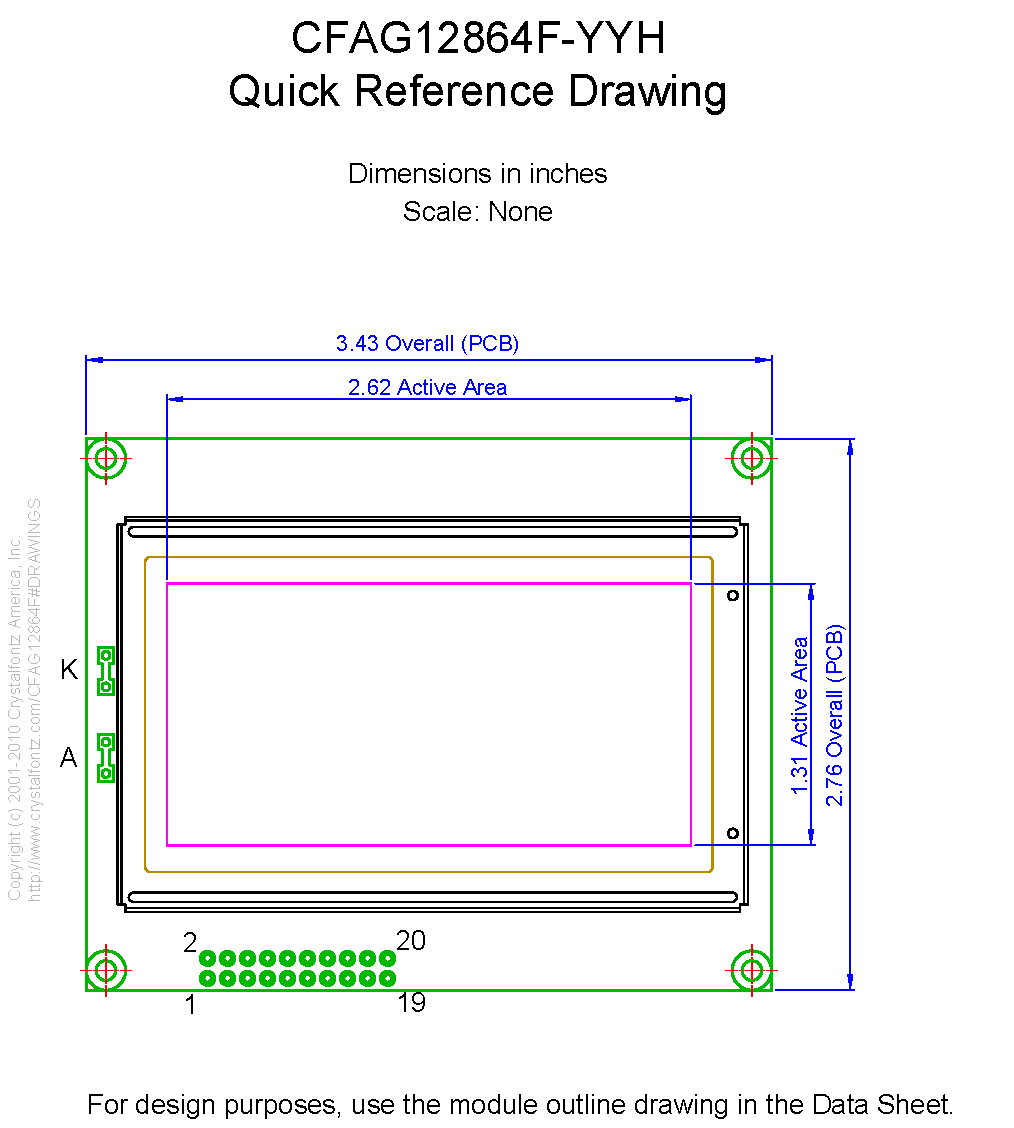

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        87
        70
        13.6

        inches
        3.43
        2.76
        0.54

    PCB Outline        width
        height
        depth

        millimeters
        87
        70
        13.6

        inches
        3.43
        2.76
        0.54

        Diagonal Dimension
            2.93"

    Viewing Area        Width
        Height

        millimeters
        72
        40

        inches
        2.84
        1.58

    Active Area        Width
        Height

        millimeters
        66.52
        33.24

        inches
        2.62
        1.31

    Dot Size        Width
        Height

        millimeters
        0.48
        0.48

        inches
        0.019
        0.019

    Dot Pitch        Width
        Height

        millimeters
        0.52
        0.52

        inches
        0.020
        0.020

        Weight
            74g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Raio Technology RA6963
RA6963 Dot Matrix LCD Controller Specification
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG12864FYYHTY Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAG12864F-YYH 2D CAD
picture_as_pdf 1 to 1 Template - CFAG12864F-YYH 1 TO 1.PDF

Module Overall	width	height	depth
millimeters	87	70	13.6
inches	3.43	2.76	0.54

PCB Outline	width	height	depth
millimeters	87	70	13.6
inches	3.43	2.76	0.54

Viewing Area	Width	Height
millimeters	72	40
inches	2.84	1.58

Active Area	Width	Height
millimeters	66.52	33.24
inches	2.62	1.31

Dot Size	Width	Height
millimeters	0.48	0.48
inches	0.019	0.019

Dot Pitch	Width	Height
millimeters	0.52	0.52
inches	0.020	0.020

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Product Update #10918: End-of-Life Notification

Products Affected:	CFAG14432A-TMI-TT, CFAG12864F-YYH-TY, CFAH4002A-TFH-JT
Date Issued:	January 10, 2018
Summary:	End-of-Life Notification
Description:	The parts listed have been assigned to End-of-Life Status.
Reason:	The minimum order quantity for each of these parts has been increased to an unsustainable amount.
Recommendation:	These parts should not be used for new designs.
Availability:	When current stock is depleted, the parts will no longer be available.
Price Change:	N/A
