            This product is end-of-life. Please see our wide variety of 128x64 graphic LCDs that are in stock and ready to ship today.

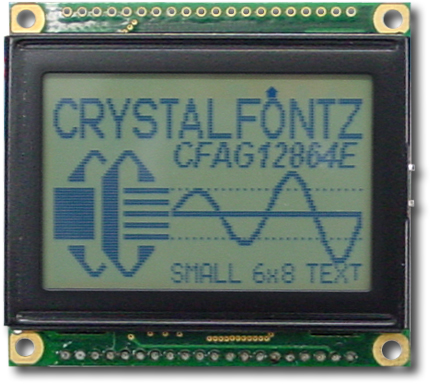

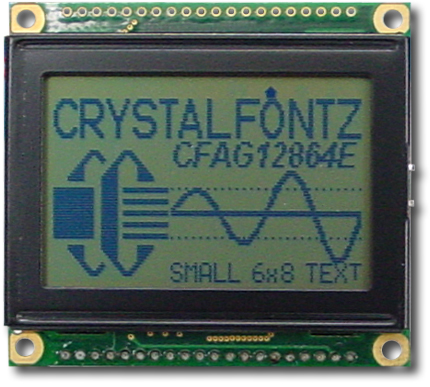

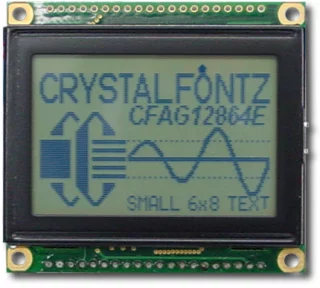

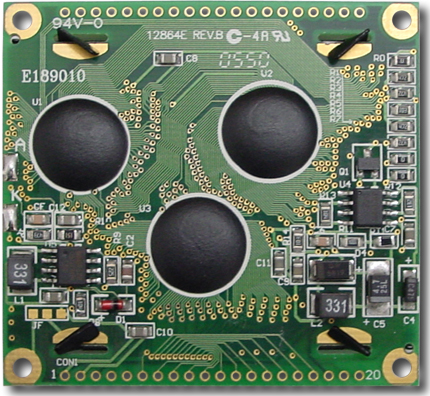

[EOL] KS0107 128x64 Graphic LCDPart Number: CFAG12864E-WGH-TNGraphic LCD, RoHS Compliant, White EL Backlight, STN Positive, Gray, Transflective -20 to +70 degrees Celsius, 6:00 viewing angle. Negative Voltage Generator, Temperature Compensation, onboard EL Inverter.
128x64 graphic LCD module
EL Inverter on-board
Small form factor
Built-in controller: Samsung KS0107/KS0108
Demonstration board available here: CFA-10006
Wide temperature range: -20°C to 70°C (-4°F to 158°F)
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        54
        50
        7.5

        inches
        2.13
        1.97
        0.30

    PCB Outline        width
        height
        depth

        millimeters
        54
        50
        7.5

        inches
        2.13
        1.97
        0.30

    Viewing Area        Width
        Height

        millimeters
        43.5
        29

        inches
        1.71
        1.14

    Active Area        Width
        Height

        millimeters
        40.92
        26.92

        inches
        1.61
        1.06

    Dot Size        Width
        Height

        millimeters
        0.28
        0.35

        inches
        0.011
        0.014

    Dot Pitch        Width
        Height

        millimeters
        0.32
        0.39

        inches
        0.013
        0.015

        Weight
            22g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Gray
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            EL White
Backlight Type
            EL
Mode
            Positive
Foreground Color
            Dark
Background Color
            White

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            2mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Samsung S6B0107
S6B0107

64CH COMMON DRIVER FOR DOT MATRIX LCD
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG12864EWGHTN Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAG12864E 2D CAD
picture_as_pdf 1 to 1 Template - CFAG12864E 1 TO 1.PDF

Module Overall	width	height	depth
millimeters	54	50	7.5
inches	2.13	1.97	0.30

PCB Outline	width	height	depth
millimeters	54	50	7.5
inches	2.13	1.97	0.30

Viewing Area	Width	Height
millimeters	43.5	29
inches	1.71	1.14

Active Area	Width	Height
millimeters	40.92	26.92
inches	1.61	1.06

Dot Size	Width	Height
millimeters	0.28	0.35
inches	0.011	0.014

Dot Pitch	Width	Height
millimeters	0.32	0.39
inches	0.013	0.015

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Note

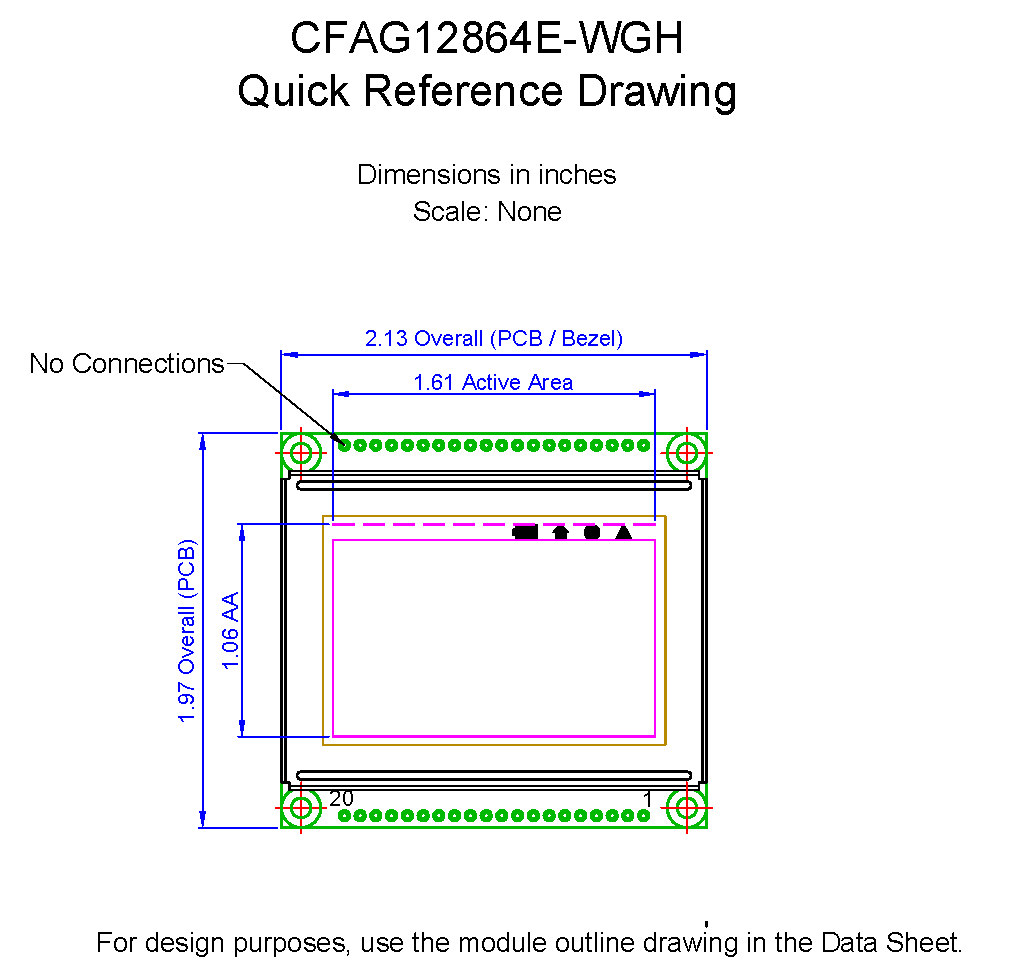

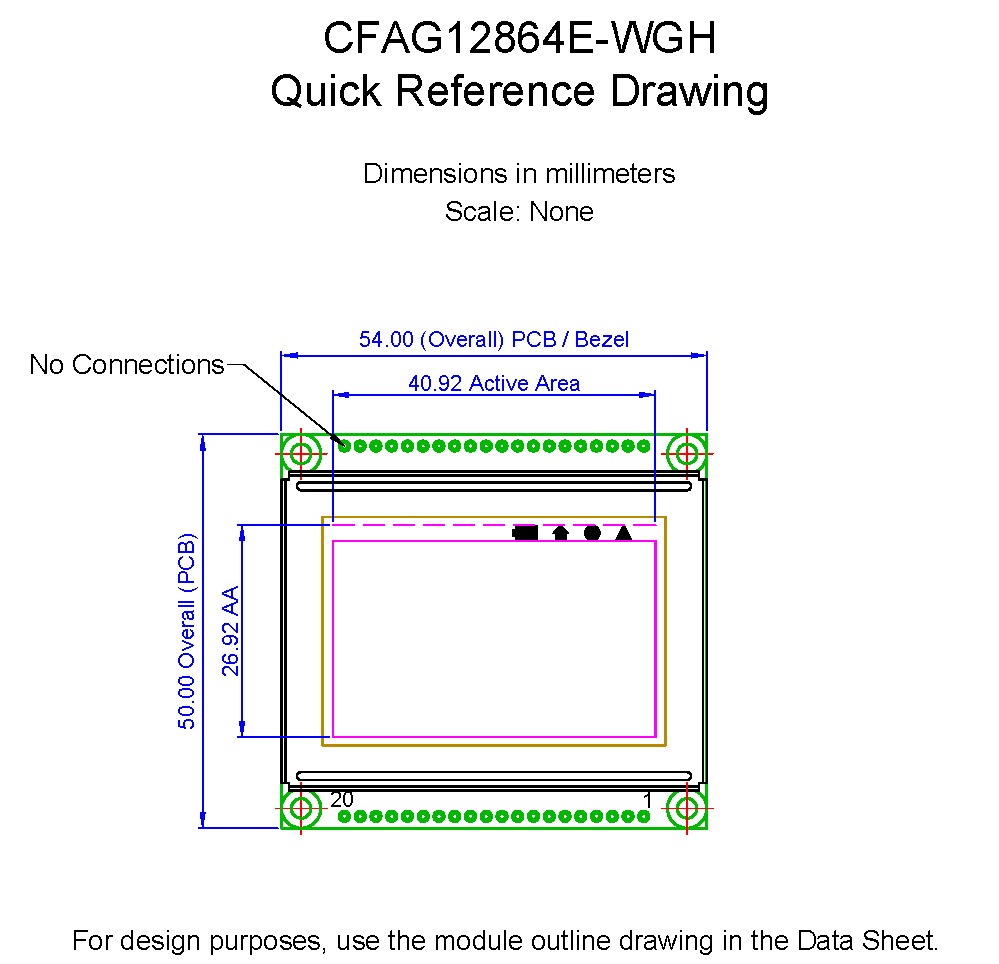

The right-most four pixels of the bottom row are used to control the four icons above the pixel array. These pixels do not show up in the array. Please see the mechanical drawing in the datasheet.
