            In order to keep this display in production over the long term, we are revising it to the CFAG12864D1-YYH-TZ. Please contact support@crystalfontz.com with any questions.

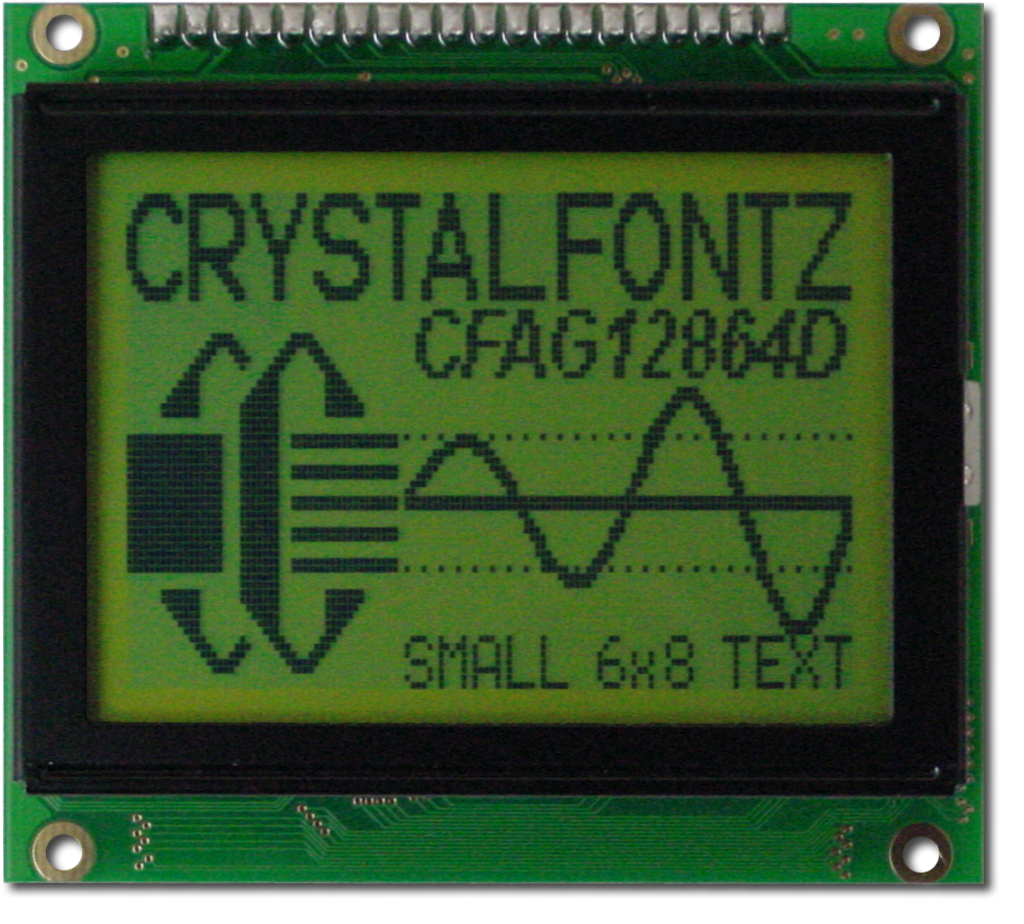

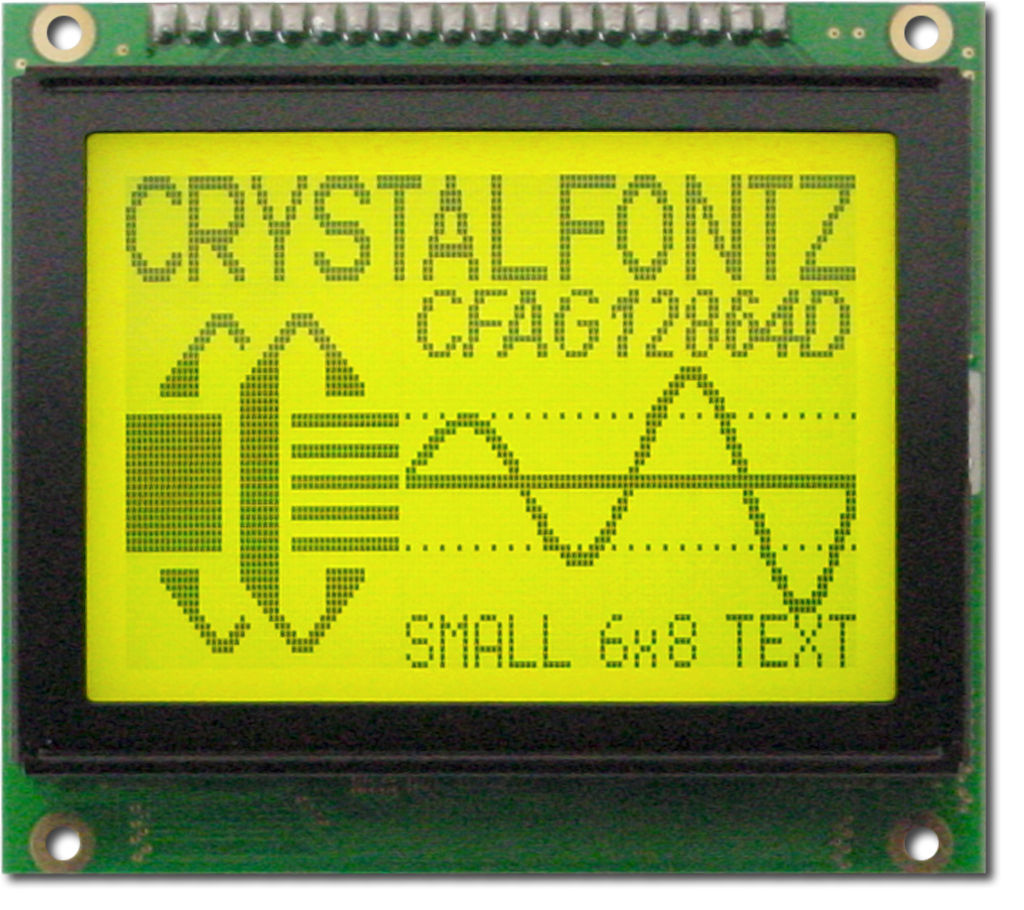

EOL 128x64 Sunlight Readable Graphic LCDPart Number: CFAG12864D-YYH-TZSunlight readable 128x64 graphic LCD with dark characters on yellow-green background, temperature compensation and on-board negative voltage generator.
Glass: STN Positive, Transflective
Compliance: RoHS Compliant
Resolution: 128x64 pixels
Controller: RAiO Technology RA6963 (Toshiba T6963C compatible)
Backlight: Yellow-green LED
Operating Temp:  -20°C to +70°C
Optics: 6:00 viewing direction
Readability: Sunlight readable
Product Variations

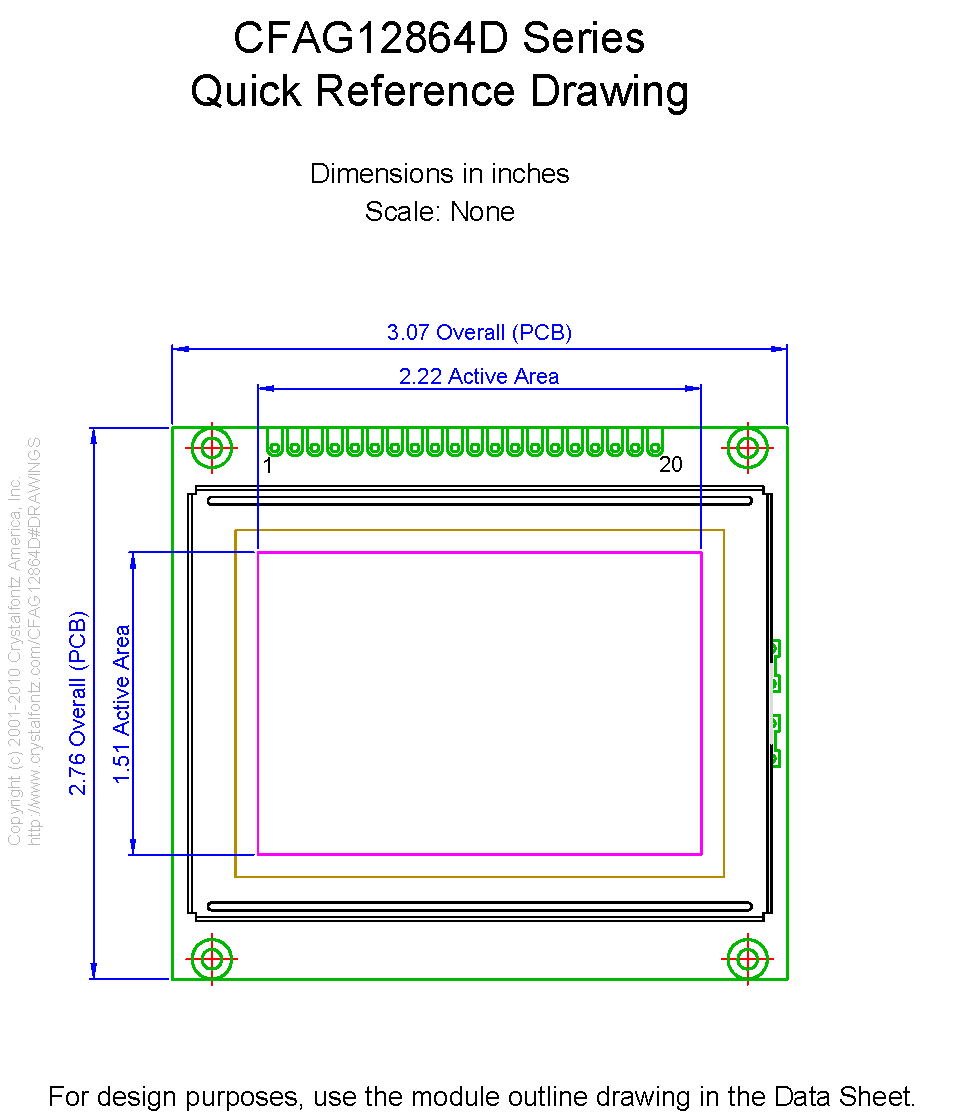

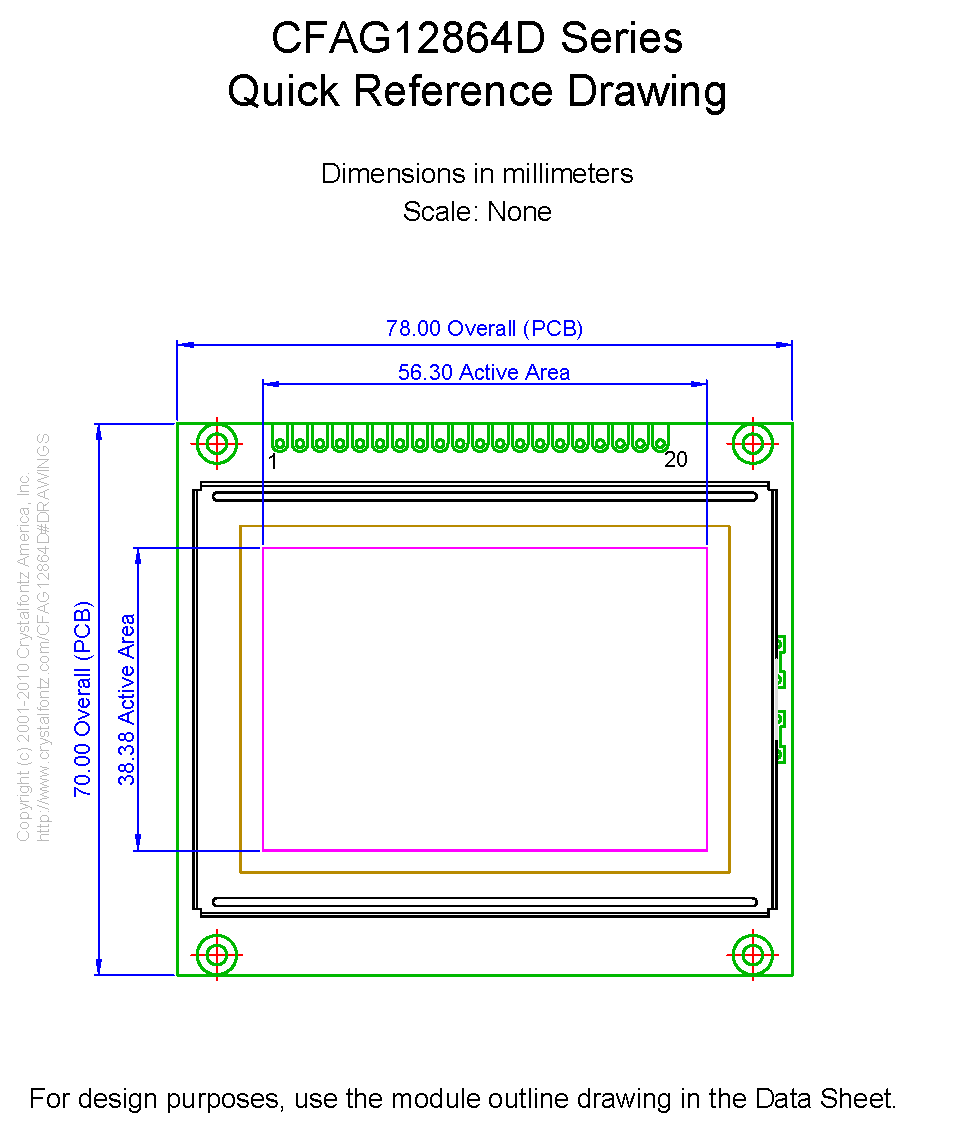

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        78
        70
        14.3

        inches
        3.07
        2.76
        0.56

    PCB Outline        width
        height
        depth

        millimeters
        78
        70
        14.3

        inches
        3.07
        2.76
        0.56

        Diagonal Dimension
            2.68"

    Viewing Area        Width
        Height

        millimeters
        62
        44

        inches
        2.44
        1.73

    Active Area        Width
        Height

        millimeters
        56.28
        38.36

        inches
        2.22
        1.51

    Dot Size        Width
        Height

        millimeters
        0.4
        0.56

        inches
        0.016
        0.022

    Dot Pitch        Width
        Height

        millimeters
        0.44
        0.6

        inches
        0.017
        0.024

        Weight
            74g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Raio Technology RA6963
RA6963 Dot Matrix LCD Controller Specification
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG12864DYYHTZ Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAG12864D-STI-YYH 2D CAD
picture_as_pdf 1 to 1 Template - CFAG12864D 1 TO 1.PDF

Other components worth considering

						LCD Starter Kit with Potentiometer
Everything you need to connect $12.59 ea.

Module Overall	width	height	depth
millimeters	78	70	14.3
inches	3.07	2.76	0.56

PCB Outline	width	height	depth
millimeters	78	70	14.3
inches	3.07	2.76	0.56

Viewing Area	Width	Height
millimeters	62	44
inches	2.44	1.73

Active Area	Width	Height
millimeters	56.28	38.36
inches	2.22	1.51

Dot Size	Width	Height
millimeters	0.4	0.56
inches	0.016	0.022

Dot Pitch	Width	Height
millimeters	0.44	0.6
inches	0.017	0.024

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11096: End-Of-Life Notification

Products Affected:	CFAG160128B-YYH-TZ, CFAG160128B-TMI-TZ, CFAG128128A-TMI-TZ, CFAG128128A-YYH-TZ, CFAG12864D-YYH-TZ, CFAG12864G-TMI-TY, CFAG12864G-YYH-TY, CFAG128128I-TFH-VZ, CFAG128128I-TMI-VZ, CFAG128128I-YYH-VZ
Date Issued:	July 30, 2021
Summary:	End-Of-Life Notification
Description:	The current display controller is going EOL and being replaced by RA6963-N1. The replacement parts will be posted on the product web page of the original part.
Reason:	The controller RA6963-N has gone EOL.

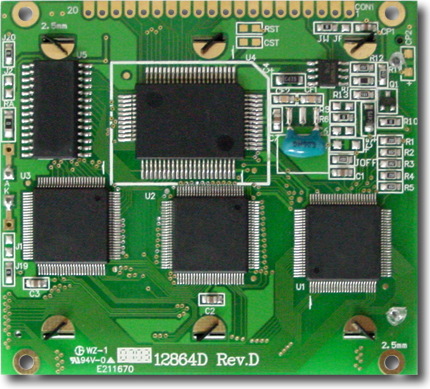

Product Update #10859: As part of our commitment to Continuous Improvement, the PCB layout for this product has been modified to improve manufacturability.

Product Affected:	CFAG12864D-YYH-TZ
Date Issued:	June 9, 2017
Summary:	As part of our commitment to Continuous Improvement, the PCB layout for this product has been modified to improve manufacturability.
Description:	PCB layout change
Reason:	Continuous Improvement
Impact:	If you are using the current part without modifications, there should be no change. If you are modifying the part, please contact us.
Availability:	The new revision will ship as soon as existing revision stock is depleted.
Price Change:	None at this time
