[EOL] Dark Blue 128x64 Graphic LCD from Crystalfontz

Product

Home » Products » Graphic LCD Displays » Interface » 8-bit Parallel

                This product has reached end of life, we're recommending this 128x64 Sunlight Readable Graphic LCD as a possible replacement, however, you'll want to test it in your device.

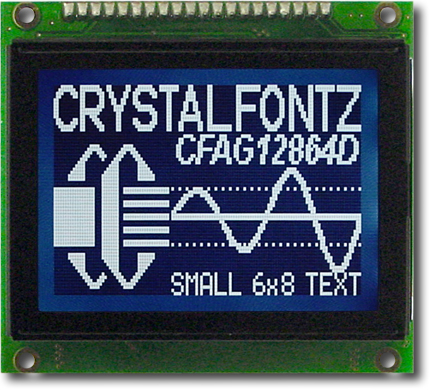

[EOL] Dark Blue 128x64 Graphic LCDPart Number: CFAG12864D-STI-TZ128x64 Graphic LCD, RoHS Compliant, High Output White Edge LED Backlight, FSTN Negative, Transmissive -20°C to +70°C 6:00 viewing angle. Negative Voltage Generator, Temperature Compensation
128x64 graphic LCD module
Available in several variations of backlight and polarizer  (minimum order may be required)

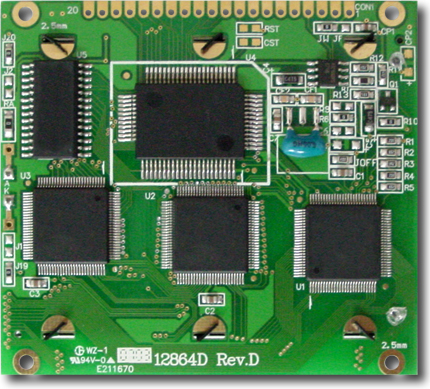

Built-in Neotec NT7086 or compatible compatible controller
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        78
        70
        14.3

        inches
        3.07
        2.76
        0.56

    PCB Outline        width
        height
        depth

        millimeters
        78
        70
        14.3

        inches
        3.07
        2.76
        0.56

        Diagonal Dimension
            2.68"

    Viewing Area        Width
        Height

        millimeters
        62
        44

        inches
        2.44
        1.73

    Active Area        Width
        Height

        millimeters
        56.3
        38.38

        inches
        2.22
        1.51

    Dot Size        Width
        Height

        millimeters
        0.42
        0.58

        inches
        0.017
        0.023

    Dot Pitch        Width
        Height

        millimeters
        0.44
        0.6

        inches
        0.017
        0.024

        Weight
            78g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Black
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Neotec NT7086
NT7086PQ

LCD Driver
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG12864DSTITZ Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAG12864D-STI-YYH 2D CAD
picture_as_pdf 1 to 1 Template - CFAG12864D 1 TO 1.PDF

Other components worth considering

						LCD Starter Kit with Potentiometer
Everything you need to connect $12.59 ea.

Module Overall	width	height	depth
millimeters	78	70	14.3
inches	3.07	2.76	0.56

PCB Outline	width	height	depth
millimeters	78	70	14.3
inches	3.07	2.76	0.56

Viewing Area	Width	Height
millimeters	62	44
inches	2.44	1.73

Active Area	Width	Height
millimeters	56.3	38.38
inches	2.22	1.51

Dot Size	Width	Height
millimeters	0.42	0.58
inches	0.017	0.023

Dot Pitch	Width	Height
millimeters	0.44	0.6
inches	0.017	0.024

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10844: End of Life Notice

Product Affected:	CFAG12864D-STI-TZ
Date Issued:	March 10, 2017
Summary:	End of Life Notice
Description:	This product has reached the end of its lifecycle. We suggest using this module: https://www.crystalfontz.com/product/cfag12864dyyhtz-lcd-module-graphic-128x64 as a possible replacement.
