[EOL] STN Gray 128x64 Parallel Graphic LCD from Crystalfontz

Product

Home » Products

                This display is end-of-life. Check out all of our in-stock 128x64 Graphic LCD Displays.
[EOL] STN Gray 128x64 Parallel Graphic LCDPart Number: CFAG12864B-WGH-NDISCONTINUED

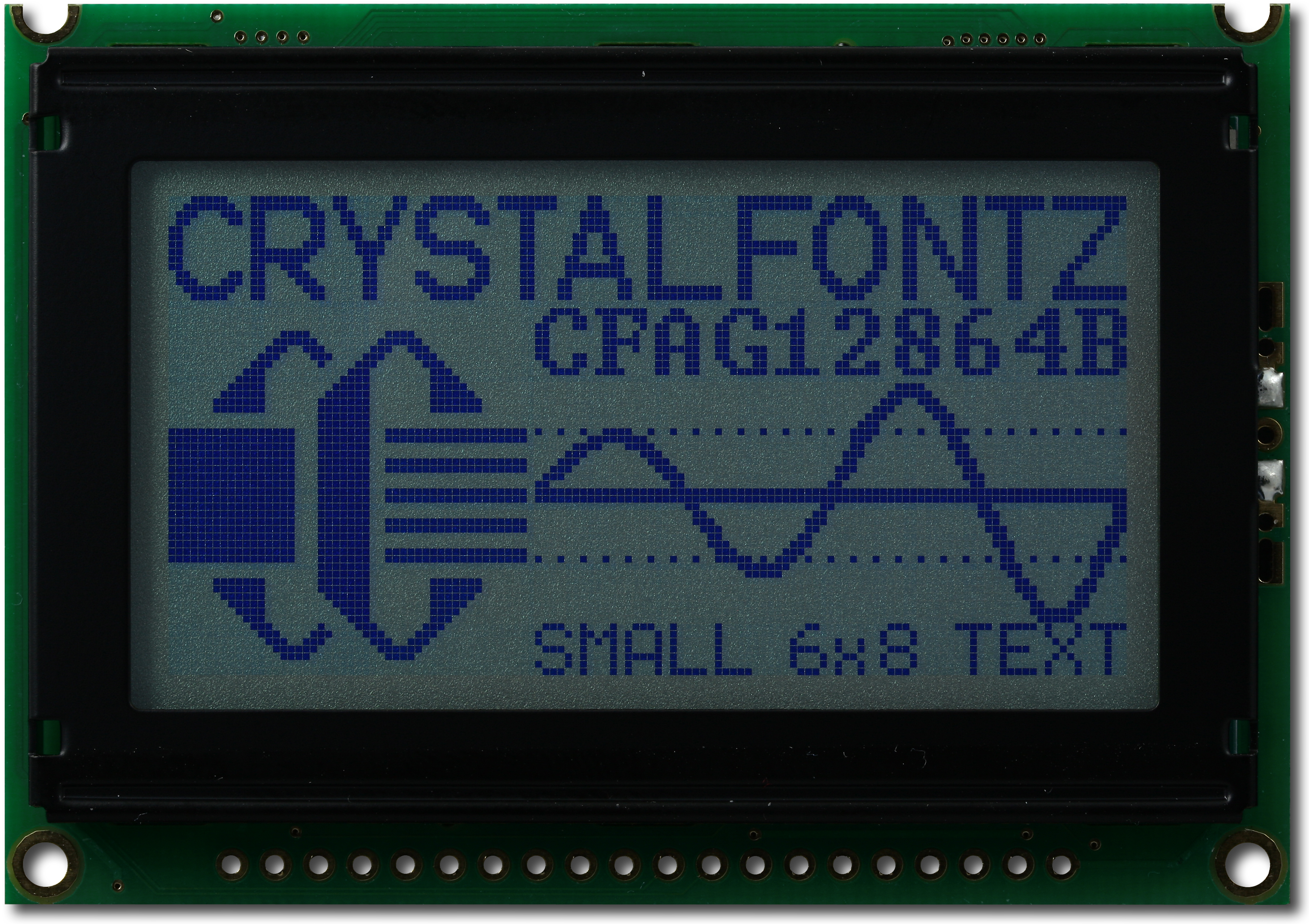

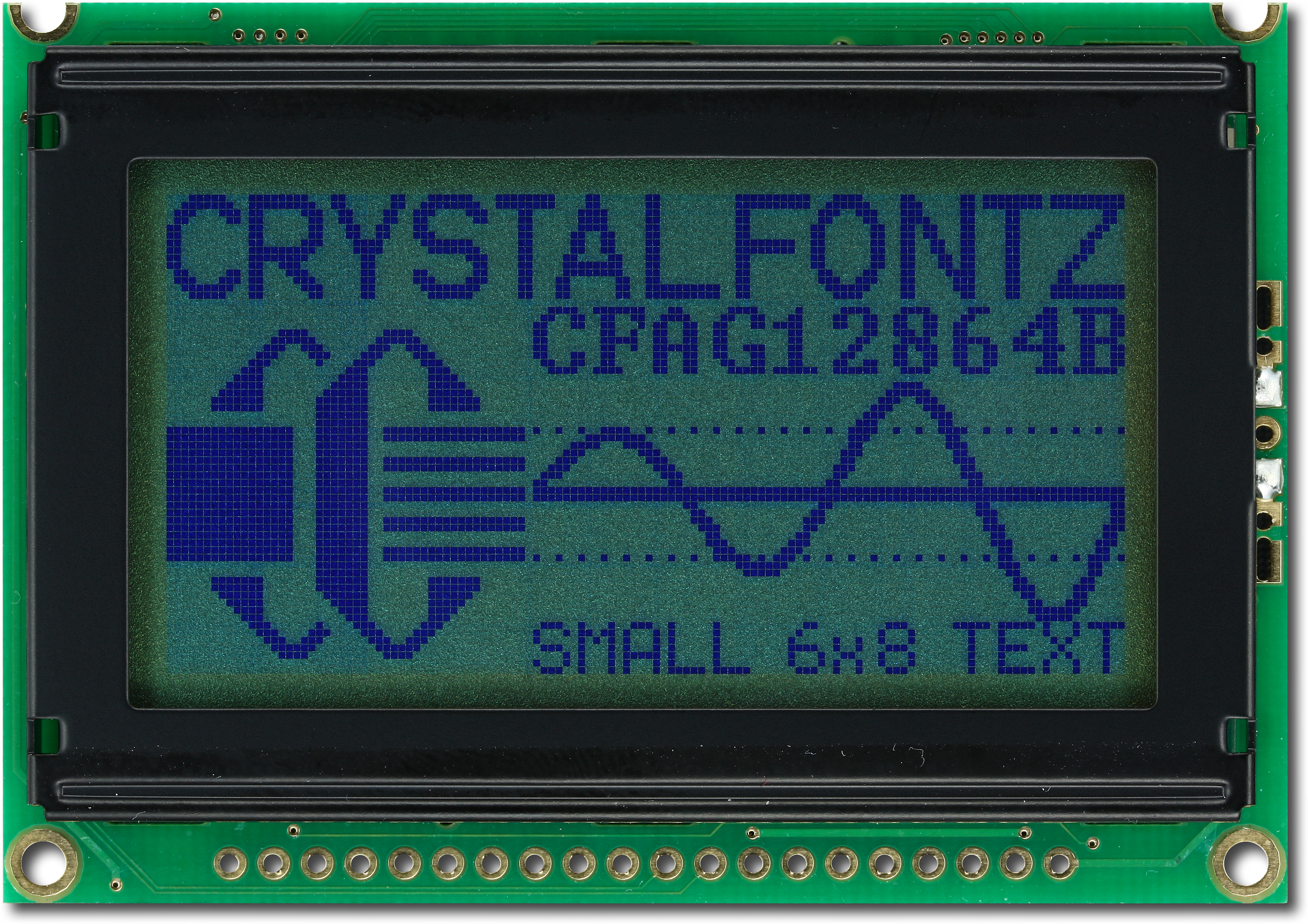

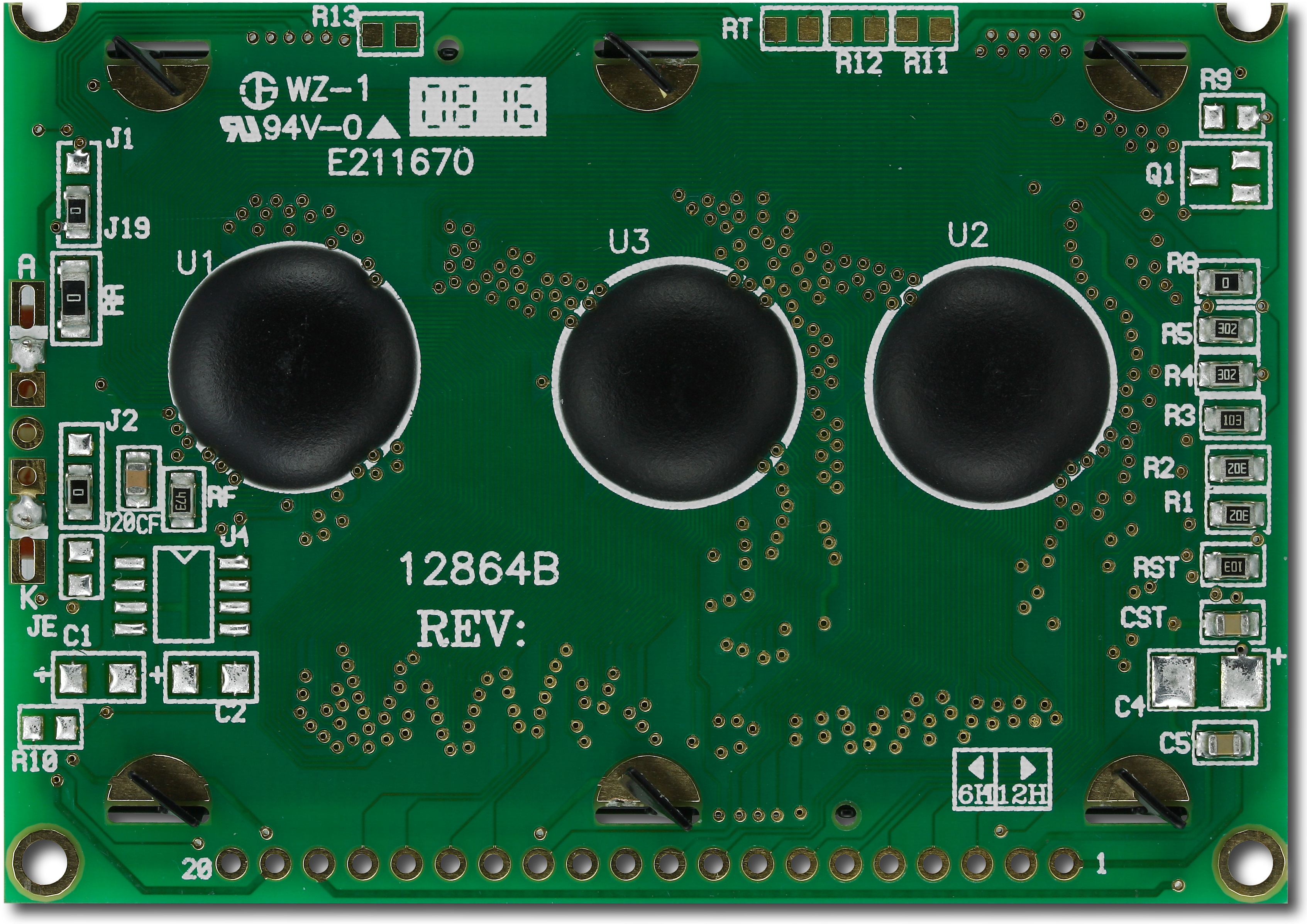

128x64 graphic LCD module
Available in several variations of backlight and polarizer  (minimum order may be required)
Wide temperature range: -20°C to 70°C (-4°F to 158°F)
Built-in controller: Samsung KS0107/KS0108
Demonstration board available here: CFA-10006
RoHS Compliant

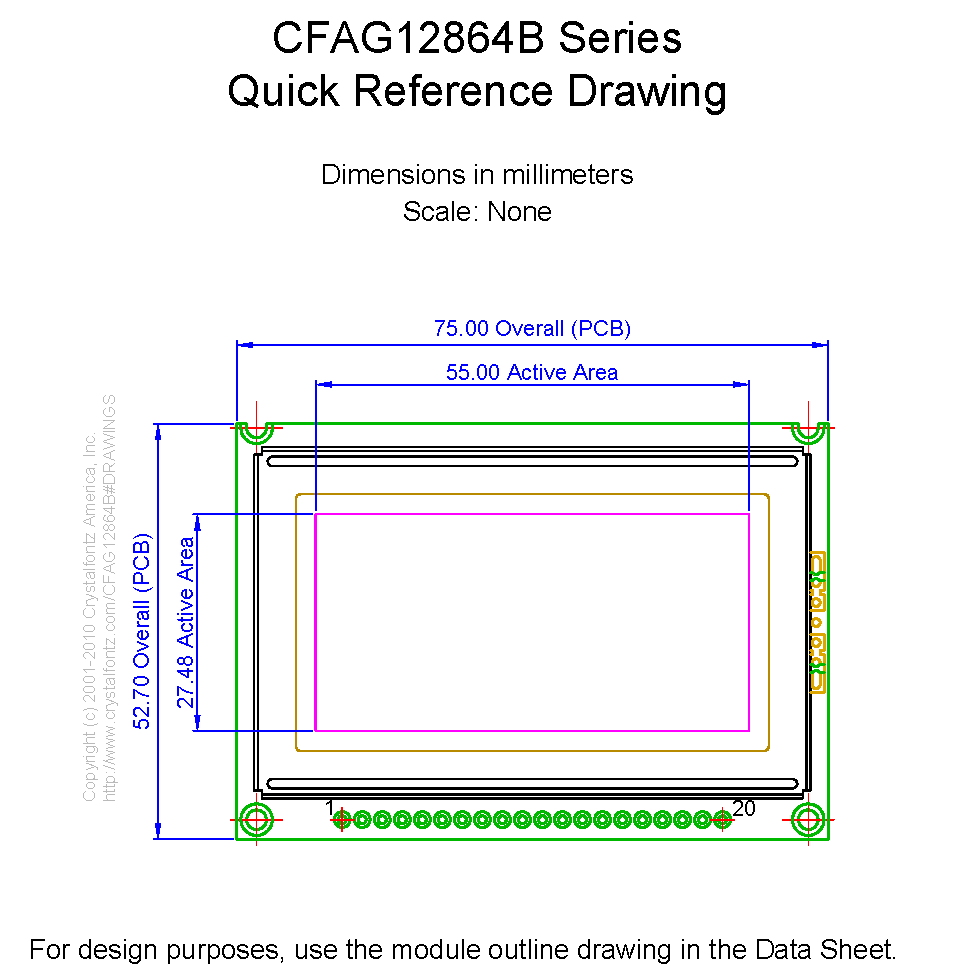

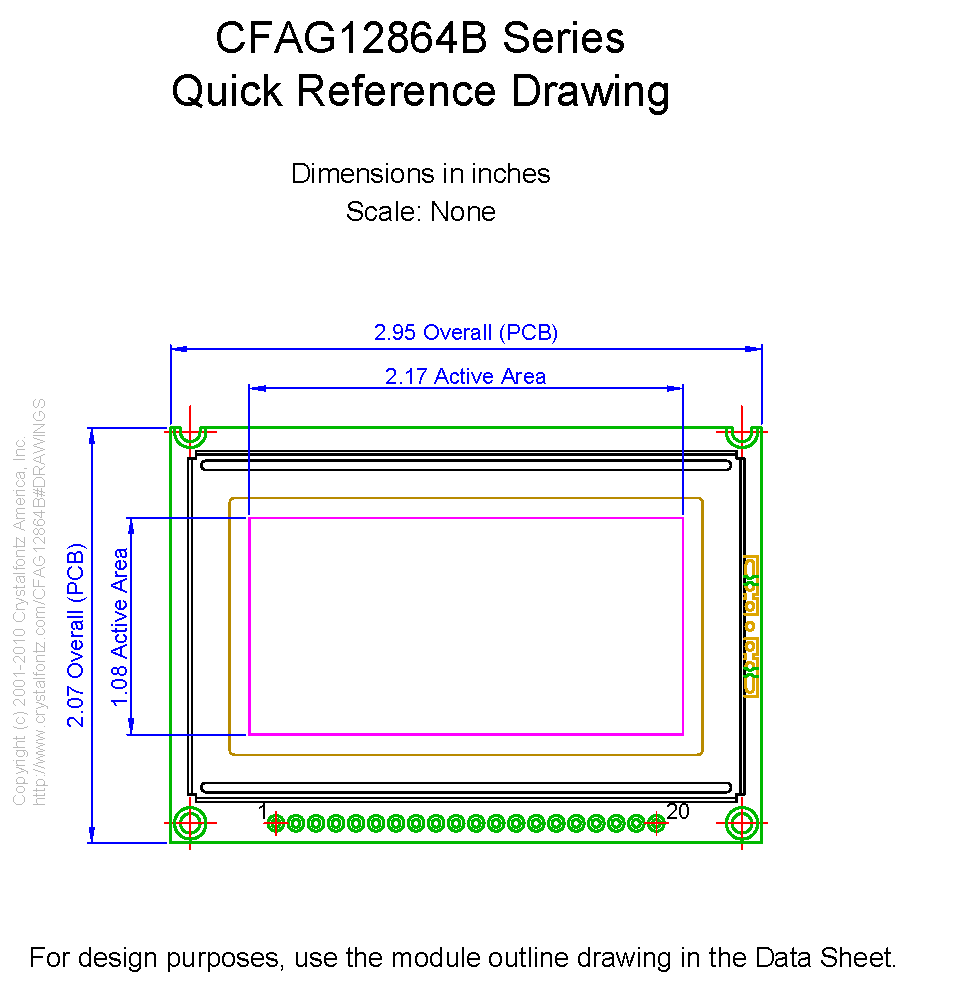

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        75
        52.7
        8.9

        inches
        2.95
        2.08
        0.35

    PCB Outline        width
        height
        depth

        millimeters
        75
        52.7
        8.9

        inches
        2.95
        2.08
        0.35

        Diagonal Dimension
            2.42"

    Viewing Area        Width
        Height

        millimeters
        60
        32.6

        inches
        2.36
        1.28

    Active Area        Width
        Height

        millimeters
        55
        27.48

        inches
        2.17
        1.08

    Dot Size        Width
        Height

        millimeters
        0.39
        0.39

        inches
        0.015
        0.015

    Dot Pitch        Width
        Height

        millimeters
        0.43
        0.43

        inches
        0.017
        0.017

        Weight
            31g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Gray
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            EL White
Backlight Type
            EL
Mode
            Positive
Foreground Color
            Dark
Background Color
            White

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Samsung S6B0107
S6B0107

64CH COMMON DRIVER FOR DOT MATRIX LCD
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG12864BWGHN v2.0.pdf
(Datasheet V 2.0, Hardware C)
Previous Versions of Datasheetpicture_as_pdfCFAG12864BWGHN.pdf

 download Files and Downloads
folder_zip CAD Export - CFAG12864B 2D CAD
picture_as_pdf 1 to 1 Template - CFAG12864B 1 TO 1.PDF

Other components worth considering

						LCD Starter Kit with Potentiometer
Everything you need to connect $12.59 ea.

Module Overall	width	height	depth
millimeters	75	52.7	8.9
inches	2.95	2.08	0.35

PCB Outline	width	height	depth
millimeters	75	52.7	8.9
inches	2.95	2.08	0.35

Viewing Area	Width	Height
millimeters	60	32.6
inches	2.36	1.28

Active Area	Width	Height
millimeters	55	27.48
inches	2.17	1.08

Dot Size	Width	Height
millimeters	0.39	0.39
inches	0.015	0.015

Dot Pitch	Width	Height
millimeters	0.43	0.43
inches	0.017	0.017

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10592: EL and CCFL backlight display modules End of Life

Products Affected:	CFAG12864B-WGH-N, CFAG12864B-WGH-V, CFAG320240CX-FMI-T, CFAG24064A-FMI-TZ, CFAG24064A-FTI-TZ, CFAX12864U1-WFH, CFAX12864T1-WFH, CFAX12864T-WFH, CFAX12864U-WFH
Date Issued:	June 13, 2014
Summary:	EL and CCFL backlight display modules End of Life
Last revision:	Varies
Description:	EL and CCFL backlight display module are going End Of Life 2014-06-31.
Reason:	Market trends and new product development have reduced demand for EL and CCFL backlights with a move to longer life and less expensive LED backlights. Backlight inverters that support EL and CCFL backlights are also EOL: https://www.crystalfontz.com/news/pcn.php?id=10591
Impact:	EL and CCFL backlight display modules will no longer be available.
Recommendation:	It is recommended that customers currently using EL or CCFL based modules to transition to an LED based counterpart. This will re
Availability:	Last orders must be received no later than 2014-06-31. Last shipments will be late September of 2014. Current inventory at Crystalfontz America will not be replenished and sold until exhausted.
Price Change:	No price change.
