This product is discontinued and has been replaced by CFAG128128I-TMI-VZ

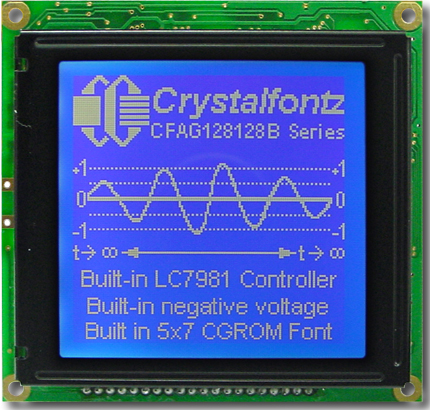

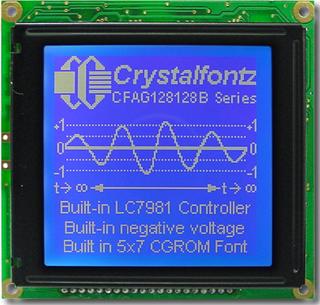

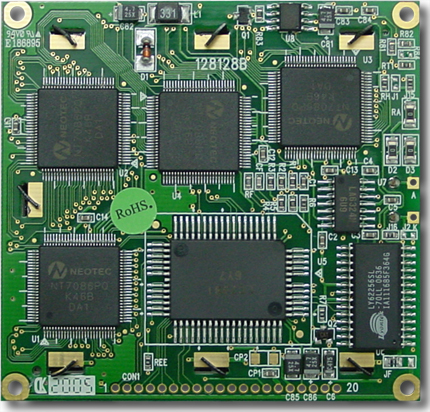

[EOL] Dark Blue 128x128 Graphic LCD

Part Number: CFAG128128B-TMI-VZ

  • Built-in Neotec NT7086 segment driver and Sanyo LC7981 controller
  • 128x128 graphic mode --or-- 21 x 16 text mode using built-in 5x7 Character Generator ROM.
  • Available in several variations of backlight and polarizer (minimum order may be required)
  • Wide temperature range: -20°C to 70°C (-4°F to 158°F)
  • RoHS Compliant
  • square_foot Physical Characteristics

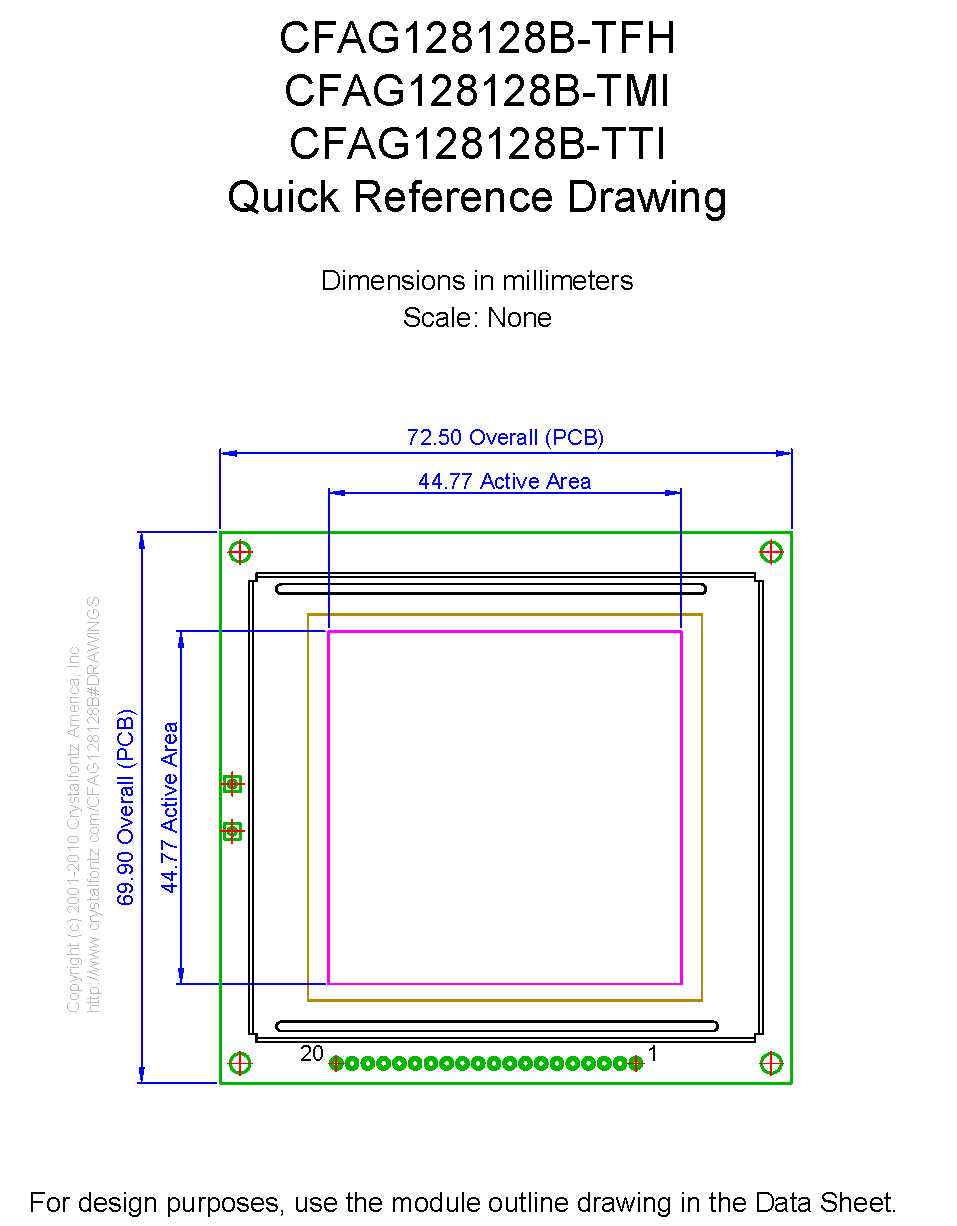

    Physical Characteristics

    Column Dots x Row Dots 128 x 128
    Module Overall width height depth
    millimeters 72.5 69.9 10.2
    inches 2.85 2.75 0.40
    PCB Outline width height depth
    millimeters 72.5 69.9 10.2
    inches 2.85 2.75 0.40
    Viewing Area Width Height
    millimeters 50 49
    inches 1.97 1.93
    Active Area Width Height
    millimeters 44.77 44.77
    inches 1.76 1.76
    Dot Size Width Height
    millimeters 0.32 0.32
    inches 0.013 0.013
    Dot Pitch Width Height
    millimeters 0.35 0.35
    inches 0.014 0.014
    Weight 58.8g
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type/Glass Color STN/Blue
    Polarizer Transmissive
    View Direction 6 o'clock
    Backlight Color White
    Backlight Type LED
    Mode Negative
    Foreground Color White
    Background Color Blue
  • electric_bolt Electrical Specification

    Electrical Specifications

    Module Connector Pitch 2mm
  • nature Environmental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
    Humidity min max
    Non-condensing 0% 90%
  • cable Electronics

    Electronics

    Controller Documents Raio Technology RA6963
    RA6963 Dot Matrix LCD Controller Specification
    Interface 8-bit Parallel
  • picture_as_pdf Datasheets
  • download Files and Downloads

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAG128128B-TMI-VZ or RSS RSS feed for changes to CFAG128128B-TMI-VZ
  • text_snippet
    Product Update #10462: (New Product) CFAG128128B-TMI-VZ
    New Product: CFAG128128B-TMI-VZ
    Date Issued: March 29, 2013
    Summary: (New Product) CFAG128128B-TMI-VZ
    Description: Under Standard Graphic Modules: 128x128 Graphic LCD, RoHS, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C to +70°C 6:00, Negative
  • text_snippet
    Product Update #10458: SANYO Semiconductor has announced a product discontinuance of the LC7981 LCD Controller. Please see the attachment below for the official release from SANYO Semiconductor.
    Products Affected: CFAG128128B-TFH-VZ, CFAG128128B-TMI-VZ, CFAG128128B-YYH-VZ, CFAG160160B-YYH-VU, CFAG160160B-TFH-VZ, CFAG160160B-TMI-VZ, CFAG16080A-TMI-TZ, CFAG16080A-YYH-TZ, CFAG240128D-FMI-T, CFAG240128D-TMI-TZ, CFAG240128D-YYH-TZ, CFAG128128B-TTI-VZ, CFAG192128A-TMI-TZ
    Date Issued: March 29, 2013
    Summary: SANYO Semiconductor has announced a product discontinuance of the LC7981 LCD Controller. Please see the attachment below for the official release from SANYO Semiconductor.
    Description: SANYO Semiconductor has announced product discontinuance of the LC7981 LCD Controller. At this time SANYO has no plans to provide a replacement for the LC7981 which is used in several products as an LCD controller. Our partner factory is making a lifetime buy of the LC7981.
    Reason: SANYO Semiconductor has announced the end of life of the LC7981 LCD Controller.
    Impact: Below are the product families that are affected by this end of life notice.

    CFAG128128B
    CFAG160160B
    CFAG16080A
    CFAG240128D
    CFAG192128A


    Recommendation: We are requesting that you provide us with a forecast of what your company would need to make it through the end of 2014. This would be considered a life time buy and would require 100% payment up front. We would need to have all final Purchase Orders submitted to us by no later than April 15th 2013 so we can make proper allocation and purchasing arrangements.
    Availability: At this time we have no suitable replacements for the following product families:

    CFAG192128A
    CFAG160160B


    The following product families have parts available with the same active area, however; these parts would require changes in your product:

    EOL Product / Potential Replacement
    CFAG128128B / CFAG128128C
    CFAG16080A / CFAG16080C1 (additional data forthcoming)
    CFAG240128D / CFAG240128B/E/T3

    Updated: 2013-04-15
    Response: We are requesting that you provide us with a forecast of what your company would need to make it through the end of 2014. This would be considered a life time buy and would require 100% payment up front. We would need to have all final Purchase Orders submitted to us by no later than April 15th 2013 so we can make proper allocation and purchasing arrangements.
    Attachment: ProductDiscontinuanceSTNDriver130116.pdf (11KB)
