            This product has reached end of life. We recommend the CFAG128128A1-TMI-TZ as a replacement.  Please contact support@crystalfontz.com with any questions.
EOL 128x128 Parallel Graphic LCDPart Number: CFAG128128A-TMI-TZ128x128 Graphic LCD, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C to +70°C 6:00 viewing angle. Negative Voltage Generator, Temperature Compensation

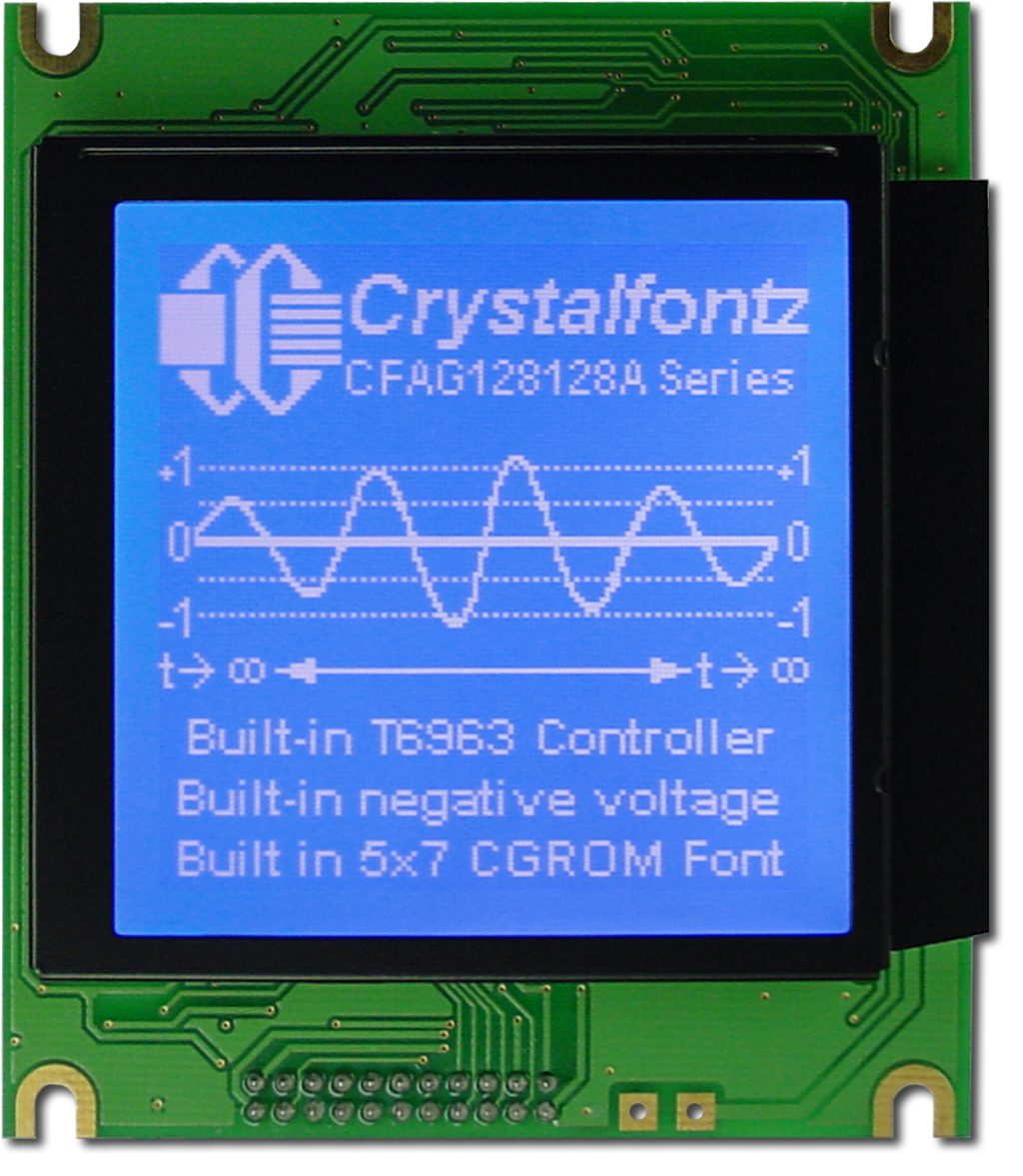

128x128 graphic LCD module
Built-in Toshiba T6963C or compatible controller
128x128 graphic mode --or-- 21 x 16 text mode using built-in 5x7 Character Generator ROM.
Available in several variations of backlight and polarizer  (minimum order may be required)

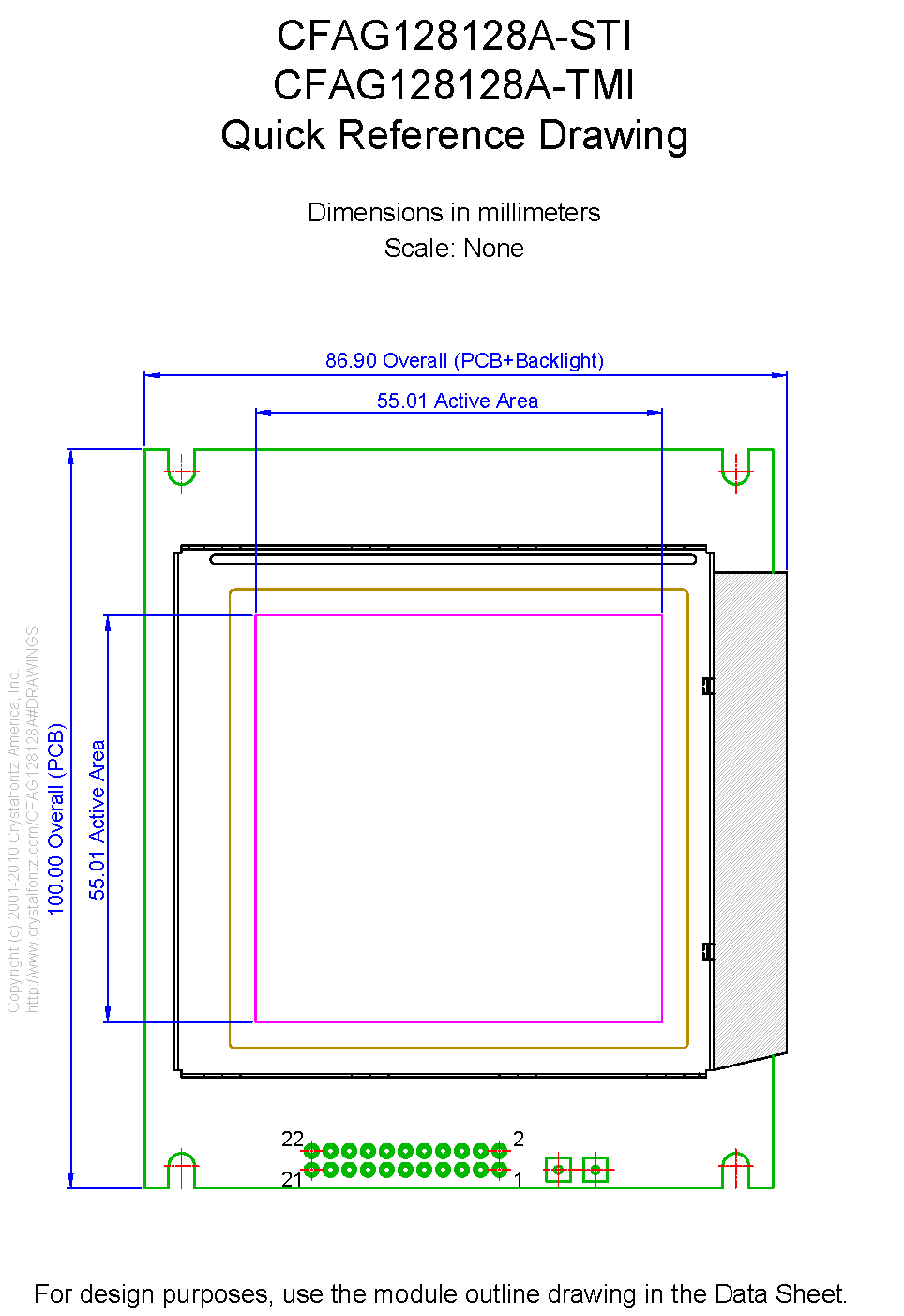

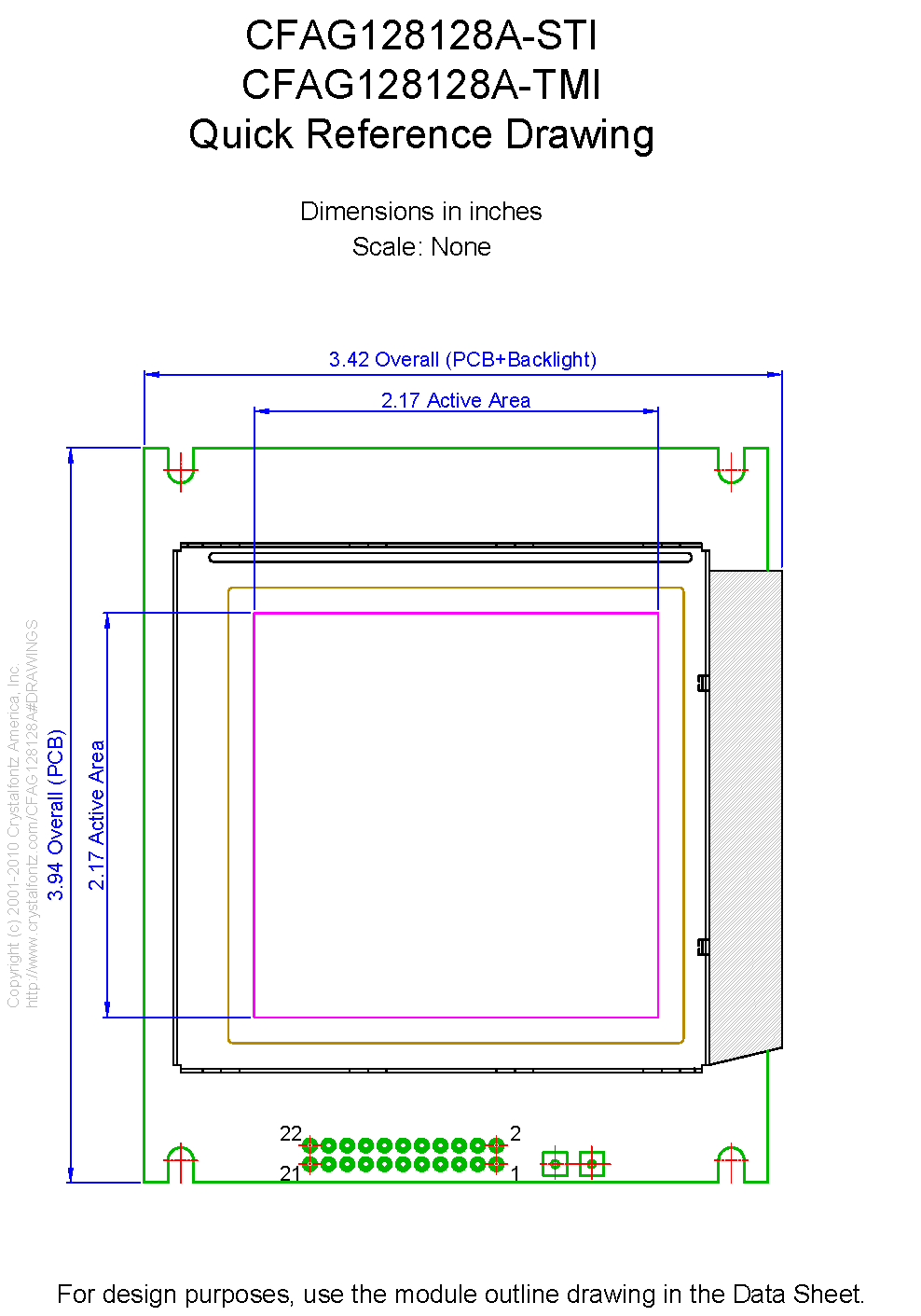

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 128

    Module Overall        width
        height
        depth

        millimeters
        86.9
        100
        14.5

        inches
        3.42
        3.94
        0.57

    PCB Outline        width
        height
        depth

        millimeters
        85
        100
        14.5

        inches
        3.35
        3.94
        0.57

        Diagonal Dimension
            3.06"

    Viewing Area        Width
        Height

        millimeters
        62
        62

        inches
        2.44
        2.44

    Active Area        Width
        Height

        millimeters
        55.01
        55.01

        inches
        2.17
        2.17

    Dot Size        Width
        Height

        millimeters
        0.4
        0.4

        inches
        0.016
        0.016

    Dot Pitch        Width
        Height

        millimeters
        0.43
        0.43

        inches
        0.017
        0.017

        Weight
            102g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Raio Technology RA6963
RA6963 Dot Matrix LCD Controller Specification
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG128128ATMITZ Datasheet

Previous Versions of Datasheetspicture_as_pdfCFAG128128ATMITZ.pdf

picture_as_pdfCFAG128128A-xxx-TZ Preliminary Data Sheet Release 2014-07-08.pdf

 download Files and Downloads
folder_zip Software Source - Arduino T6963 Demo Code
folder_zip CAD Export - CFAG128128A-STI-TMI 2D CAD
picture_as_pdf 1 to 1 Template - CFAG128128A-STI-TMI 1 TO 1.PDF

Other components worth considering

						72 Pin Header
Add (5) 72-pin headers? $0.66 ea.

Module Overall	width	height	depth
millimeters	86.9	100	14.5
inches	3.42	3.94	0.57

PCB Outline	width	height	depth
millimeters	85	100	14.5
inches	3.35	3.94	0.57

Viewing Area	Width	Height
millimeters	62	62
inches	2.44	2.44

Active Area	Width	Height
millimeters	55.01	55.01
inches	2.17	2.17

Dot Size	Width	Height
millimeters	0.4	0.4
inches	0.016	0.016

Dot Pitch	Width	Height
millimeters	0.43	0.43
inches	0.017	0.017

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11096: End-Of-Life Notification

Products Affected:	CFAG160128B-YYH-TZ, CFAG160128B-TMI-TZ, CFAG128128A-TMI-TZ, CFAG128128A-YYH-TZ, CFAG12864D-YYH-TZ, CFAG12864G-TMI-TY, CFAG12864G-YYH-TY, CFAG128128I-TFH-VZ, CFAG128128I-TMI-VZ, CFAG128128I-YYH-VZ
Date Issued:	July 30, 2021
Summary:	End-Of-Life Notification
Description:	The current display controller is going EOL and being replaced by RA6963-N1. The replacement parts will be posted on the product web page of the original part.
Reason:	The controller RA6963-N has gone EOL.

Part Change Notice #10934: The parts listed above are being updated.

Products Affected:	CFAG128128A-TMI-TZ, CFAG128128A-YYH-TZ
Date Issued:	February 28, 2018
Summary:	The parts listed above are being updated.

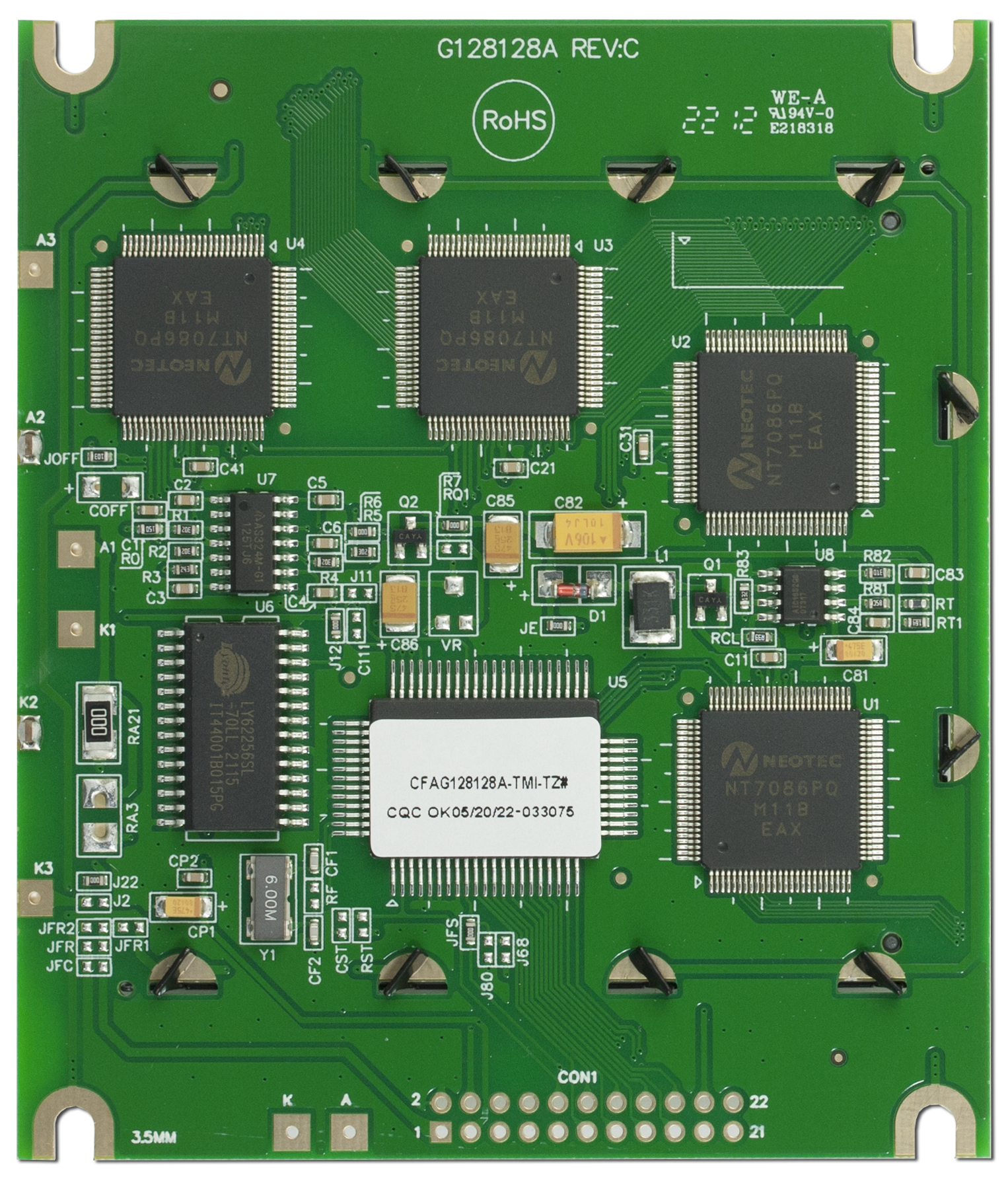

Description:	The printed circuit board is being revised to improve operation and manufacturability
Reason:	Continuing Product Improvement
Impact:	The revision letter of the printed circuit board will change. The operation of the modules will not be affected.
Availability:	The revised modules will be available as current stocks are replenished
Price Change:	None
