            This product has reached end of life  We don't have a recommended replacement however, we have many other 128x128 Graphic LCD Displays available.
128x128  Parallel Graphic LCD (EOL)Part Number: CFAG128128A-STI-TZ128x128 Graphic LCD, RoHS Compliant, High Output White Edge LED Backlight, FSTN Negative, Transmissive -20°C to +70°C 6:00 viewing angle. Negative Voltage Generator, Temperature Compensation

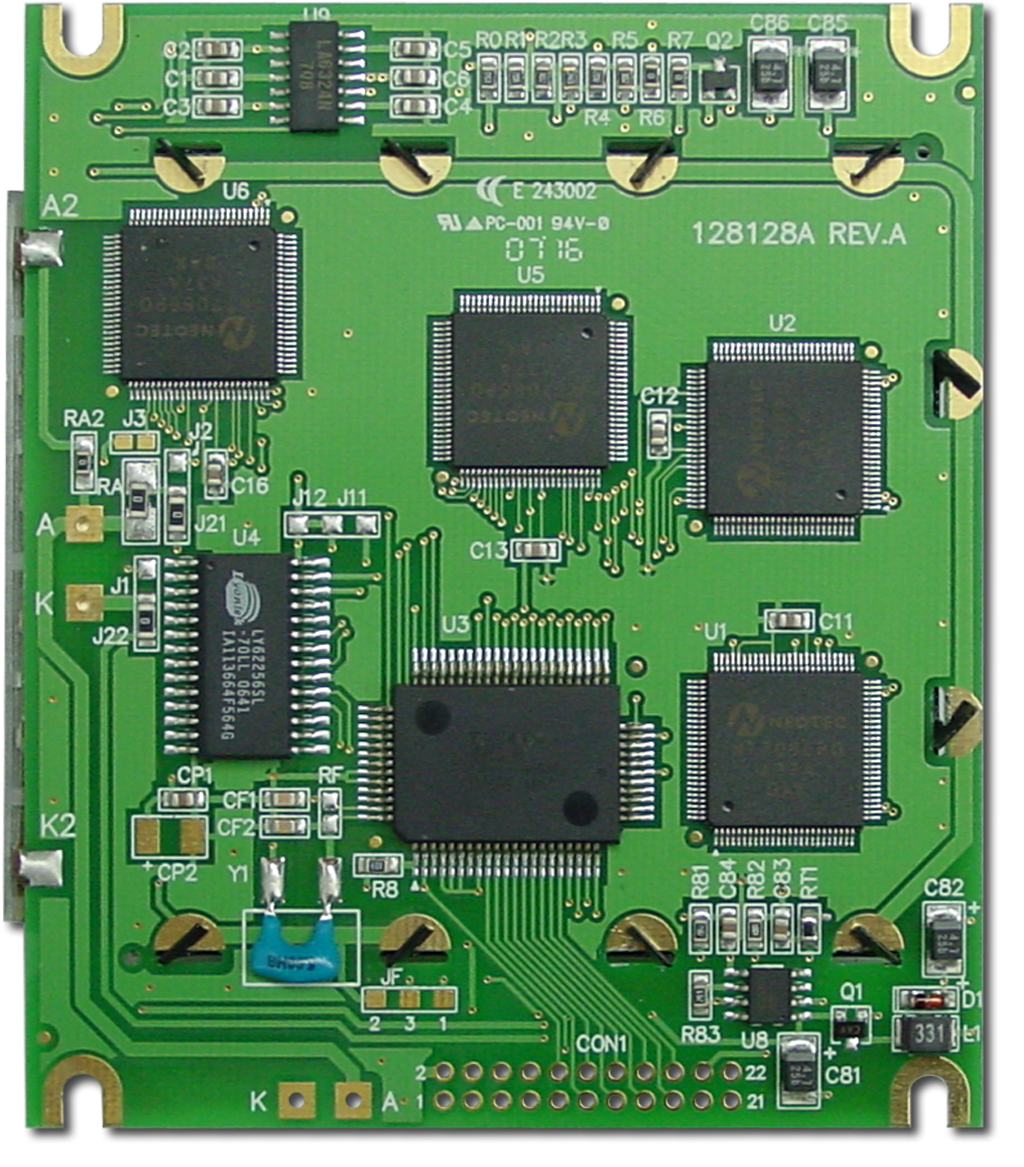

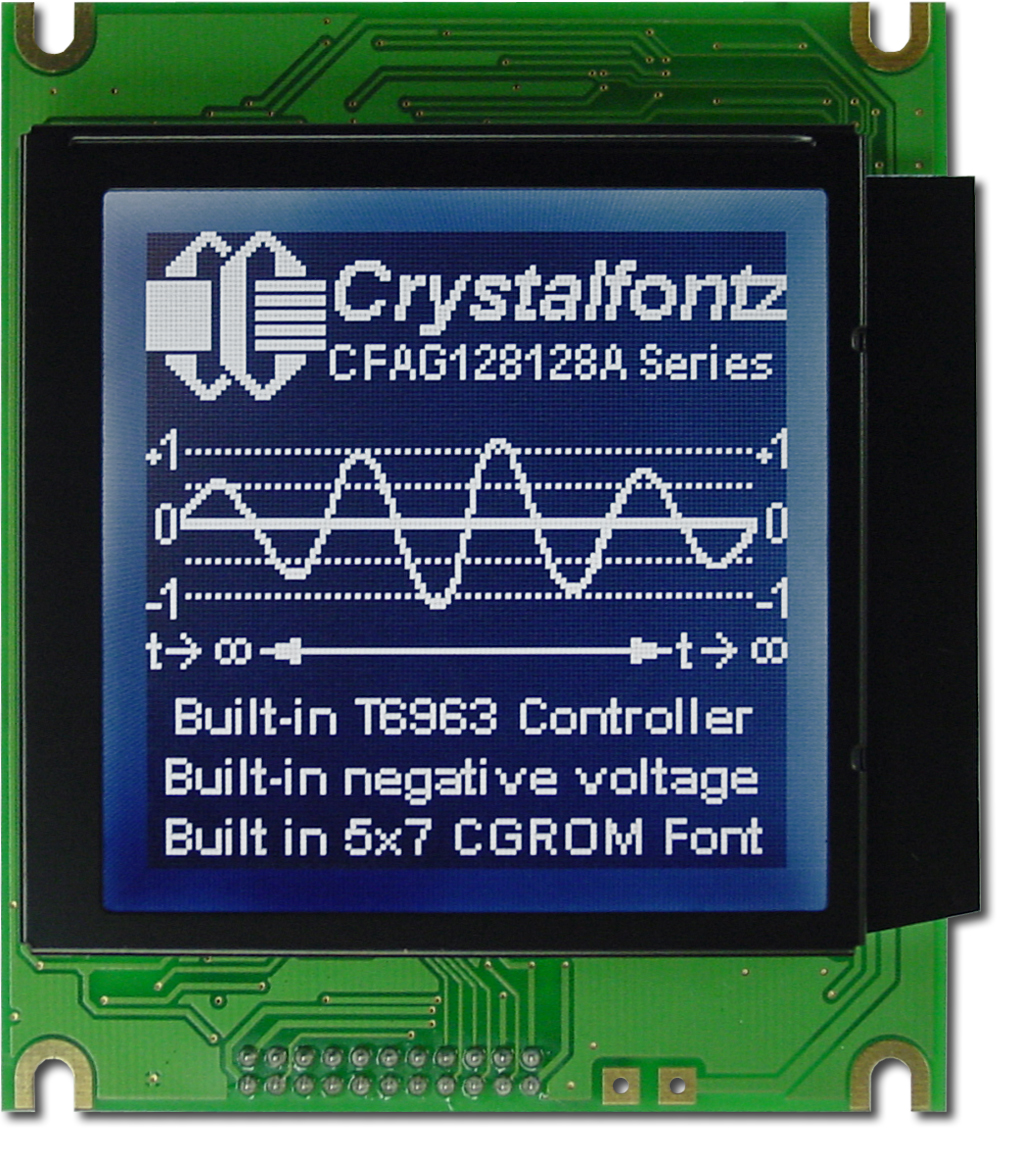

128x128 graphic LCD module
Built-in Toshiba T6963C or compatible controller
128x128 graphic mode --or-- 21 x 16 text mode using built-in 5x7 Character Generator ROM.
Available in several variations of backlight and polarizer  (minimum order may be required)
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 128

    Module Overall        width
        height
        depth

        millimeters
        86.9
        100
        14.5

        inches
        3.42
        3.94
        0.57

    PCB Outline        width
        height
        depth

        millimeters
        85
        100
        14.5

        inches
        3.35
        3.94
        0.57

        Diagonal Dimension
            3.06"

    Viewing Area        Width
        Height

        millimeters
        62
        62

        inches
        2.44
        2.44

    Active Area        Width
        Height

        millimeters
        55.01
        55.01

        inches
        2.17
        2.17

    Dot Size        Width
        Height

        millimeters
        0.4
        0.4

        inches
        0.016
        0.016

    Dot Pitch        Width
        Height

        millimeters
        0.43
        0.43

        inches
        0.017
        0.017

        Weight
            103g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Black
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Toshiba T6963C
T6963C

DOT MATRIX LCD CONTROLLER LSI
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG128128ASTITZ.pdf
(Hardware A)
Previous Versions of Datasheetpicture_as_pdfCFAG128128ASTITZ.pdf

 download Files and Downloads
folder_zip CAD Export - CFAG128128A-STI-TMI 2D CAD
picture_as_pdf 1 to 1 Template - CFAG128128A-STI-TMI 1 TO 1.PDF

Module Overall	width	height	depth
millimeters	86.9	100	14.5
inches	3.42	3.94	0.57

PCB Outline	width	height	depth
millimeters	85	100	14.5
inches	3.35	3.94	0.57

Viewing Area	Width	Height
millimeters	62	62
inches	2.44	2.44

Active Area	Width	Height
millimeters	55.01	55.01
inches	2.17	2.17

Dot Size	Width	Height
millimeters	0.4	0.4
inches	0.016	0.016

Dot Pitch	Width	Height
millimeters	0.43	0.43
inches	0.017	0.017

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10935: End-of-Life Notification

Products Affected:	CFAG128128A-STI-TZ, CFAG128128A-YGH-TZ
Date Issued:	February 28, 2018
Summary:	End-of-Life Notification
Description:	The parts listed above have been assigned to End-of-Life Status.
Reason:	Critical parts are no longer available.
Impact:	No replacement is planned. Once current stock is depleted, the parts will no longer be available.
Recommendation:	These parts are not recommended for new designs.
Availability:	Current stock only
Price Change:	The remaining CFAG128128A stock has been placed in our Discounted Products category and marked down.
