122x32 Graphic White on Blue LCD from Crystalfontz

Product

Home » Products » Graphic LCD Displays » Interface » 8-bit Parallel

                This module is end-of-life and is being replaced with the CFAG12232A1-TMI-TJ as soon as it's available. Any backorders placed will be fulfilled with the new part. Please contact support with any questions.
122x32 Graphic White on Blue LCDPart Number: CFAG12232A-TMI-TA122x32 Graphic LCD, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C to +70°C 6:00
Form compatible with the CFAH1602A Series of Character LCD modules. Upgrade your product that uses a CFAH1602A character display by switching to this graphic CFAG12232A, or, lower your costs by replacing this graphic with that character module

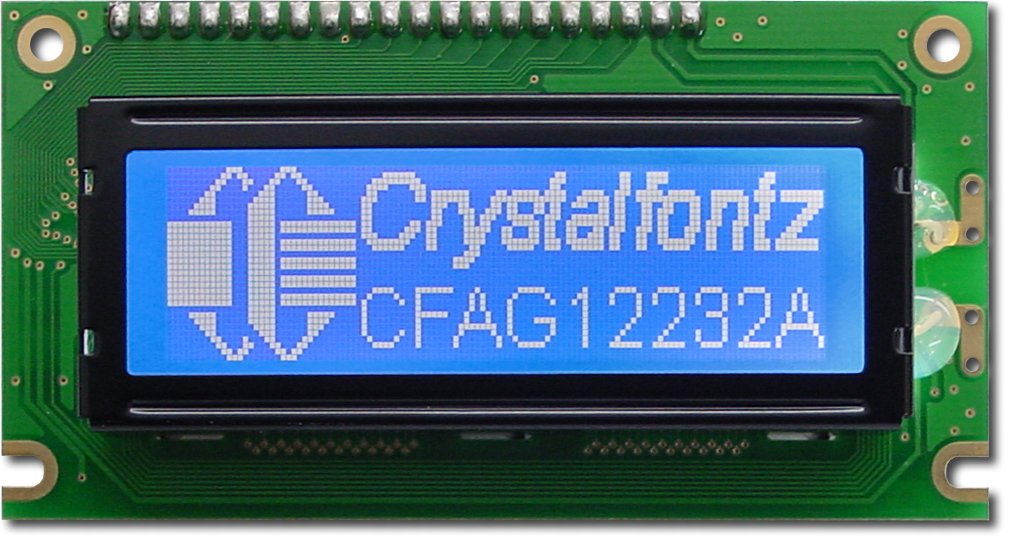

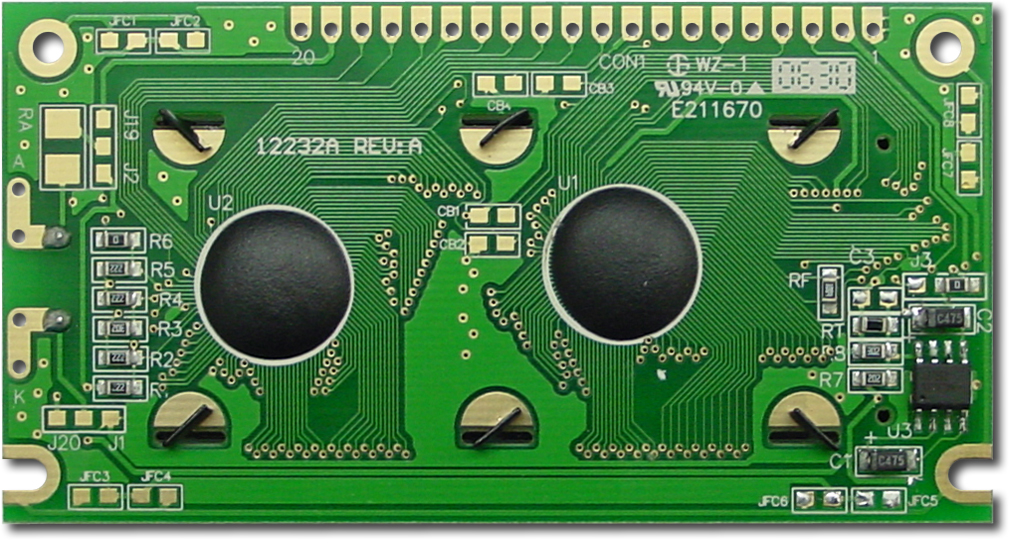

122x32 Graphic LCD Module
Available in several variations of backlight and polarizer  (minimum order may be required)
Built-in Avant SBN1661G or compatible controller (SED1520 compatible)
8-bit parallel interface
Product Variations

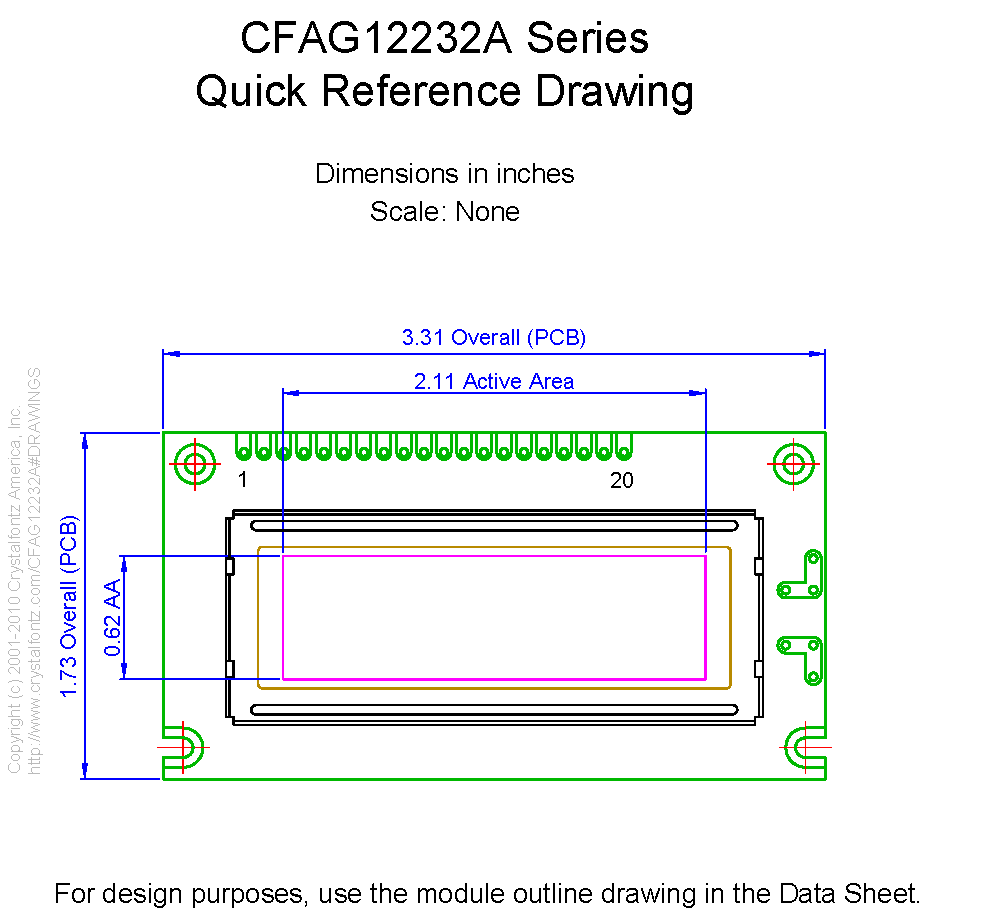

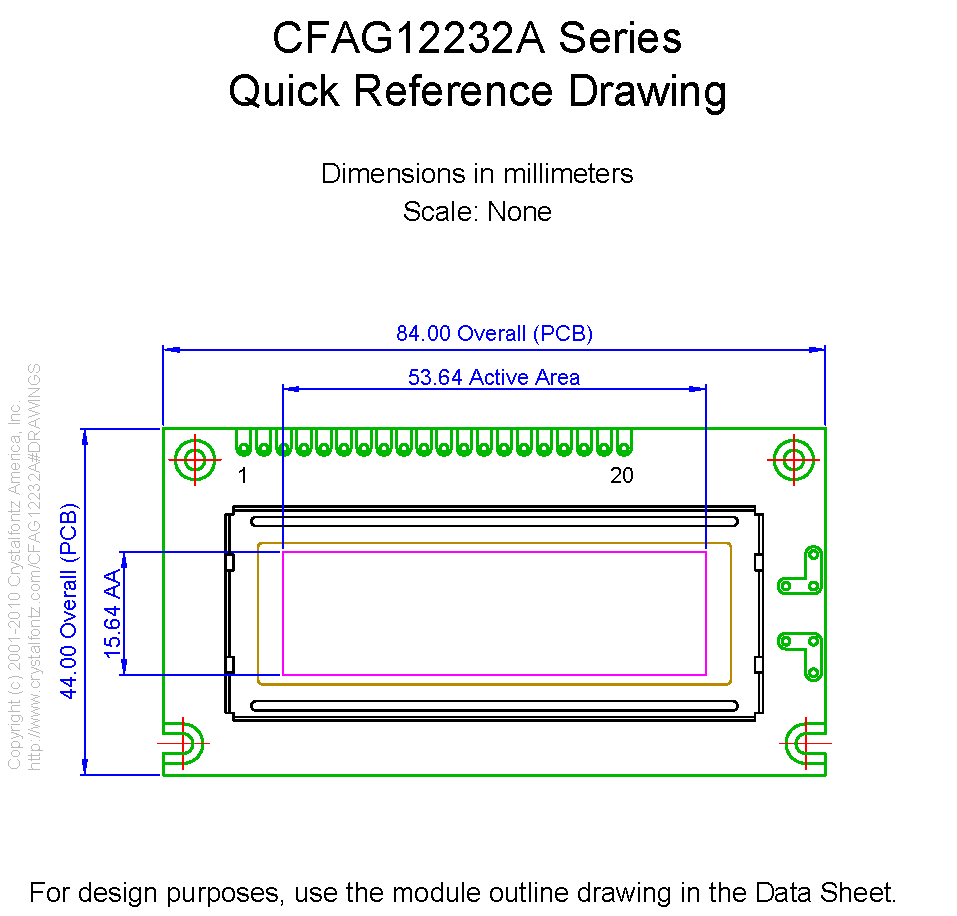

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            122 x 32


    Module Overall        width
        height
        depth


        millimeters
        84
        44
        13.7


        inches
        3.31
        1.73
        0.54



    PCB Outline        width
        height
        depth


        millimeters
        84
        44
        13.7


        inches
        3.31
        1.73
        0.54



        Diagonal Dimension
            2.2"


    Viewing Area        Width
        Height


        millimeters
        60
        18


        inches
        2.36
        0.71



    Active Area        Width
        Height


        millimeters
        53.64
        15.64


        inches
        2.11
        0.62



    Dot Size        Width
        Height


        millimeters
        0.4
        0.45


        inches
        0.016
        0.018



    Dot Pitch        Width
        Height


        millimeters
        0.44
        0.44


        inches
        0.017
        0.017



        Weight
            40g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.7V
Supply Voltage for Logic Maximum
            5.3V
Supply Voltage for Logic Typical
            5V
Supply Voltage for Driving Panel Typical
            4.45V


        Supply Current Minimum
            0.8mA
Supply Current Maximum
            1.2mA
Supply Current Typical
            1mA
Module Connector Pitch
            0.1mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            3.4V
Forward Voltage Maximum
            3.6V
Forward Voltage Typical
            3.5V


        Forward Current Minimum
            24mA
Forward Current Maximum
            40mA
Forward Current Typical
            32mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Avant SBN1661G
SBN1661G_M18,

SBN1661G_M02,

SBN0080G_S18,

SBN0080G_S02

Dot-matrix STN LCD Driver

with 32-row x 80-column

Display Data Memory
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG12232ATMITA Datasheet

 download Files and Downloads
picture_as_pdf Hardware Design - ST7920 Interface Selection Table
folder_zip CAD Export - CFAG12232A 2D CAD
picture_as_pdf 1 to 1 Template - CFAG12232A 1 TO 1.PDF
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH











Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1 *
            $19.85

            5 *
            $18.32

            10 *
            $16.14

            20 *
            $15.67

            50 *
            $15.10

            100 *
            $14.91

            200 *
            $14.81

            300 *
            $13.98

            500 *
            $13.88

            1000 *
            $13.16

0 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering


						LCD Starter Kit with Potentiometer
Everything you need to connect $12.59 ea.





Module Overall	width	height	depth
millimeters	84	44	13.7
inches	3.31	1.73	0.54

PCB Outline	width	height	depth
millimeters	84	44	13.7
inches	3.31	1.73	0.54

Viewing Area	Width	Height
millimeters	60	18
inches	2.36	0.71

Active Area	Width	Height
millimeters	53.64	15.64
inches	2.11	0.62

Dot Size	Width	Height
millimeters	0.4	0.45
inches	0.016	0.018

Dot Pitch	Width	Height
millimeters	0.44	0.44
inches	0.017	0.017

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1 *	$19.85
5 *	$18.32
10 *	$16.14
20 *	$15.67
50 *	$15.10
100 *	$14.91
200 *	$14.81
300 *	$13.98
500 *	$13.88
1000 *	$13.16
