5" 800x480 TFT DisplayPart Number: CFAF800480E0-050SN

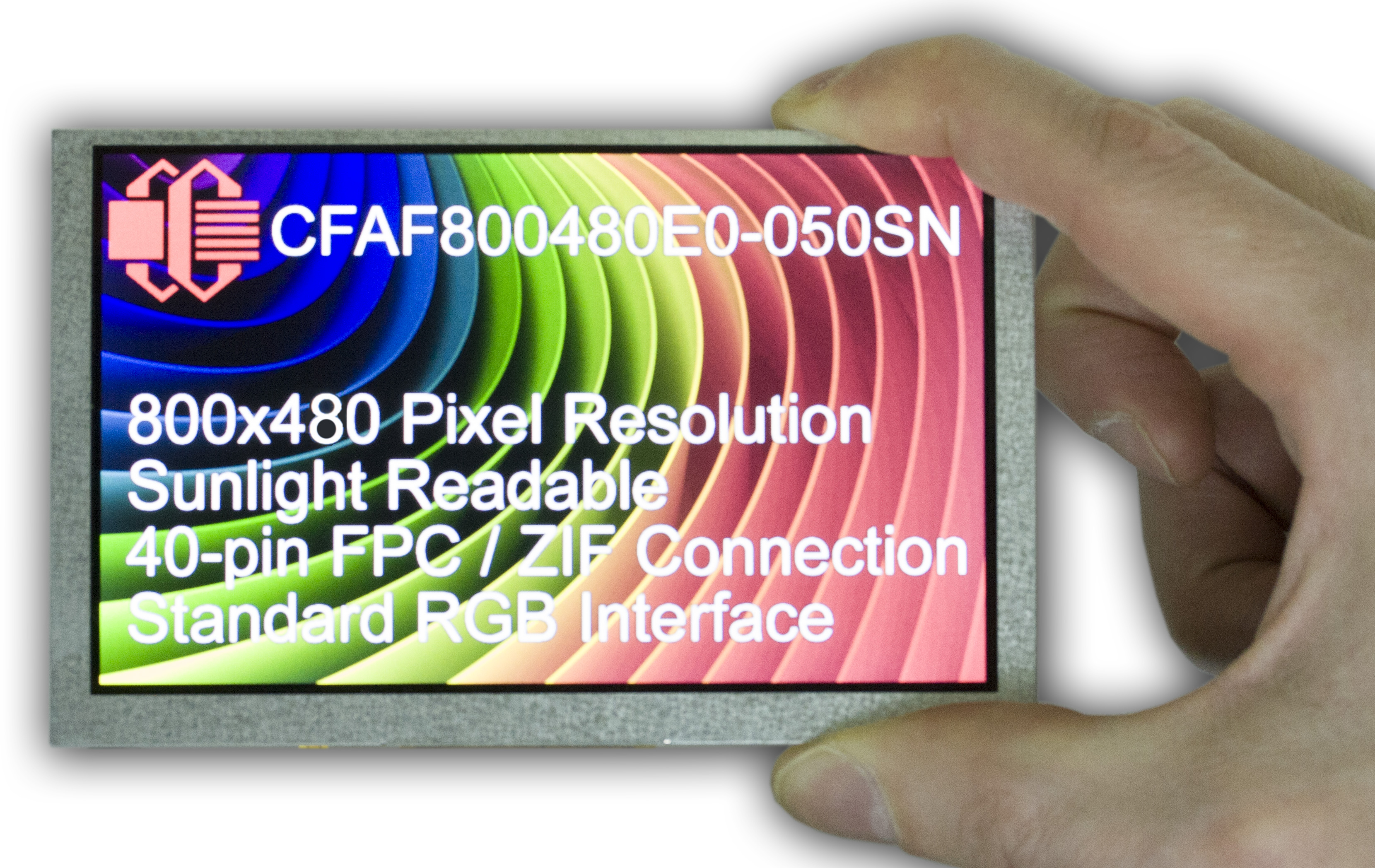

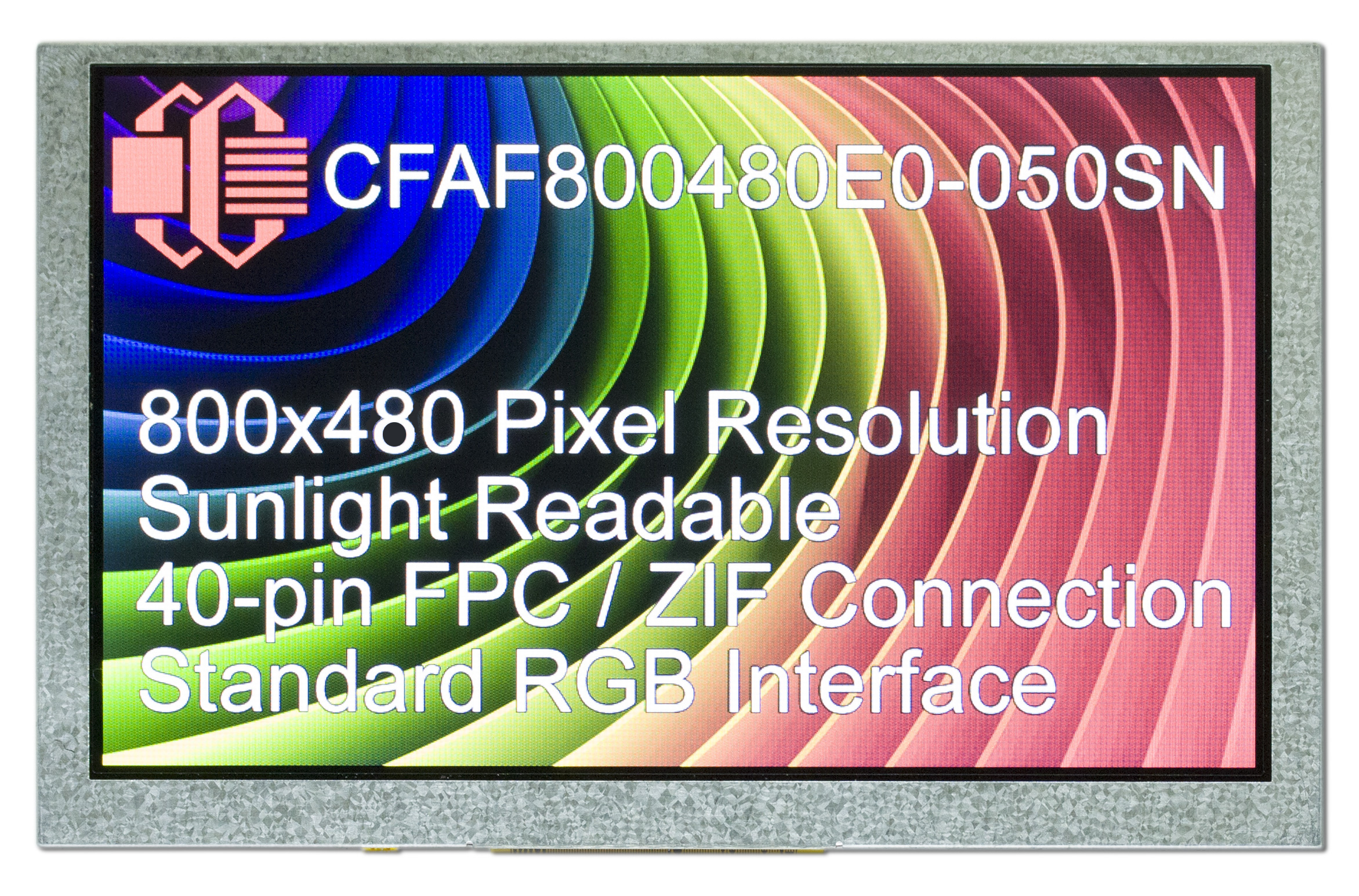

    Super-bright, sunlight readable 5" TFTLCD Display. This 5-inch display has a 12 o'clock viewing direction and 70° viewing angle. It features a standard 40-pin FPC / ZIF connection and an RGB interface. This model doesn't have a touchscreen. It utilizes the Ilitek ILI6122 LCD driver.

This little TFT display is perfect for outdoor, handheld uses that require a bright, full-color display solution.Product Variations

 square_foot Physical Characteristics

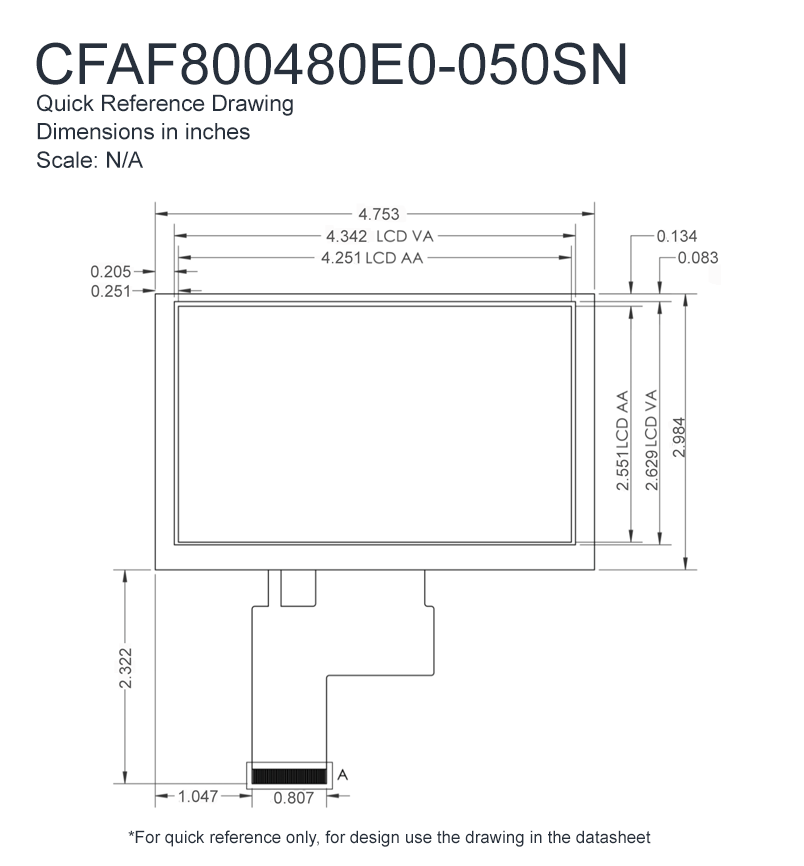

Physical Characteristics

        Column Dots x Row Dots
            800 x 480

    Module Overall        width
        height
        depth

        millimeters
        120.7
        75.8
        2.85

        inches
        4.75
        2.98
        0.11

*width / height does not include Foldable Tab

        Diagonal Dimension
            4.96"

    Viewing Area        Width
        Height

        millimeters
        110.3
        66.8

        inches
        4.34
        2.63

    Active Area        Width
        Height

        millimeters
        108
        64.8

        inches
        4.25
        2.55

    Dot Pitch        Width
        Height

        millimeters
        0.135
        0.135

        inches
        0.0053
        0.0053

        Optional Connectors
            CS050Z40GB0

    Flexible Cable (FFC/FPC)        length

        millimeters
        59

        inches
        2.323

        Weight
            56g

 visibility Optical Characteristics
Optical Characteristics

        Polarizer
            Transmissive
View Direction
            12 o'clock
View Angle
            70°
Sunlight Readable
            Yes

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            3.6V

        Supply Voltage for Logic Typical
            3.3V
Supply Current Typical
            100mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Typical
            15V

        Forward Current Maximum
            120mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Controller Documents
            Ilitek ILI6122
1200-Output Channel

TFT LCD Source Driver with TCON
Interface
            DOT-CLK interface / Generic RGB

 picture_as_pdf Datasheets
picture_as_pdfCFAF800480E0-050SN Datasheet

Module Overall	width	height	depth
millimeters	120.7	75.8	2.85
inches	4.75	2.98	0.11
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	110.3	66.8
inches	4.34	2.63

Active Area	Width	Height
millimeters	108	64.8
inches	4.25	2.55

Dot Pitch	Width	Height
millimeters	0.135	0.135
inches	0.0053	0.0053

Flexible Cable (FFC/FPC)	length
millimeters	59
inches	2.323

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Pin Table
Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11063: CFAF800480E0-050SN End-Of-Life Notification

Product Affected:	CFAF800480E0-050SN
Date Issued:	March 24, 2020
Summary:	CFAF800480E0-050SN End-Of-Life Notification
Description:	The part listed is being set to End of Life
Reason:	We have switched production to another partner factory
Impact:	This part will be replaced by the CFAF800480E1-050SN. This is a direct replacement. The only difference is the max backlight current and part number change
Recommendation:	Customers are recommended to purchase samples to test in existing systems.
Availability:	The new part will be available when current stocks of the CFAF800480E0-050SN are depleted.
Price Change:	There will be a price change. Contact sales@crystalfontz.com for more information
