5" 800x480 Touch Screen Color TFT from Crystalfontz

Product

5" 800x480 Touch Screen Color TFTPart Number: CFAF800480A-050T-TS This product is still available via special order but is not recommended for new designs. For new designs, check out the CFAF800480E1-050SR

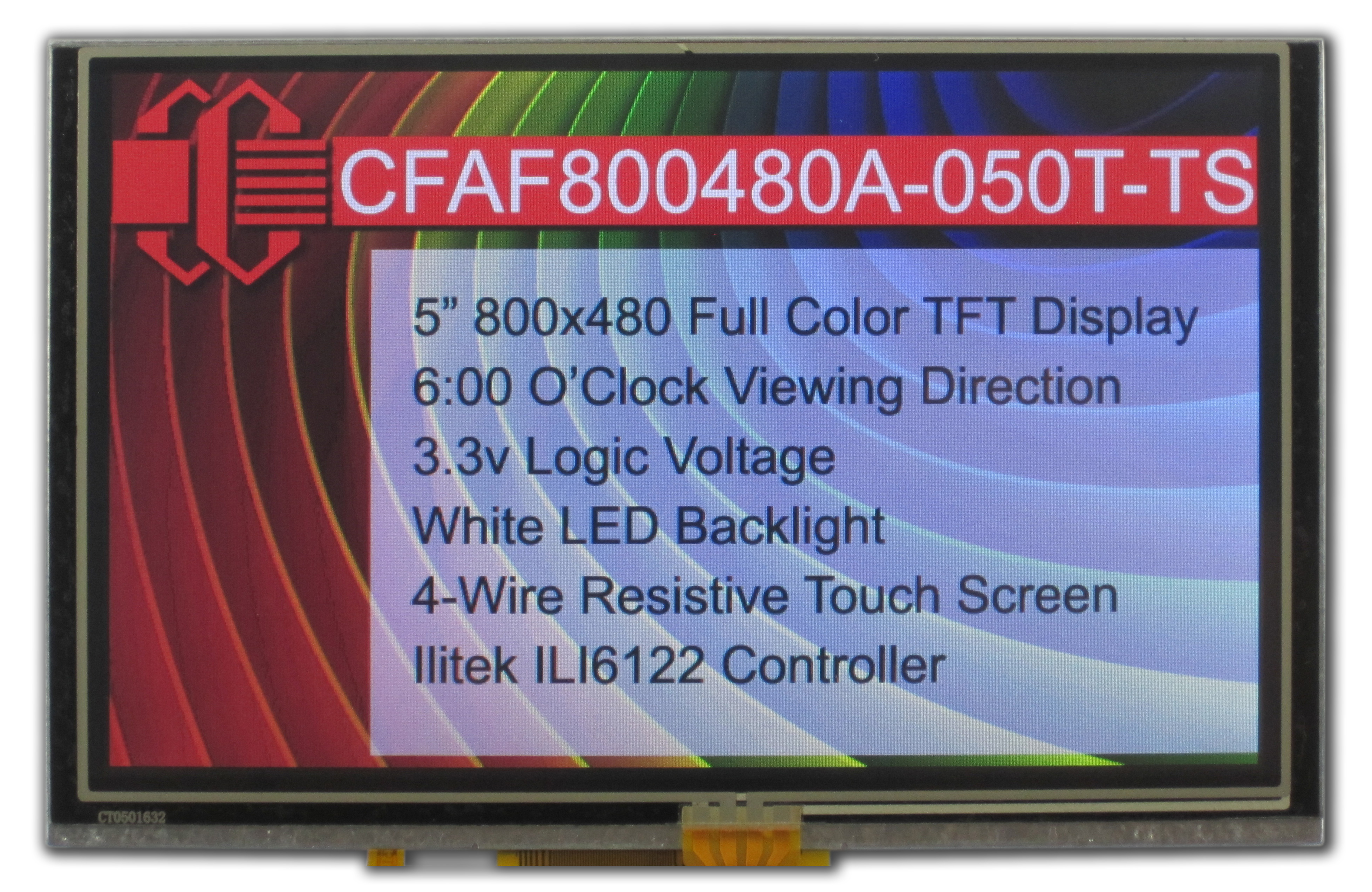

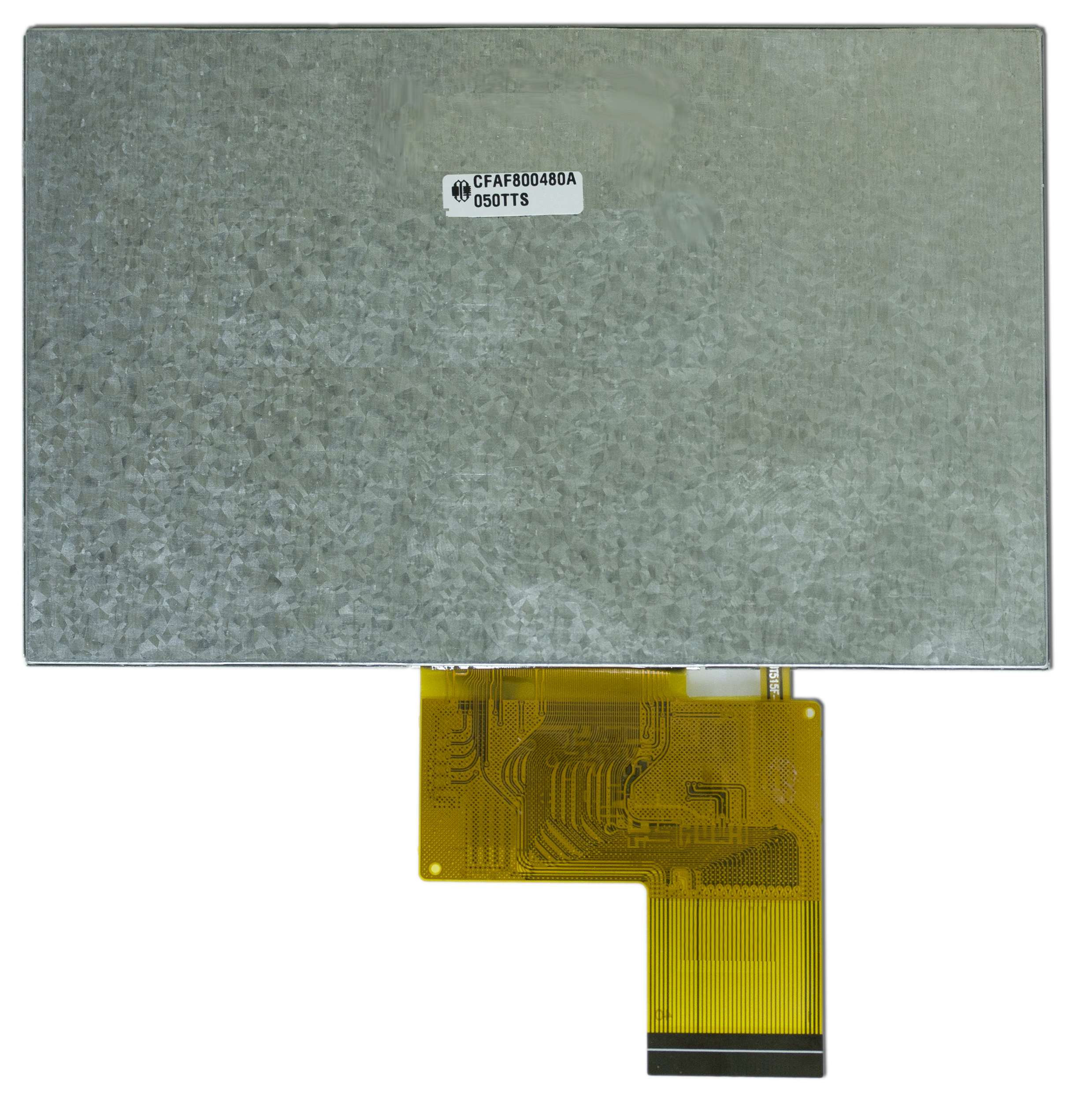

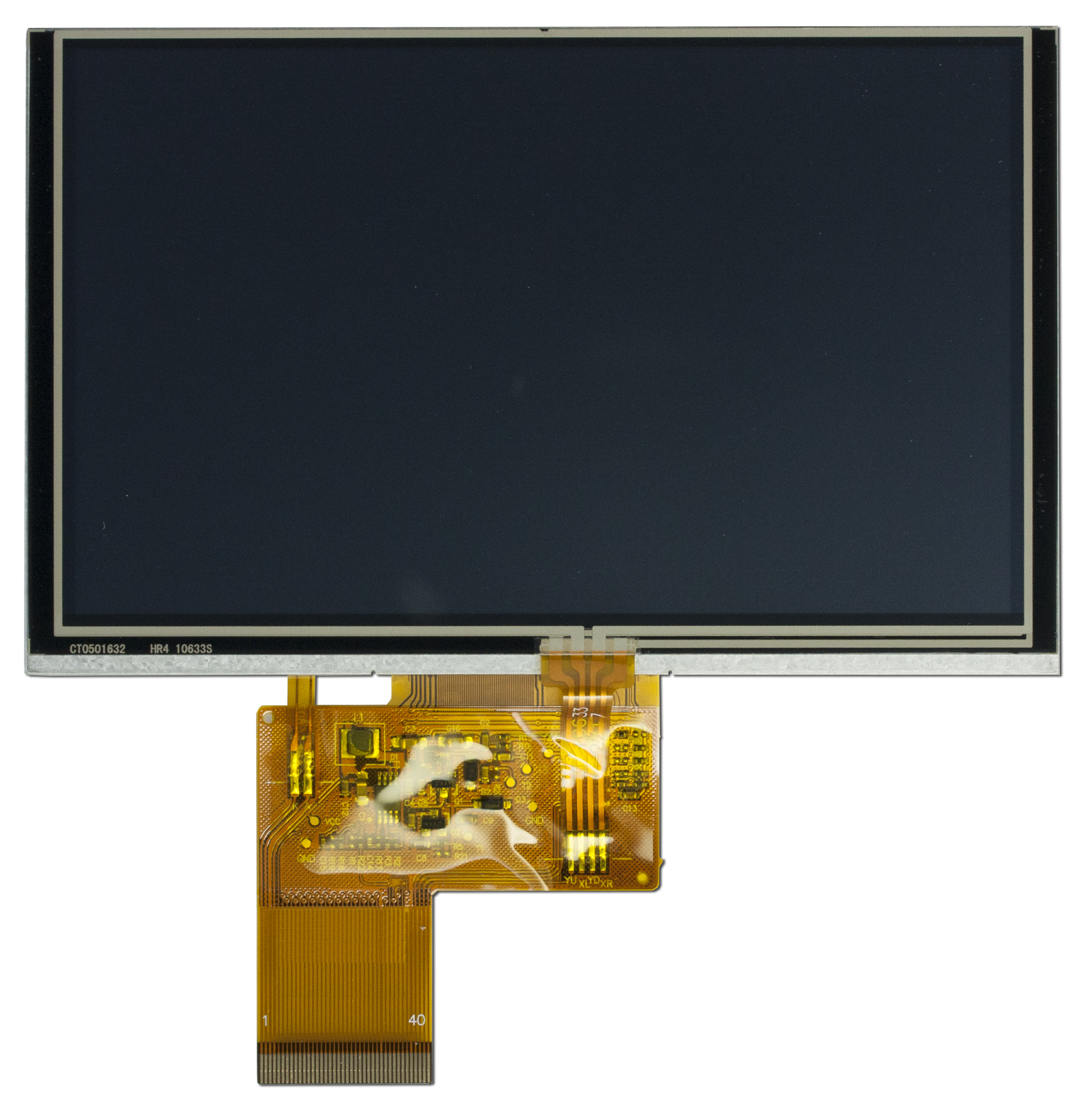

800x480 full-color, graphic 5-inch TFT display module. Includes a white LED backlight and a 4-wire Resistive Touch Screen.
Product Variations

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            800 x 480

    Module Overall        width
        height
        depth

        millimeters
        120.7
        75.8
        4.15

        inches
        4.75
        2.98
        0.16

        Diagonal Dimension
            4.96"

    Active Area        Width
        Height

        millimeters
        108
        64.8

        inches
        4.25
        2.55

        Optional Connectors
            CS050Z40GB0

        Weight
            92g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            TFT/Black
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            4.2V

        Supply Voltage for Logic Typical
            3.3V

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Typical
            19.2V

        Forward Current Typical
            40mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Ilitek ILI6122
1200-Output Channel

TFT LCD Source Driver with TCON
Interface
            DOT-CLK interface / Generic RGB

picture_as_pdf Datasheets
picture_as_pdfCFAF800480A050TTS Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAF800480A-050T-TS Preliminary Datasheet

assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH

Ordering Information* This is a special order part.
Contact us for pricing, lead times, and order info.

Module Overall	width	height	depth
millimeters	120.7	75.8	4.15
inches	4.75	2.98	0.16

Active Area	Width	Height
millimeters	108	64.8
inches	4.25	2.55

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11299: Moving to Special Order

Product Affected:	CFAF800480A-050T-TS
Date Issued:	October 15, 2024
Summary:	Moving to Special Order
Description:	This product is no longer being offered as a standard offering. Contact sales@crystalfontz.com for availability.
Reason:	We're no longer keeping this product in inventory.
Impact:	Additional lead times will be required.
Recommendation:	We recommend replacing it with the CFAF800480E1-050SR (https://www.crystalfontz.com/product/cfaf800480e1050sr-800x480-5in-resistive-touchscreen).
Availability:	Contact Crystalfontz Support for up-to-date information by emailing sales@crystalfontz.com.

Product Update #10490: (New Product) CFAF800480A-050T-TS

New Product:	CFAF800480A-050T-TS
Date Issued:	May 6, 2013
Summary:	(New Product) CFAF800480A-050T-TS
Description:	TFT LCD Modules: 480x800 Full Color TFT Touchscreen Display module
